Short Answer

A diesel generator will not start after running out of fuel because air has entered the fuel system and is blocking proper fuel injection pressure.

In most cases, the generator is not damaged — it simply cannot deliver fuel to the injectors until the air is completely removed.

In real situations, this usually happens right after refueling, when the generator suddenly refuses to start even though everything appears normal. From our experience, this is almost always solved by properly bleeding the fuel system.

What Causes This Problem?

The root cause is always the same: air inside a system that is designed to work only with liquid fuel.

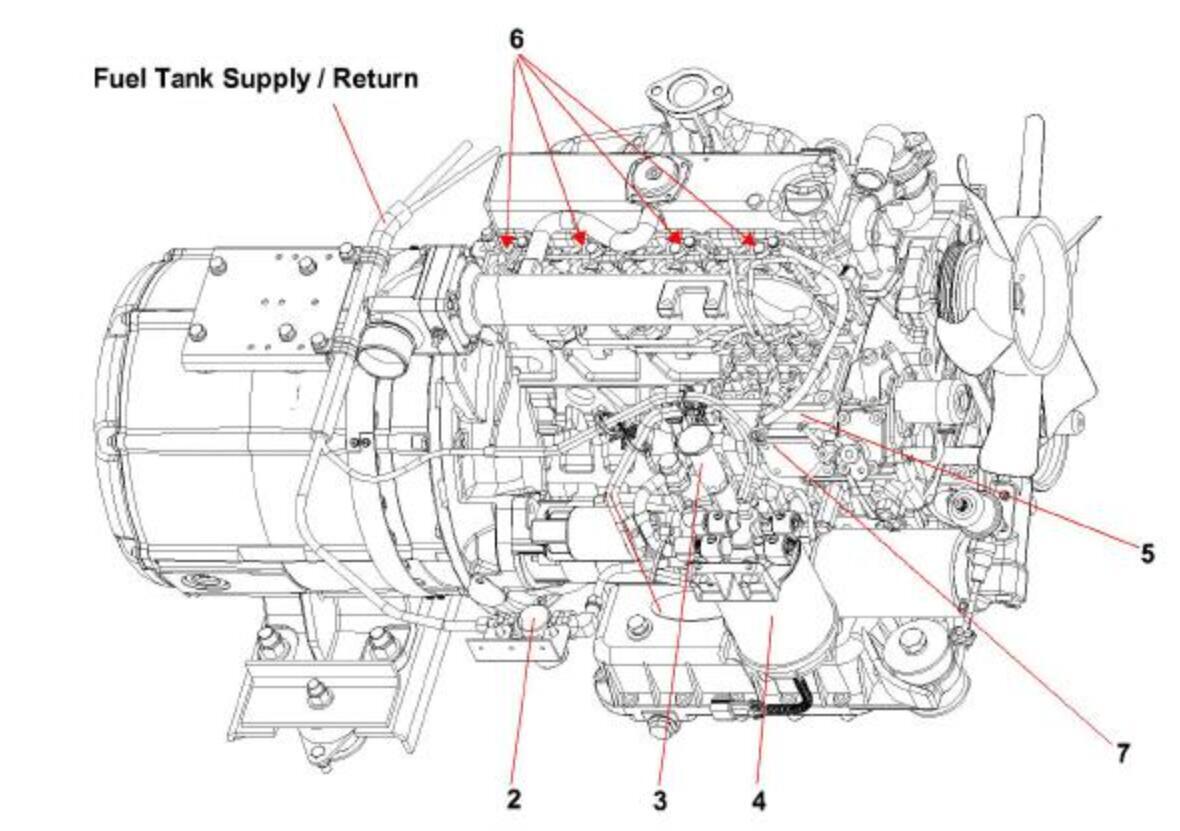

1. Air Enters the Fuel Lines

When the tank runs empty, air is drawn into the fuel lines.
Diesel systems rely on continuous fuel flow. Air breaks this completely.

2. Fuel Filters Are Filled with Air

After refueling, filters often remain partially filled with air.

In real projects, we often see operators replace filters or refill fuel, then try to start immediately. The generator cranks normally but never fires, which leads to unnecessary troubleshooting.

3. Injection Pump Cannot Build Pressure

The injection pump depends on fuel to generate pressure.
If air reaches this stage, no fuel is delivered to the injectors.

4. Injectors Cannot Atomize Fuel

Even small air pockets affect injection quality.
No proper atomization means no combustion.

5. Repeated Cranking Creates a Second Problem

Most operators keep trying to start the generator.

This often leads to:

• Battery voltage drop
• Starter overheating

At this point, the issue becomes more complicated than just air in the system.

How to Diagnose It Step by Step

This is a typical field issue. A structured approach avoids wasted time.

Step 1: Confirm Actual Fuel Level

Do not rely only on the gauge.
Physically confirm that the tank has sufficient fuel.

Step 2: Check for Air at the Fuel Filter

Open the bleed screw on the filter housing.

If you see:

• Bubbles
• Foam
• Irregular flow

Then air is present.

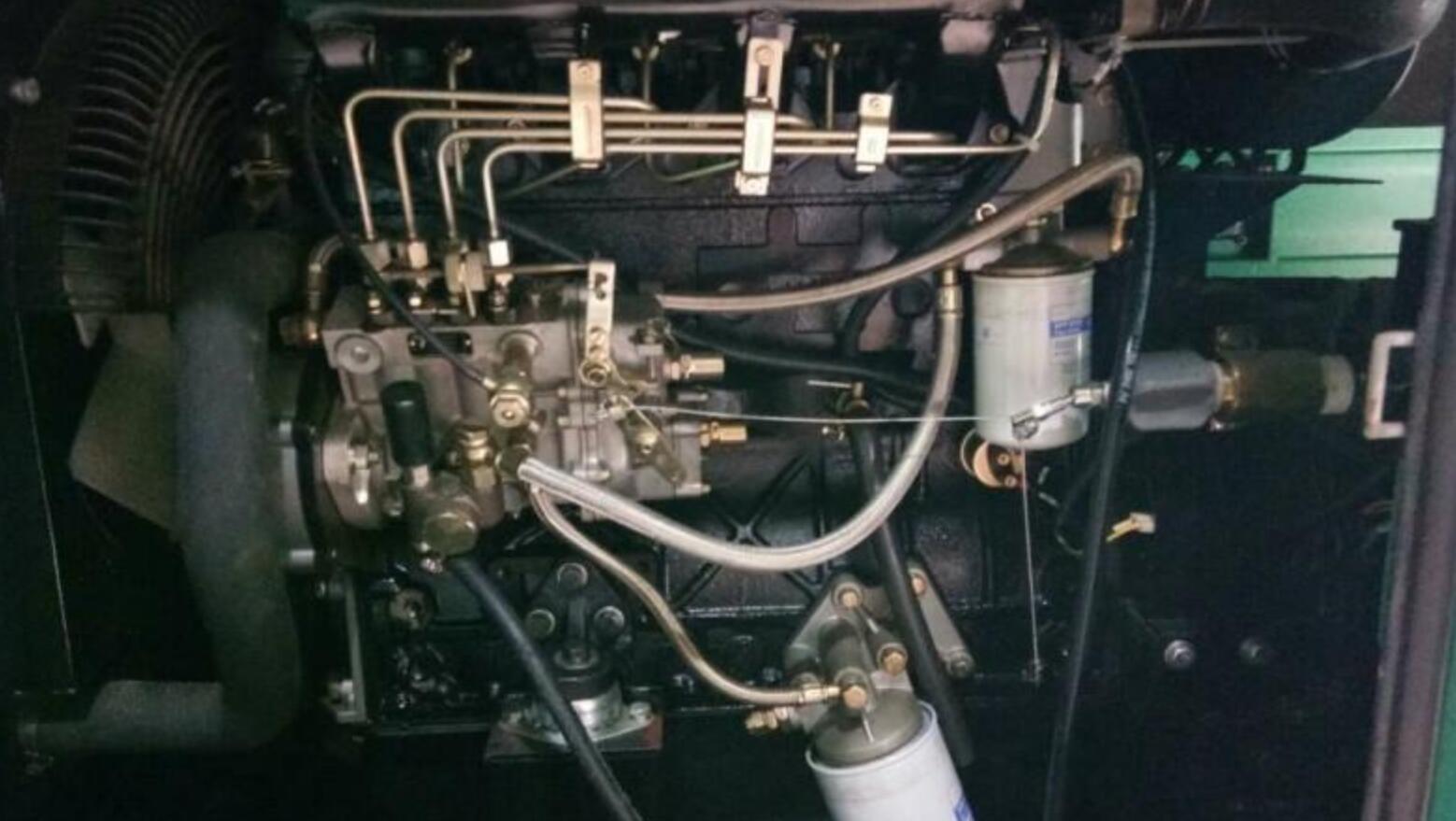

Step 3: Use the Manual Priming Pump

Operate the hand primer pump continuously.

You should feel:

• Increasing resistance
• Stable fuel flow

This means fuel is replacing air.

Step 4: Bleed the System Completely

Loosen bleed points at:

• Fuel filter
• Injection pump

Continue until fuel flows without any bubbles.

Step 5: Restart with Controlled Attempts

Crank for short intervals (10–15 seconds).
Avoid continuous cranking.

How to Fix the Problem

The solution is simple, but incomplete execution is the main reason it fails.

1. Fully Remove All Air

Partial bleeding is not enough.
Even small air pockets can prevent starting.

2. Pre-Fill Fuel Filters (Best Practice)

In many of our projects, we pre-fill filters before installation.
This significantly reduces startup issues.

3. Check for Air Leaks in the System

If the issue persists:

• Check hose connections
• Inspect for cracks or loose fittings

Air may be entering continuously.

4. Restore Battery Condition

If the battery is weak:

• Recharge or replace it
• Ensure proper cranking speed

5. Run the Generator Under Load After Starting

Once started, run at 30–60% load.

This helps:

• Stabilize combustion
• Prevent wet stacking
• Ensure the system is fully recovered

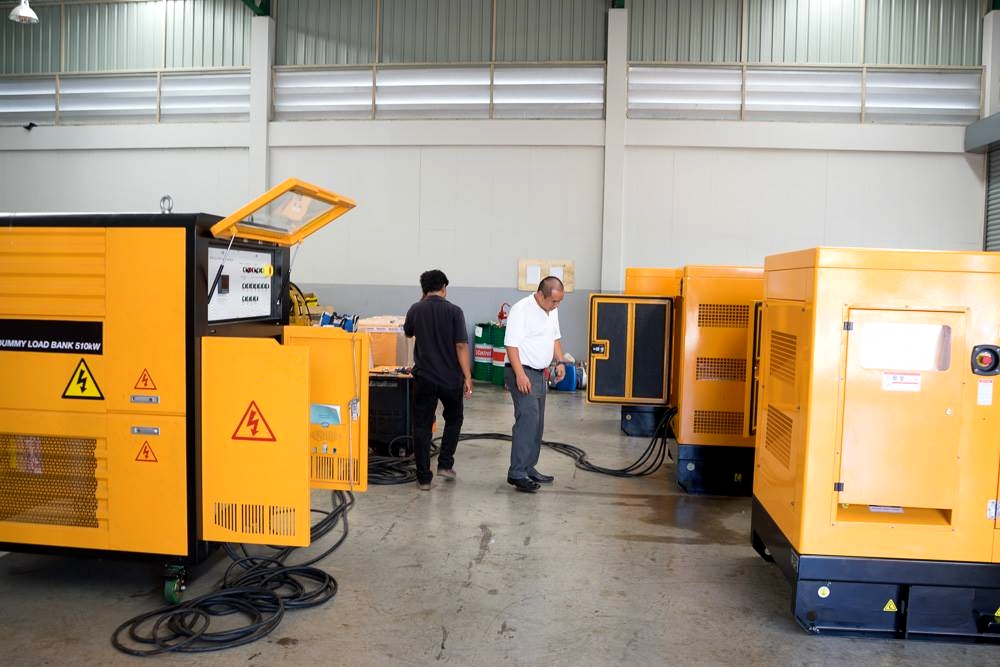

In practice, we often recommend performing a load bank test after such faults to confirm the generator is operating reliably under real conditions.

When Is This a Serious Risk?

This issue becomes critical in real applications.

1. Failure During Emergency Use

If this happens in:

• Hospitals
• Data centers
• Industrial plants

The generator may fail exactly when it is needed.

2. Repeated Dry Running Causes Damage

Frequent fuel starvation can:

• Damage injection pumps
• Increase injector wear

3. Misdiagnosis Leads to Costly Repairs

We have seen cases where operators replaced:

• Injectors
• Pumps

When the real issue was simply air in the system.

4. It Usually Indicates a Bigger Problem

If this issue has already happened once, it is very likely to happen again — especially if fuel management or system design is not properly handled.

In many projects, repeated fuel-related failures indicate:

• Undersized fuel tanks
• Poor monitoring systems
• Improper generator selection

At this stage, it is no longer just a maintenance issue — it becomes a system reliability problem.

How to Prevent It

Prevention is simple, but often overlooked.

1. Never Let the Generator Run Out of Fuel

Maintain at least 25% fuel level.
This alone prevents most cases.

2. Train Operators Properly

Many failures are operational, not mechanical.
Basic training can eliminate this issue completely.

3. Inspect the Fuel System Regularly

Check:

• Fuel lines
• Filters
• Connections

4. Perform Regular Load Testing

Generators that are not tested under load are more likely to fail in real conditions.

You can refer to our Diesel Generator Load Bank Testing guide for a complete testing approach.

5. Ensure Proper System Design

If fuel-related starting issues happen more than once, the root cause is often:

• Incorrect tank sizing
• Poor fuel management
• Improper generator configuration

If your generator repeatedly fails to start after fuel issues, proper system evaluation may be required.

You can also explore our diesel generator solutions to ensure reliable operation in critical applications.

Conclusion

A diesel generator that won’t start after running out of fuel is almost always caused by air trapped in the fuel system.

In our experience, the generator is rarely damaged - it simply requires correct bleeding and fuel pressure restoration.

More importantly, this issue should not be treated as a one-time fault.
It often reveals deeper problems in operation, fuel management, or system design.

In many cases, we are not just fixing starting issues — we are helping clients avoid system failures caused by improper generator sizing or poor fuel system design.
