Connecting a diesel generator to a transformer can seem complicated, but with the right approach, it is quite manageable. Let’s break down the process so you can get it done correctly and safely.
Connecting a diesel generator to a transformer requires careful planning and proper wiring to ensure efficient power transfer. Here’s how you can do it step by step.
The right connections can help ensure that the generator and transformer work together efficiently, providing stable power for your needs.

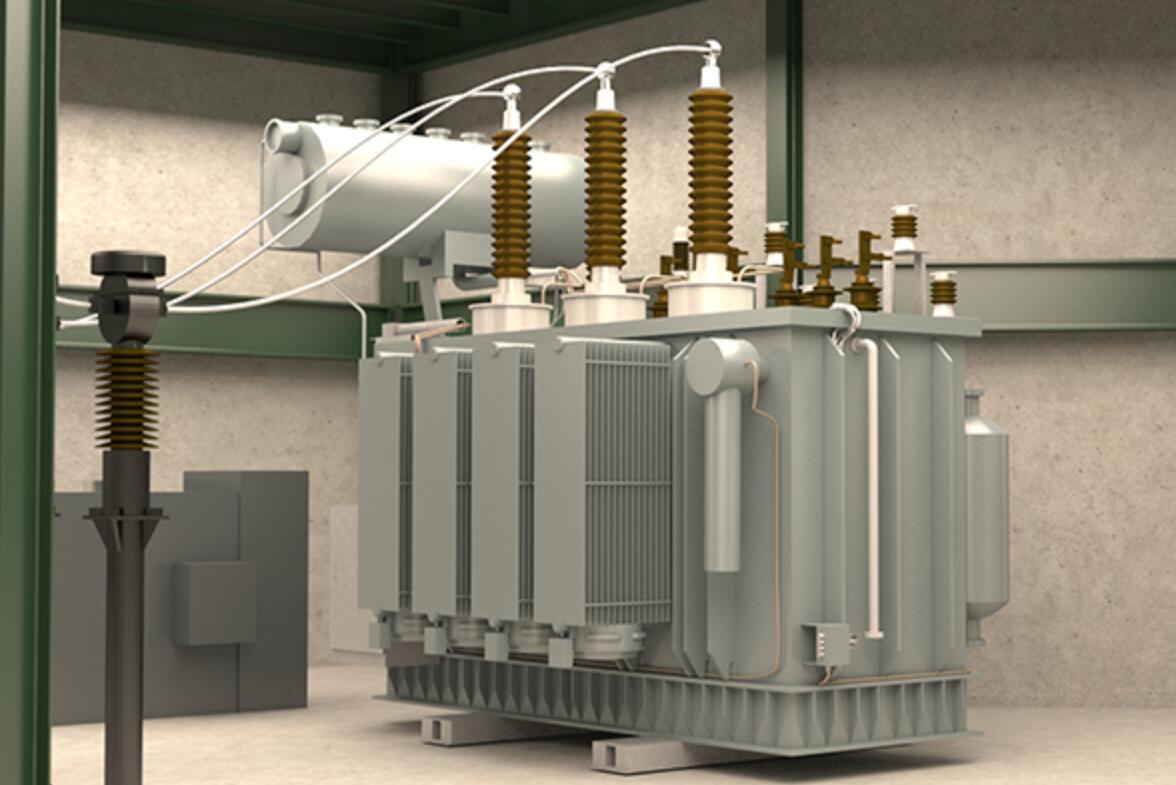

How Does a Diesel Generator Connect to a Transformer?
Connecting a diesel generator to a transformer involves several key steps. These include understanding the generator’s power output, choosing the right transformer, and making the proper electrical connections.
To connect the diesel generator to the transformer, you first need to choose the right transformer that matches the generator's output voltage. Then, you can wire the generator to the transformer following standard electrical practices.
Understanding the Generator's Power Output
A diesel generator generates electrical power by converting mechanical energy into electrical energy. The first thing you need to do is determine the generator's power rating, which is usually given in kilowatts (kW) or megawatts (MW). This rating should be compatible with the transformer to prevent overload or underperformance.
If you're unsure of the right power capacity for your transformer, refer to the technical specifications of both the generator and transformer. Typically, diesel generators have output ratings ranging from 10 kW to several megawatts. Match the output voltage and current specifications with those of the transformer.

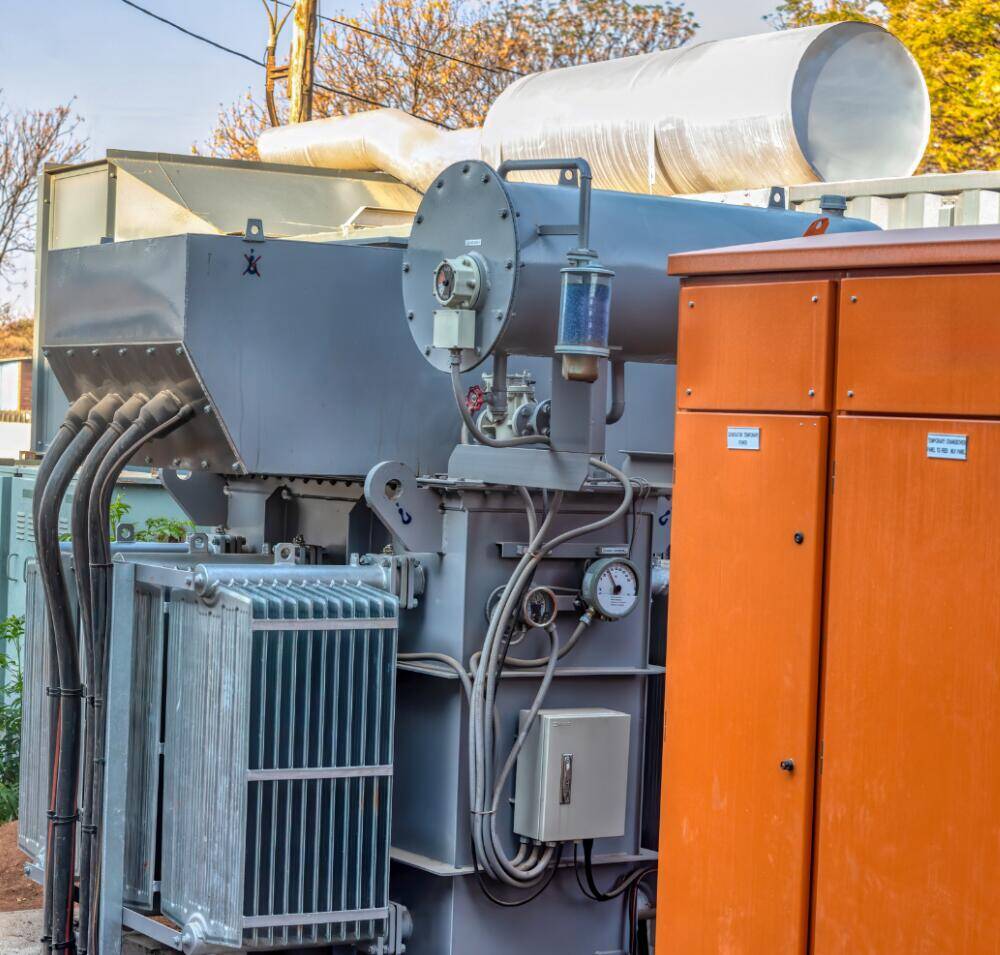

Choosing the Right Transformer
When selecting a transformer, you need to make sure it is capable of handling the voltage and current produced by the diesel generator. If your generator outputs 480V, for example, ensure the transformer is designed for that voltage. Similarly, you’ll want the transformer’s power capacity (in kVA or MVA) to match or exceed the generator’s rating to avoid overloading.
Transformers also come with different winding configurations like delta-delta, star-delta, or star-star. The configuration depends on the application. A typical setup for industrial power distribution would involve a step-down transformer to reduce the voltage for usage in equipment.
Wiring the Generator to the Transformer
Now, it’s time to make the physical connection. Here’s how you can proceed:
-
Ensure Proper Safety Measures: Disconnect any live electrical circuits and make sure all equipment is properly grounded before starting the wiring process.
-
Connect the Generator’s Output to the Transformer: Use properly rated cables for the output of the generator. This cable will connect from the generator’s terminals to the transformer’s primary winding terminals. Make sure the connections are tight and secure to prevent any electrical hazards.
-
Neutral and Ground Connections: Depending on the type of transformer, you may need to connect the neutral from the generator to the neutral of the transformer, and the grounding wire should be properly linked to ensure safety.
-
Check Polarity: If the transformer has a polarity mark, make sure that the generator’s output aligns with the transformer’s input polarity. A wrong polarity connection could lead to incorrect voltage distribution.
-
Test the System: After completing the wiring, conduct a thorough test to make sure the generator and transformer are functioning properly. You can use a multimeter to check the voltage and current levels.
Final Testing and Verification
Once the wiring is done, it’s essential to test the system under load. Power up the generator and check if the transformer is outputting the correct voltage. You should use a power meter to ensure that the output from the generator matches the expected input for the transformer.
This is crucial, as any discrepancy can cause issues with the equipment downstream. If everything checks out, the system is ready for use.
Why Is It Important to Properly Connect a Generator to a Transformer?
Properly connecting a diesel generator to a transformer is essential for the stability of your power supply. Incorrect wiring can lead to inefficiencies, equipment damage, or even dangerous electrical hazards.
The connection between a generator and transformer affects the quality of power distribution. Proper matching ensures minimal power loss and a reliable source of energy for your equipment.
Minimizing Power Loss
In any electrical system, power loss is a concern. The efficiency of a transformer largely depends on the proper connection between it and the generator. Mismatched voltage levels, improper wire gauges, or poor connections can cause voltage drops, leading to power loss and affecting the performance of the connected equipment.
To minimize these losses, ensure the wire gauge is appropriate for the distance between the generator and transformer, and use high-quality connections and insulation. Additionally, always check for any signs of overheating or degradation over time.
Preventing Overloading
If the transformer is not appropriately sized for the generator, there’s a risk of overloading, which can cause severe damage. A transformer that is too small for the generator’s output will have to work harder, potentially causing overheating or even failure.
To avoid overloading, always calculate the total load requirement, including safety margins. If the transformer’s rating is too low, it will fail to meet the needs of the connected equipment.
Ensuring Equipment Longevity
Lastly, making sure the connections are done correctly can improve the longevity of both the diesel generator and transformer. Proper insulation, secure connections, and correct voltage matching prevent wear and tear on electrical components, which reduces maintenance costs and extends the lifespan of the equipment.
Conclusion
Ensuring the right connection between a diesel generator and transformer is essential for a reliable and efficient power system. Always check your equipment’s specifications and make the connections with safety in mind.
