Short Answer
A diesel generator that won’t start is usually caused by battery failure, air in the fuel system, or fuel supply blockage.
In most cases, you can identify the issue in under 10 minutes by checking battery voltage, fuel flow, and whether air is trapped in the fuel lines.
In our field experience, most starting failures are not major breakdowns, but basic maintenance or system-related issues.
What Causes This Problem?
Most no-start issues come from a few predictable areas. Start here instead of guessing.
1. Weak or Dead Battery
A diesel engine requires strong cranking power. If voltage drops, the starter cannot turn the engine effectively.
This is very common in standby generators that are rarely tested.
2. Air in the Fuel System
Air enters when:
- The generator runs out of fuel
- Fuel filters are replaced
- Fuel lines are loose
Once air is inside, fuel pressure drops and injection becomes unstable.
3. Fuel Supply Blockage
Typical problems include:
- Clogged fuel filters
- Blocked fuel lines
- Contaminated diesel
In many projects, poor fuel quality is the hidden cause.
4. Control System Lockout
Modern generators use controllers like Deep Sea Electronics DSE6120.
If there is a fault (low oil pressure, high temperature, emergency stop), the system will block starting completely.
5. Long-Term Low Load Operation (Wet Stacking)
Running at low load for long periods causes carbon buildup.
This reduces combustion efficiency and can eventually affect starting performance.
How to Diagnose It Step by Step
This is the same troubleshooting sequence we use in real projects.

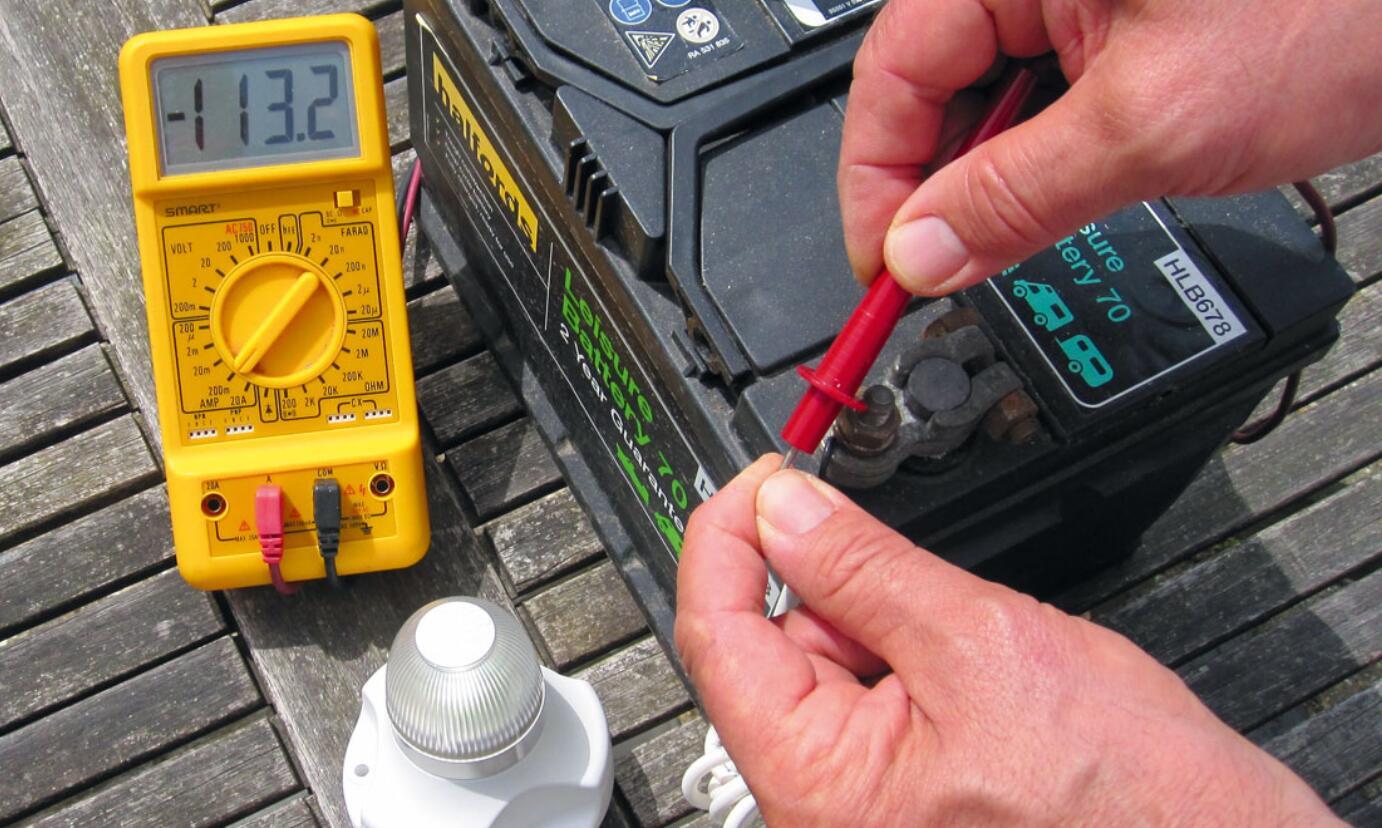

Step 1: Check Battery Voltage
- 24V system → should be above 24V
- Below 22V → starting failure likely
Also check terminal connections.
Step 2: Observe Cranking Behavior
- No crank → electrical issue
- Slow crank → battery problem
- Normal crank but no start → fuel-related issue
Step 3: Check Fuel Supply
- Confirm fuel level
- Check if fuel reaches the engine
- Replace clogged filters
Step 4: Bleed the Fuel System
If air is suspected:
- Open bleed valve
- Use priming pump
- Pump until no air bubbles appear
This step solves a large percentage of cases.
Step 5: Check Controller Alarms
- Emergency stop activated
- Low oil pressure
- Sensor fault
Clear alarms only after fixing the cause.
Step 6: Check Air Intake
- Inspect air filter
- Ensure intake is not blocked
How to Fix the Problem
Fixes depend on the root cause:
- Battery issue → recharge or replace
- Air in fuel → bleed system completely
- Fuel blockage → replace filters and clean lines
- Controller lockout → reset after fault removal
- Wet stacking → run generator at 60–80% load
If the generator still cannot start, deeper issues may exist:
- Fuel injection pump
- Injectors
- Engine compression
When You Should Not Try to Fix It Yourself
In real projects, we often see users repeatedly fixing starting issues, but the problem keeps coming back.
This usually means the issue is not just a faulty part.
It is often caused by:
- Incorrect generator sizing
- Long-term low load operation
- Lack of proper system testing
If your generator fails to start more than once, continuing to fix individual parts will not solve the root problem.
At this point, it is better to evaluate the entire system instead of repairing symptoms repeatedly.
When Is This a Serious Risk?
This becomes critical if:
- The generator is used for backup power (data center, hospital, telecom)
- It fails to start more than once
- It only starts after repeated attempts
In these cases, the issue is not just mechanical.
It indicates the backup system is unreliable
And in real power failures, this can lead to:
- Downtime
- Equipment damage
- Financial loss
How to Prevent It
1. Run Under Proper Load
Avoid long-term low load operation.
Maintain at least 30% load, ideally 50–70%.

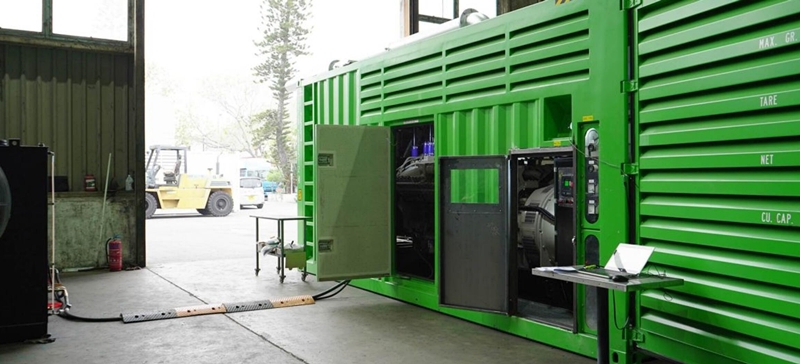

2. Perform Regular Load Testing
If your generator has not been tested under load, hidden problems may not appear until failure happens.
We strongly recommend using a Diesel Generator Load Bank Testing approach to verify real performance.
3. Maintain the Fuel System
- Replace filters regularly
- Use clean diesel
- Prevent contamination
4. Maintain the Battery System
- Check voltage regularly
- Use automatic chargers
- Replace batteries every 2–3 years
5. Verify System Performance (Important)
If your generator shows repeated starting problems, it may not be a maintenance issue.
It may be a design or sizing issue
In many real cases, oversized generators running at low load develop long-term reliability problems.
Conclusion
A diesel generator that won’t start is usually caused by simple issues like battery failure or fuel system problems.
Most cases can be solved quickly with systematic troubleshooting.
However, if the problem happens repeatedly, it is no longer just a repair issue.
It usually means:
- The generator is not properly loaded
- The system is not tested correctly
- Or the generator is not correctly sized
In these situations, continuing to fix small faults will not solve the real problem.
It is better to review the entire power system before a failure happens when you need it most.
Practical Insight from Real Projects
In many projects we’ve handled, repeated “no-start” issues were eventually traced back to:
- Oversized generators
- Lack of load testing
- Poor maintenance planning
Once these were corrected, the problem disappeared completely.
If you are facing the same situation, it is worth re-evaluating your setup instead of continuing trial-and-error repairs.
