A manual transfer switch is essential when you need to switch between utility power and generator power during a power outage. But how do you properly use it? Let's break it down.
A manual transfer switch allows you to connect your generator to your home's electrical system safely. Understanding how to use it is crucial to avoid electrical hazards and ensure a smooth transition.
Switching between power sources is more than just flipping a switch. There are steps you must follow to ensure both safety and functionality.

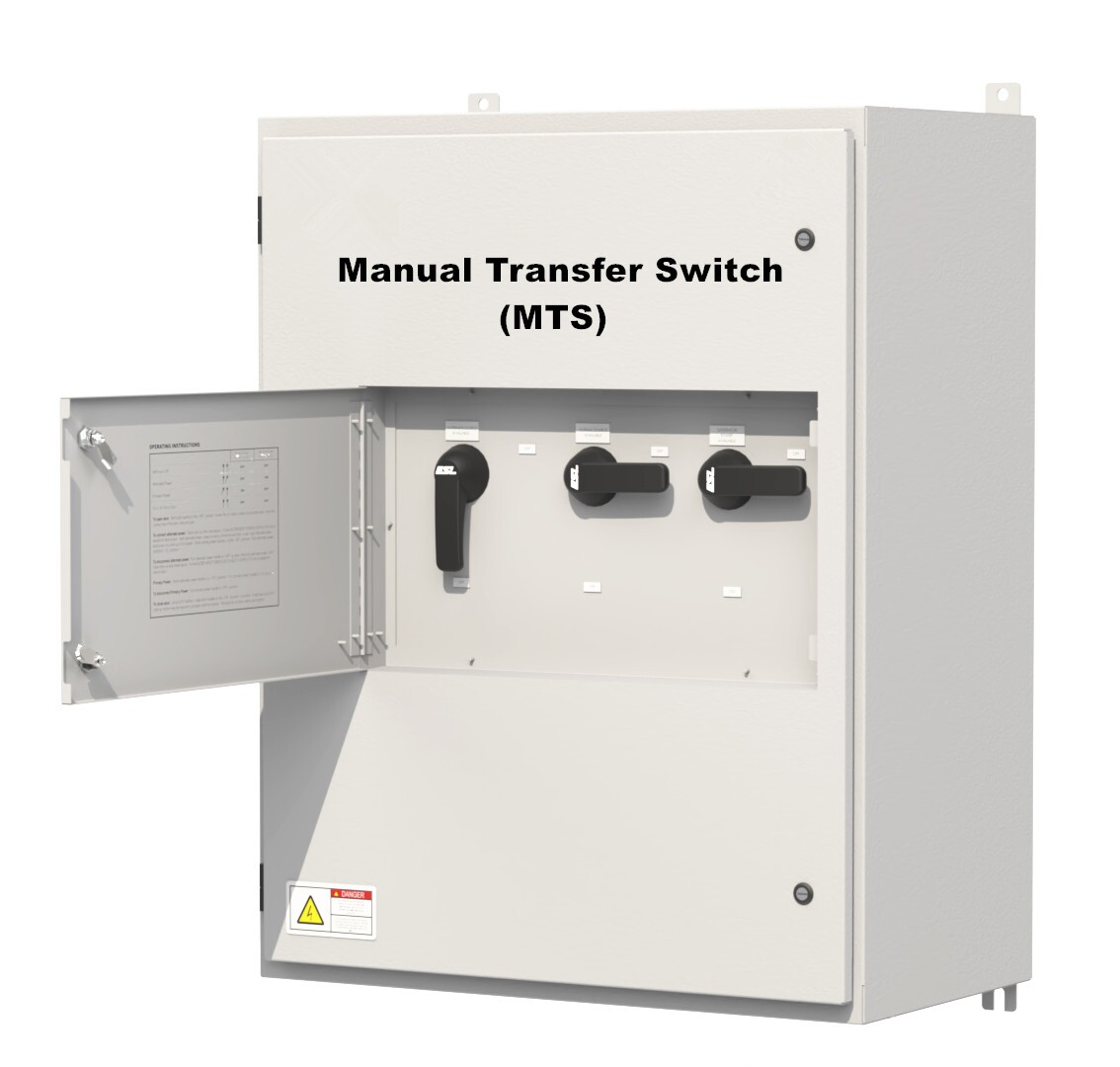

What is a Manual Transfer Switch?
A manual transfer switch (MTS) is a device that isolates your generator from the power grid. It ensures that the generator is safely connected to your home's electrical system without risking backfeeding into the grid. Backfeeding can cause serious issues, including electrocution hazards for utility workers.
To use a manual transfer switch, you first need to turn off the main power supply. Then, you can connect the generator to the transfer switch and activate it to provide power to your home.
A manual transfer switch works by controlling the flow of electricity between your home’s utility power and the generator. When you lose power, instead of attempting to connect your generator directly to the main panel, the transfer switch allows you to safely switch from the utility line to generator power.

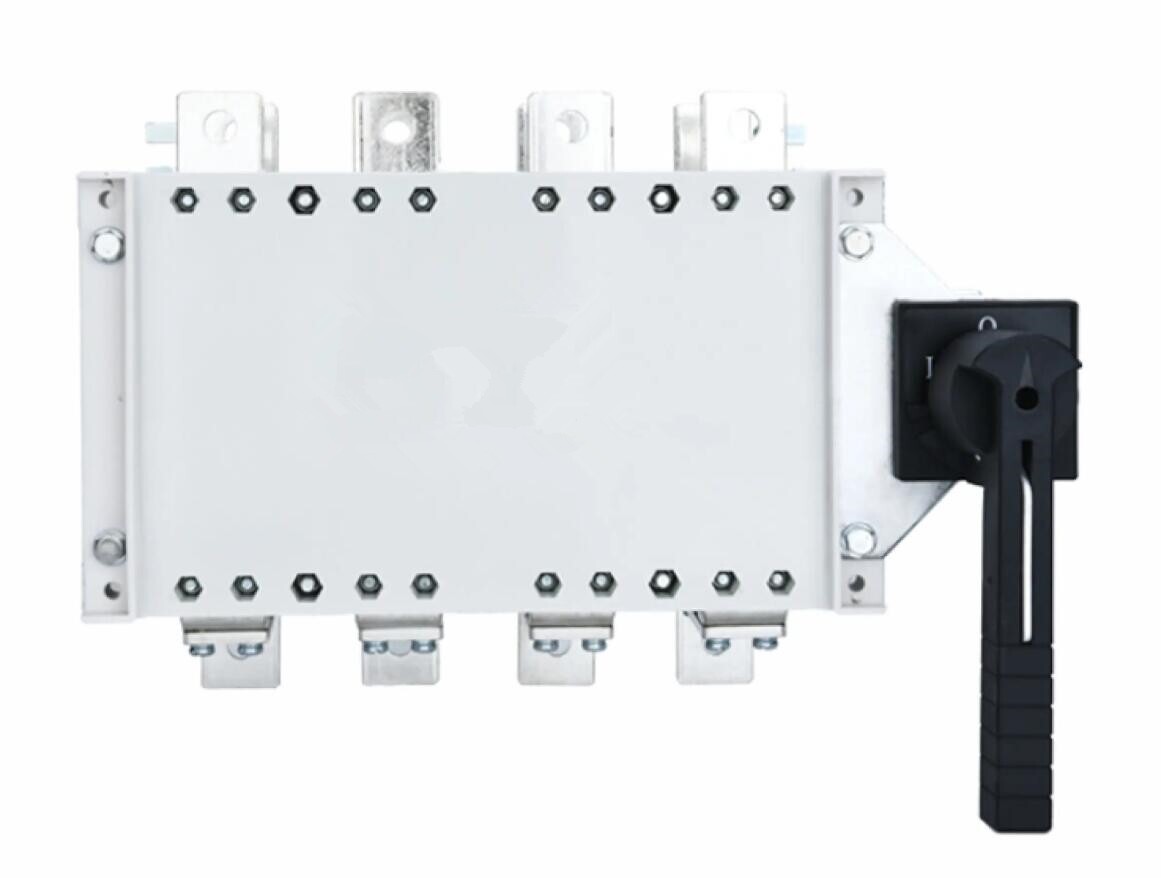

The switch is typically installed between your home’s electrical panel and the main electrical supply. It has several positions: one for utility power and one for generator power. When utility power is lost, you simply flip the switch to generator power, allowing your generator to power your home.
One of the most important features of the MTS is its ability to prevent backfeeding, which can occur if power is inadvertently fed into the utility grid from your generator. This is a major safety concern because it could cause serious injuries to utility workers repairing power lines. The MTS ensures that this does not happen by disconnecting the grid and only allowing power to flow from the generator to your home.
Additionally, manual transfer switches often have circuit breakers or fuses to protect your home’s electrical system and the generator from damage. This makes them an excellent choice for homeowners who want a reliable and safe solution for backup power.

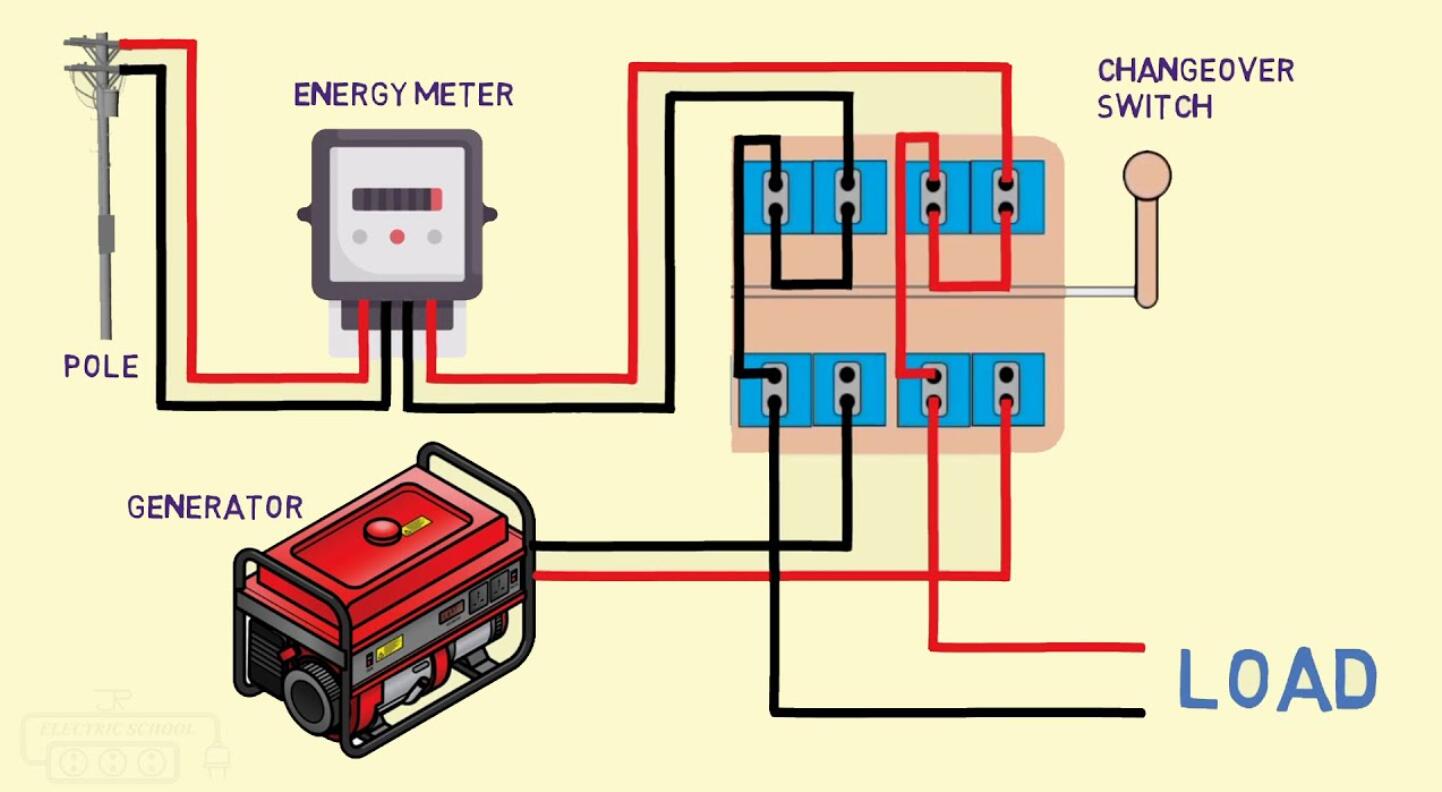

How Do You Install a Manual Transfer Switch?
Installing a manual transfer switch requires some technical know-how and the right tools. It’s always recommended to hire a licensed electrician if you're not comfortable doing it yourself. But for those who are familiar with electrical systems, here's a step-by-step guide:
Installation involves connecting the transfer switch to the home’s main electrical panel, ensuring all components are properly grounded, and testing the system.
To install a manual transfer switch, you’ll need to follow a few basic steps:
-
Choose the Location: The MTS should be installed near your electrical panel and in a location that is easily accessible for operation. It should be placed in a dry area away from moisture or extreme temperatures.
-
Turn Off the Main Breaker: Before working on the system, ensure the main breaker is turned off. This will prevent any electricity from flowing through the system while you’re working.
-
Wiring the Transfer Switch: A manual transfer switch has multiple input and output terminals. The key is to connect your generator to the switch, which will then feed power to the electrical panel. The MTS will typically have two input connections: one for utility power and one for generator power. These must be correctly wired into your system to ensure proper functionality.
-
Grounding: Proper grounding is essential for both safety and performance. Ensure the transfer switch is grounded according to the manufacturer’s instructions and local building codes.
-
Test the System: Once installed, test the transfer switch to ensure that it works correctly. This involves simulating a power outage, turning off the utility breaker, and ensuring the generator powers the house correctly.
-
Consult an Expert: If you're unsure about any step, it’s best to call a licensed electrician. Incorrect installation can cause damage to your electrical system or create safety hazards.
Manual transfer switches are relatively simple to install, but they do require knowledge of electrical systems to ensure they’re safely and effectively connected. This is why professionals are often hired to handle the installation.

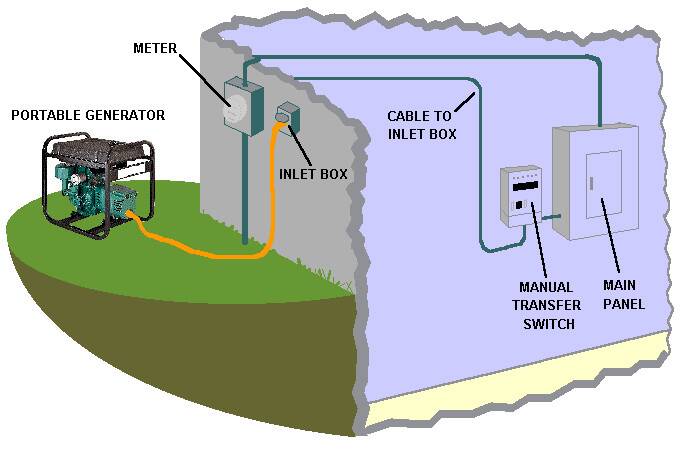

How to Operate a Manual Transfer Switch?
Once your manual transfer switch is installed, it’s time to understand how to use it. Operating it is straightforward, but safety precautions are necessary.
To operate a manual transfer switch, you must first start your generator, then turn off the utility power before switching to generator power. This ensures that the generator is supplying power to your home without any interference from the utility grid.
-
Start the Generator: Before switching, make sure the generator is properly fueled and running. The manual transfer switch won’t work if the generator is not running. This is why it's important to test your generator regularly to ensure it’s ready for use in case of an outage.
-
Turn Off the Main Utility Breaker: To ensure a smooth transition, turn off the main breaker that connects your home to the utility power. This step is critical to avoid backfeeding.
-
Switch the Transfer Switch: Once the main breaker is off, you can now flip the manual transfer switch to the generator position. This step safely connects your home’s electrical system to the generator.
-
Activate the Circuits: Some manual transfer switches have individual breakers that let you choose which circuits in your home are powered. If you’re only using a few essential appliances, you can select just those circuits to be powered by the generator.
-
Monitor the System: Keep an eye on the generator while it’s running. Make sure it's not overloaded and that all systems are functioning properly.
-
Switch Back to Utility Power: Once the utility power is restored, you can turn off the generator and switch the transfer switch back to the utility position. Ensure that the generator is turned off before connecting to the utility grid.
The key to using a manual transfer switch is always following these steps in the correct order. Starting the generator first, switching off the utility power, and then switching to the generator power ensures the system operates safely. Always take precautions, especially with electrical systems.
Conclusion
Using a manual transfer switch is straightforward but requires understanding and proper execution. Follow the correct steps to ensure safety and functionality when switching to generator power.
