5 Steps About How Import Diesel Generators From China
This article will tell you how to directly import diesel generators from China and help you save purchasing costs by at least 50%
Walt Power WDG Series Air-Cooled Portable Open Frame Diesel Generators are convenient to move and widely used in homes, shops, offices, warehouses, clinics, and other on-site electricity.
It is not easy to introduce all aspects of custom generators, so we have prepared a lot of information on this page for you to delve into. To make sure you can find the information you want quickly, we have prepared this content directory that will jump to the corresponding location when you click on it.
Air-cooled Portable Open Frame Diesel Generators have the following wide range of applications—inquiry us for more solutions.
Find the rights portable open frame diesel generators below for your power needs; All of our products are provided with up to one years warranty.

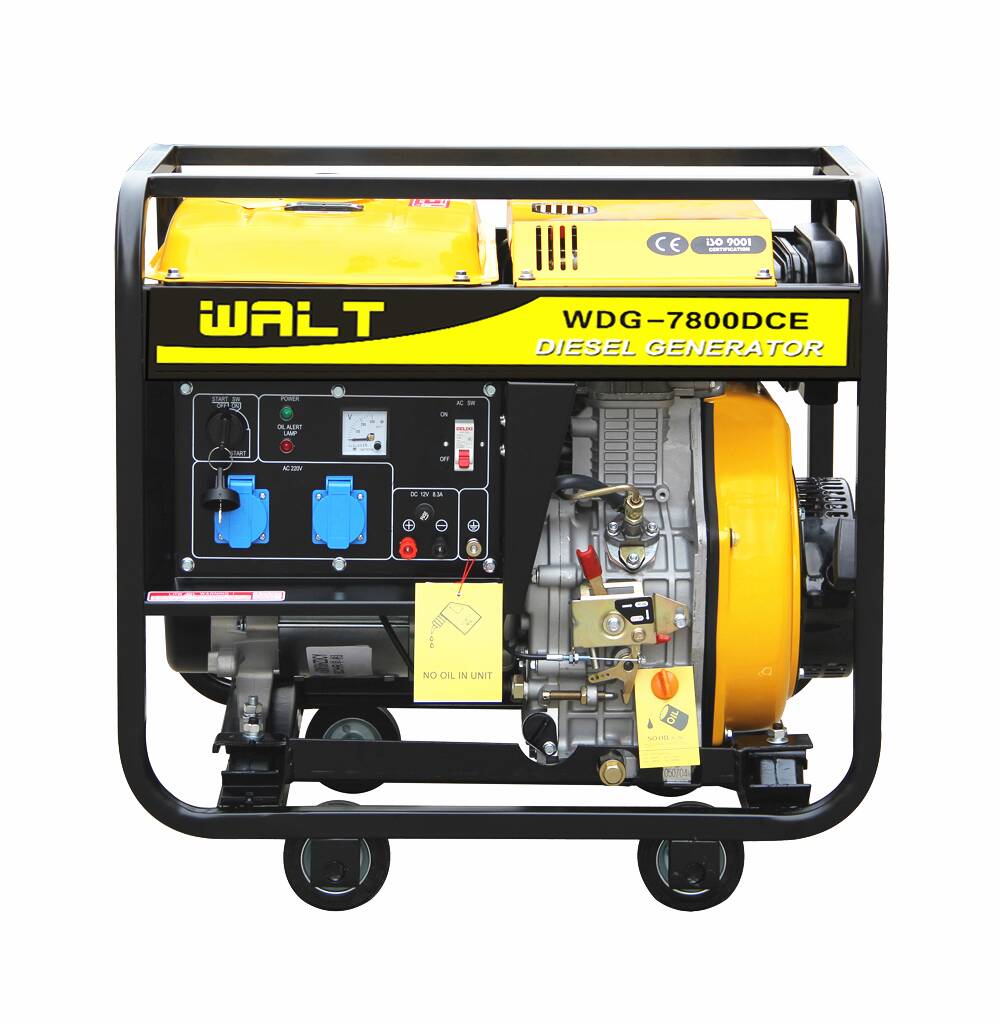

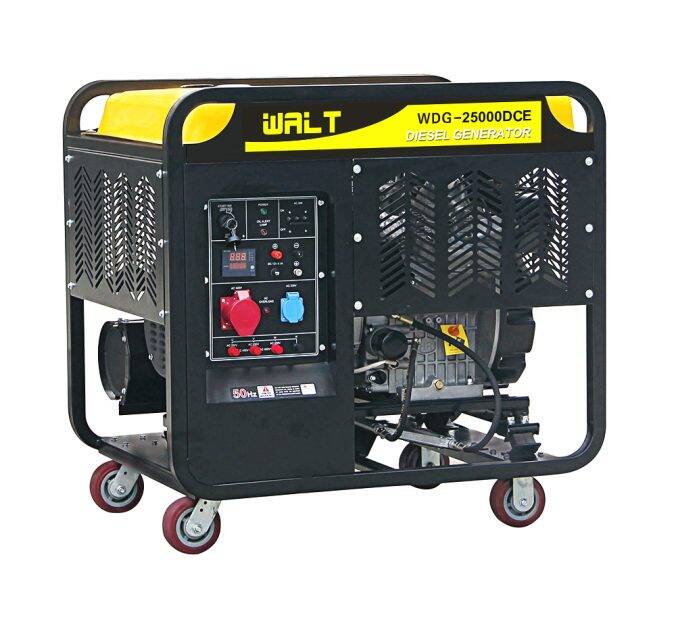

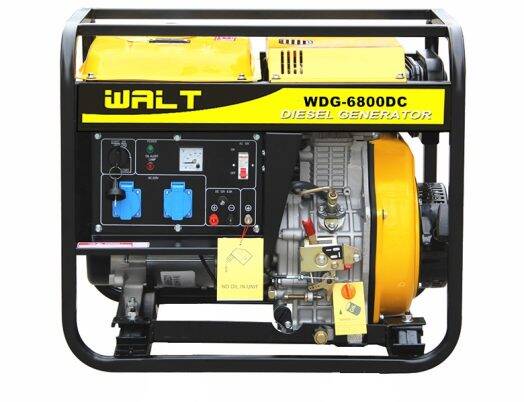

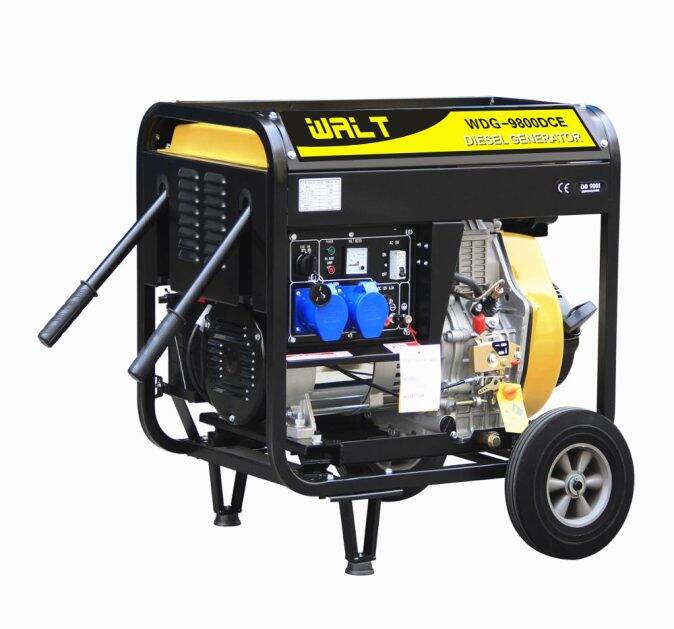

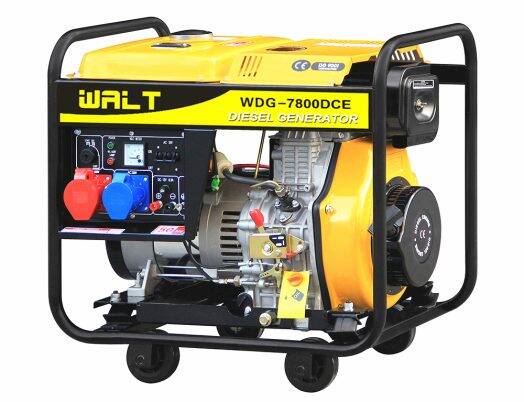

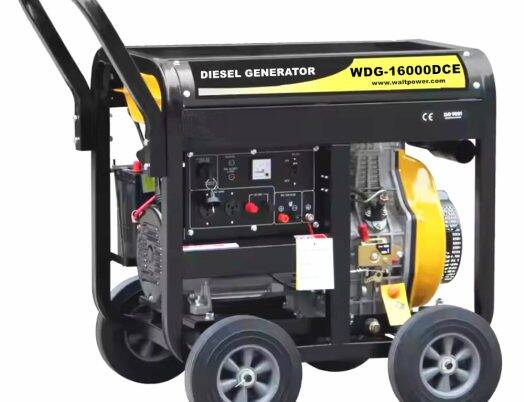

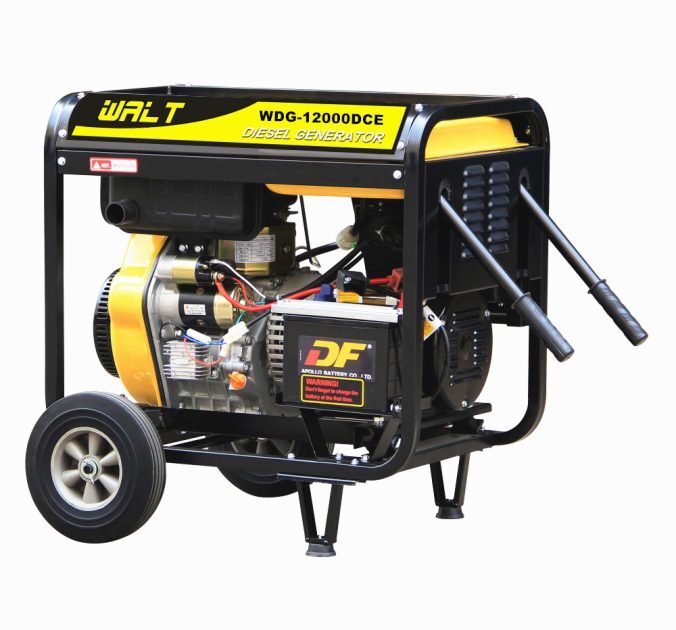

Open Frame Generator Model | WDG-6800DCE | WDG-7800DCE | WDG-9800DCE | WDG-12000DCE | WDG-16000DCE | WDG-18000DCE | WDG-25000DCE |
---|---|---|---|---|---|---|---|
Max. Output Power | 5kW/5kVA | 5.5kW/5.5kVA | 6.5kW/6.5kVA | 8kW/8kVA | 10kW/10kVA | 12kW/12kVA | 16kW/16kVA |
Rated Output Power | 4.5kW/4.5kVA | 5kW/5kVA | 6kW/6kVA | 7.5kW/7.5kVA | 9kW/9kVA | 11kW/11kVA | 15kW/15kVA |
Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
Voltage | 110, 220, 230, 240, 380, 400, 440, 460, 480V | 110, 220, 230, 240, 380, 400, 440, 460, 480V | 110, 220, 230, 240, 380, 400, 440, 460, 480V | 110, 220, 230, 240, 380, 400, 440, 460, 480V | 110, 220, 230, 240, 380, 400, 440, 460, 480V | 110, 220, 230, 240, 380, 400, 440, 460, 480V | 110, 220, 230, 240, 380, 400, 440, 460, 480V |
Phase | 1 or 3 Phase | 1 or 3 Phase | 1 or 3 Phase | 1 or 3 Phase | 1 or 3 Phase | 1 or 3 Phase | 1 or 3 Phase |
DC Output | 12V 8.3A | 12V 8.3A | 12V 8.3A | 12V 8.3A | 12V 8.3A | 12V 8.3A | 12V 8.3A |
Fuel Tank Capacity | 12.5L | 12.5L | 12.5L | 12.5L | 25L | 25L | 25L |
Starting System | E-start with battery | E-start with battery | E-start with battery | E-start with battery | E-start with battery | E-start with battery | E-start with battery |
Continuous Running | 7.8 Hrs | 7.8 Hrs | 6.5 Hrs | 5 Hrs | 8.3 Hrs | 8.3 Hrs | 5.9 Hrs |
Fuel Type | 0# or -10# light diesel fuel | 0# or -10# light diesel fuel | 0# or -10# light diesel fuel | 0# or -10# light diesel fuel | 0# or -10# light diesel fuel | 0# or -10# light diesel fuel | 0# or -10# light diesel fuel |
Genset Weight | 105Kg | 105Kg | 115Kg | 135Kg | 155Kg | 210Kg | 261Kg |
Dimension L×W×H mm | 705×490×590 | 705×490×590 | 705×490×590 | 740×550×660 | 840×560×685 | 885×655×890 | 935×655×980 |
Qty for 20'ft | 105 sets | 105 sets | 105 sets | 93 sets | 93 sets | 42 sets | 42 sets |

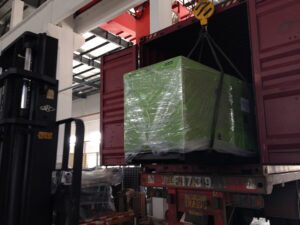

Please note that the final cost depends on the quantities you require, the specifications of the raw materials used, the relevant national laws, and the distance of transportation. Take the example of booking a full container of products:
This is the total Fob price for delivery to the port of China.
$42000Take the US as a sample, the port of departure is Shanghai China, and the destination port is Miami.
$4500Estimated customs clearance and other miscellaneous fees based on our experiences.
$1800Please note that the final delivery time depends on the quantities you require, the specifications of materials requirement, and the distance of transportation. Take the example of booking a 40’ft container of products:
Let our experts know your purchase requirements, such as the power of the Genset, voltage, frequency, phase, quantity, and others (if have any).
This step allows us to clearly outline your ordering requirements in a contract, with both parties confirming pricing and shipping terms to protect your purchasing rights.
Confirmation of terms by both parties and pay of advance payment by the purchaser.
Upon receipt of the deposit, we will deliver your genset as per the Proforma Invoice/Sales Contract terms.
Depends on the destination country’s distance. If the shipping term is Fob Shanghai China, we send the Genset to any city in China not more than 5 days. Typically 3 to 10 days for Southeast Asian countries by sea shipping. For other countries, contact us for details.
Please note that the final cost depends on the customized service you require, the specifications of the raw materials used, the relevant national laws, and the distance of transportation. Take the example of booking a tall container of products:
This article will tell you how to directly import diesel generators from China and help you save purchasing costs by at least 50%
This article will tell you how to choose a suitable air-cooled diesel generator set and the key points to pay attention to when you decide to purchase
When purchasing an ordinary diesel generator set, you will often encounter the following problems, which will directly affect whether the generator set can correctly match your needs and its service life.
When you decide to purchase a diesel generator set, to avoid the purchasing pitfalls mentioned above, it is important to conduct a thorough evaluation of the power demand and load characteristics of the equipment or facility that the generator set will be supporting, including calculating the peak power demand, considering any future expansion plans, and taking into account any potential power surges or fluctuations.
In addition, it is vital to work with a reputable and experienced supplier/manufacturer who can provide expert guidance and assistance to help you select the right genset for your needs to ensure a successful purchase.
By addressing these potential pitfalls and taking proactive steps to mitigate risks, you can make a well-informed decision when purchasing a generator set and ensure a reliable power supply for your operations.
Founded in 1996, Walt Power is committed to designing, manufacturing, and exporting premium and competitively priced generator sets.
WALT Power has a significant & full-range air-cooled diesel generator manufacturing capability.
Whether you need silent diesel generators or need to custom any generator sets. Walt Power always satisfies your needs.
If your question is not listed, please email us right now.
The average cost of a portable diesel generator can range from around $200 to over $2500, depending on various factors. The power output significantly affects the cost of a portable diesel generator as models with higher power output typically cost more.
Usually 5kVA, 8kVA, and 10kVA portable diesel generators would be enough to power a typical house. With this generator size, homeowners can expect to power essential appliances such as the air conditioner, sump pump, refrigerator, laptop, TV, and light bulbs
A portable generator runs continuously between six to 18 hours, depending on the model. This means it is generally safe to use a standby generator for nearly three weeks as a constant power source during prolonged power outages if needed.
Less maintenance is needed – Diesel engines have fewer components and a simpler fuel delivery system so although they still need regular generator maintenance, there is less they need maintenance on. Fuel efficient – they have a longer running time and are more cost effective to run than petrol generators
Petrol is more flammable than diesel, making diesel a safer alternative. They run well in high ambient temperatures. Deliver on-demand power for heavy start/stop loads. Diesel has a longer shelf life than petrol
Yes, a diesel generator does not have a carburetor and instead creates an electric current with compression. Diesel generators tend to last longer and use less fuel, making them more fuel-efficient.
Most portable diesel generators can run continuously for more than 8 hours at full load. If the load is only 75%, the running time will be longer.
A 5kva diesel generator is great on the building site or home, providing a steady power supply for using multiple tools and equipment. This high-powered generator will also run appliances such as fridges, AC units, and even sensitive electronic equipment.
10 kVA (10kW) single-phase portable diesel generator WDG-16000DSE easily powers up 1 refrigerator, 1 microwave, 2 TVs, 1 kettle, 6 lights, 3 laptops, 2 air conditioners, 1 monitor and 1 printer at the same time.
Yes, all of our portable diesel generators can automatically start in the event of a power outage. These are called "standby" or "automatic" portable generators. They are connected to your home's electrical system and are designed to automatically turn on/off when the power goes/back.
We will contact you within 1 working day, please pay attention to the email with the suffix “@waltpower.com”.
