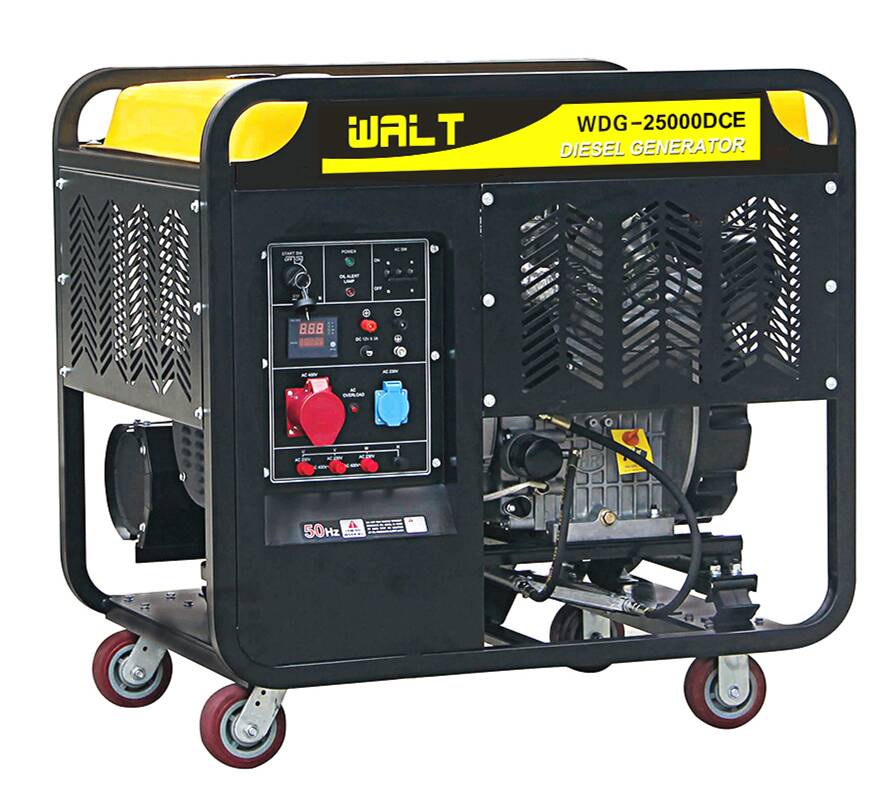

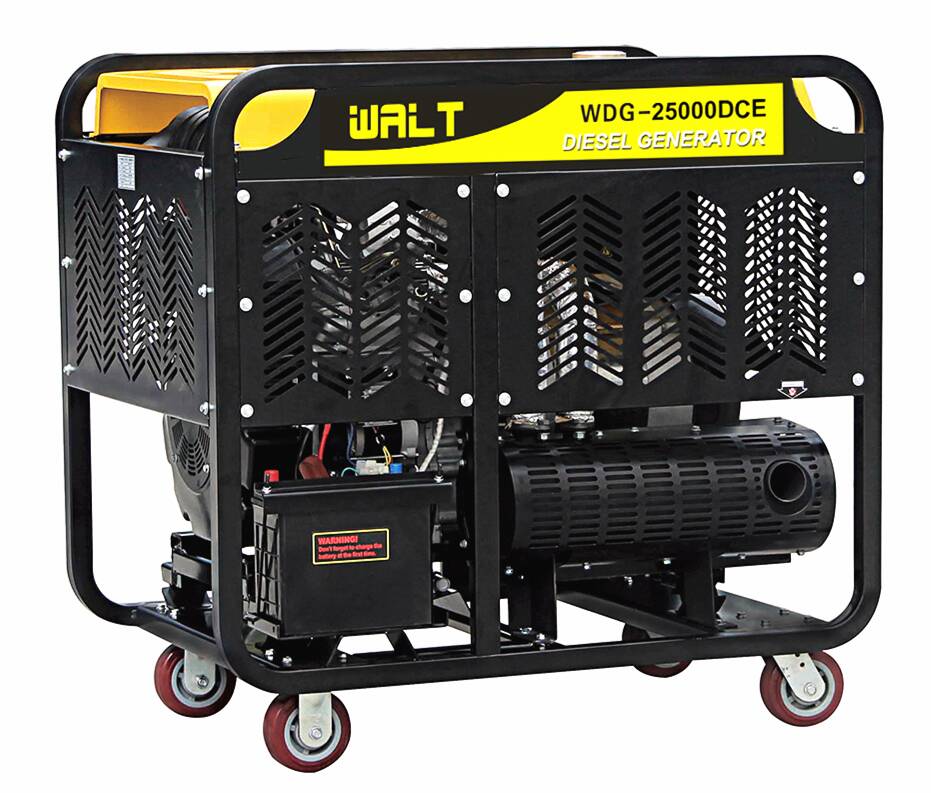

16kW 20kVA 3 Phase Open Type Portable Diesel Generator

Open Frame Portable Generator
20kVA/16kW three-phase genset power
Powered by 3000/3600 rpm air-cooled engine
Large displacement, power stable and strong
Electric start with battery for easy operation
ATS for auto start/stop
12 months global warranty
Port of loading: Shanghai China
ISO9001, ISO14001, CE, Euro 5

Additional information

OVERVIEW

WALT WDG series are ideals for mobile portable generator demands. Providing low-cost continuous on-site electricity supply for all uses, trades, or homes, who need a reliable source of power however mains power outage. Covers most of the home and small business backup power needs.

Specifications

50Hz

60Hz

50Hz

60Hz

The Knowledge About Diesel Generators

Top 10 Best-Selling Chinese Generator Brands

Chinese diesel generators are popular in many countries in the world, nowadays China diesel generators with stable quality

2024-04-03

5 Steps About How Import Diesel Generators From China

This article will tell you how to directly import diesel generators from China and help you save purchasing costs by at least 50%

2024-03-25

Air-Cooled Diesel Generator- The Definitive Guide 2024

This article will tell you how to choose a suitable air-cooled diesel generator set and the key points to pay attention to when you decide to purchase

2024-03-11

WALT Power is a leading Chinese supplier & manufacturer of Cummins Emergency Backup Silent Generator, 3 Phase Generator, 1 Phase Generator, Perkins Generator, Portable Home Generator, Industrial Generator, and load Banks.

Quick Links

Get An Quote

0086-18717996108

sales@waltpower.com

20th Fl., #888 North Sichuan Rd, Shanghai, China

img:is([sizes="auto" i],[sizes^="auto," i]){contain-intrinsic-size:3000px 1500px;}img.wp-smiley,img.emoji{display:inline !important;border:none !important;box-shadow:none !important;height:1em !important;width:1em !important;margin:0 .07em !important;vertical-align:-.1em !important;background:none !important;padding:0 !important;}.wp-block-button__link{color:#fff;background-color:#32373c;border-radius:9999px;box-shadow:none;text-decoration:none;padding:calc(.667em + 2px) calc(1.333em + 2px);font-size:1.125em;}.wp-block-file__button{background:#32373c;color:#fff;text-decoration:none;}:root{--wp--preset--aspect-ratio--square:1;--wp--preset--aspect-ratio--4-3:4/3;--wp--preset--aspect-ratio--3-4:3/4;--wp--preset--aspect-ratio--3-2:3/2;--wp--preset--aspect-ratio--2-3:2/3;--wp--preset--aspect-ratio--16-9:16/9;--wp--preset--aspect-ratio--9-16:9/16;--wp--preset--color--black:#000;--wp--preset--color--cyan-bluish-gray:#abb8c3;--wp--preset--color--white:#fff;--wp--preset--color--pale-pink:#f78da7;--wp--preset--color--vivid-red:#cf2e2e;--wp--preset--color--luminous-vivid-orange:#ff6900;--wp--preset--color--luminous-vivid-amber:#fcb900;--wp--preset--color--light-green-cyan:#7bdcb5;--wp--preset--color--vivid-green-cyan:#00d084;--wp--preset--color--pale-cyan-blue:#8ed1fc;--wp--preset--color--vivid-cyan-blue:#0693e3;--wp--preset--color--vivid-purple:#9b51e0;--wp--preset--gradient--vivid-cyan-blue-to-vivid-purple:linear-gradient(135deg,rgba(6,147,227,1) 0%,#9b51e0 100%);--wp--preset--gradient--light-green-cyan-to-vivid-green-cyan:linear-gradient(135deg,#7adcb4 0%,#00d082 100%);--wp--preset--gradient--luminous-vivid-amber-to-luminous-vivid-orange:linear-gradient(135deg,rgba(252,185,0,1) 0%,rgba(255,105,0,1) 100%);--wp--preset--gradient--luminous-vivid-orange-to-vivid-red:linear-gradient(135deg,rgba(255,105,0,1) 0%,#cf2e2e 100%);--wp--preset--gradient--very-light-gray-to-cyan-bluish-gray:linear-gradient(135deg,#eee 0%,#a9b8c3 100%);--wp--preset--gradient--cool-to-warm-spectrum:linear-gradient(135deg,#4aeadc 0%,#9778d1 20%,#cf2aba 40%,#ee2c82 60%,#fb6962 80%,#fef84c 100%);--wp--preset--gradient--blush-light-purple:linear-gradient(135deg,#ffceec 0%,#9896f0 100%);--wp--preset--gradient--blush-bordeaux:linear-gradient(135deg,#fecda5 0%,#fe2d2d 50%,#6b003e 100%);--wp--preset--gradient--luminous-dusk:linear-gradient(135deg,#ffcb70 0%,#c751c0 50%,#4158d0 100%);--wp--preset--gradient--pale-ocean:linear-gradient(135deg,#fff5cb 0%,#b6e3d4 50%,#33a7b5 100%);--wp--preset--gradient--electric-grass:linear-gradient(135deg,#caf880 0%,#71ce7e 100%);--wp--preset--gradient--midnight:linear-gradient(135deg,#020381 0%,#2874fc 100%);--wp--preset--font-size--small:13px;--wp--preset--font-size--medium:20px;--wp--preset--font-size--large:36px;--wp--preset--font-size--x-large:42px;--wp--preset--font-family--inter:"Inter",sans-serif;--wp--preset--font-family--cardo:Cardo;--wp--preset--spacing--20:.44rem;--wp--preset--spacing--30:.67rem;--wp--preset--spacing--40:1rem;--wp--preset--spacing--50:1.5rem;--wp--preset--spacing--60:2.25rem;--wp--preset--spacing--70:3.38rem;--wp--preset--spacing--80:5.06rem;--wp--preset--shadow--natural:6px 6px 9px rgba(0,0,0,.2);--wp--preset--shadow--deep:12px 12px 50px rgba(0,0,0,.4);--wp--preset--shadow--sharp:6px 6px 0px rgba(0,0,0,.2);--wp--preset--shadow--outlined:6px 6px 0px -3px rgba(255,255,255,1),6px 6px rgba(0,0,0,1);--wp--preset--shadow--crisp:6px 6px 0px rgba(0,0,0,1);}:where(.is-layout-flex){gap:.5em;}:where(.is-layout-grid){gap:.5em;}body .is-layout-flex{display:flex;}.is-layout-flex{flex-wrap:wrap;align-items:center;}.is-layout-flex > :is(*,div){margin:0;}body .is-layout-grid{display:grid;}.is-layout-grid > :is(*,div){margin:0;}:where(.wp-block-columns.is-layout-flex){gap:2em;}:where(.wp-block-columns.is-layout-grid){gap:2em;}:where(.wp-block-post-template.is-layout-flex){gap:1.25em;}:where(.wp-block-post-template.is-layout-grid){gap:1.25em;}.has-black-color{color:var(--wp--preset--color--black) !important;}.has-cyan-bluish-gray-color{color:var(--wp--preset--color--cyan-bluish-gray) !important;}.has-white-color{color:var(--wp--preset--color--white) !important;}.has-pale-pink-color{color:var(--wp--preset--color--pale-pink) !important;}.has-vivid-red-color{color:var(--wp--preset--color--vivid-red) !important;}.has-luminous-vivid-orange-color{color:var(--wp--preset--color--luminous-vivid-orange) !important;}.has-luminous-vivid-amber-color{color:var(--wp--preset--color--luminous-vivid-amber) !important;}.has-light-green-cyan-color{color:var(--wp--preset--color--light-green-cyan) !important;}.has-vivid-green-cyan-color{color:var(--wp--preset--color--vivid-green-cyan) !important;}.has-pale-cyan-blue-color{color:var(--wp--preset--color--pale-cyan-blue) !important;}.has-vivid-cyan-blue-color{color:var(--wp--preset--color--vivid-cyan-blue) !important;}.has-vivid-purple-color{color:var(--wp--preset--color--vivid-purple) !important;}.has-black-background-color{background-color:var(--wp--preset--color--black) !important;}.has-cyan-bluish-gray-background-color{background-color:var(--wp--preset--color--cyan-bluish-gray) !important;}.has-white-background-color{background-color:var(--wp--preset--color--white) !important;}.has-pale-pink-background-color{background-color:var(--wp--preset--color--pale-pink) !important;}.has-vivid-red-background-color{background-color:var(--wp--preset--color--vivid-red) !important;}.has-luminous-vivid-orange-background-color{background-color:var(--wp--preset--color--luminous-vivid-orange) !important;}.has-luminous-vivid-amber-background-color{background-color:var(--wp--preset--color--luminous-vivid-amber) !important;}.has-light-green-cyan-background-color{background-color:var(--wp--preset--color--light-green-cyan) !important;}.has-vivid-green-cyan-background-color{background-color:var(--wp--preset--color--vivid-green-cyan) !important;}.has-pale-cyan-blue-background-color{background-color:var(--wp--preset--color--pale-cyan-blue) !important;}.has-vivid-cyan-blue-background-color{background-color:var(--wp--preset--color--vivid-cyan-blue) !important;}.has-vivid-purple-background-color{background-color:var(--wp--preset--color--vivid-purple) !important;}.has-black-border-color{border-color:var(--wp--preset--color--black) !important;}.has-cyan-bluish-gray-border-color{border-color:var(--wp--preset--color--cyan-bluish-gray) !important;}.has-white-border-color{border-color:var(--wp--preset--color--white) !important;}.has-pale-pink-border-color{border-color:var(--wp--preset--color--pale-pink) !important;}.has-vivid-red-border-color{border-color:var(--wp--preset--color--vivid-red) !important;}.has-luminous-vivid-orange-border-color{border-color:var(--wp--preset--color--luminous-vivid-orange) !important;}.has-luminous-vivid-amber-border-color{border-color:var(--wp--preset--color--luminous-vivid-amber) !important;}.has-light-green-cyan-border-color{border-color:var(--wp--preset--color--light-green-cyan) !important;}.has-vivid-green-cyan-border-color{border-color:var(--wp--preset--color--vivid-green-cyan) !important;}.has-pale-cyan-blue-border-color{border-color:var(--wp--preset--color--pale-cyan-blue) !important;}.has-vivid-cyan-blue-border-color{border-color:var(--wp--preset--color--vivid-cyan-blue) !important;}.has-vivid-purple-border-color{border-color:var(--wp--preset--color--vivid-purple) !important;}.has-vivid-cyan-blue-to-vivid-purple-gradient-background{background:var(--wp--preset--gradient--vivid-cyan-blue-to-vivid-purple) !important;}.has-light-green-cyan-to-vivid-green-cyan-gradient-background{background:var(--wp--preset--gradient--light-green-cyan-to-vivid-green-cyan) !important;}.has-luminous-vivid-amber-to-luminous-vivid-orange-gradient-background{background:var(--wp--preset--gradient--luminous-vivid-amber-to-luminous-vivid-orange) !important;}.has-luminous-vivid-orange-to-vivid-red-gradient-background{background:var(--wp--preset--gradient--luminous-vivid-orange-to-vivid-red) !important;}.has-very-light-gray-to-cyan-bluish-gray-gradient-background{background:var(--wp--preset--gradient--very-light-gray-to-cyan-bluish-gray) !important;}.has-cool-to-warm-spectrum-gradient-background{background:var(--wp--preset--gradient--cool-to-warm-spectrum) !important;}.has-blush-light-purple-gradient-background{background:var(--wp--preset--gradient--blush-light-purple) !important;}.has-blush-bordeaux-gradient-background{background:var(--wp--preset--gradient--blush-bordeaux) !important;}.has-luminous-dusk-gradient-background{background:var(--wp--preset--gradient--luminous-dusk) !important;}.has-pale-ocean-gradient-background{background:var(--wp--preset--gradient--pale-ocean) !important;}.has-electric-grass-gradient-background{background:var(--wp--preset--gradient--electric-grass) !important;}.has-midnight-gradient-background{background:var(--wp--preset--gradient--midnight) !important;}.has-small-font-size{font-size:var(--wp--preset--font-size--small) !important;}.has-medium-font-size{font-size:var(--wp--preset--font-size--medium) !important;}.has-large-font-size{font-size:var(--wp--preset--font-size--large) !important;}.has-x-large-font-size{font-size:var(--wp--preset--font-size--x-large) !important;}:where(.wp-block-post-template.is-layout-flex){gap:1.25em;}:where(.wp-block-post-template.is-layout-grid){gap:1.25em;}:where(.wp-block-columns.is-layout-flex){gap:2em;}:where(.wp-block-columns.is-layout-grid){gap:2em;}:root :where(.wp-block-pullquote){font-size:1.5em;line-height:1.6;}.woocommerce form .form-row .required{visibility:visible;}.e-con.e-parent:nth-of-type(n+4):not(.e-lazyloaded):not(.e-no-lazyload),.e-con.e-parent:nth-of-type(n+4):not(.e-lazyloaded):not(.e-no-lazyload) *{background-image:none !important;}@media screen and (max-height: 1024px){.e-con.e-parent:nth-of-type(n+3):not(.e-lazyloaded):not(.e-no-lazyload),.e-con.e-parent:nth-of-type(n+3):not(.e-lazyloaded):not(.e-no-lazyload) *{background-image:none !important;}.e-con.e-parent:nth-of-type(n+3):not(.e-lazyloaded):not(.e-no-lazyload).nitro-lazy,.e-con.e-parent:nth-of-type(n+3):not(.e-lazyloaded):not(.e-no-lazyload) *.nitro-lazy{background-image:none !important;}}@media screen and (max-height: 640px){.e-con.e-parent:nth-of-type(n+2):not(.e-lazyloaded):not(.e-no-lazyload),.e-con.e-parent:nth-of-type(n+2):not(.e-lazyloaded):not(.e-no-lazyload) *{background-image:none !important;}.e-con.e-parent:nth-of-type(n+2):not(.e-lazyloaded):not(.e-no-lazyload).nitro-lazy,.e-con.e-parent:nth-of-type(n+2):not(.e-lazyloaded):not(.e-no-lazyload) *.nitro-lazy{background-image:none !important;}}.e-con.e-parent:nth-of-type(n+4):not(.e-lazyloaded):not(.e-no-lazyload).nitro-lazy,.e-con.e-parent:nth-of-type(n+4):not(.e-lazyloaded):not(.e-no-lazyload) *.nitro-lazy{background-image:none !important;}:root{--wpforms-field-border-radius:3px;--wpforms-field-border-style:solid;--wpforms-field-border-size:1px;--wpforms-field-background-color:#fff;--wpforms-field-border-color:rgba(0,0,0,.25);--wpforms-field-border-color-spare:rgba(0,0,0,.25);--wpforms-field-text-color:rgba(0,0,0,.7);--wpforms-field-menu-color:#fff;--wpforms-label-color:rgba(0,0,0,.85);--wpforms-label-sublabel-color:rgba(0,0,0,.55);--wpforms-label-error-color:#d63637;--wpforms-button-border-radius:3px;--wpforms-button-border-style:none;--wpforms-button-border-size:1px;--wpforms-button-background-color:#066aab;--wpforms-button-border-color:#066aab;--wpforms-button-text-color:#fff;--wpforms-page-break-color:#066aab;--wpforms-background-image:none;--wpforms-background-position:center center;--wpforms-background-repeat:no-repeat;--wpforms-background-size:cover;--wpforms-background-width:100px;--wpforms-background-height:100px;--wpforms-background-color:rgba(0,0,0,0);--wpforms-background-url:none;--wpforms-container-padding:0px;--wpforms-container-border-style:none;--wpforms-container-border-width:1px;--wpforms-container-border-color:#000;--wpforms-container-border-radius:3px;--wpforms-field-size-input-height:43px;--wpforms-field-size-input-spacing:15px;--wpforms-field-size-font-size:16px;--wpforms-field-size-line-height:19px;--wpforms-field-size-padding-h:14px;--wpforms-field-size-checkbox-size:16px;--wpforms-field-size-sublabel-spacing:5px;--wpforms-field-size-icon-size:1;--wpforms-label-size-font-size:16px;--wpforms-label-size-line-height:19px;--wpforms-label-size-sublabel-font-size:14px;--wpforms-label-size-sublabel-line-height:17px;--wpforms-button-size-font-size:17px;--wpforms-button-size-height:41px;--wpforms-button-size-padding-h:15px;--wpforms-button-size-margin-top:10px;--wpforms-container-shadow-size-box-shadow:none;}:root{-webkit-user-select:none;-webkit-touch-callout:none;-ms-user-select:none;-moz-user-select:none;user-select:none;}

Genset Model	WDG-25000DCE/3 (50Hz)
Max. Output kW/kVA	18 kW/22 kVA
Rated Output KW/KVA	16 kW/20 kVA
Rated Voltage	380 ~415 VAC
Frequency	50 Hz
DC Output	12V 8.3A
Phase	3 phase
Starting System	Electrical with battery
Noise Level @ 7 meters	80 to 85 dBA
Fuel Tank Capacity	30 Liters
Oil Capacity	4
Continuous Running Time	7 hours
Genset Net Weight	270 kg
Packing Size (L × W × H)	1050×800×890 mm
Qty for 20′ ft Container	28 sets

Genset Model	WDG-25000DCE/3 (60Hz)
Max. Output kW/kVA	18 kW/22 kVA
Rated Output KW/KVA	16 kW/20 kVA
Rated Voltage	440 ~480 VAC
Frequency	60 Hz
DC Output	12V 8.3A
Phase	3 phase
Starting System	Electrical with battery
Noise Level @ 7 meters	80 to 85 dBA
Fuel Tank Capacity	30 Liters
Oil Capacity	4
Continuous Running Time	6.5 hours
Genset Net Weight	270 kg
Packing Size (L × W × H)	1050×800×890 mm
Qty for 20′ ft Container	28 sets

16kW 20kVA 3 Phase Open Type Portable Diesel Generator

Additional information

OVERVIEW

Specifications

The Knowledge About Diesel Generators

Top 10 Best-Selling Chinese Generator Brands

5 Steps About How Import Diesel Generators From China

Air-Cooled Diesel Generator- The Definitive Guide 2024

Quick Links

Categories

Get An Quote

Ask For A Quick Quote

16kW 20kVA 3 Phase Open Type Portable Diesel Generator

Additional information

OVERVIEW

Specifications

Related products

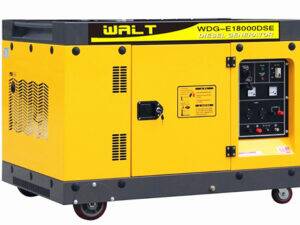

12kVA Silent Portable Diesel Generator
