√. Genset output power 200kVA/160kW (50Hz)
√. Genset output power 209kVA/167kW (60Hz)
√. Powered by Cummins & Deutz diesel engines
√. Built-in integrated fuel tank 10 hours of continuous work
√. Soundproof, open, and trailer type
√. Minimum order quantity 01 set
√. Port of loading: Shanghai or other port in China
√. CE, ISO9001, ISO14001, ISO 8528

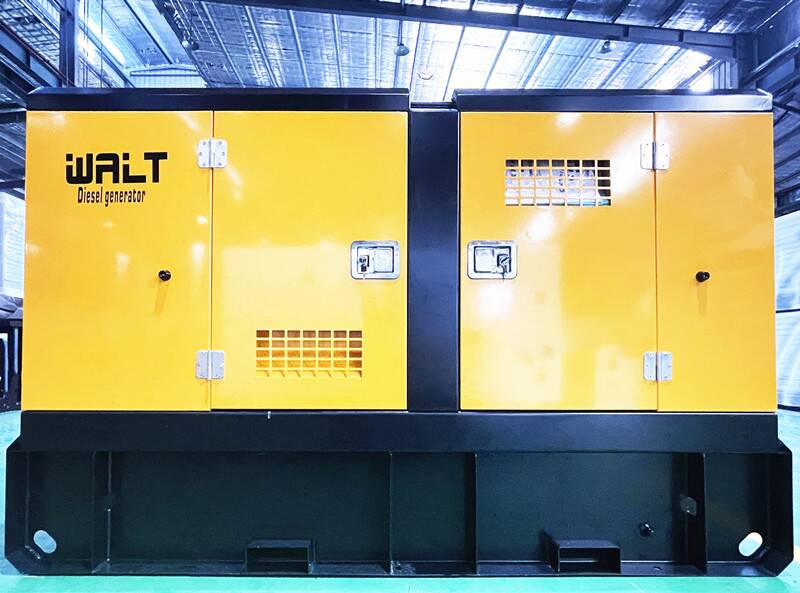

WALT Power 200 KVA diesel generator is a cost-effective, efficient and durable unit you can buy for your prime or standby power needs. Cummins & Deutz are reliable water-cooled diesel engines which able to ensure the highest quality and best performance when duty operations.
This 200 KVA generator provides the three-phase output for a multitude of three-phase appliances. This means you can connect single-phase and three-phase appliances to one generator. Such as 230/400V, 127/220V, etc.
|Engine||Cummins 6CTAA8.3-G2||Deutz BF6M1013FC-G3|
|Genset Prime kW/kVA||160/200||160/200|
|Genset Standby kW/kVA||172/215||176/220|
|Structure||Open Set/ Soundproof Type||Open Set/ Soundproof Type|
|Rated Voltage||220~ 440 VAC||220~ 440 VAC|
|Frequency – Speed||50 Hz -1500 rpm||50 Hz -1500 rpm|
|Phase||3 Phase||3 Phase|
|Starting System||Electrical with battery||Electrical with battery|
|Fuel Tank capacity||480 Liters||350 Liters|
|Fuel Consumption @100% Load||45 liters/h||30 liters/h|
|Fuel Consumption @75% Load||34 liters/h||22 liters/h|
|Genset Weight -Open Set||1850 kg||1835 kg|
|Dimensions (L × W × H) -Open Set||2650×1000×1800 mm||2650×1050×1650 mm|
|Dimensions (L × W × H) -Soundproof||3530×1180×2150 mm||3588×1180×2150 mm|
|Genset Weight -Soundproof||2900 kg||2700 kg|
1. The specifications are subject to change without notice
2. The size parameters are subject to the kind.
