√. Genset output power 20kVA
√. Powered by Perkins, Faw, Yangdong, Isuzu diesel engines
√. Built-in integrated fuel tank 8 hours of continuous work
√. 3 Phase (1 Phase is optional)
√. Minimum order quantity 01 set
√. Port of loading: Shanghai or other port in China
√. CE, ISO9001, ISO14001, ISO 8528

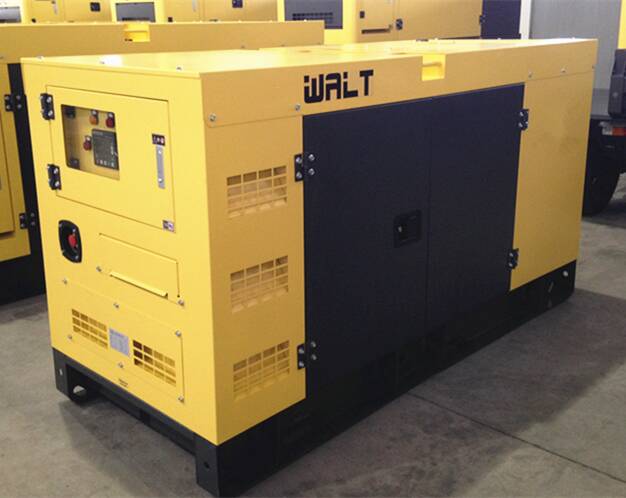

WALT Power 20 KVA diesel generator is a cost-effective, efficient and durable unit you can buy for your prime or standby power needs. Perkins & Faw (Fawde) are reliable water-cooled diesel engines which able to ensure the highest quality and best performance when duty operations.
This 20 KVA generator provides the three-phase output for a multitude of three-phase appliances. This means you can connect single-phase and three-phase appliances to one generator. Such as 230/400V, 127/220V, etc.
20 kva diesel generator, Perkins 20kva generator, 20kva generator for sale, 20kva diesel generator, 20kva 3 phase generator, 20kva single phase generator, 20kva silent generator, 20kva faw generator, 20kva standby generator, 20kva home generator
| Genset Model | WGP-20/S (50Hz) |
| Genset Output Power kW/kVA | 16/20 |
| Engine | Perkins/Fawde/Yangdong/Isuzu |
| Alternator | Stamford/Walt |
| Power Factor | 0.8 |
| Structure | Silent (Open, Trailer are optional) |
| Rated Voltage | 230~ 415 VAC |
| Frequency – Speed | 50 Hz -1500 rpm |
| Phase | 3 Phase (Single phase is optional) |
| Starting System | Electrical with battery |
| Fuel Tank capacity | 60 Liters |
| Fuel Consumption @100% Load | 4.6 liters/h |
| Fuel Consumption @75% Load | 3.5 liters/h |
| Recommended Oil | 15W40 |
| Dimensions (L × W × H) | 2008×900×1130 mm |
| Genset Weight | 680 kg |
1. The specifications are subject to change without notice
2. The size parameters are subject to the kind
3. Send an email to sales@waltpower.com to get a detailed quote
| Genset Model | WGP-20/S6 (60Hz) |
| Genset Output Power kW/kVA | 16/20 |
| Engine | Perkins/Fawde/Yangdong/Isuzu |
| Alternator | Stamford/Walt |
| Power Factor | 0.8 |
| Structure | Silent (Open, Trailer are optional) |
| Rated Voltage | 220~ 480 VAC |
| Frequency – Speed | 60 Hz -1800 rpm |
| Phase | 3 Phase (Single phase is optional) |
| Starting System | Electrical with battery |
| Fuel Tank capacity | 60 Liters |
| Fuel Consumption @100% Load | 4.6 liters/h |
| Fuel Consumption @75% Load | 3.5 liters/h |
| Recommended Oil | 15W40 |
| Dimensions (L × W × H) | 2008×900×1130 mm |
| Genset Weight | 680 kg |
1. The specifications are subject to change without notice
2. The size parameters are subject to the kind
3. Send an email to sales@waltpower.com to get a detailed quote
WALT Global Power Equipment Co., Ltd is a top China supplier & manufacturer of Cummins Emergency Backup Silent Generator, 3 Phase Generator, Perkins Generator, Portable Generator, Industrial Generator & Load Banks.
