This 5kW / 5kVA open-type portable diesel generator is designed for export markets. Providing a compact, cost-effective diesel power solution for distributors,
project buyers, and OEM partners.
The WALT WDG open-frame series is designed to meet the demand for mobile and portable diesel generator solutions in export and professional markets.
These generators provide a reliable and cost-effective on-site power solution for light commercial applications, temporary job sites, rental fleets, and
project-based backup power scenarios where a stable electricity supply is required during mains power interruptions.
The WDG series is widely supplied to overseas distributors, project contractors, and OEM partners as a compact diesel power solution for international markets.

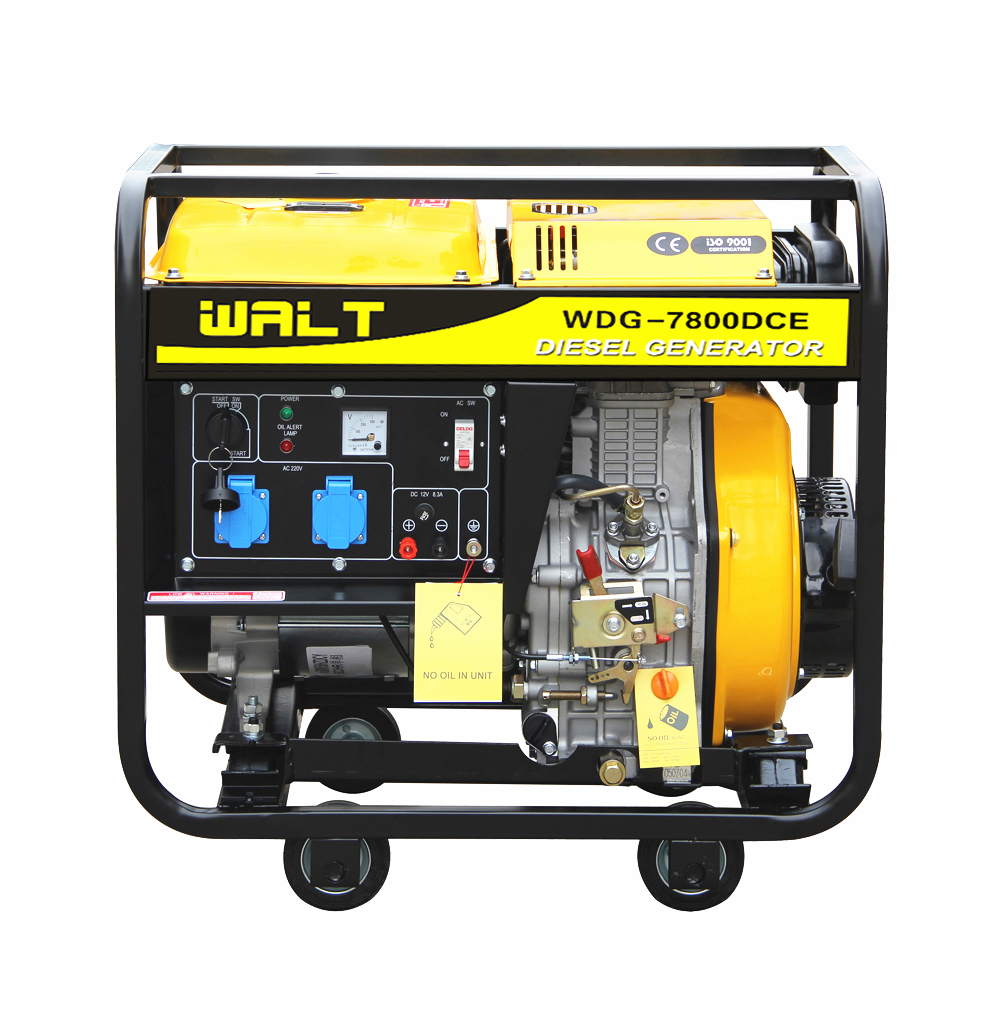

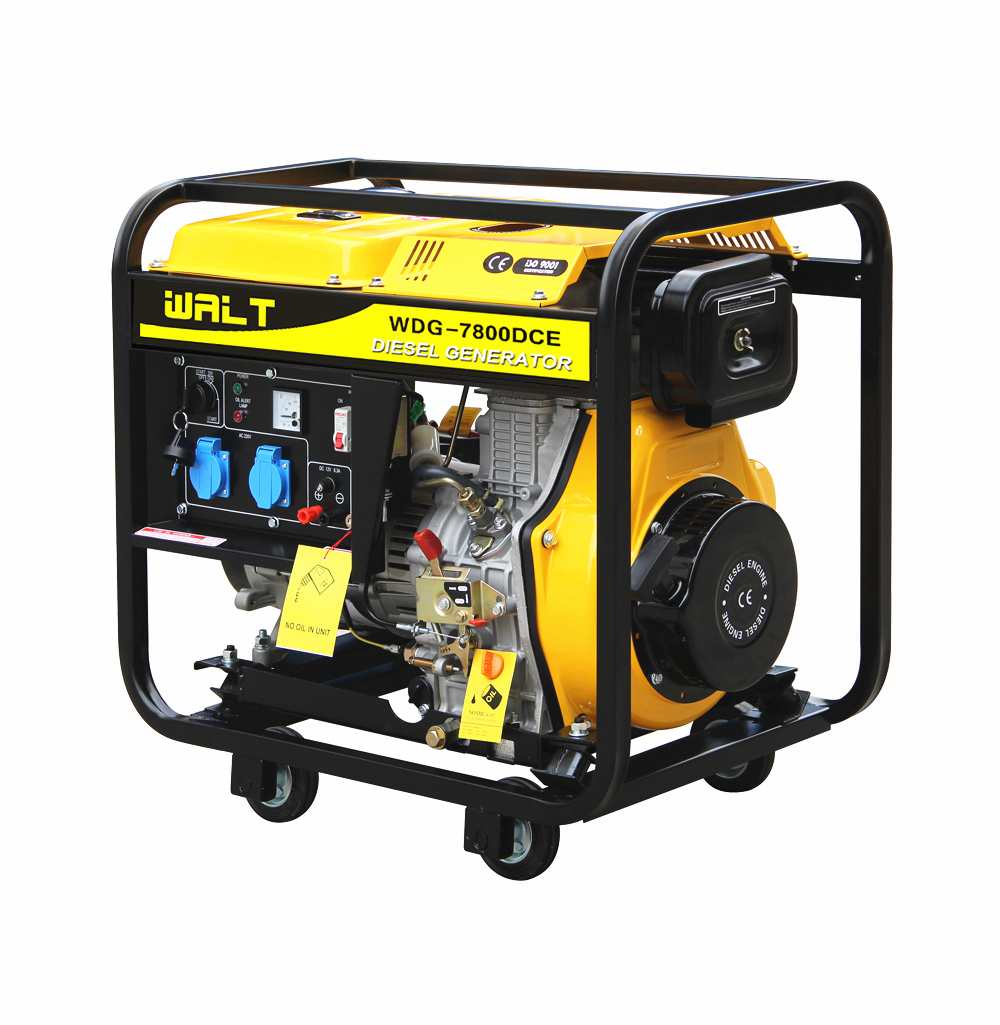

| Genset Model | WDG-7800DCE |
| Max. Output | 5.3 kW/5.3 kVA |
| Rated Output | 5 kW/5 kVA |
| Rated Voltage | 220 ~240 VAC |
| Frequency -speed | 50 Hz – 3000 rpm |
| DC Output | 12V 8.3A |
| Phase | 1 (3-phase is optional) |
| Starting System | Electrical with battery |
| Noise Level @ 7 meters | 80 to 85 dBA |
| Fuel Tank Capacity | 12.5 Liters |
| Oil Capacity | 1.65 |
| Continuous Running Time | 7.8 hours |
| Genset Weight | 105 Kg |
| Genset Size (L × W × H) | 705×490×590 mm |
| Qty for 20′ ft/40’ft Container | 105/245 sets |
Technical Notes
Rated output refers to the continuous power the generator can deliver under standard operating conditions. Maximum output is intended for short-duration use only.
Single-phase configuration is standard. Three-phase output is available upon request, subject to configuration and order quantity.
Noise level is measured under no-load conditions at a distance of 7 meters.
Actual noise may vary depending on load and operating environment.
Specification & Export Disclaimer
Specifications are provided for reference purposes only and are subject to change as part of continuous product improvement.
Final configuration will be confirmed based on order requirements and destination market. This model is primarily supplied for export orders, OEM projects, and bulk purchases for international markets.
For pricing, configuration options, and lead time, please contact:
Technical FAQ
Q1: Can this 5kW / 5kVA diesel generator be used for prime (continuous) operation?
Yes. This generator can be used for prime (continuous) operation within its rated output.
At 50Hz, the prime rated output is 5.0 kVA, with a maximum output of 5.3 kVA.
At 60Hz, the prime rated output is 5.5 kVA, with a maximum output of 6.0 kVA.
For stable long-term operation, it is recommended to operate the generator within the prime rated output and avoid continuous running at maximum load.
Q2: What is the difference between prime-rated output and maximum output?
Prime-rated output refers to the power level suitable for continuous operationunder standard operating conditions.
Maximum output is intended for short-duration use only and should not be used as the continuous operating power.
| Genset Model | WDG-7800DCE |
| Max. Output | 6 kW /6 kVA |
| Rated Output | 5.5 kW /5.5 kVA |
| Rated Voltage | 220 ~240 VAC |
| Frequency – speed | 60 Hz – 3600 rpm |
| DC Output | 12V 8.3A |
| Phase | 1 (3-phase is optional) |
| Starting System | Electrical with battery |
| Noise Level @ 7 meters | 80 to 85 dBA |
| Fuel Tank Capacity | 12.5 Liters |
| Oil Capacity | 1.65 |
| Continuous Running Time | 7.2 hours |
| Genset Weight | 105 kg |
| Genset Size (L × W × H) | 705×490×590 mm |
| Qty for 20′ ft/40’ft Container | 105/245 sets |
Technical Notes
Rated output refers to the continuous power the generator can deliver under standard operating conditions. Maximum output is intended for short-duration use only.
Single-phase configuration is standard. Three-phase output is available upon request, subject to configuration and order quantity.
Noise level is measured under no-load conditions at a distance of 7 meters.
Actual noise may vary depending on load and operating environment.
Specification & Export Disclaimer
Specifications are provided for reference purposes only and are subject to change as part of continuous product improvement.
Final configuration will be confirmed based on order requirements and destination market. This model is primarily supplied for export orders, OEM projects, and bulk purchases for international markets.
For pricing, configuration options, and lead time, please contact:
Technical FAQ
Q1: Can this 5kW / 5kVA diesel generator be used for prime (continuous) operation?
Yes. This generator can be used for prime (continuous) operation within its rated output.
At 50Hz, the prime rated output is 5.0 kVA, with a maximum output of 5.3 kVA.
At 60Hz, the prime rated output is 5.5 kVA, with a maximum output of 6.0 kVA.
For stable long-term operation, it is recommended to operate the generator within the prime rated output and avoid continuous running at maximum load.
Q2: What is the difference between prime-rated output and maximum output?
Prime-rated output refers to the power level suitable for continuous operationunder standard operating conditions.
Maximum output is intended for short-duration use only and should not be used as the continuous operating power.
