√. Genset output power range 5kVA to 16kVA
√. Longer continuous work time with lower fuel consumption

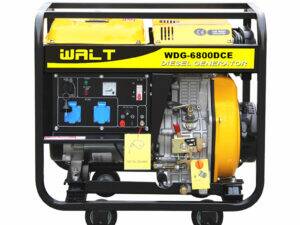

√. Silent and open frame types for choose
√. 12 months global warranty
√. Port of loading: Shanghai China
√. CE, ISO9001, ISO14001, ISO 8528

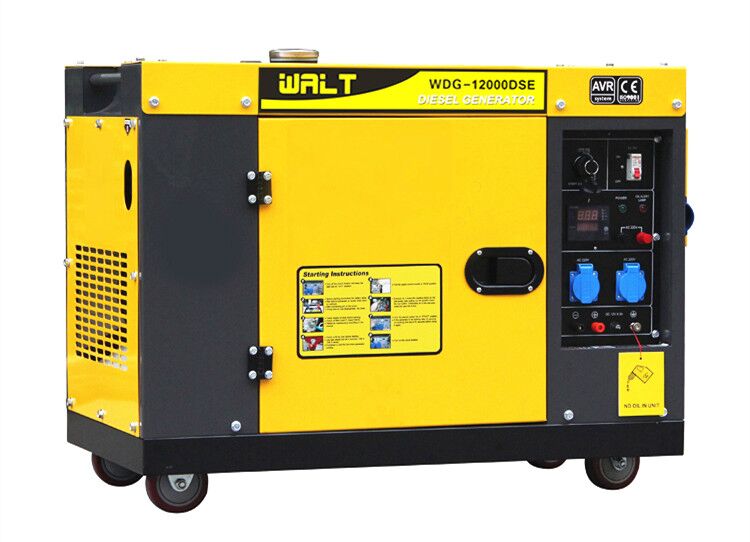

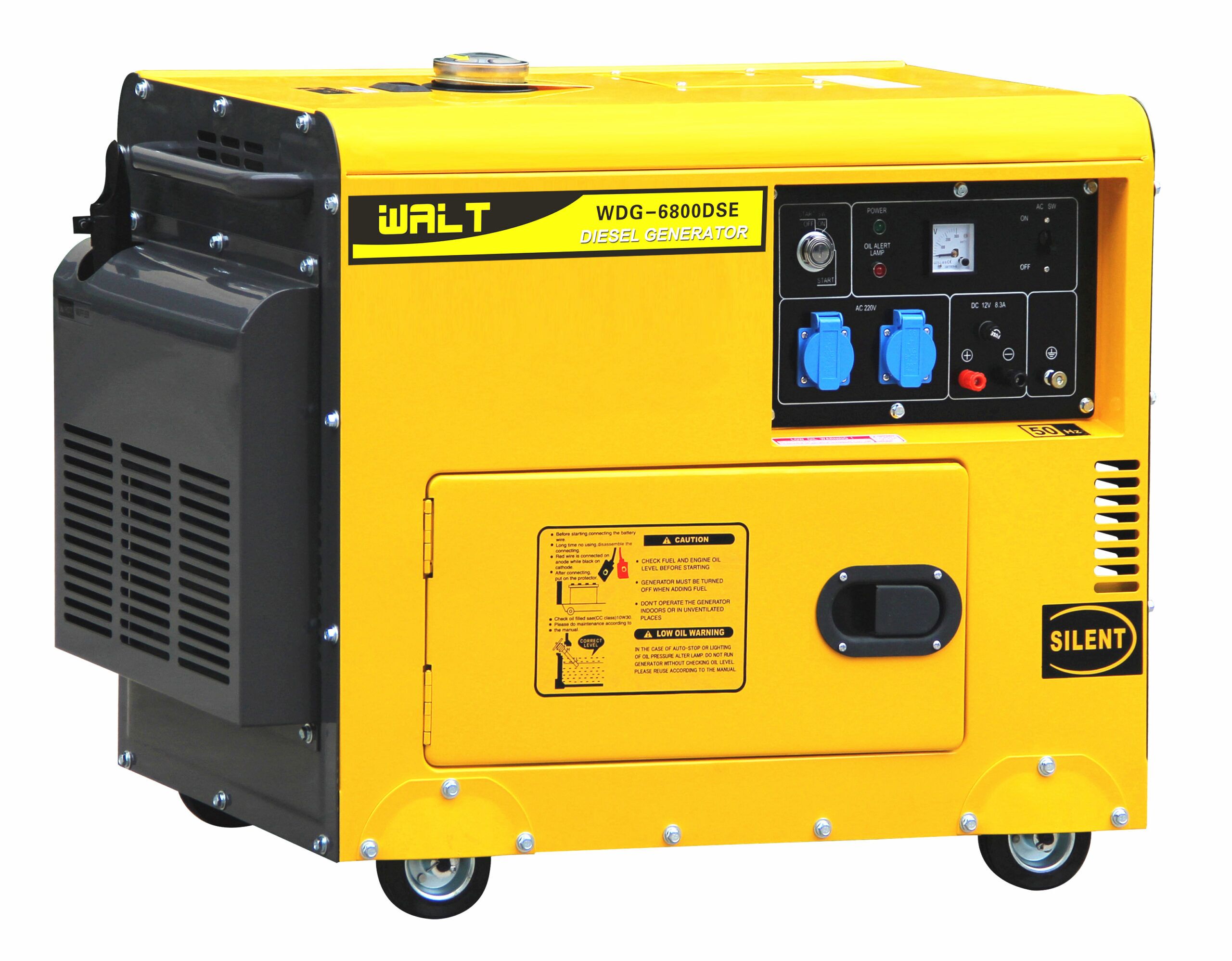

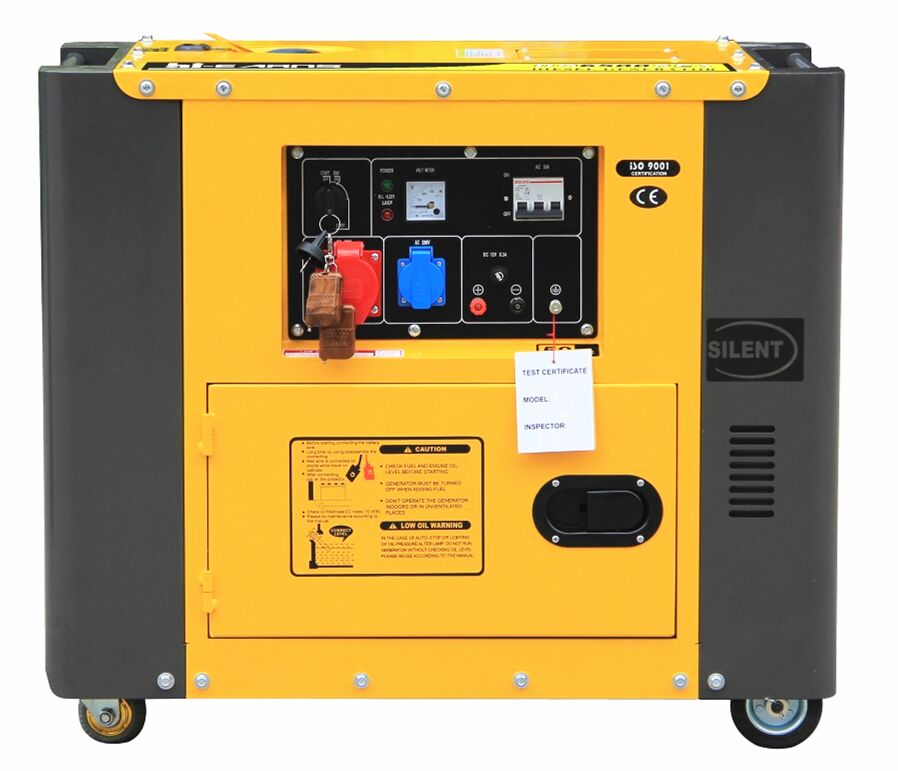

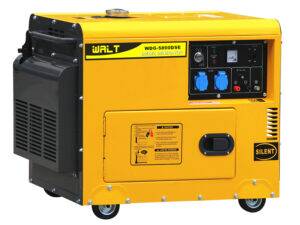

WALT WDG series are ideals for mobile portable generator demands. Providing low-cost continuous on-site electricity supply for all uses, trades, or homes, who need a reliable source of power however mains power outage. Covers most of the home and small business backup power needs.
home portable generator, small portable generator, quiet portable generator, best portable generator, portable diesel generator, portable electric generator, 5kva portable generator, 7.5kva portable generator, 10kva portable generator, 12kva portable generator, 15kva portable generator, 20kva portable generator
| Genset Model | WDG-6800DSE | WDG-7800DSE | WDG-9800DSE | WDG-12000DSE | WDG-16000DSE | WDG-18000DSE | WDG-25000DSE |
| Max. Output kW/kVA | 5.0 | 5.5 | 6.5 | 8.0 | 10.0 | 12.0 | 16.0 |
| Rated Output kW/kVA | 4.5 | 5.0 | 6.0 | 7.5 | 9.0 | 11.0 | 15.0 |
| Rated voltage | 220-440V | ||||||
| Frequency | 50Hz | ||||||
| Power Factor | 1 or 0.8 | ||||||
| DC Output | 12V 8.3A | ||||||
| Phase | Single Phase or Three Phase | ||||||
| Starting system | Electrical with maintenance-free battery | ||||||
| Noise Level | 68 to 85dBA @ 7 meters | ||||||
| Fuel Tank capacity | 16L | 16L | 16L | 30L | 30 | 30 L | 30L |
| Continuous Running | 8.5 hrs | 8.5 hrs | 8.5 hrs | 12 hrs | 10 hrs | 8 hrs | 7 hrs |
| Fuel Type | 0# or -10# light diesel fuel | ||||||
| Genset G.W | 165kg | 165kg | 165kg | 210kg | 230kg | 360 Kg | 367 Kg |
| Dimension L×W×H mm | 950×560×710 | 950×560×710 | 950×560×710 | 1120×650×860 | 1130×760×860 | 1370×840×980 | 1370×840×980 |
| Qty for 20’FT | 72 sets | 72 sets | 72 sets | 34 sets | 30 sets | 24 sets | 20 sets |
* Specification or design change without prior notice.
* Send an email to sales@waltpower.com to get a detailed quote.
| Genset Model | WDG-6800DSE | WDG-7800DSE | WDG-9800DSE | WDG-12000DSE | WDG-16000DSE | WDG-18000DSE | WDG-25000DSE |
| Max. Output kW/kVA | 5.5 | 6.0 | 6.5 | 8.0 | 10.0 | 12.0 | 16.0 |
| Rated Output kW/kVA | 5.0 | 5.5 | 6.0 | 7.5 | 9.0 | 11.0 | 15.0 |
| Rated voltage | 110-480V | ||||||
| Frequency | 60Hz | ||||||
| Power Factor | 1 or 0.8 | ||||||
| DC Output | 12V 8.3A | ||||||
| Phase | Single Phase or Three Phase | ||||||
| Starting system | Electrical with maintenance-free battery | ||||||
| Noise Level | 68 to 85dBA @ 7 meters | ||||||
| Fuel Tank capacity | 16L | 16L | 16L | 30L | 30 | 30 L | 30L |
| Continuous Running | 8.5 hrs | 8.5 hrs | 8.5 hrs | 12 hrs | 10 hrs | 8 hrs | 7 hrs |
| Fuel Type | 0# or -10# light diesel fuel | ||||||
| Genset G.W | 165kg | 165kg | 165kg | 210kg | 230kg | 360 Kg | 367 Kg |
| Dimension L×W×H mm | 950×560×710 | 950×560×710 | 950×560×710 | 1120×650×860 | 1130×760×860 | 1370×840×980 | 1370×840×980 |
| Qty for 20’FT | 72 sets | 72 sets | 72 sets | 34 sets | 30 sets | 24 sets | 20 sets |
* Specification or design change without prior notice.
* Send an email to sales@waltpower.com to get a detailed quote.
