The four main types of generator load banks are resistive, reactive, combined (resistive/reactive), and DC load banks.

In simple terms:

• Resistive load banks test engine performance (kW)
• Reactive load banks test alternator performance (kVAR)
• Combined load banks simulate real operating conditions
• DC load banks are used for batteries and DC systems

In most diesel generator load bank testing projects, especially for commissioning and maintenance, combined resistive/reactive load banks are the preferred solution because they provide the most realistic load simulation.

The right choice depends on your testing purpose, load profile, and application scenario.

Why Load Bank Type Matters in Diesel Generator Testing

In real projects, selecting the wrong load bank type can lead to incomplete or misleading test results.

For example:

• Using only resistive load banks may not reveal alternator or power factor issues
• Testing at low load levels can lead to carbon buildup and wet stacking
• Oversized generators may appear normal under light load but fail under real operating conditions

A generator that performs well under resistive load is not necessarily ready for real-world operation.

In practical applications such as data centers, hospitals, and industrial standby systems, load bank testing must simulate real operating conditions—not just apply load.

See also: Diesel Generator Load Bank Testing: Complete Guide
Related: What Is Wet Stacking in Diesel Generators?

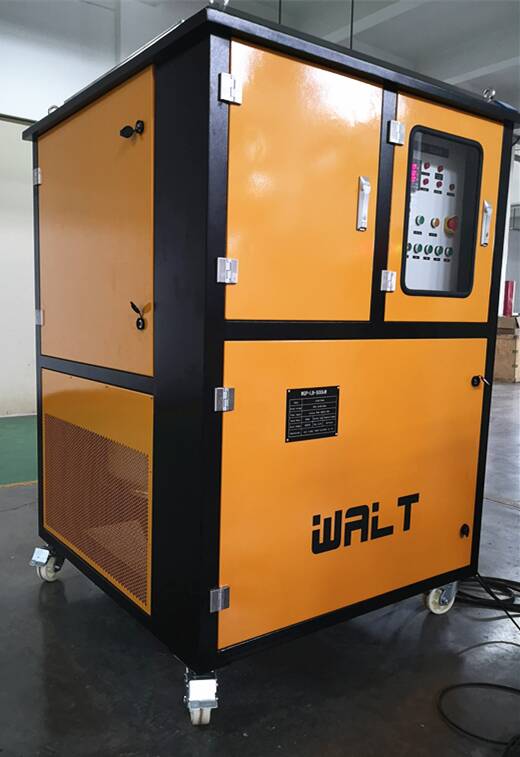

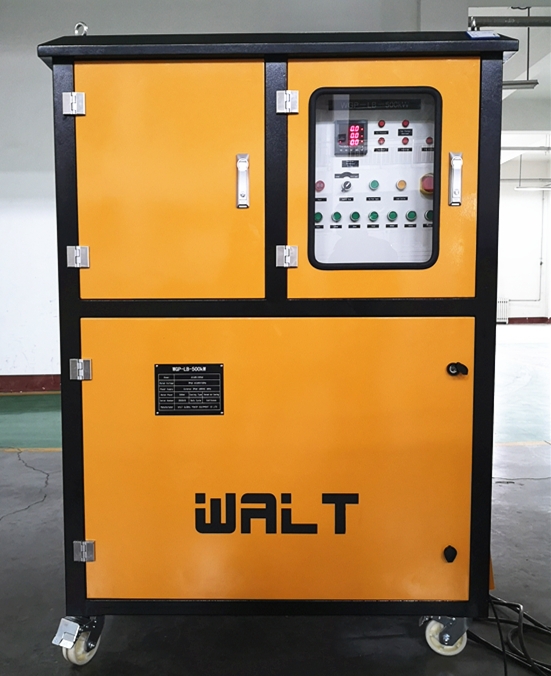

1. Resistive Load Banks (kW Testing)

Resistive load banks are primarily used to test the engine (prime mover) performance by applying a real power (kW) load.

They convert electrical energy into heat and simulate basic electrical loads.

Suitable for:

• Routine maintenance testing
• Small to medium diesel generators
• Initial commissioning checks

Limitations:

Resistive load banks do NOT simulate real-world load conditions involving power factor. This means alternator behavior, voltage regulation, and reactive power performance are not fully tested.

In practice, we often see generators pass resistive testing but still experience issues when connected to real inductive loads such as motors or transformers.

2. Reactive Load Banks (kVAR Testing)

Reactive load banks are used to test alternator performance and power factor characteristics.

They introduce inductive or capacitive loads to simulate real electrical systems where motors, transformers, and inductive loads are present.

Required in scenarios such as:

• Motor-driven equipment (pumps, compressors, HVAC systems)
• Transformer-based systems
• Applications with significant inductive load

In practice, reactive load banks are rarely used alone. They are typically combined with resistive load banks to form a complete testing solution.

3. Combined Resistive/Reactive Load Banks (Most Practical Choice)

Combined load banks integrate both resistive (kW) and reactive (kVAR) loads, allowing full simulation of real operating conditions.

This is the most widely used solution in actual diesel generator testing projects.

They allow you to test:

• Engine output (kW)
• Alternator capacity (kVAR)
• Power factor performance
• Voltage and frequency stability under realistic load

Typical applications include:

• Data center commissioning
• Hospital emergency power systems
• Industrial backup power systems
• Multi-generator synchronization testing

In our projects, especially in data center and industrial installations, combined load banks are used in most commissioning tests because they provide the closest simulation to real operating conditions.

In most modern testing specifications, combined load banks are required to validate full system performance.

4. DC Load Banks (Battery & UPS Testing)

DC load banks are specifically designed for testing direct current systems.

They apply resistive loads to DC power sources such as batteries and DC generators.

Common applications:

• Battery discharge testing
• UPS system validation
• Telecom power systems
• Renewable energy storage systems

They are not used for diesel generator AC testing, but are essential in backup systems that include battery storage.

Typical Load Bank Testing Procedure for Diesel Generators

In real engineering practice, load bank testing is not just about applying load—it follows a controlled step-by-step process to ensure safe and accurate results.

Step 1: Pre-check and setup

• Verify generator condition (oil, coolant, fuel system)
• Confirm load bank capacity and connection
• Check ventilation and cooling requirements

Step 2: Start generator at no load

• Run the generator without load to stabilize temperature and parameters
• Monitor voltage, frequency, and alarms

See: Is It Good to Start a Diesel Generator at No Load?

Step 3: Gradually apply load in stages

• Increase load step by step (e.g., 25% → 50% → 75% → 100%)
• Hold each load level for a defined period
• Record performance data

Important: Diesel generators should typically operate above ~30% load to avoid incomplete combustion and carbon buildup.

Step 4: Full load testing

• Run the generator at full load for a specified duration
• Verify stability of voltage, frequency, and exhaust condition

Step 5: Load reduction and shutdown

• Gradually reduce load
• Allow cooling before shutdown

This staged testing approach ensures realistic performance validation while protecting the generator from damage.

How to Choose the Right Load Bank Type

In practice, selecting the correct load bank depends on what you are trying to test.

Quick selection guide:

• Engine testing → Resistive load bank
• Alternator & PF testing → Add reactive load
• Full system validation → Combined load bank
• Battery / UPS testing → DC load bank

For most diesel generator applications, especially commissioning and periodic testing, combined resistive/reactive load banks are the most reliable and widely accepted solution.

Common Mistakes When Selecting Load Banks

Based on real project experience, these are common mistakes:

1. Using only resistive load banks for critical systems
2. Ignoring power factor during testing
3. Testing generators at low load levels
4. Not matching load bank capacity to generator rating
5. Assuming a generator is ready without full-load testing

We have seen cases where generators passed resistive testing but failed under real load conditions due to missing reactive load simulation.

These mistakes can lead to serious issues, including poor performance during outages or long-term engine problems such as wet stacking.

Related: Does the 30% Load Rule Apply to Standby Generators?

Conclusion

Choosing the right type of load bank is not just a technical detail—it directly affects the accuracy of your generator testing.

Resistive load banks are useful for basic checks, but they do not reflect real operating conditions.
Reactive load banks add necessary complexity, but are rarely used alone.
Combined load banks provide the most complete and reliable testing results and are the preferred solution in most real-world applications.

For any critical power system, especially in data centers, hospitals, or industrial facilities, proper load bank selection is essential to ensure the generator will perform when it is actually needed.
