Load bank testing for diesel generators is a controlled process of applying an artificial electrical load to verify that a generator can operate correctly under real operating conditions.
In simple terms, it allows engineers to simulate actual power demand, confirm the generator’s true output capacity, and identify hidden performance issues before the generator is required during a power outage.
In standby power systems, load bank testing is not optional. Without it, there is no reliable way to confirm whether a generator will perform as expected under real load conditions.
Why Load Bank Testing Is Necessary
In many projects we have been involved in, generator problems are not caused by equipment failure, but by the fact that the system was never properly tested under load.
A diesel generator can start, run, and appear stable — even when it is not capable of handling real demand.
Load bank testing is necessary because it:
- Verifies actual kW output capacity
- Confirms voltage and frequency stability under load
- Identifies cooling and engine performance issues
- Prevents long-term low-load damage such as carbon buildup
- Ensures the system meets commissioning and acceptance requirements
The Real Issue: Generators Rarely Run at Proper Load
In real applications, most standby generators operate far below their rated load.
Typical examples include:
- Data center backup generators during routine checks
- Hospital emergency generators that rarely see full demand
- Industrial standby units running at minimal load
This creates a hidden risk: the generator appears functional but is never truly tested.
Over time, this leads to problems such as incomplete combustion and carbon accumulation, commonly known as wet stacking.
What Happens During Load Bank Testing

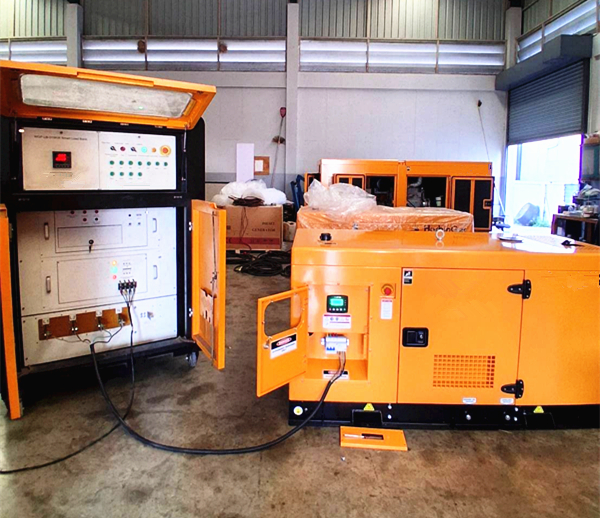

Load bank testing connects an external load bank to the generator and applies load in a controlled and measurable way.
Basic Testing Process
- Start the generator under normal conditions
- Connect the load bank system
- Apply load step-by-step (e.g., 25% → 50% → 75% → 100%)
- Monitor key parameters:
- Voltage stability
- Frequency response
- Engine temperature
- Exhaust condition
- Maintain each load stage for a specified duration
This controlled process ensures that the generator is tested under predictable and repeatable conditions, which is not possible with real building loads.
Typical Load Levels Used in Testing
In most engineering practices, the following load levels are used:
- Minimum 30% load to maintain proper combustion
- 50%–80% load to simulate normal operating conditions
- 100% load to verify full capacity and system stability
Running below 30% load for extended periods is one of the main causes of performance degradation in diesel generators.

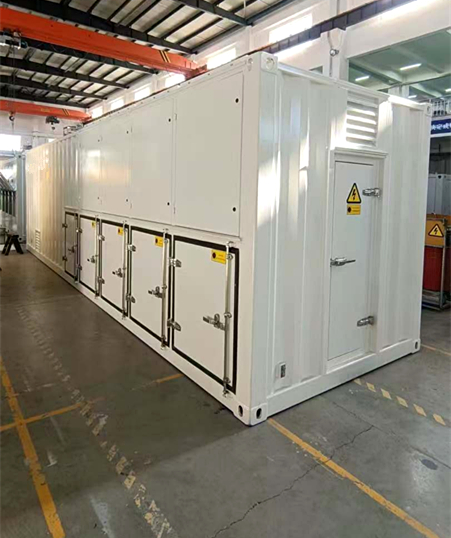

Types of Load Bank Testing
Different applications require different types of load simulation. Selecting the correct load bank type is critical for obtaining meaningful test results.
Resistive Load Bank Testing
- Simulates real power (kW)
- Converts electrical energy into heat
- Most widely used for diesel generator testing
Suitable for:
- Commissioning
- Routine maintenance
- Capacity verification
Reactive Load Bank Testing
- Simulates inductive loads (kVAR)
- Tests generator behavior under motor-type conditions
Suitable for:
- Industrial facilities
- Pumps and HVAC systems
Combined Load Bank Testing
- Simulates both resistive and reactive loads
- Provides a more realistic representation of actual site conditions
Common in:
- Data centers
- Complex power systems
Load Bank Testing vs Real Load Testing
A common misunderstanding is that running a generator with building load is sufficient for testing.
In practice, this is rarely effective.
- Real load is often unstable and too low
- Load bank testing provides controlled, adjustable, and repeatable conditions
In many standby systems, actual load may only reach 10%–30%, which is not enough to fully test generator performance.
How Load Bank Testing Prevents Wet Stacking
Wet stacking occurs when a diesel generator runs at low load for extended periods.
This results in:
- Low combustion temperature
- Incomplete fuel burning
- Carbon deposits in the exhaust system
Load bank testing addresses this by:
- Raising engine operating temperature
- Improving combustion efficiency
- Burning off accumulated carbon deposits
In several projects we have supported, generators that had been running at low load for months showed visible carbon buildup during initial load bank testing. After operating at 70%–80% load, exhaust conditions improved significantly.
When Should You Perform Load Bank Testing?
Based on typical project requirements, load bank testing should be performed in the following situations:

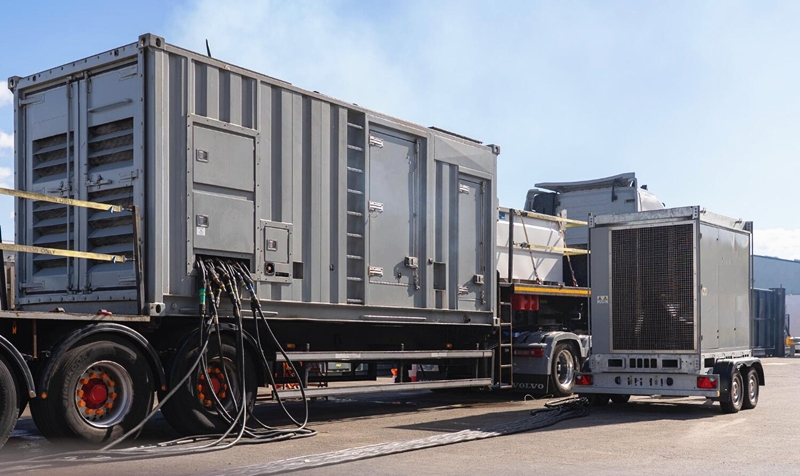

During Commissioning
- Before the generator is put into service
- Confirms installation and system readiness
As Part of Regular Maintenance
- Monthly or quarterly, depending on standards
- Maintains engine condition and reliability
After Long Idle Periods
- Prevents issues caused by prolonged low-load operation
After Repairs or Overhaul
- Verifies that the generator performs correctly after maintenance
Real-World Application Example
In one data center project, standby generators were only operating at around 20% load during routine checks.
From a control panel perspective, everything appeared normal.
However, during load bank testing:
- Exhaust temperature increased rapidly
- Black smoke appeared during the initial stage
- Carbon deposits were observed in the exhaust system
After several test cycles at 70%–80% load:
- Combustion stabilized
- Smoke disappeared
- Overall performance improved
This is a typical case where low-load operation hides real problems, and load bank testing reveals them before failure occurs.
Common Mistakes in Load Bank Testing
From field experience, the most common mistakes include:
Testing at Too Low Load
- Running only at 20%–30%
- Fails to verify full generator capacity
Testing for Too Short Duration
- Engine temperature does not stabilize
- Results are not reliable
Ignoring Exhaust Conditions
- Smoke and carbon buildup are early warning signs
Avoiding Full Load Testing
- Skipping 100% load testing
- Leaves performance unverified
How to Choose the Right Load Bank
Selecting the correct load bank depends on:
- Required power rating (kW / kVA)
- Voltage and frequency
- Load type (resistive, reactive, or combined)
- Cooling method
- Control system
For large-scale projects such as data centers, selecting the correct load bank configuration is critical, especially when testing requirements involve both resistive and reactive loads.
In many cases, improper load bank selection leads to incomplete or misleading test results.
For a complete understanding of testing methods, standards, and practical applications, see our full guide on Diesel Generator Load Bank Testing.
Conclusion
Load bank testing is one of the most reliable ways to verify diesel generator performance.
Key points:
- It confirms real operating capability under controlled conditions
- It prevents hidden risks caused by low-load operation
- It is essential for standby power systems
- It should be included in both commissioning and maintenance plans
If a generator has never been tested under proper load conditions, its actual performance remains uncertain.
