Load bank testing becomes necessary when a diesel generator operates under sustained low load operation and cannot maintain sufficient combustion temperature. When cylinder pressure and thermal conditions remain too low, incomplete combustion leads to carbon buildup and wet stacking. In these cases, applying controlled load is not optional. It is a corrective measure to restore stable combustion behavior.
In real standby projects, I do not treat load bank testing as a routine ritual. I treat it as an engineering response to a specific operational condition. The decision depends on load percentage, temperature stability, and whether the system can realistically reach healthy combustion levels during normal use.
When Average Operating Load Remains Below 30%
When the average operating load stays below 30 percent of rated capacity for extended periods, the 30% load rule becomes relevant.
This threshold is not arbitrary. Below roughly 30 percent, cylinder pressure drops. Lower cylinder pressure reduces combustion temperature. When combustion temperature falls below optimal levels, fuel does not burn completely. Incomplete combustion results in carbon buildup in the combustion chamber and exhaust path.
From a manufacturing perspective, we see this pattern clearly in sites where generators run lightly loaded for hours every week. The engine technically runs, but the combustion process is thermally unstable. Exhaust temperature remains low, and soot accumulation begins gradually.
If the operating profile consistently shows:
- Average load below 30 percent
- No periodic higher-load intervals
- Extended runtime at light load
then load bank testing becomes necessary to elevate cylinder pressure and combustion temperature in a controlled manner.
This is corrective, not preventive. If the system were properly loaded from the beginning, the corrective step would not be required.
When Standby Generators Rarely Reach Rated Temperature

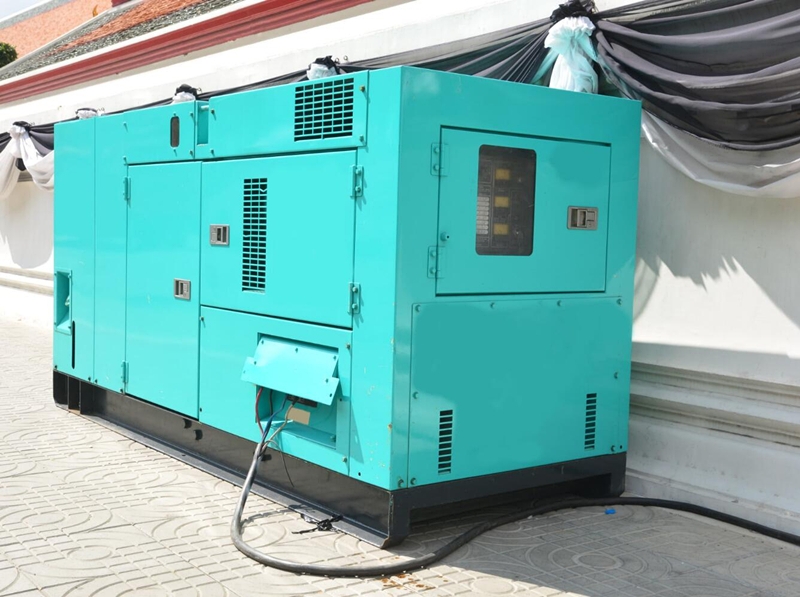

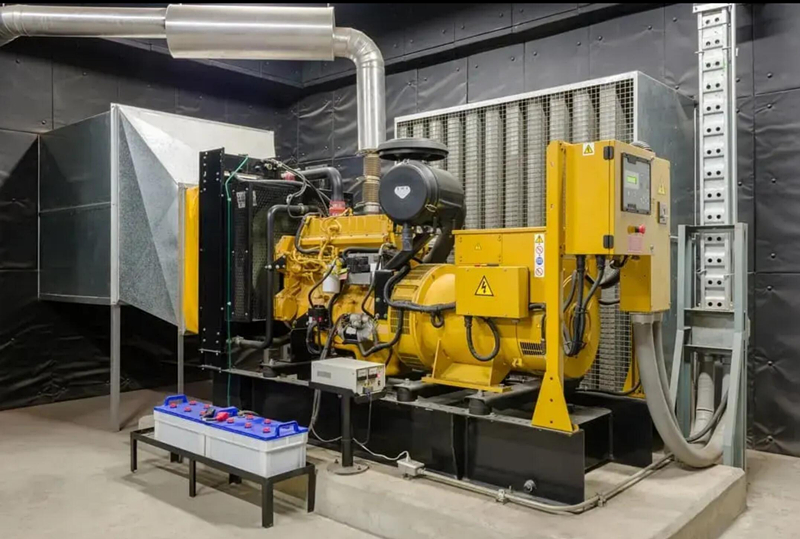

In many standby installations we supply, the generator rarely carries real load. Hospitals, commercial buildings, telecom sites, and industrial backup systems often perform exercise runs with minimal or no building load connected.
During these exercise runs, the engine may start, idle briefly, and operate at very low load. Without sufficient electrical demand, the engine does not reach stable combustion temperature. Cylinder pressure remains low, and fuel injection events occur under suboptimal thermal conditions.
This is especially common where operators routinely perform no load starting. If the generator is regularly started and allowed to run without meaningful load, the engine never enters a healthy thermal regime. I have discussed the operational implications of no load starting in detail here:
https://waltpower.com/is-it-good-to-start-a-diesel-generator-at-no-load/
When standby systems:
- Run only during monthly exercise
- Do not transfer building load
- Shut down before full thermal stabilization
load bank testing becomes necessary periodically to simulate real demand. Without it, wet stacking risk increases over time.
The key indicator is not runtime hours. It is whether the engine ever reaches and maintains adequate combustion temperature under real load.
When Oversizing Creates Chronic Light Load
An oversized diesel generator is one of the most common causes of chronic low load operation.
When actual site demand is far below rated capacity, load percentage stays low even during real outages. For example, a 500 kVA unit supplying a building that typically draws 80 kVA will operate around 16 percent load. Even during peak usage, it may not exceed 25 percent.
From a sizing logic perspective, this is a design mistake. The generator was selected for theoretical future expansion, not actual load profile. As a result:
- Cylinder pressure never reaches optimal range
- Combustion temperature remains marginal
- Incomplete combustion becomes routine
In such installations, load bank testing becomes necessary because the real load cannot thermally exercise the engine.
However, I always emphasize that load bank testing does not fix the oversizing problem. It temporarily restores clean combustion by applying artificial load. The chronic mismatch between rated capacity and actual demand remains.
Correct sizing is preventive. Load bank testing in this scenario is corrective maintenance responding to a structural sizing issue.
When Visible Signs of Wet Stacking Appear
Sometimes the decision becomes obvious because symptoms appear.
Visible signs include:
- Carbon deposits around exhaust outlets
- Dark or smoky exhaust under light load
- Fuel residue in exhaust piping
- Soot accumulation on turbocharger components
These signs indicate sustained incomplete combustion and carbon buildup.
At this stage, load bank testing is no longer optional. It becomes necessary to:
- Raise combustion temperature
- Increase cylinder pressure
- Burn off accumulated deposits
In practical field conditions, I have seen engines recover after controlled high-load operation sessions. Exhaust temperature rises significantly, and accumulated carbon begins to clear.
But if carbon buildup is advanced, load bank testing may need to be repeated in cycles. The longer low load operation has been allowed to continue, the more aggressive corrective action may be required.
This is why early monitoring of load percentage and operating curve matters. Waiting for visible soot is already a late-stage signal.
When Real Load Cannot Be Increased
There are installations where increasing real electrical demand is simply not feasible.
Examples include:
- Remote telecom base stations
- Lightly loaded backup systems in new buildings
- Industrial sites where process loads fluctuate unpredictably
If the load curve cannot be improved by adding equipment or redistributing power demand, then controlled resistive loading becomes the only engineering tool available.
In these cases, a controlled resistive load bank system can be temporarily connected to artificially raise load percentage to 60 to 80 percent for a defined duration. A typical solution is a portable or fixed unit such as those listed here:
https://waltpower.com/product-category/load-bank/
The objective is not to stress the generator. The objective is to restore proper combustion temperature and cylinder pressure.
When evaluating whether load bank testing is necessary in these installations, I look at three factors:
- Average load percentage over time
- Frequency of high-load events
- Exhaust temperature stability
If high-load events never occur naturally, then scheduled load bank testing becomes a necessary corrective program.
When Load Bank Testing Is Not Necessary
Load bank testing is not universally required.
If a generator regularly operates between 50 and 80 percent load during actual use, combustion temperature remains stable. Cylinder pressure is sufficient to ensure complete fuel burn. Incomplete combustion risk is minimal.
In many industrial facilities with continuous production demand, the engine operates under stable, healthy load conditions. Exhaust temperature remains within optimal range. Carbon buildup does not accumulate abnormally.
In such environments:
- The 30% load rule is consistently satisfied
- Operating curve includes sustained moderate to high load
- Thermal stability is maintained
Under these conditions, load bank testing is not necessary as a corrective tool. Performing it would add cost without operational benefit.
From a manufacturing perspective, I prefer preventing low load operation through proper sizing and load management rather than scheduling artificial load sessions.
Building a Practical Engineering Decision Framework
When clients ask me whether they must perform load bank testing, I do not answer with a universal yes or no. I assess the operating behavior.
The decision framework is straightforward:
- What is the average load percentage during real operation?
- Does the engine periodically reach stable combustion temperature?
- Is there evidence of incomplete combustion or carbon buildup?
- Is the generator oversized relative to actual demand?
- Can real load be increased through operational changes?
If average load remains below 30 percent and no corrective action is taken, wet stacking risk grows over time.
If the generator is properly sized and regularly loaded above 50 percent, load bank testing is usually unnecessary.
The key distinction is corrective versus preventive:
- Corrective: Load bank testing applied to address existing low load operation problems.
- Preventive: Proper sizing and load management to avoid chronic low load operation in the first place.
Load bank testing cannot compensate for long-term poor sizing decisions indefinitely.
Relationship to the No-Load and Low-Load Operation Topic
Within the broader discussion of low load operation, load bank testing plays a specific role.
Starting at no load, running at light load, oversizing, and neglecting the 30% load rule all contribute to conditions where combustion temperature and cylinder pressure are insufficient.
Load bank testing enters the picture when those operational choices have already created thermal instability.
It is not the first solution. It is the recovery tool.
Conclusion
Load bank testing becomes necessary when sustained low load operation prevents the engine from reaching adequate combustion temperature and cylinder pressure. It is required when average load remains below 30 percent, when standby systems never reach thermal stability, when oversizing creates chronic light load, when visible carbon buildup appears, or when real load cannot be increased.
It is not necessary for generators that regularly operate at healthy load levels and maintain stable combustion conditions.
In practical engineering terms, correct sizing and realistic load analysis are always more effective than repeated corrective intervention. Load bank testing is a valuable tool, but it should be applied based on operating data, not habit.
If low load behavior is understood and addressed early, wet stacking can often be prevented without relying heavily on corrective load application.
