Short Answer

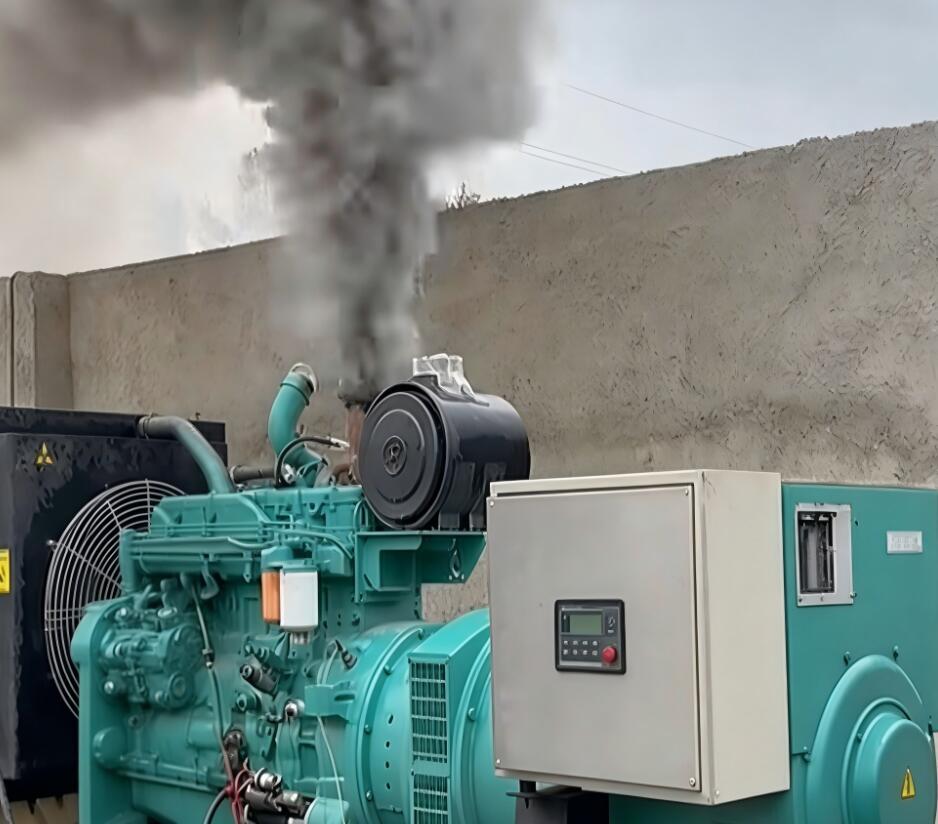

A diesel generator produces black smoke because there is too much fuel and not enough air for complete combustion. In our field experience, this is usually caused by air intake restriction, over-fueling, or long-term low-load operation. In many real projects, generators that run below 30% load for extended periods develop carbon buildup, which leads to black smoke when load increases.

What Causes This Problem?

1. Insufficient Air Supply

The most common cause is lack of air.

In real projects, we often see:

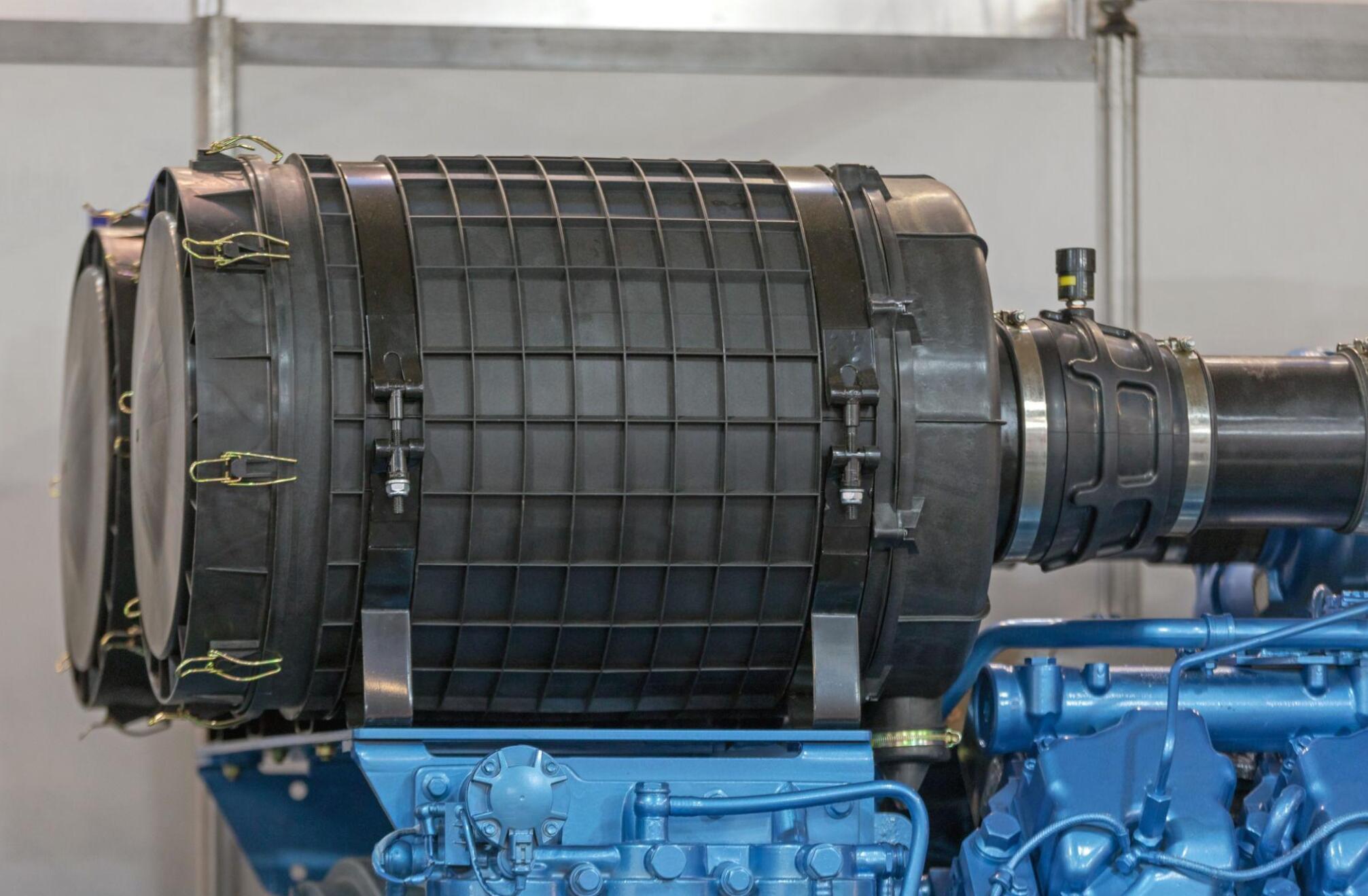

• Clogged air filters
• Blocked intake ducts
• Turbocharger airflow issues

When air is insufficient, fuel cannot burn completely → black smoke appears immediately under load.

2. Over-Fueling or Injector Faults

If too much fuel is injected:

• Injectors may be worn or leaking
• Fuel pump may be miscalibrated
• Poor atomization leads to incomplete combustion

This creates a rich mixture and produces visible black exhaust.

3. Long-Term Low Load Operation (Wet Stacking)

This is extremely common in oversized generators.

When running below 30% load:

• Combustion temperature drops
• Fuel does not fully burn
• Carbon accumulates in the exhaust system

Then when load increases, carbon burns off → sudden black smoke.

4. Turbocharger Problems

The turbocharger supplies compressed air.

If there is:

• Low boost pressure
• Delayed response
• Mechanical wear

The engine runs with insufficient air under load → black smoke.

5. Poor Fuel Quality

In many export markets, we often see:

• Contaminated diesel
• Water in fuel
• Incorrect fuel grade

This directly affects combustion efficiency and leads to smoke.

How to Diagnose It Step by Step

Step 1: Check Load Level

• Is the generator running below 30% load most of the time?
• Does smoke appear only when load increases?

If yes, carbon buildup is very likely.

Step 2: Inspect Air Intake System

• Check air filter condition
• Inspect intake piping
• Verify turbocharger airflow

This is often the fastest issue to confirm.

Step 3: Check Fuel System

• Inspect injectors
• Check fuel pump calibration
• Monitor fuel consumption

Step 4: Observe Smoke Behavior

• Only under load → air/fuel imbalance
• Continuous smoke → fuel system issue

Step 5: Check Turbocharger

• Measure boost pressure
• Check for abnormal noise
• Inspect for oil leakage

How to Fix the Problem

Restore Proper Airflow

• Replace air filters
• Clean intake system
• Repair or replace turbocharger

Correct Fuel Injection

• Calibrate fuel pump
• Replace faulty injectors
• Ensure proper spray pattern

Increase Load Properly

If the generator is underloaded:

• Run at 60–80% load periodically
• Use a load bank to simulate load

In many projects we have handled, this alone solves the issue.

Remove Carbon Deposits

• Perform load bank testing
• Run generator under higher load for several hours

You can refer to Diesel Generator Load Bank Testing as a standard method to eliminate wet stacking.

Check If the Generator Is Oversized

In many real cases, black smoke is not just a maintenance issue.

It often means the generator capacity does not match the actual load.

If the unit runs at low load for long periods, the problem will keep returning even after cleaning.

In such situations, it is better to evaluate:

• Actual load vs generator capacity
• Operating pattern
• Whether a different configuration is required

We often see clients only realize this after repeated failures.

When Is This a Serious Risk?

Black smoke becomes serious when:

• It appears continuously under normal load
• Power output drops
• Fuel consumption increases
• Engine temperature rises

In real projects, this often indicates:

• Incorrect generator sizing
• Long-term low-load operation
• System design mismatch

This is where many standby systems fail when actually needed.

If this happens repeatedly, it is better to evaluate the system before a real failure occurs.

How to Prevent It

Maintain Proper Load Level

• Keep load above 30%
• Ideally operate at 50–80%

Perform Regular Testing

• Schedule load bank testing
• Avoid long-term idle or low-load operation

Maintain Air and Fuel Systems

• Replace air filters regularly
• Use clean diesel
• Service injectors and pumps

Follow Correct Operating Practices

In real projects, we always advise:

• Do not oversize generators unnecessarily
• Avoid running without load for long periods

Conclusion

Black smoke from a diesel generator is almost always caused by an air–fuel imbalance. In most cases, the root cause is air restriction, over-fueling, or long-term low-load operation.

From our experience, this issue is often not just a maintenance problem, but a system-level issue.

If black smoke happens frequently, it is worth checking:

• Whether the generator is properly sized
• Whether the load profile is correct
• Whether load testing is required

If needed, you can explore our diesel generator solutions or load bank testing systems to ensure reliable operation under real working conditions.
