Diesel generators are generally recommended to run at a minimum load of around 30% of their rated capacity because lower loads reduce combustion temperature and cylinder pressure, which leads to incomplete fuel burning and carbon buildup inside the engine and exhaust system.

Most diesel generator manufacturers recommend keeping the load above about 30% of rated capacity because diesel engines require sufficient combustion temperature and cylinder pressure to burn fuel completely. When load drops too low, incomplete combustion can occur, leading to carbon buildup, wet stacking, and long-term engine efficiency problems.

From my experience working with standby generators in factories, telecom stations, and commercial buildings, the 30% rule is less about efficiency and more about maintaining proper combustion conditions inside the engine.

The Real Reason Behind the 30% Load Rule

A diesel engine is designed to operate under pressure and temperature created by load. When the generator runs too lightly loaded, the engine cannot reach its optimal combustion conditions.

In practical terms, three things begin to happen.

Combustion Temperature Drops

When electrical load is low, the engine injects less fuel into the cylinders.

Lower fuel input means:

• lower combustion temperature
• slower flame propagation
• incomplete fuel burning

In projects where generators are oversized, I often see exhaust systems that never get hot enough to burn residues properly.

Over time, this causes deposits to form inside the engine and exhaust path.

Cylinder Pressure Becomes Too Low

Diesel engines rely on high compression pressure to ignite fuel efficiently.

At low load:

• cylinder pressure decreases
• fuel droplets do not atomize completely
• part of the injected fuel fails to burn inside the cylinder

This unburned fuel then moves into the exhaust system.

Once this happens repeatedly, deposits begin to accumulate.

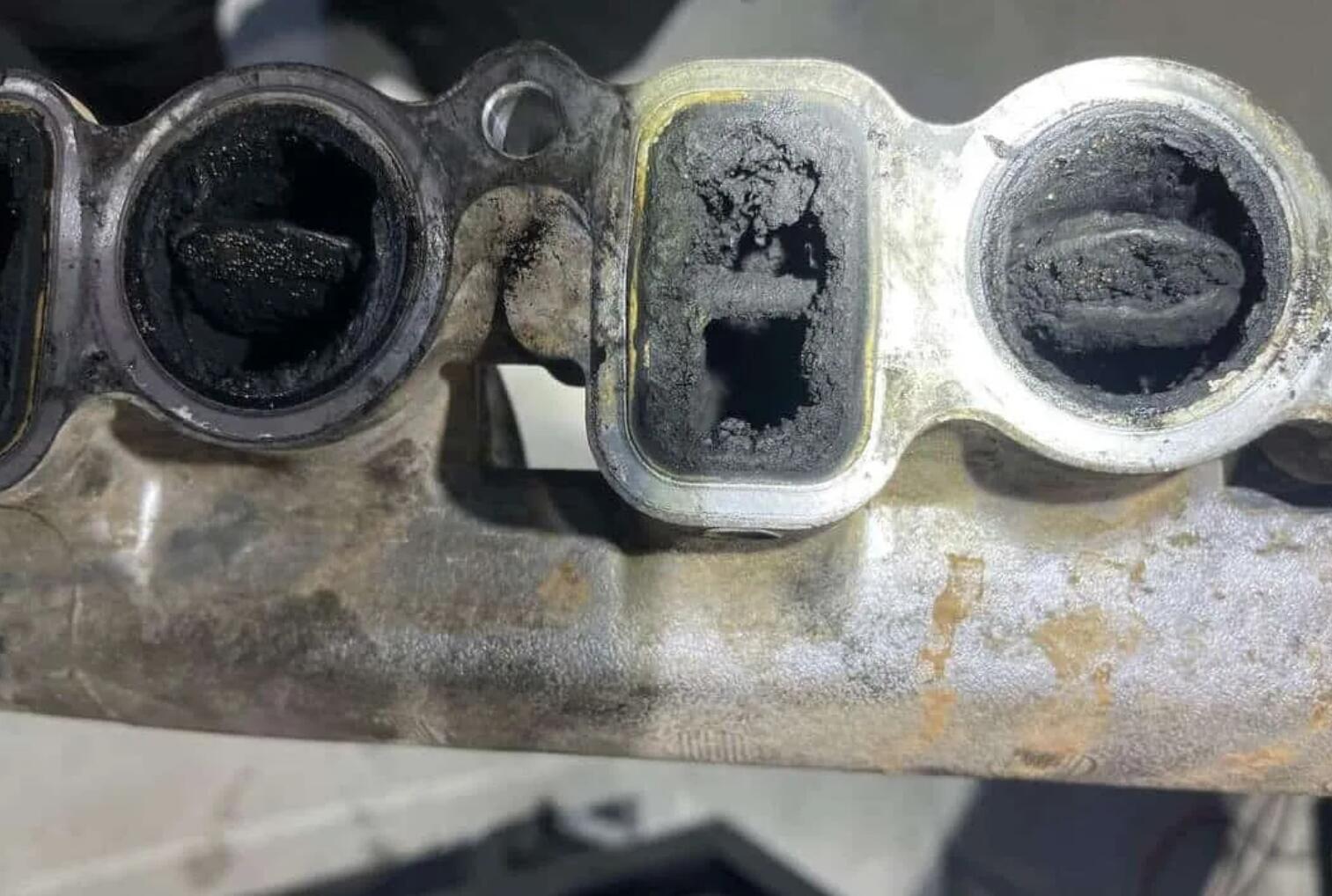

Carbon and Fuel Residue Build Up

When fuel is not fully burned, it accumulates as soot and liquid fuel residue.

This phenomenon is commonly known as wet stacking.

Typical symptoms include:

• black exhaust deposits
• oily residue around the exhaust outlet
• increased smoke during operation
• reduced engine efficiency over time

I have seen standby generators in hospitals and office buildings develop wet stacking simply because the generator was oversized and only ran at about 10–15% load during weekly testing.

Why 30% Is Considered the Safe Minimum

The 30% load level is not a strict mechanical limit, but it is a widely accepted engineering guideline.

At roughly this load level:

• combustion temperature becomes stable
• cylinder pressure improves
• injected fuel burns more completely
• exhaust temperature rises enough to reduce carbon deposits

Below this range, the risk of incomplete combustion increases significantly.

That is why most generator manufacturers recommend keeping the load above this level whenever possible.

When Generators Actually Run Below 30%

In reality, many standby generators operate below the recommended load level for long periods.

This happens most often in situations such as:

• oversized generators installed for future expansion
• emergency backup systems that rarely carry real load
• weekly or monthly exercise tests with very small building loads
• facilities where only essential circuits are connected to the generator

In these cases, operators sometimes assume that running with low load is harmless because the generator is not working hard.

From an engine perspective, the opposite can be true.

Light load operation is one of the most common causes of carbon buildup in standby diesel generators.

How Operators Manage Low Load Conditions

When a generator must operate at low load for operational reasons, engineers usually take additional steps to protect the engine.

Common practices include:

• periodic load bank testing
• resizing generators to match actual demand
• transferring additional building loads during exercise runs
• running the generator under higher load periodically to burn off deposits

In several telecom backup power projects I worked on, load banks were installed specifically to ensure the generator could periodically reach proper operating temperature.

Conclusion

Diesel generators need around 30% minimum load because the engine relies on sufficient combustion temperature and cylinder pressure to burn fuel properly.

When generators operate far below this level for extended periods, incomplete combustion can occur, leading to carbon deposits and wet stacking.

In many projects, operators first ask whether it is acceptable to start or warm up a generator with no load. I discussed that broader question in detail in my guide on whether it is good to start a diesel generator at no load.

In practice, the key is not only choosing the correct generator size but also ensuring the unit occasionally operates under adequate load to maintain healthy engine conditions.
