A diesel generator that cranks but won’t start can be frustrating. It could be a minor issue or a major mechanical failure. Ignoring the problem can lead to costly repairs.
A diesel generator cranks but won’t start due to fuel system issues, air intake restrictions, battery problems, or mechanical failures. Diagnosing the root cause involves checking fuel supply, air filters, battery voltage, and engine components.
To fix the problem, we need to examine each possible cause step by step. Let’s go through the most common reasons why this happens and how to solve them.
Is the fuel system causing the issue?
A diesel engine needs a steady supply of fuel. If anything disrupts this, the generator will crank but not start.
Fuel contamination, clogged fuel filters, air in the fuel lines, or a failing fuel pump can prevent the generator from starting. Checking the fuel system for blockages, leaks, or bad fuel is the first step in troubleshooting.
1. Is there enough fuel in the tank?
Running out of fuel is an obvious problem but sometimes overlooked. Diesel levels should be checked visually, and the fuel gauge should be verified for accuracy.
2. Is the fuel contaminated?
Diesel can degrade over time, forming sludge or absorbing water. Contaminated fuel can clog filters and injectors, leading to starting issues. A fuel sample should be taken and inspected for water or debris.
3. Are the fuel filters clogged?
A clogged fuel filter restricts flow, starving the engine. If the filter has not been replaced recently, it should be changed to ensure proper fuel delivery.
4. Is there air in the fuel lines?
Air pockets can stop the fuel from reaching the injectors. Bleeding the fuel system removes trapped air and restores normal operation.
5. Is the fuel pump functioning?
A weak or failing fuel pump cannot deliver enough pressure. A pressure test can confirm if the pump is working properly.
If all fuel-related components check out, then the issue might be elsewhere.
Could a restricted air intake be the cause?
An engine needs air to run. A blockage in the intake system can prevent proper combustion.
A clogged air filter, obstructed intake piping, or stuck intake valves can stop a diesel generator from starting. Cleaning or replacing air filters and ensuring unrestricted airflow can fix the issue.
1. Is the air filter clogged?
A dirty air filter can choke the engine. If the filter is blocked, it must be replaced or cleaned.
2. Are the intake pipes clear?
Check for obstructions in the intake system. Rodents or debris can sometimes block air passages.
3. Are the intake valves working properly?
If the intake valves are stuck or not opening fully, the engine won’t get enough air. A mechanic may need to inspect and clean the valves.
If air intake is not the problem, we should check the electrical system.
Is the battery or starter motor failing?
The engine needs strong cranking power to start. A weak battery or faulty starter motor can make the generator crank but not fire up.
Low battery voltage, corroded terminals, or a weak starter motor can prevent the engine from starting. Checking the battery charge, cables, and starter motor function can help identify electrical problems.

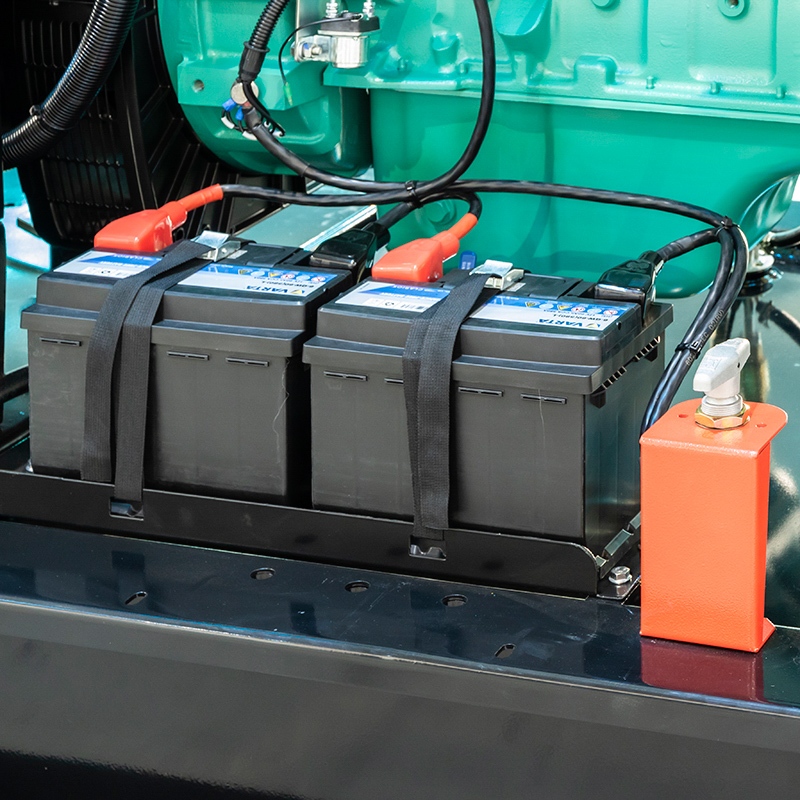

1. Is the battery fully charged?
A weak battery may crank the engine but not with enough power to start. The voltage should be checked with a multimeter.
| Battery Condition | Voltage Reading |
|---|---|
| Fully Charged | 12.6V or higher |
| Needs Charging | 12.0V - 12.5V |
| Dead Battery | Below 12.0V |
2. Are the battery terminals clean and tight?
Loose or corroded terminals can cause voltage drops. The connections should be cleaned and tightened.

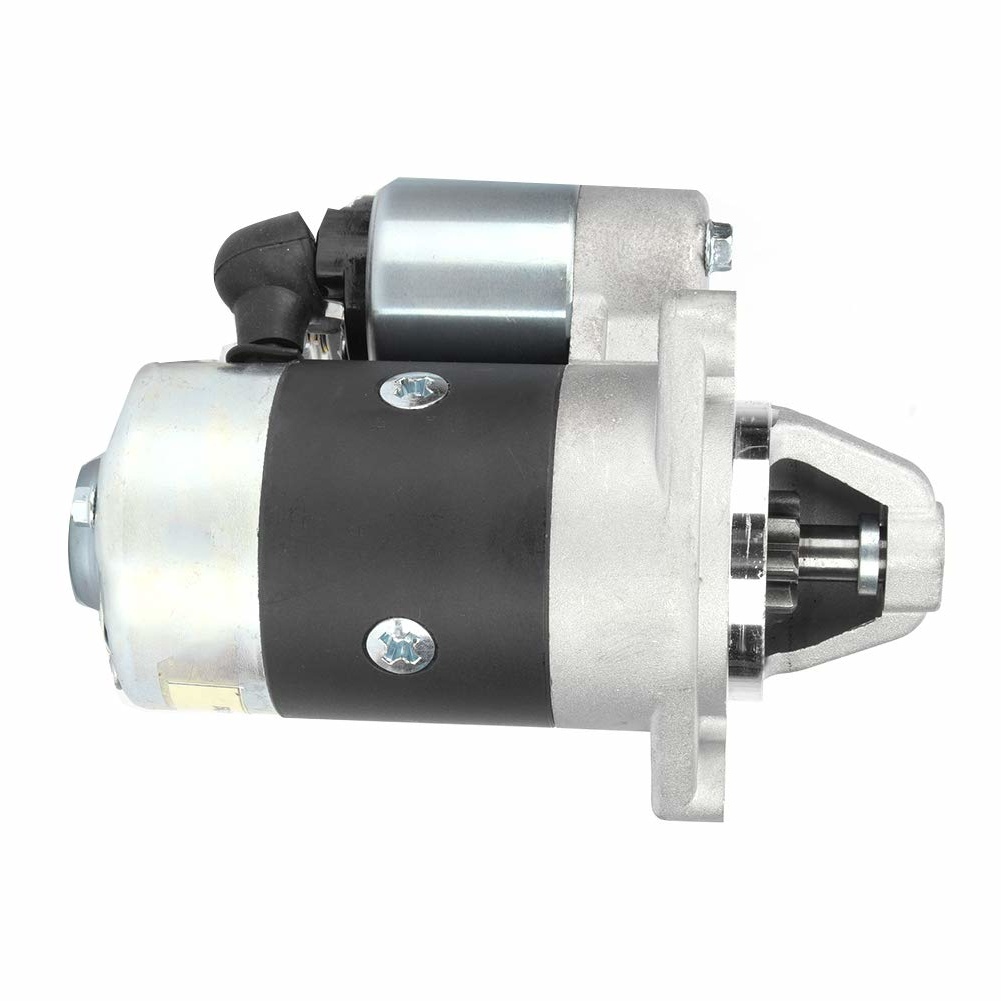

3. Is the starter motor engaging properly?
If the starter motor is weak or has worn-out brushes, it may crank the engine too slowly. A mechanic should test its performance.
If the battery and starter are fine, we should inspect the engine itself.
Could there be a mechanical failure?
If all systems seem fine but the generator still won’t start, an internal engine issue could be the cause.
Low compression, a damaged timing system, or injector problems can prevent combustion. Checking compression levels and injector function can help diagnose serious mechanical failures.
1. Is there enough engine compression?
Diesel engines rely on high compression to ignite fuel. A compression test can determine if there is a problem.
| Compression Condition | PSI Reading |
|---|---|
| Good Compression | 300+ PSI |
| Borderline | 250-299 PSI |
| Low Compression | Below 250 PSI |
2. Are the injectors working correctly?
Faulty injectors may not spray fuel properly. Testing and cleaning the injectors can resolve this issue.
3. Is the timing system aligned?
If the timing chain or belt is off, the engine will not fire correctly. A mechanic should check if timing marks are aligned.
If a mechanical failure is suspected, professional diagnosis and repair are required.
Conclusion
A diesel generator that cranks but won’t start usually has a fuel, air, battery, or mechanical problem. Checking each system step by step helps identify the issue and get the generator running again.
