Short Answer:

Air in a diesel generator fuel system causes hard starting, stalling after startup, unstable RPM, power loss under load, and white smoke.

In our field experience, this usually happens after fuel filter replacement, running out of fuel, or air leaks in fuel lines. If not resolved, it can lead to injector damage or complete startup failure.

Common Symptoms at a Glance

• Hard starting or no start
• Starts then stalls after a few seconds
• Rough running or RPM fluctuation
• Loss of power under load
• White smoke during startup

These symptoms are consistent across most diesel generator systems and are usually easy to identify on site.

What Causes Air in the Fuel System?

Air enters the system due to leaks, improper maintenance, or fuel supply issues.

In real projects, we most often see:

• Fuel filter replacement without proper bleeding
• Running out of fuel
• Loose or cracked fuel lines (especially on the suction side)
• Faulty fuel lift pump or worn seals
• Low fuel level causing air intake under load

In many cases, the issue starts small but becomes critical when the generator is required to carry load.

What Are the Symptoms? (Detailed Diagnosis)

1. Hard Starting or No Start

Conclusion: Air prevents proper fuel pressure buildup.

• Extended cranking time
• Engine fails to start
• Common after maintenance or empty tank

This is often the first symptom operators notice.

2. Starts Then Stalls

Conclusion: Air pockets interrupt continuous fuel flow.

• Starts normally, then stops within seconds
• Repeated start-stop cycles
• Often misdiagnosed as electrical faults

We see this frequently after filter replacement.

3. Rough Running and RPM Fluctuation

Conclusion: Air causes uneven fuel injection.

• Engine vibration increases
• RPM instability (hunting)
• Audible misfire

This indicates the fuel system is not delivering consistently.

4. Loss of Power Under Load

This is why load bank testing is often used in real projects to verify generator performance under load.

Conclusion: Air reduces effective fuel delivery.

• Generator struggles when load is applied
• Voltage and frequency drop
• Cannot reach rated capacity

This is usually when users realize the problem is serious.

5. White Smoke and Excessive Cranking

Conclusion: Air leads to incomplete combustion.

• White smoke during startup
• Strong fuel smell
• Delayed ignition

This is a typical sign of improper fuel-air mixing.

How to Diagnose It Step by Step

In real projects, we confirm this issue using a simple process:

Step 1: Check recent maintenance
If the issue started after filter replacement or refueling, air is very likely.

Step 2: Inspect fuel lines
Check for loose fittings, cracks, or leaks (especially suction side).

Step 3: Use manual priming pump
Soft or inconsistent resistance usually indicates air.

Step 4: Bleed the system
Remove air until fuel flows continuously without bubbles.

Step 5: Test under load
Always verify under load, not just idle.

How to Fix the Problem

The fix is straightforward, but must be done correctly:

• Fully bleed the fuel system
• Tighten or replace leaking connections
• Prime the system after running out of fuel
• Replace damaged hoses or seals

If air keeps returning, it is not a one-time issue.

When Is This a Serious Risk?

Conclusion: It becomes critical when it affects load performance or happens repeatedly.

Take immediate action if:

• Generator cannot carry load
• Problem returns after bleeding
• Visible smoke or misfiring occurs

We have seen this issue cause unexpected shutdowns in data centers, telecom sites, and rental generators.

In standby applications, this is a high-risk failure.

How to Prevent It

From our experience, prevention is mainly about correct operation:

• Always bleed after maintenance
• Never run the generator out of fuel
• Keep fuel level above 30%
• Inspect fuel lines regularly
• Perform periodic load testing

In some cases, instability caused by air can only be confirmed under load.

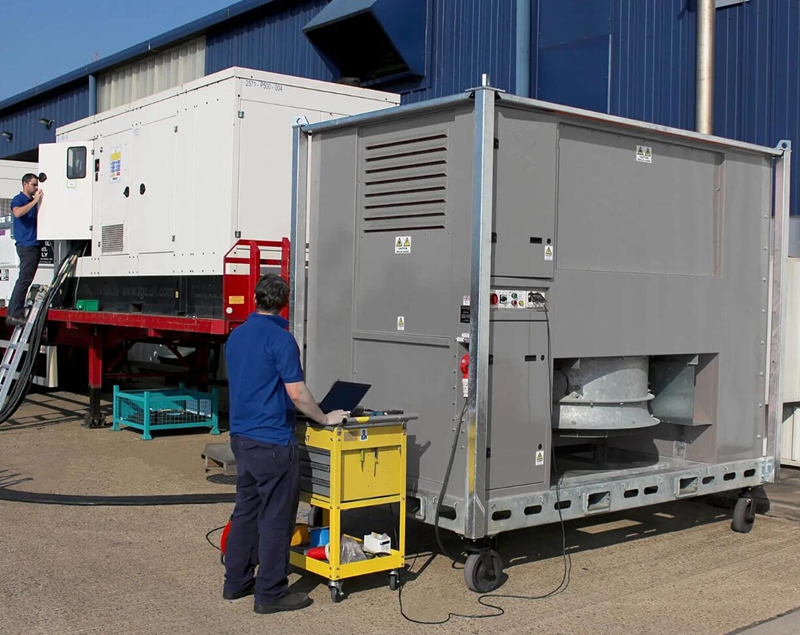

This is why load bank testing is often used to verify whether the generator can maintain stable output under real conditions.

If you are facing recurring fuel system issues or unstable generator performance, it may be worth reviewing the generator configuration or testing setup before failures occur.

When This Is NOT Just a Simple Problem

In real projects, if air in the fuel system keeps coming back, it is usually not just a maintenance issue.

In many cases, it indicates:

• Poor fuel system design
• Incorrect installation
• Oversized generator running at low load
• Long fuel pipe routing or improper layout

We often see operators repeatedly bleeding the system, but the problem returns again and again.

At this stage, continuing temporary fixes will not solve the root cause.

It is better to evaluate the generator system as a whole before a failure occurs.

Conclusion

Air in a diesel generator fuel system is a common but critical issue. The symptoms are clear: hard starting, stalling, unstable operation, and power loss.

In our field experience, most cases are caused by improper maintenance or small leaks, and can be resolved quickly.

However, if the issue keeps returning, it usually indicates a deeper system problem.

In such cases, evaluating the system early can prevent unexpected shutdowns and costly damage.
