Short Answer:
Air in a diesel generator fuel system will cause no start, hard starting, power loss, or sudden shutdown because it prevents the fuel system from building injection pressure.
This condition is commonly known as an air lock in a diesel engine, and in our field experience, it almost always happens after running out of fuel, changing fuel filters, or due to small air leaks in fuel lines.
What Causes Air to Enter the Fuel System?
Air only enters when the fuel system is no longer sealed or properly primed.
1. Running Out of Fuel (Most Common)
When the tank runs empty, air is pulled into the entire fuel line.
Without proper bleeding, the generator will crank but not start.
In real projects, this is the most frequent cause we see on standby generators.

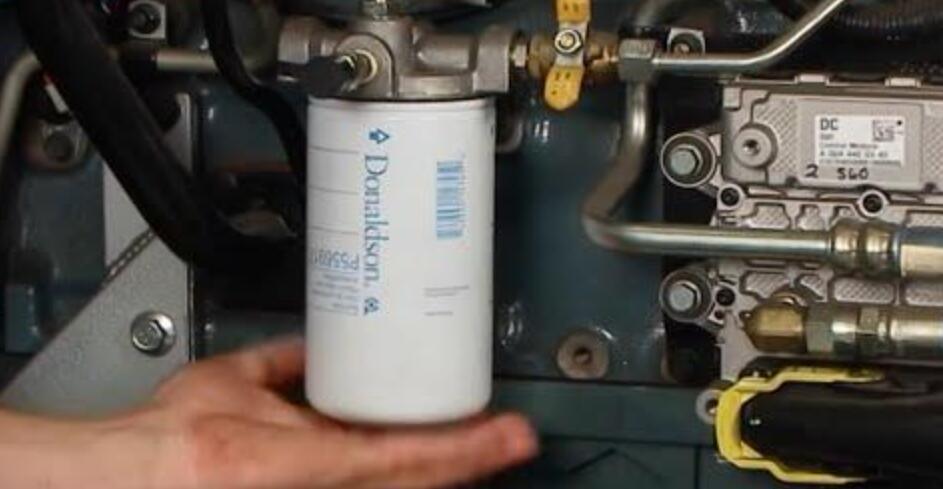

2. Fuel Filter Replacement Without Priming
Installing a dry filter introduces air directly into the system.
This leads to a typical diesel engine air lock after maintenance.
3. Air Leaks in Fuel Lines
Small leaks on the suction side allow air to enter without visible fuel leakage.
Common points:
- Loose clamps
- Cracked hoses
- Worn seals
4. Weak or Faulty Lift Pump
A failing lift pump cannot maintain continuous fuel flow, allowing air pockets to form.
5. Oversized Generator Running at Low Load
Long-term low load operation can make fuel delivery unstable and increase sensitivity to air intrusion.
This is often linked to incorrect generator sizing.
What Are the Symptoms of Air in a Diesel Fuel System?
The symptoms are very specific and easy to recognize once you know what to look for.
Typical air in fuel symptoms include:
- Engine cranks but will not start
- Starts briefly and then stalls
- Unstable or rough running
- Loss of power under load
- Visible air bubbles in fuel lines
In our experience, “crank but no start after maintenance” is almost always caused by air in the system.
Important: Air vs Fuel Blockage (Common Misdiagnosis)
Many users confuse air in the system with fuel blockage, but they are different problems.
- Air in system: prevents pressure buildup → injectors cannot deliver fuel
- Fuel blockage: restricts fuel flow → engine may still run but weak
This distinction matters because the solutions are completely different.
How to Diagnose It Step by Step
You can confirm this issue quickly with a structured approach.
Step 1: Confirm Cranking Without Ignition
If the engine cranks normally but does not fire, check fuel delivery first.
Step 2: Check Fuel Level and Filter Installation
Make sure:
- Tank is not empty
- Filters are correctly installed and sealed
Step 3: Look for Air Bubbles
Transparent fuel lines will show bubbles if air is present.
Step 4: Use the Manual Priming Pump
- Soft or inconsistent resistance → air present
- Firm resistance → system likely full
Step 5: Crack Injector Lines (Advanced Check)
Loosen injector lines slightly and crank:
- Fuel with bubbles or irregular flow → confirmed air lock

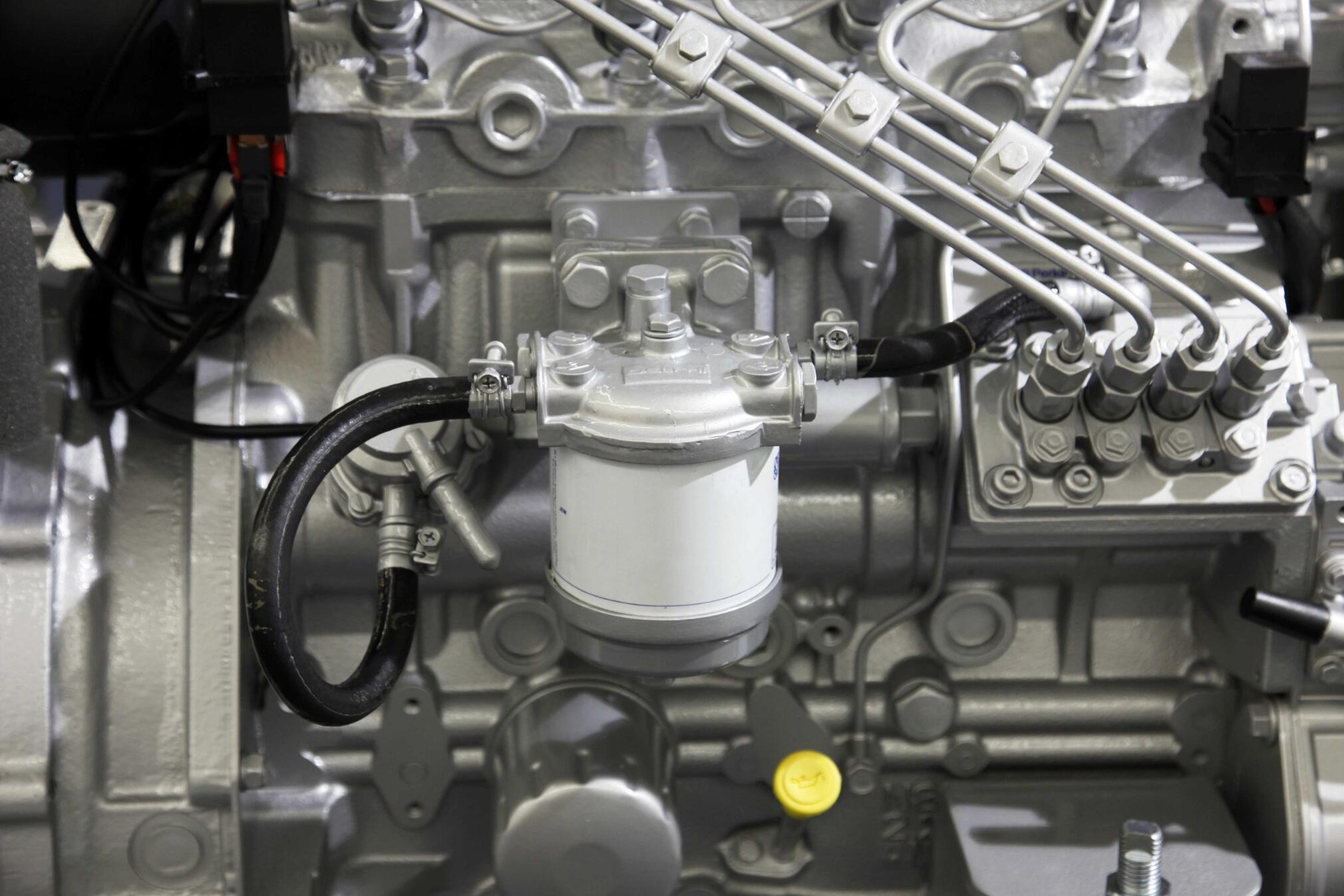

How to Fix It (Bleeding the Fuel System)
The only effective solution is to remove all trapped air.
Standard Bleeding Procedure:
- Refill the fuel tank
- Open bleed screws on the filter or injection pump
- Use hand primer to pump fuel
- Continue until fuel flows without bubbles
- Tighten screws and restart
This process is known as bleeding a diesel fuel system.
Field Tip (Very Important)
Always pre-fill the fuel filter before installation.
From our experience, this prevents most air lock issues.
When Is This a Serious Risk?
This issue becomes critical in real-world applications, not just during testing.
High-risk scenarios:
- Backup generators for hospitals or data centers
- Units that must start instantly during power failure
- Systems where the problem occurs repeatedly
We have seen cases where generators failed completely during outages because of trapped air.
If your generator cannot start reliably, it is no longer a minor issue — it is an operational risk.
Conversion Insight (Why This Problem Should Not Be Ignored)
If air keeps entering the system, the root cause is usually deeper than simple maintenance.
It often indicates:
- Poor fuel system sealing
- Low-quality components
- Incorrect generator sizing or long-term low load operation
In these cases, repeated bleeding is only a temporary fix.
It is better to evaluate the system before a failure happens, especially for critical applications.
How to Prevent Air in the Fuel System
Prevention is simple if done consistently.
Maintain Adequate Fuel Level
Never let the generator run dry.
Follow Correct Filter Replacement Procedures
- Pre-fill filters
- Bleed air before startup

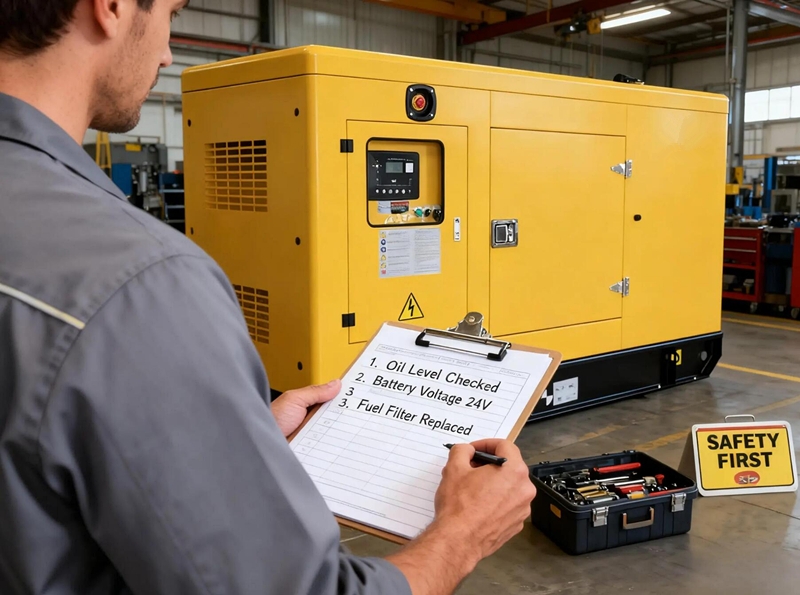

Inspect Fuel System Regularly
Check:
- Hoses
- Clamps
- Seals
Perform Periodic Load Testing
From our field experience, fuel system problems often appear under load, not at idle.
Load testing helps identify:
- Fuel delivery instability
- Engine performance issues
If your generator shows unstable performance, proper testing is necessary.
You can also explore our diesel generator solutions to ensure reliable operation under real working conditions.
Conclusion
Air entering a diesel generator fuel system creates an air lock, which prevents proper fuel injection and leads to starting failure or unstable operation.
The most common causes are:
- Running out of fuel
- Improper filter replacement
- Air leaks in the system
The solution is clear:
Bleed the system completely and fix the root cause
From our experience, if this issue happens more than once, it is not accidental - it indicates a deeper system or maintenance problem that should be addressed properly.
