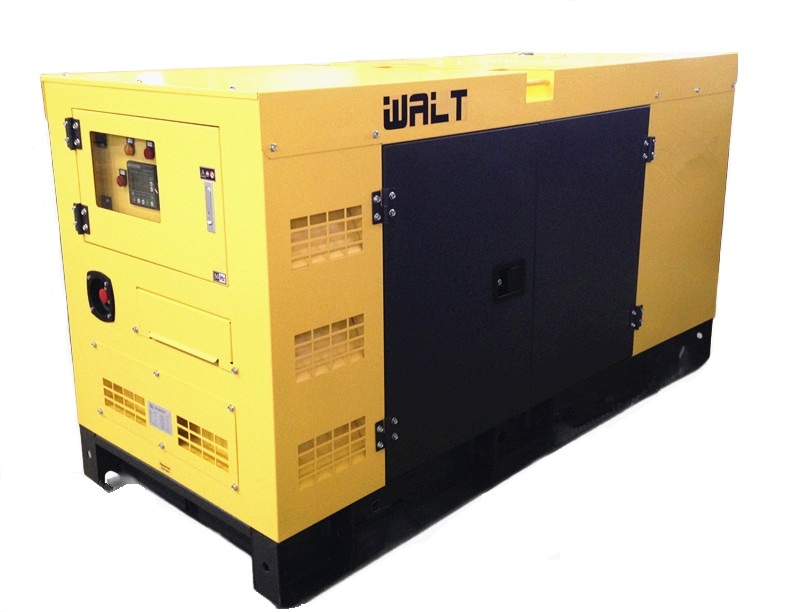

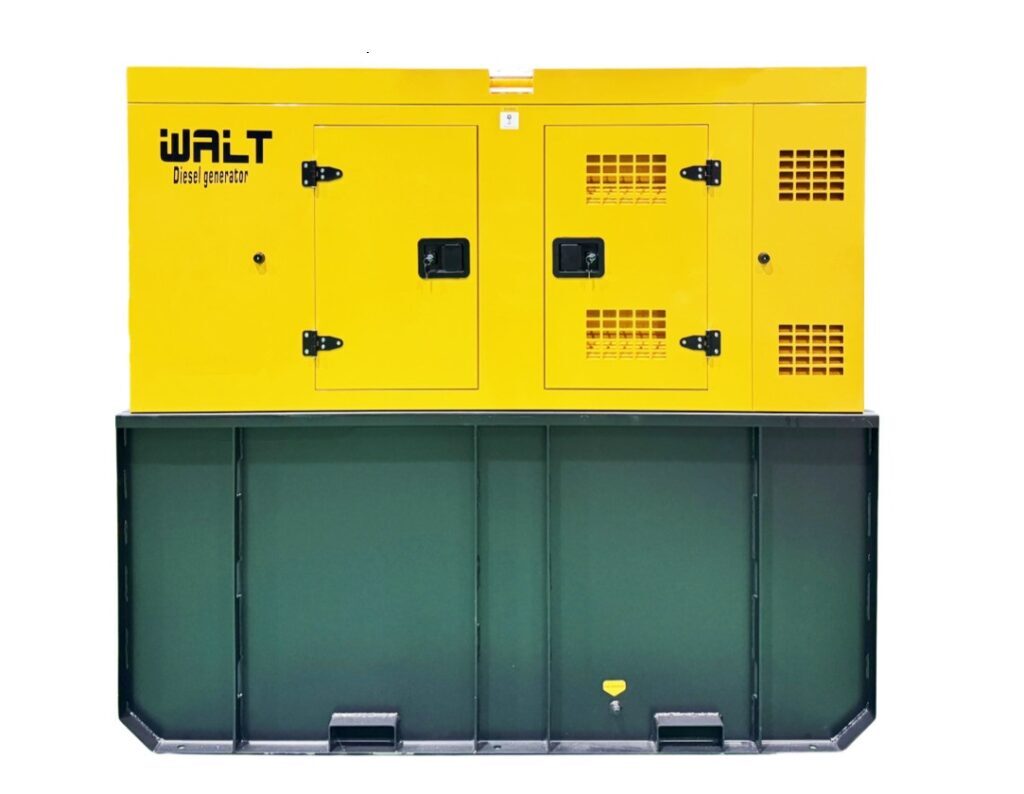

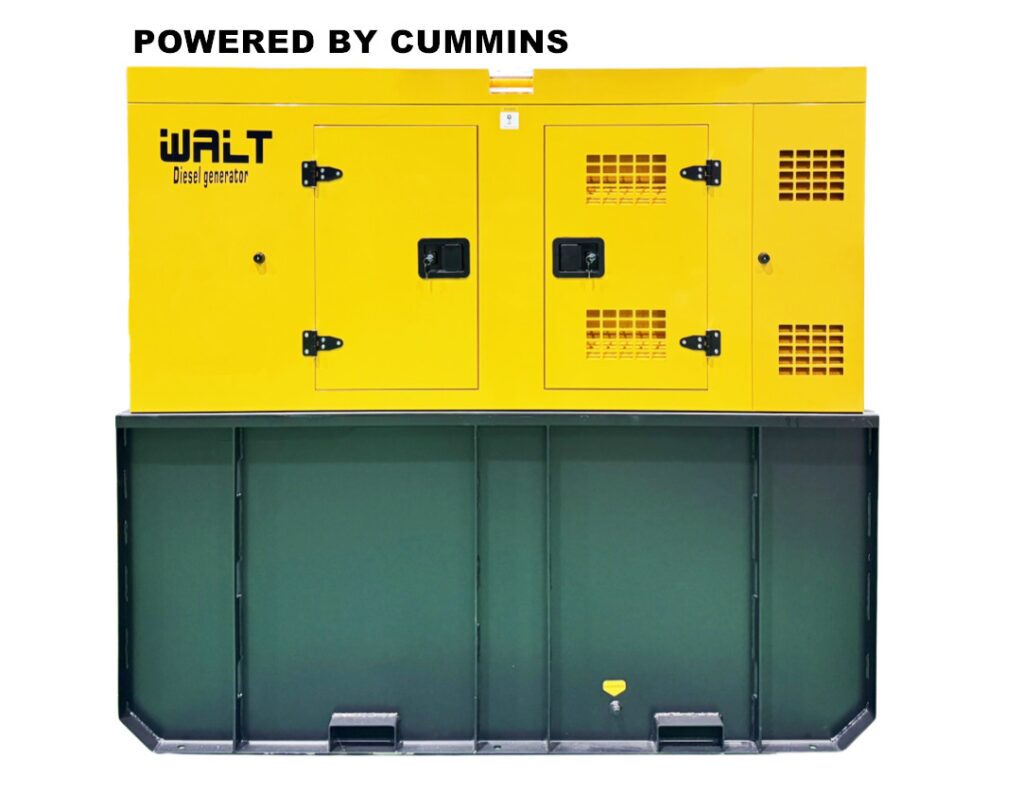

Walt Power WGP Cummins – C Series Diesel Generators are reliable and durable for widely used in homes, commercial buildings, Industrial Plants, Airports, Telecom, and other off-grid electricity.
It is not easy to introduce all aspects of custom generators, so we have prepared a lot of information on this page for you to delve into. To make sure you can find the information you want quickly, we have prepared this content directory that will jump to the corresponding location when you click on it.
Diesel Generators have the following wide range of applications—inquiry us for more solutions.
Find the right Cummins diesel generators below for your power needs; All of our products are provided with up to one year warranty.
| Genset Model | Prime Power kW/kVA | Standby Power kW/kVA | Engine Model | Fuel Cons 100% | Dimension mm (Silent Type) | Dimension mm (Open Type) |
|---|---|---|---|---|---|---|
| WGP-C24/S | 17kW/21kVA | 19kW/24kVA | 4B3.9-G11 | 6.9 L/H | 2388 x 1000 x 1450 | 1850 x 800 x 1160 |
| WGP-C30/S | 22kW/28kVA | 24kW/30kVA | 4B3.9-G1/G2 | 7.1 L/H | 2388 x 1000 x 1450 | 1850 x 800 x 1160 |
| WGP-C34/S | 25kW/31kVA | 27kW/34kVA | 4B3.9-G12 | 7.2 L/H | 2388 x 1000 x 1450 | 1850 x 800 x 1160 |
| WGP-C44/S | 32kW/40kVA | 35kW/44kVA | 4BT3.9-G1/G2 | 9.3 L/H | 2388 x 1000 x 1450 | 1850 x 800 x 1160 |
| WGP-C56/S | 40kW/50kVA | 44kW/56kVA | 4BTA3.9-G2 | 12.9 L/H | 2538 x 1000 x 1450 | 1850 x 800 x 1290 |
| WGP-C70/S | 50kW/63kVA | 55kW/70kVA | 4BTA3.9-G2 | 14.9 L/H | 2538 x 1000 x 1450 | 1850 x 800 x 1290 |
| WGP-C80/S | 58kW/72kVA | 64kW/80kVA | 4BTA3.9-G11 | 17.4 L/H | 2538 x 1000 x 1450 | 1900 x 800 x 1300 |
| WGP-C110/S | 80kW/100kVA | 88kW/110kVA | 6BT5.9-G2 | 24.2 L/H | 2938 x 1080 x 1690 | 2200 x 880 x 1360 |
| WGP-C125/S | 90kW/113kVA | 100kW/125kVA | 6BTA5.9-G2 | 27 L/H | 2938 x 1080 x 1690 | 2200 x 880 x 1360 |
| WGP-C138/S | 100kW/125kVA | 110kW/138kVA | 6BTAA5.9-G2 | 30 L/H | 3288 x 1130 x 1850 | 2400 x 950 x 1510 |
| WGP-C150/S | 110kW/138kVA | 120kW/150kVA | 6BTAA5.9-G2 | 30 L/H | 3288 x 1130 x 1850 | 2400 x 950 x 1510 |
| WGP-C165/S | 120kW/150kVA | 132kW/165kVA | 6BTAA5.9-G12 | 34 L/H | 3288 x 1130 x 1850 | 2400 x 950 x 1510 |
| WGP-C200/S | 145kW/180kVA | 160kW/200kVA | 6CTA8.3-G1/G2 | 42 L/H | 3288 x 1130 x 1850 | 2400 x 950 x 1510 |
| WGP-C220/S | 160kW/200kVA | 176kW/220kVA | 6CTAA8.3-G2 | 45 L/H | 3588 x 1180 x 2150 | 2650 x 1000 x 1800 |
| WGP-C275/S | 200kW/250kVA | 220kW/275kVA | 6LTAA8.9-G2 | 53 L/H | 3588 x 1180 x 2150 | 2650 x 1000 x 1800 |
| WGP-C303/S | 220kW/275kVA | 242kW/303kVA | 6LTAA9.5-G3 | 54 L/H | 3588 x 1180 x 2150 | 2650 x 1000 x 1800 |
| WGP-C360/S | 260kW/325kVA | 286kW/360kVA | 6LTAA9.5-G1 | 70 L/H | 3588 x 1180 x 2150 | 2650 x 1000 x 1800 |
| WGP-C425/S | 310kW/388kVA | 340kW/425kVA | 6ZTAA13-G3 | 74.7 L/H | 4588 x 1600 x 2500 | 3500 x 1300 x 2050 |
| WGP-C475/S | 350kW/438kVA | 380kW/475kVA | 6ZTAA13-G2 | 87.1 L/H | 4588 x 1600 x 2500 | 3500 x 1300 x 2050 |
| WGP-C500/S | 360kW/450kVA | 400kW/500kVA | QSZ13-G5 | 93.2 L/H | 4588 x 1600 x 2500 | 3500 x 1300 x 2050 |
| WGP-C525/S | 380kW/475kVA | 420kW/525kVA | QSZ13-G3 | 101 L/H | 4588 x 1600 x 2500 | 3500 x 1300 x 2050 |
| WGP-C550/S | 400kW/500kVA | 440kVA/550kVA | QSZ13-G10 | 107 L/H | 4588 x 1600 x 2500 | 3500 x 1300 x 2050 |
| WGP-C275/S | 200kW/250kVA | 220kW/275kVA | MTA11-G2 | 43.9 L/H | 3888 x 1350 x 1950 | 2650 x 1100 x 1800 |
| WGP-C313/S | 220kW/275kVA | 250kW/313kVA | NTA855-G1A | 61 L/H | 3988 x 1400 x 2250 | 3150 x 1100 x 1950 |
| WGP-C350/S | 250kW/313kVA | 280kW/350kVA | NTA855-G1B | 68 L/H | 3988 x 1400 x 2250 | 3150 x 1100 x 1950 |
| WGP-C375/S | 275kW/345kVA | 300kW/375kVA | NTA855-G2A | 72 L/H | 3988 x 1400 x 2250 | 3150 x 1100 x 1950 |
| WGP-C390/S | 280kVA/350kW | 310kW/390kVA | NTA855-G4 | 75 L/H | 4588 x 1600 x 2500 | 3500 x 1300 x 2050 |
| WGP-C400/S | 300kW/375kVA | 320kW/400kVA | NTAA855-G7 | 86 L/H | 4588 x 1600 x 2500 | 3500 x 1300 x 2050 |
| WGP-C500/S | 360kW/450kVA | 400kW/500kVA | KTA19-G3 | 97 L/H | 4888 x 1600 x 2500 | 3500 x 1300 x 2050 |
| WGP-C563/S | 400kW/500kVA | 450kW/563kVA | KTA19-G3A | 91 L/H | 4888 x 1600 x 2500 | 3500 x 1300 x 2050 |
| WGP-C600/S | 420kW/525kVA | 480kW/600kVA | KTAA19-G5 | 115 L/H | 4888 x 1600 x 2500 | 3500 x 1370 x 2150 |
| WGP-C650/S | 460kW/575kVA | 520kW/650kVA | KTAA19-G6 | 118.5 L/H | 4888 x 1600 x 2500 | 3500 x 1525 x 2220 |
| WGP-C688/S | 500kW/625kVA | 550kW/688kVA | KT38-G | 140 L/H | 4888 x 1800 x 2500 | 3500 x 1525 x 2220 |
| WGP-C825/S | 600kW/750kVA | 660kW/825kVA | KTA38-G2 | 167 L/H | 5732 x 2000 x 2563 | 4400 x 1760 x 2250 |
| WGP-C880/S | 640kW/800kVA | 704kW/880kVA | KTA38-G2B | 171 L/H | 5732 x 2000 x 2563 | 4400 x 1760 x 2250 |
| WGP-C1100/S | 800kW/1000kVA | 880kW/1100kVA | KTA38-G5 | 178 L/H | 5732 x 2000 x 2563 | 4400 x 1760 x 2250 |
| WGP-C1375/S | 1000kW/1250kVA | 1100kW/1375kVA | KTA50-G3 | 254 L/H | 20'FT | 4400 x 2000 x 2250 |
| WGP-C1600/S | 1180kW/1475kVA | 1280kW/1600kVA | KTA50-GS8 | 297 L/H | 40HQ | 5800 x 2200 x 2500 |
| WGP-C1856/S | 1350kW/1688kVA | 1485kW/1856kVA | KTA50-G15 | 313 L/H | 40HQ | 5800 x 2200 x 2500 |
| WGP-C2000/S | 1500kW/1875kVA | 1600kW/2000kVA | QSK50-G16 | 378 L/H | 40HQ | 5800 x 2200 x 2500 |
| WGP-C2200/S | 1600kW/2000kVA | 1760kW/2200kVA | QSK60-G4 | 394 L/H | 40HQ | 5800 x 2200 x 2500 |
| WGP-C2500/S | 1800kW/2250kVA | 2000kW/2500kVA | QSK60-G8 | 455 L/H | 40HQ | 5900 x 2200 x 2500 |
| WGP-C3000/S | 2200kW/2750kVA | 2400kW/3000kVA | QSK78-G9 | 528 L/H | 40HQ | 6800 x 2800 x 3400 |
| WGP-C3763/S | 2690kW/3360kVA | 3010kW/3763kVA | QSK95-G4 | 645 L/H | 40HQ | 6900 x 2800 x 3450 |
Please note that the final cost depends on the quantities you require, the specifications of the raw materials used, the relevant national laws, and the distance of transportation. Take the example of booking a full container of products:
This is the total Fob price for delivery to the port of China.
$60000
Take the US as a sample, the port of departure is Shanghai China, and the destination port is Miami.
$4500
Estimated customs clearance and other miscellaneous fees based on our experiences.
$1800Please note that the final delivery time depends on the quantities you require, the specifications of materials requirement, and the distance of transportation. Take the example of booking a 40’ft container of products:
Let our experts know your purchase requirements, such as the power of the Genset, voltage, frequency, phase, quantity, and others (if have any).
This step allows us to clearly outline your ordering requirements in a contract, with both parties confirming pricing and shipping terms to protect your purchasing rights.
Confirmation of terms by both parties and pay of advance payment by the purchaser.
Upon receipt of the deposit, we will deliver your genset as per the Proforma Invoice/Sales Contract terms.
Depends on the destination country’s distance. If the shipping term is Fob Shanghai China, we send the Genset to any city in China not more than 5 days. Typically 3 to 10 days for Southeast Asian countries by sea shipping. For other countries, contact us for details.
Please note that the final cost depends on the customized service you require, the specifications of the raw materials used, the relevant national laws, and the distance of transportation. Take the example of booking a tall container of products:
From generator sets, control systems, diesel engines, AC brushless alternator, and batteries fast measures to quickly troubleshoot
How can you spend less money to buy a cost-effective Chinese diesel generator? This article will explore this controversial issue
When purchasing an ordinary diesel generator set, you will often encounter the following problems, which will directly affect whether the generator set can correctly match your needs and its service life.
When you decide to purchase a diesel generator set, to avoid the purchasing pitfalls mentioned above, it is important to conduct a thorough evaluation of the power demand and load characteristics of the equipment or facility that the generator set will be supporting, including calculating the peak power demand, considering any future expansion plans, and taking into account any potential power surges or fluctuations.
In addition, it is vital to work with a reputable and experienced supplier/manufacturer who can provide expert guidance and assistance to help you select the right genset for your needs to ensure a successful purchase.
By addressing these potential pitfalls and taking proactive steps to mitigate risks, you can make a well-informed decision when purchasing a generator set and ensure a reliable power supply for your operations.
Founded in 1996, Walt Power is committed to designing, manufacturing, and exporting premium and competitively priced generator sets.
WALT Power has a significant & full-range air-cooled diesel generator manufacturing capability.
Whether you need silent diesel generators or need to custom any generator sets. Walt Power always satisfies your needs.
If your question is not listed, please email us right now.
The average cost of a diesel generator can range from around $2000 to over $150000, depending on power and configurations. The power output significantly affects the cost of a portable diesel generator as models with higher power output typically cost more.
For water-cooled diesel generators set sizes from 7kW to 30kW (single-phase or 3-phase) for homes, small shops, and offices, with the larger industrial diesel generators from 40kW up to 3000kW used for office complexes, factories, and other industrial facilities.
A larger standby diesel generator with a continual supply of diesel can run for about 500 hours before it’s recommended you allow it to cool and check it over. This is going to be your best option if you want to run a generator non-stop for extended periods
The approximate diesel fuel consumption of a 250kW generator is 68 liters on full load, 21 liters on 25% load.
The approximate diesel fuel consumption of a 100kVA generator is 22 liters on full load, 12 liters on 50% load.
Using a 100kw generator you could probably power 25 to 50 homes at one time assuming they were not all running their ac and electric stoves at once.
The best brand of diesel generator often depends on individual needs and preferences. Generac, JCB, Atlas, Kohler, SDMO, and WALT are reputable brands known for their reliable diesel generators
For sure some generator models can run 24 hours, or even for multiple days, generators should never be left to run for weeks or months at a time. Any diesel generator needs routine maintenance and regular lubrication, also check the coolant every day and engine oil.
Usually, diesel generators last from 10,000 to 30,000 hours of use, which equates to about 20-25 years of use.
For home standby diesel generators powering smaller homes with a kilowatt (kW) range from 7kW to 20kW. Some larger residential buildings may need 30kW to 50kW.
