If your diesel generator starts manually but not automatically, first check the controller's Auto Mode, active alarms, and remote start input. If these are normal, confirm whether the ATS is sending a start command and whether that command reaches the generator controller.
At WALT POWER, we normally check the automatic start control circuit before investigating engine components. A successful manual start shows that the engine can start and run under those conditions, but it does not prove that the ATS, remote start wiring, or automatic control logic is working.
The key is to find where the automatic start sequence stops.
What Should You Check First?
Before opening the ATS cabinet or checking internal wiring, look at the generator controller display.
We normally start with four checks:
- Auto Mode: Confirm that Auto Mode is selected and remains active.
- Active alarms: Check for shutdown alarms, emergency stop conditions, or start inhibits.
- Remote start request: Check whether the controller recognizes a start request from the ATS.
- Cranking response: If the request is recognized, check whether the controller commands cranking and whether the engine actually turns.
The first two checks can usually be completed without opening an electrical cabinet. For the remaining checks, controller status information and event logs are useful starting points.
Quick Diagnosis Table
| What You Observe | Likely Fault Area | What to Check or Fix |
|---|---|---|
| Generator starts manually, but Auto Mode is inactive | Controller operating mode | Select Auto Mode and confirm it remains active |
| Auto Mode is active, but a shutdown alarm is present | Controller protection | Identify and correct the alarm |
| ATS does not issue a start request | ATS sensing or control logic | Check utility sensing, ATS mode, and start delay |
| ATS indicates a start request, but the required output does not operate | ATS output circuit or logic | Verify output operation before replacing components |
| ATS output operates, but controller does not recognize remote start | Control wiring or controller input | Check signal path and input configuration |
| Controller recognizes remote start but does not command cranking | Start inhibit, timer, or controller logic | Check start permissions and active alarms |
| Controller commands cranking, but engine does not turn | Starting circuit | Check battery, starter circuit, and related protection |
| Engine cranks automatically but fails to start | Engine starting system | Check fuel supply, cranking performance, and engine alarms |
Our recommendation: Do not replace the ATS or generator controller until you know which step of the automatic start sequence has failed.
Why Does Manual Start Work but Automatic Start Fail?
Manual starting and automatic starting use different command paths.
When you press the Manual Start button, the generator controller receives a local start request and initiates the starting sequence, provided the required operating conditions are satisfied.
Automatic starting requires an external signal or another programmed automatic start condition.
In a typical ATS-controlled standby generator system, the sequence is:
Utility Failure → ATS Detects Failure → ATS Start Request → ATS Output → Generator Controller Input → Start Permission → Crank Command → Engine Starts
The exact arrangement depends on the ATS and generator controller models.
Some systems use a voltage-free contact between the ATS and generator controller. Others use a separate AMF controller or another control interface.
In our experience, identifying the last successful step is more useful than guessing which component has failed.
If the ATS never issues a start request, we investigate the ATS side. If the controller receives the request but does not initiate cranking, we move to its start permissions and operating logic.
Why Is My Generator Not Starting Automatically During a Power Outage?
Is the Generator Controller Set to Auto Mode?
This is the first setting I would check.
Most industrial generator controllers provide Manual, Auto, and Stop/Reset operating functions. Their exact behavior depends on the controller model and configuration.
After maintenance or manual testing, the controller may have been left in Manual Mode.
In that condition, the generator can start when someone presses the Start button but may not respond to the ATS remote start request.
How We Check It
First, confirm that Auto Mode is active.
Next, check whether the controller shows a shutdown alarm, emergency stop condition, or another indication that automatic starting is unavailable.
If Auto Mode cannot be selected or retained, investigate the controller's operating permissions and alarm status.
Fix: Correct the active alarm or inhibit condition and restore Auto Mode according to the controller manufacturer's instructions.
Auto Mode does not mean the generator should start immediately. It means the controller is ready to respond when the required automatic start condition occurs.

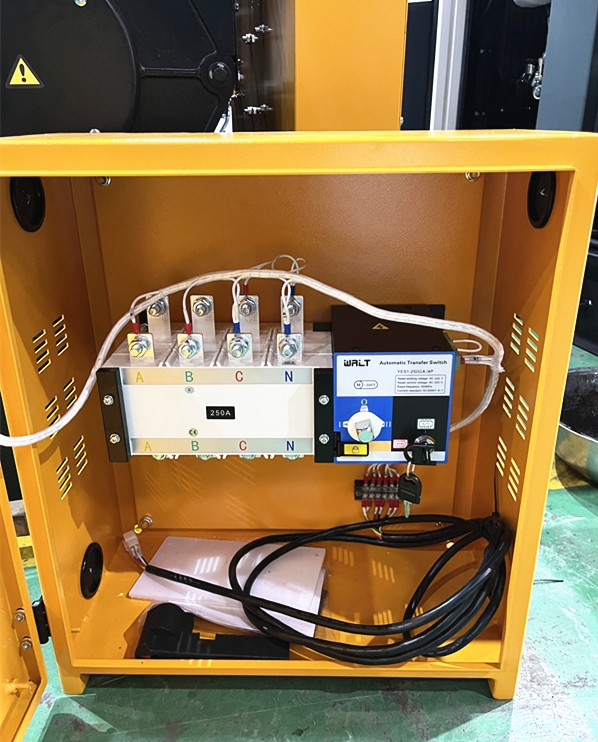

Is the ATS Actually Sending a Generator Start Command?
If Auto Mode is active and no shutdown condition is blocking starting, the next step is to check the ATS start request.
In many standby generator installations, the ATS sends a remote start request through a dedicated control circuit.
For common WALT POWER generator configurations using compatible ATS and controllers, this may be arranged through a voltage-free contact connected to a configured controller input.
When utility power becomes unacceptable, the ATS waits for the programmed delay and then issues the start request.
However, an ATS displaying a start request does not necessarily prove that its physical output contact has operated correctly.
We normally separate these two conditions.
First, does the ATS recognize the utility failure?
Second, has the programmed start delay expired?
Third, does the ATS indicate that a generator start request has been issued?
Finally, has the required output contact or control interface actually operated?
If the ATS does not generate a start request, check its utility sensing, operating mode, control power, and programmed logic.
If the ATS generates the request but its output does not operate, the output circuit requires further investigation.
Fix: Verify the ATS command status and output operation using the manufacturer's diagnostic procedure. Replace an output relay or module only after confirming the fault.
Electrical safety: An ATS cabinet may contain both utility and generator power sources. Stopping the generator does not isolate the utility supply, and a stopped generator may start unexpectedly in Auto Mode. Internal testing, wiring inspection, and electrical measurements must be carried out by qualified personnel using appropriate isolation and verification procedures.

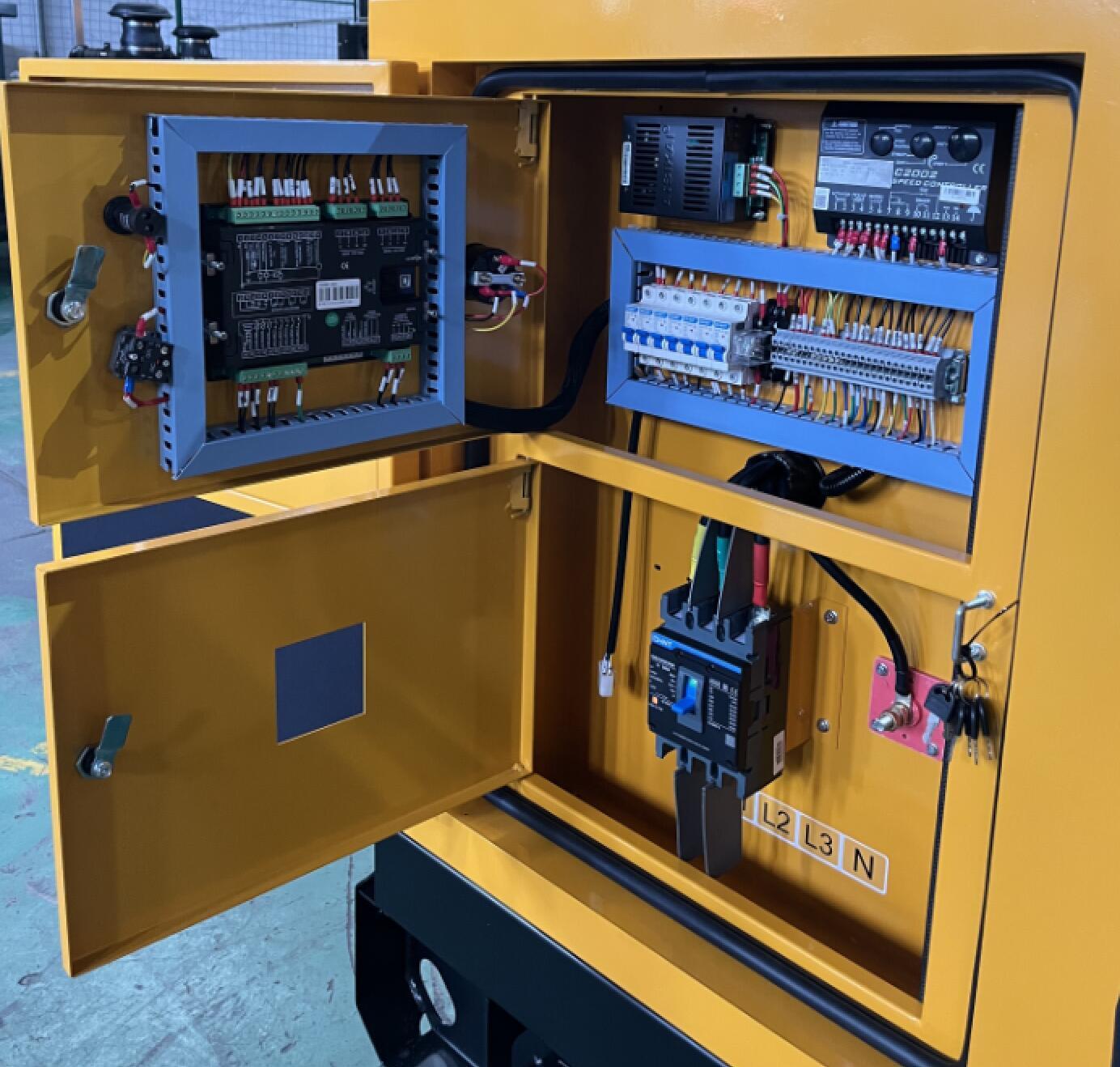

Why Is the Generator Controller Not Responding to the Remote Start Signal?
If the ATS output operates but the generator controller does not recognize a remote start request, we focus on the signal path between them.
There are three common areas to investigate.
1. Incorrect Remote Start Input Configuration
Modern industrial generator controllers often have configurable digital inputs.
Depending on the model, an input may be assigned to remote start, alarm functions, shutdown functions, or other control operations.
If the configured input does not match the ATS control arrangement, the controller may not recognize the intended start request.
Fix: Compare the input assignment, required contact state, and start logic with the controller manufacturer's manual and approved wiring diagram.
Do not assume that terminal numbers or input settings are interchangeable between Deep Sea, SmartGen, ComAp, or other controllers.
2. Loose or Damaged Control Wiring
A generator can operate normally in Manual Mode even when its remote start circuit is disconnected.
Possible causes include loose terminal connections, damaged conductors, incorrect wiring after maintenance, or faulty connectors.
When a problem appears after ATS maintenance or controller replacement, we pay particular attention to recently changed connections.
Fix: Have a qualified technician inspect and test the isolated control circuit against the approved wiring diagram. Repair confirmed wiring faults.
Never bridge unknown terminals or apply external voltage to a controller input without verifying the manufacturer's requirements.
3. ATS and Controller Signal Logic Do Not Match
Not every remote start input uses the same operating logic.
Some systems require a maintained contact state, while others use different control arrangements or programmed functions.
A normally open contact arrangement cannot simply be assumed to work with every controller configuration.
Fix: Confirm that the ATS output type, controller input requirements, and programmed start logic are compatible.
For new installations, this should be verified during system design and commissioning.
What If the Controller Receives the Start Signal but Does Not Crank?
If the controller recognizes the remote start request, the next step is to determine whether it is allowed to initiate cranking.
The controller may be waiting for a programmed delay or preventing starting because of an active protection or inhibit condition.
We normally check the event log, active alarms, input status, and start permissions.
A controller that receives a start request but does not issue a crank command is showing a different problem from one that commands cranking but cannot turn the engine.
Fix: Identify the active delay, inhibit, or protection condition and correct it according to the controller documentation.
Do not bypass engine protection or safety interlocks to force an automatic start.
If the controller issues a crank command but the engine does not turn, investigate the starting circuit rather than the ATS start request.
How Can You Tell Whether the Fault Is in the ATS or Generator Controller?
I prefer to identify the last confirmed successful step.
| Last Confirmed Step | Where to Investigate Next |
|---|---|
| ATS detects utility failure | ATS start request logic |
| ATS issues start request | ATS physical output or control interface |
| ATS output operates | Control wiring and controller input |
| Controller recognizes remote start | Start permissions, timers, and controller logic |
| Controller issues crank command | Battery, starter circuit, and cranking system |
| Engine cranks | Fuel system, engine starting conditions, and protection |
For example, if the controller shows that its remote start input is active but does not issue a crank command, I would not begin by replacing the ATS output relay.
The controller has already recognized the request.
Likewise, if the ATS indicates a start request but the controller input remains inactive, first confirm whether the ATS output operated and whether the signal reached the controller.
This is how we avoid replacing working components.
Can You Test Automatic Starting Without Disconnecting Utility Power?
Many ATS and generator controller systems provide manufacturer-approved test functions, but the available test modes vary.
Some tests start the generator without transferring the load. Others simulate utility failure and may initiate a complete automatic transfer sequence.
A controller-initiated start test may confirm that the generator can respond to a programmed start command, but it may not verify ATS utility sensing or the remote start output.
An ATS-initiated test may cover more of the automatic start sequence, depending on the equipment.
We recommend confirming exactly which functions the test will exercise before starting it.
For commercial and industrial installations, tests that may transfer or interrupt the load should be planned and performed by qualified personnel.
Do not disconnect live utility wiring or bypass electrical or mechanical interlocks to simulate a failure.
What If the Generator Cranks Automatically but Does Not Start?
If the controller initiates cranking after receiving the automatic start request, the diagnosis has moved beyond a missing start command.
At this stage, we compare manual and automatic starting behavior.
Does the engine crank at a normal speed? Does the controller record a failed start? Does the engine start intermittently?
These observations help determine whether the problem involves the battery, starter circuit, fuel supply, or engine protection.
A successful manual start does not completely rule out an intermittent starting problem.
However, we would not continue investigating the ATS start contact if the controller has already received the request and commanded cranking.
Fix: Follow the actual cranking and engine-starting symptoms rather than replacing ATS components.
Why Does A Diesel Generator Crank But Won't Start?
Why Does the Generator Start During Testing but Not During a Real Power Outage?
A successful local test does not always reproduce a real utility failure.
For example, a controller test may start the engine directly without requiring the ATS to detect utility failure.
If the generator starts during that test but remains stopped during an outage, we return to the ATS sensing and start command sequence.
We normally check whether the ATS recognizes the utility supply as unacceptable, whether the start delay expires, and whether the expected start request is generated.
On three-phase systems, ATS sensing may include voltage, phase, and frequency conditions, depending on the design.
Fix: Check the ATS sensing configuration, control supply, and start logic against the manufacturer's instructions and approved system settings.
Do not change voltage thresholds or delay settings simply to make the generator start.
How Can You Prevent Automatic Generator Starting Problems?
A generator that starts successfully in Manual Mode is not necessarily ready for automatic standby operation.
In our generator testing, we distinguish between checking the engine and checking the complete automatic control sequence.
For installed standby systems, we recommend periodic automatic operation tests appropriate to the application.
These should verify that the controller remains in Auto Mode, the ATS issues the required start request, the controller recognizes it, and the engine starts correctly.
Where the approved test includes load transfer, it should also verify that generator voltage and frequency become acceptable and that the ATS completes the required transfer and return sequence.
We also recommend keeping the latest controller configuration and ATS wiring diagram available for maintenance personnel, particularly when the ATS and generator controller come from different manufacturers.
If the generator starts correctly but the ATS does not transfer, the next investigation should focus on generator availability, voltage and frequency acceptance, ATS sensing, and transfer permissions.
Why Does My Generator Start but the ATS Does Not Transfer?
Frequently Asked Questions
What Is the Difference Between Manual Start and Remote Start Wiring?
Manual Start uses a local command through the generator controller. Remote Start requires an external signal or programmed automatic start condition.
In a typical ATS-controlled installation, the ATS provides the start request through a dedicated control circuit connected to the generator controller. The wiring method, contact state, and input configuration must match the installed equipment.
Can a Blown Control Fuse Prevent Automatic Generator Starting?
Yes. Depending on the system design, a blown control fuse may interrupt ATS control power, the remote start circuit, or another part of the automatic starting system.
The generator may still start manually if its local controller and starting circuits remain powered.
A qualified technician should check the relevant fuse and control supply against the wiring diagram. Repeatedly replacing a blown fuse without finding the cause is not a proper repair.
Can a Weak Battery Cause Automatic Start Failure Even If Manual Start Works?
Yes, particularly when the problem is intermittent.
A weak battery or poor connection may cause excessive voltage drop during cranking.
However, if the controller never receives a remote start request or never issues a crank command, we would investigate the automatic control sequence first.
Battery testing becomes more relevant when the controller commands cranking but the engine turns slowly or fails to crank.
Need Help Troubleshooting Your Generator & ATS Control System?
If your generator starts manually but fails in Auto Mode, we can help you narrow down whether the problem involves the ATS start output, remote start wiring, controller configuration, or generator starting sequence.
At WALT POWER, we manufacture diesel generator sets and supply ATS and generator control solutions for commercial and industrial standby power applications.
For generator distributors, electrical contractors, EPC contractors, and industrial maintenance teams, we can help review the control arrangement and identify the next diagnostic steps.
Please share:
- Generator controller brand and model
- ATS brand and model
- Controller alarm or operating status
- ATS and generator control wiring diagram, if available
- What happens when the ATS requests a generator start
A short video showing the controller display during an automatic start attempt may also help.
For new standby power projects or control system upgrades, we can discuss compatible generator, ATS, and controller configurations based on your operating requirements.
Final Thoughts
When a diesel generator starts manually but not automatically, I would check the automatic start control sequence before replacing engine or ATS components.
Start with Auto Mode and active alarms. Then confirm whether the ATS generates a start request, whether its output operates, and whether the generator controller receives the signal.
If the controller recognizes the request but does not crank, investigate its start permissions and control logic. If the engine cranks but fails to start, move to the starting system.
The most reliable way to solve this problem is to find where the automatic start sequence stops before deciding what needs repair or replacement.
