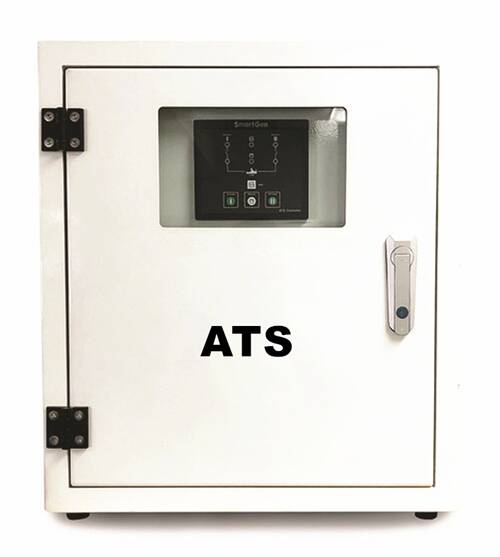

AUTOMATIC TRANSFER SWITCH FOR GENERATOR SETS.
Please select your option when ordered. Either single or three-phase.
An ATS “Automatic Transfer Switch” allows for automatic switching from your Mains Power supply to your standby/generator supply. It manages the process and is a safe way to ensure both sources cannot be supplied at the same time.
It does so by continually monitoring the incoming mains supply. If the voltage of the mains supply fails or is significantly reduced to create a brownout condition, it will immediately disconnect the mains supply and command the Generator to start. Once the generator is producing a stable supply it will transfer the load to the Generator.
When a stable mains supply is restored it will carry out the reverse process, transferring the load back to the mains and shutting down the generator.
WALT can provide a total solution for your power backup requirements by supplying the ATS, Generator.
ATS SPECIFICATIONS

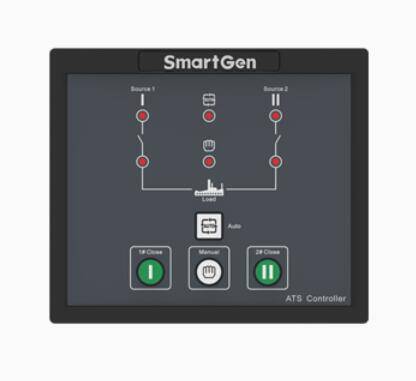

- Controller : ATS Controller
- Starting Method: Auto / Manual
- Switching Method: Automatic (Mains Sensing) / Manual
- Connection: ATS to Generator – ATS Lead Supplied
- Switching Delay : 0-60 Seconds (Mains Loss)
- Generator Start Delay : 0-90 Seconds (Generator Start/Stop)
- Security: Key Lockable Cabinet
- Single or Three Phase Available
Warranty
- Standard 12-month warranty. We provide support and we carry all spare parts.
Delivery
- We can ship via Sea freight or Air Express. Alternatively, you can specify your own freight company
