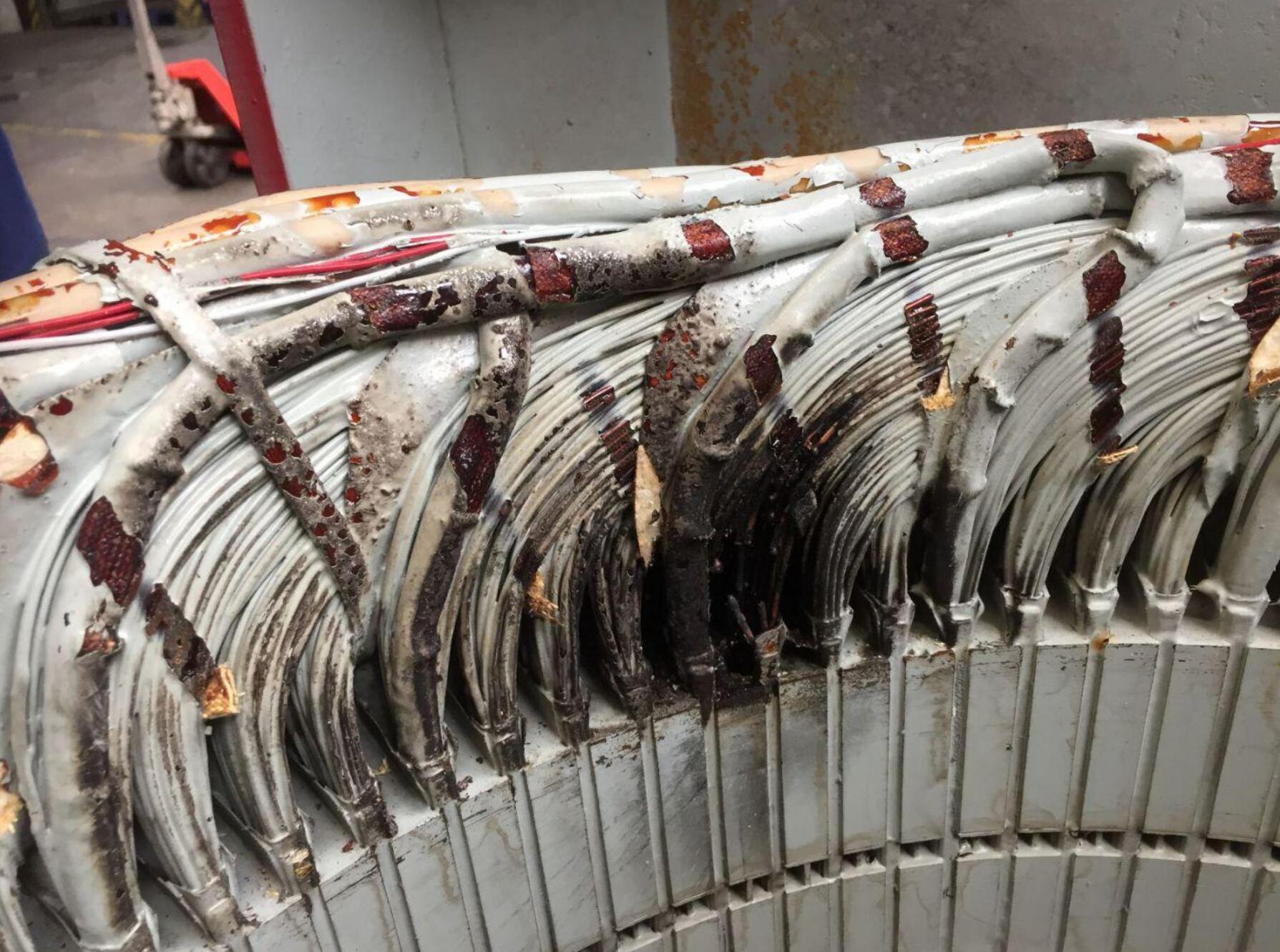

Generator alternator windings usually burn out because of excessive current, overheating, phase imbalance, poor cooling, insulation breakdown, moisture or contamination, loose connections, or an internal electrical fault.
In our experience, a burned winding is often the result of another problem, not the original fault. If we only rewind or replace the alternator without finding that problem, the new winding can fail again.
When we find signs of winding overheating, we normally check the load current, current on each phase, frequency, voltage, cooling airflow, terminal connections, and winding condition before deciding what actually caused the failure.
What Should You Check First?

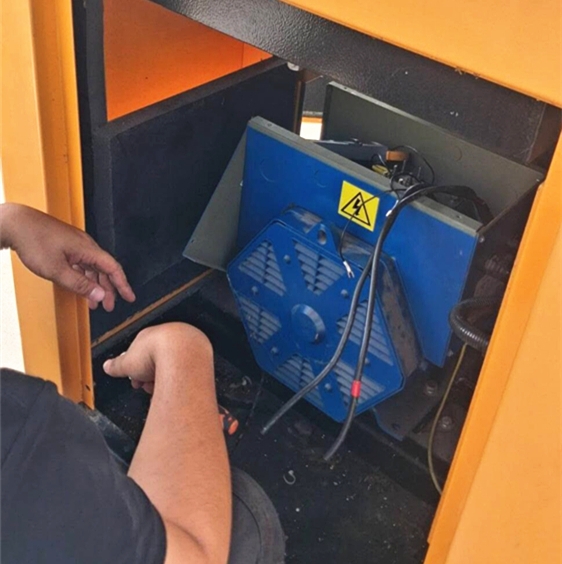

If an alternator winding is overheating or already shows signs of burning, I would not start by dismantling the alternator.
I normally check the easier external causes first:
- Check the current on each phase. Do not only look at total generator kW or kVA.
- Check whether the generator has been overloaded.
- Compare the three-phase currents and voltages. A serious imbalance can overheat one part of the winding.
- Check frequency and engine speed. Make sure the generator is operating at its designed speed.
- Check cooling airflow. Look for blocked air passages, heavy dust, high ambient temperature, or poor generator-room ventilation.
- Inspect the output terminals and cable connections. Loose or damaged connections can create severe local heating.
- If these checks do not explain the problem, test the windings and insulation.
This order matters.
When I see a blackened winding, I would not immediately call it an alternator quality problem. The location and pattern of the damage often give us useful clues about what happened before the winding failed.
| What We Find | What I Would Check Next |
|---|---|
| Most windings are heavily overheated | Overload, poor cooling, high ambient temperature |
| One phase is much hotter or darker | Phase imbalance, connection problem, local winding fault |
| Damage is concentrated near a terminal | Loose connection, poor contact, cable or terminal overheating |
| Insulation resistance is low | Moisture, contamination, aged or damaged insulation |
| Winding overheats mainly under load | Overload, imbalance, cooling, operating condition |
| Rewound alternator burns again | The original root cause was probably not corrected |
1. Generator Overload
Overload is one of the first things I check when a winding has overheated.
When the generator supplies more current than the alternator winding is designed to carry, winding temperature rises. A short overload may not cause immediate damage, but continuous or repeated overload is different.
The insulation around the copper conductors is especially important here.
A winding does not normally go from healthy to completely burned in one moment. Repeated overheating can gradually weaken the insulation. Eventually, the insulation may crack or lose dielectric strength, leading to a turn-to-turn, phase-to-phase, or earth fault.
But there is one detail I think is often missed:
Do not judge overload only by the total generator kW or kVA.
On a three-phase generator, I also want to see the current on L1, L2, and L3.
A generator can appear to be operating within its total rated capacity while one phase is carrying much more current than the others.
That overloaded phase may be the one that suffers first.
If the generator is normal at no load but voltage drops or the alternator starts overheating as load increases, our guide on why generator voltage drops under load can help narrow the problem down further.
2. Severe Phase Load Imbalance
I treat phase imbalance separately from simple total overload.
This is especially important when a three-phase generator supplies many single-phase loads.
If those loads are not distributed properly, one phase may carry much more current than the other two. The total kW shown on the controller can still look acceptable.
But the winding does not respond to the total number on the controller. It responds to the actual current passing through each phase.
That is why, in our generator testing, we compare the three phase currents instead of only looking at total kW.
If one phase is consistently much higher, I would correct the load distribution before blaming the alternator.
The same applies when the phase voltages are noticeably different. In that case, why a generator produces unbalanced voltage is a better place to continue the diagnosis.
3. Poor Cooling or High Ambient Temperature
An alternator depends on airflow to remove heat.
If cooling passages are blocked by dust, dirt, or other contamination, winding temperature can rise even when the electrical load looks normal.
I would also look at the installation itself.
A generator inside a poorly ventilated room can continuously draw hot air back into the enclosure. Cleaning the alternator will not solve that problem if the hot air still has nowhere to go.
This is why I do not look at alternator temperature separately from the operating environment.
I normally check:
- Ambient temperature
- Generator-room ventilation
- Air inlet and outlet condition
- Alternator cooling fan
- Dust accumulation
- Load level
If the main symptom is excessive alternator temperature rather than confirmed winding damage, start with why a generator alternator overheats.
4. Loose or Poor Electrical Connections
A loose connection can create a surprisingly serious heating problem.
This may happen at the alternator output terminals, cable lugs, busbar connections, or other high-current connection points.
Higher resistance at a poor connection creates heat. That heat can damage the terminal, cable insulation, and eventually the nearby winding insulation.
This is one reason the location of the burned area matters.
If most of the winding looks normal but the damage is concentrated close to one terminal or connection point, I would investigate that connection carefully before assuming the whole alternator was overloaded.
I would look for:
- Discoloration around the terminal
- Burn marks
- Loose bolts or nuts
- Damaged cable lugs
- Melted insulation
- Signs of arcing
- Abnormal heating around one connection
The generator must be stopped, isolated, and confirmed safe before inspecting or tightening alternator power connections.
5. Winding Insulation Breakdown
Sometimes the problem really is inside the winding.
The insulation between conductors and between the winding and earth can deteriorate because of age, repeated overheating, contamination, moisture, vibration, or previous electrical stress.
Once insulation begins to fail, the damage can develop quickly.
For example, a turn-to-turn short may initially affect only a small section of the winding. Current and temperature in that area can then rise, causing further insulation damage.
This is why visual inspection is useful, but it is not enough.
Depending on the alternator design and fault condition, we may check:
- Phase-to-phase winding resistance
- Insulation resistance to earth
- Resistance balance between phases
- Visible insulation condition
- Signs of local overheating or carbonization
If you need to determine whether the winding itself is damaged, see how to check generator alternator windings.
Winding insulation testing should only be carried out with the generator safely isolated. Test methods and acceptable readings can vary with alternator design, winding configuration, voltage class, temperature, and manufacturer requirements.
6. Moisture, Oil, Dust, and Other Contamination
I would not ignore contamination, especially on generators installed outdoors, near the coast, in humid or dusty environments, or after long periods of storage.
Moisture can reduce insulation resistance.
Oil mixed with dust can build up on the winding and interfere with heat dissipation. Some contamination can also create leakage paths across insulation surfaces.
The winding may not burn immediately.
The insulation condition can deteriorate gradually until another event, such as a heavy load or electrical fault, finally causes failure.
If a generator has been stored for a long time in a humid environment, I would be cautious about immediately applying full load without checking the alternator condition first.
7. Incorrect Frequency or Engine Speed
Voltage problems are not always purely alternator problems.
The alternator is mechanically driven by the engine, so engine speed and electrical frequency are directly related.
For example, a typical four-pole generator designed for 50 Hz operates around 1500 rpm, while a 60 Hz unit operates around 1800 rpm.
If engine speed falls significantly under load, frequency falls as well.
Depending on the alternator and AVR design, low-speed operation can also affect excitation and voltage regulation. Some AVRs include under-frequency protection or voltage roll-off functions, but the exact behavior varies by model.
This is why I would not start adjusting the AVR just because the voltage looks wrong when the frequency is also wrong.
I would correct the engine speed and frequency problem first.
Trying to force the voltage back up with AVR adjustment while the generator is operating at an abnormal speed can take the diagnosis in the wrong direction.
8. AVR or Excitation Problems
An AVR fault can contribute to abnormal excitation and voltage conditions, but I would be careful here.
It is too easy to blame the AVR for every alternator problem.
A burned stator winding does not automatically mean the AVR failed.
Before reaching that conclusion, I would want to know:
- Was generator voltage abnormally high?
- Was voltage unstable?
- Was the AVR sensing circuit correct?
- Was frequency normal?
- Was the load normal?
- Was excitation abnormal?
- Were there problems elsewhere in the excitation system?
If abnormal voltage appeared before the alternator started overheating, then the AVR and excitation system deserve closer investigation.
But replacing the AVR without checking the rest of the system is not a diagnosis.
9. Internal Short Circuit
A serious internal electrical fault can damage a winding very quickly.
This may include a turn-to-turn short, phase-to-phase short, or winding-to-earth fault.
Once a short develops inside the winding, current and temperature can rise rapidly in the affected area.
At this stage, normal external adjustments will not solve the problem.
The alternator should be taken out of service and properly tested.
If the winding is visibly burned, the insulation is carbonized, or electrical testing confirms a serious internal fault, the practical solution may be rewinding or replacing the affected alternator assembly.
Can a Burned Alternator Winding Be Repaired?
Often, yes.
Depending on the extent of the damage, alternator size, design, and repair cost, the stator or other affected winding may be rewound.
But I consider the rewind only half of the repair.
The more important question is:
Why did it burn?
If the original problem was overload, poor ventilation, severe phase imbalance, a loose connection, or another electrical fault, a newly rewound alternator can suffer exactly the same failure.
Before returning a repaired generator to normal operation, I would verify at least:
- No-load voltage and frequency
- Voltage and frequency under load
- Current on each phase
- Phase balance
- Alternator temperature
- Cooling airflow
- Terminal connections
- Insulation condition
- AVR and excitation operation when relevant
For larger generators, or when the winding overheats only under load, a controlled load bank test can be very useful.
It allows us to increase the load step by step while watching voltage, frequency, phase current, and temperature. That usually tells us much more than running the generator at no load and assuming everything is fine.
What Does the Burn Pattern Tell You?
This is one of the first things I look at when a damaged alternator is opened.
I would not use the burn pattern alone to make a final diagnosis, but it can point us in the right direction.
If most of the stator winding is uniformly dark and overheated, I would first investigate overall thermal stress such as prolonged overload, poor cooling, or high ambient temperature.
If one phase or one section is much more damaged than the others, I become more interested in phase imbalance, a poor connection, or a local winding fault.

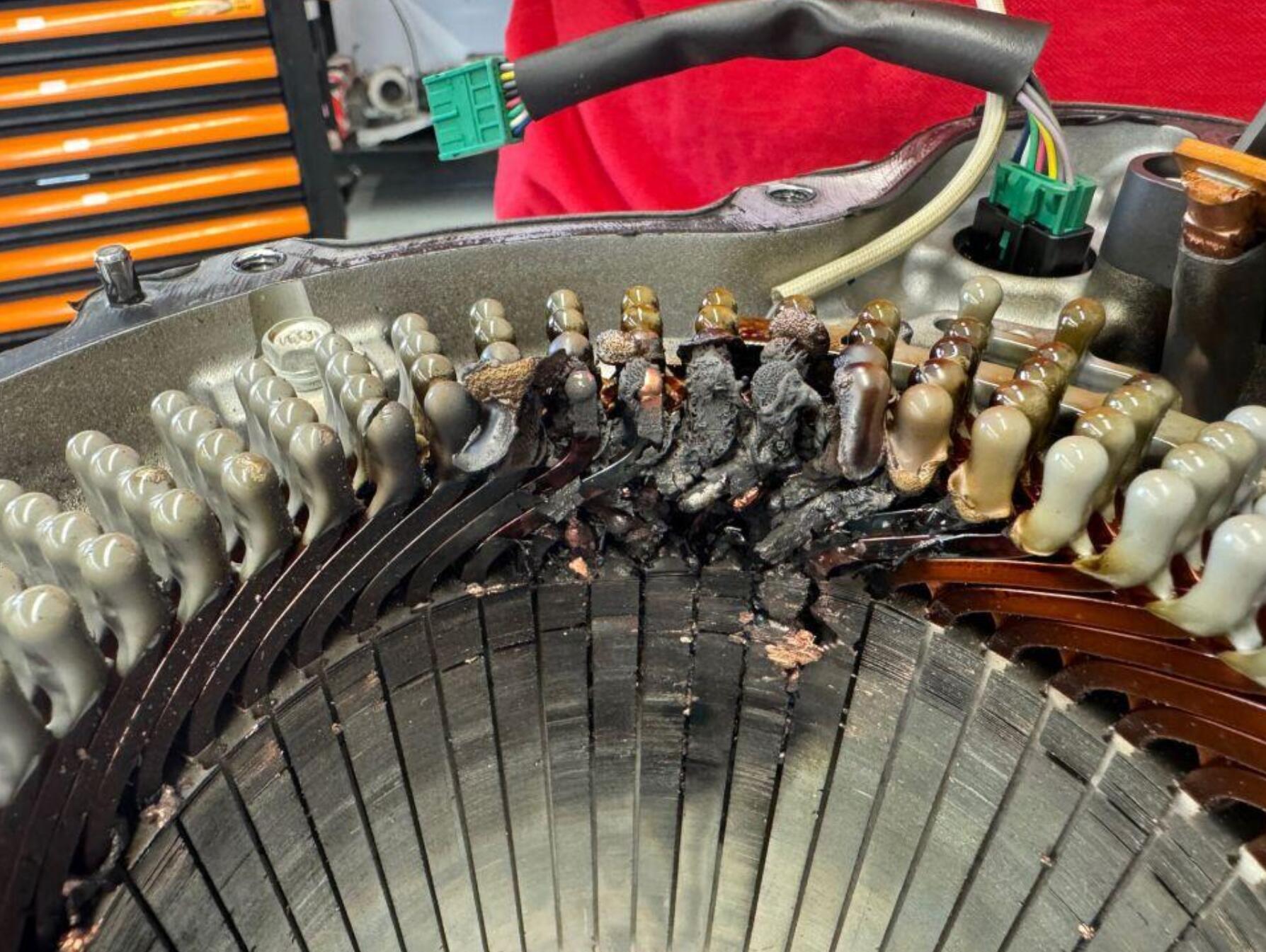

If the damage is concentrated in one small winding area, an internal insulation failure or turn-to-turn fault becomes more likely.
If the damage starts around a terminal or lead connection, I check that connection carefully before looking for more complicated explanations.
The burn pattern gives us clues. It does not give us the whole answer.
I still want to compare what I see with the electrical measurements and how the generator was operating before the failure.
How Can You Prevent Alternator Winding Burnout?
For most generators, prevention is not complicated.
Keep the generator within its real operating capacity, watch the current on each phase, maintain proper cooling, keep the alternator clean and dry, and investigate abnormal voltage, frequency, or temperature before continuing to run the machine.
The point I would emphasize most is this:
Do not wait for the winding to smell burned before investigating an overheating problem.
A generator can continue producing normal-looking voltage while excessive temperature is already damaging the winding insulation.
If you see discoloration, smell overheated insulation, notice abnormal winding temperature, measure low insulation resistance, or repeatedly experience voltage problems, these may already be signs of generator alternator winding failure.
And if an alternator has already been rewound or replaced but starts overheating again, I would not keep replacing parts. At that point, the load, phase balance, cooling system, operating frequency, connections, AVR, and excitation system need to be checked as one system.
That is usually where the real cause is found.
If you are dealing with repeated alternator overheating or winding failure and cannot identify the cause, you can send us the generator model, load condition, voltage, frequency, and phase current readings. We can help you look at the problem before you replace another AVR, rewind the alternator, or change parts unnecessarily.
