A standby diesel generator is a backup power system designed to supply electricity when the normal utility power source fails. In a typical automatic installation, the generator works with an Automatic Transfer Switch (ATS) and a generator controller to detect a power failure, start the diesel engine, establish a stable electrical output, and transfer the designated loads to generator power.
Standby diesel generators are widely used in hospitals, data centers, commercial buildings, industrial facilities, telecommunications sites, and residential properties where power interruptions can affect safety or operations.
However, a standby generator is not defined simply by whether it starts automatically. Its power rating, operating conditions, electrical configuration, and control system all need to match the intended application.

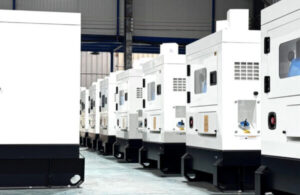

At WALT POWER, we manufacture and export diesel generator sets for different operating requirements. One point I always emphasize when discussing backup power with buyers is that the correct standby generator is not necessarily the one with the highest advertised kVA rating. It is the one that can start, accept the required loads, and operate reliably under the site's actual conditions.

How Does a Standby Diesel Generator Work?
A standby diesel generator normally remains available while the utility supply is operating correctly. When the utility fails, the automatic control system initiates a sequence that allows the generator to supply the connected backup loads.
The sequence depends on the controller, ATS arrangement, and project settings, but a typical system works as follows.
1. The System Detects a Utility Power Failure
The ATS controller, generator controller, or a separate monitoring device detects that the normal supply is unavailable or outside the configured voltage and frequency limits.
A time delay may be applied to prevent unnecessary generator starts during brief disturbances.
2. A Generator Start Request Is Issued
The monitoring or transfer control system sends a start request to the generator controller.
The generator controller checks the applicable starting conditions and protection inputs before commanding the engine to crank.
This distinction matters during troubleshooting. A start request from the ATS does not necessarily mean that the generator controller has permitted the engine to start.
3. The Engine Starts and Generator Output Is Established
The starter motor cranks the diesel engine. Once the engine is running, the alternator begins producing electrical power.
The control system monitors generator voltage and frequency. The ATS should not transfer the load until the generator supply satisfies the configured acceptance conditions.
4. The ATS Transfers the Load
Once the generator supply is accepted, the ATS disconnects the designated loads from the normal utility source and connects them to the generator source.
In a conventional open-transition ATS, the two sources are not connected together during transfer.
The exact interruption time depends on utility-failure detection, engine starting, voltage and frequency stabilization, ATS operation, and the configured delays.
A standby diesel generator does not normally provide truly uninterrupted power. Applications that cannot tolerate even a short interruption may require a UPS or another suitable bridging system.
5. Utility Power Returns and the Generator Stops
When utility power is restored and remains stable for the configured return delay, the ATS transfers the load back to the normal source.
The generator may then continue running without load for a programmed cooling period before shutting down.
The system returns to automatic standby mode, ready for the next outage.
My practical recommendation: When reviewing an automatic standby generator quotation, ask for both the generator controller model and the ATS configuration. A generator equipped with an automatic-start controller is not necessarily supplied with a complete ATS.
Standby vs. Prime vs. Continuous Diesel Generators
One of the most important distinctions when selecting a diesel generator is its power rating.
ISO 8528-1 establishes several rating categories, including Emergency Standby Power (ESP), Prime Power (PRP), and Continuous Operating Power (COP).
These ratings describe different operating duties. They should not be confused with whether a generator is installed permanently or equipped with automatic controls.
Generator Power Ratings Compared
| Rating | Typical operating duty | Load characteristics | Annual operating hours |
|---|---|---|---|
| Emergency Standby Power (ESP) | Backup supply during utility outages or testing | Variable electrical load | Limited; ISO 8528-1 defines ESP operation up to 200 hours per year under stated conditions |
| Prime Power (PRP) | Primary power supply where utility power is unavailable or unsuitable | Variable electrical load | Unlimited under the agreed operating conditions |
| Continuous Operating Power (COP) | Continuous supply to a substantially constant electrical load | Constant electrical load | Unlimited under the agreed operating conditions |
The ratings are subject to the applicable operating conditions, permissible average load, and manufacturer maintenance requirements.
Emergency Standby Power (ESP)
ESP is intended for supplying variable loads during a utility outage or under test conditions.
Under ISO 8528-1:2018, the ESP rating is associated with operation for up to 200 hours per year under the stated conditions. The permissible average load and other restrictions must also be observed.
The engine manufacturer's rating documentation should always be checked before applying a particular operating limit.
ESP is commonly appropriate for buildings with a normally reliable utility supply where the generator is required only during outages and scheduled tests.
It is not the correct basis for assuming that a generator can operate at its maximum standby output indefinitely.
Prime Power (PRP)
PRP is intended for supplying variable electrical loads for an unlimited number of operating hours per year under the agreed conditions.
It is commonly used where generators provide the principal electrical supply, including remote industrial facilities, construction sites, and off-grid installations.
PRP does not mean the generator can operate continuously at its maximum rated output regardless of the load profile. Permissible average loading and overload capability must be checked against the applicable engine and generator specifications.
Continuous Operating Power (COP)
COP applies to continuous operation at a constant electrical load under the agreed operating conditions.
It is relevant to applications where a generator supplies a stable base load for extended periods.
COP should not be treated as interchangeable with PRP simply because both categories allow unlimited annual operating hours.
Why the Rating Matters When Comparing Quotations
Consider two generator quotations:
- Supplier A offers a generator rated at 100 kVA ESP.
- Supplier B offers a generator rated at 100 kVA PRP.
These are not necessarily equivalent machines.
The first quotation identifies a standby rating, while the second identifies a prime rating. Their allowable operating duties and potentially their underlying engine configurations may differ.
Before comparing prices, I recommend checking the prime and standby kW/kVA ratings, rated power factor, voltage, frequency, engine model, and intended operating duty.
For further explanation, see our article on ISO 8528-1:2018
What Is the Difference Between a Standby Generator and a Regular Generator?
The term "regular generator" is not a precise engineering classification.
In practice, buyers often use it to distinguish a permanently installed automatic standby generator from a portable or manually operated generator.
That comparison is useful, but it concerns the installation and control arrangement rather than the ISO power rating.
| Feature | Fixed automatic standby generator | Portable or manually operated generator |
|---|---|---|
| Installation | Normally installed at a designated location | Designed for relocation or temporary use |
| Starting | Can start automatically through a suitable control system | Often started manually; some models support automatic starting |
| Transfer system | Commonly integrated with an ATS | May require manual connection or a compatible transfer arrangement |
| Electrical distribution | Connected to designated building or facility loads | Supplies selected loads through an approved connection arrangement |
| Typical applications | Homes, hospitals, factories, commercial facilities | Temporary power, construction work, small backup applications |
| Maintenance | Requires scheduled inspection, servicing, and operational testing | Also requires maintenance according to its design and usage |
Neither arrangement is automatically more fuel-efficient merely because it is described as standby or portable.

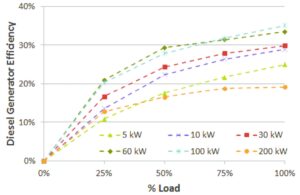

Fuel consumption depends on the engine, generator rating, electrical load, operating conditions, and other design factors.
A portable generator can also be used for emergency backup, provided the installation and connection method are suitable and compliant with local requirements.
How Long Can a Standby Diesel Generator Run Continuously?
A standby diesel generator does not have a universal 24-hour or 48-hour continuous-running limit.
Two separate questions must be considered:
- How long can the generator operate before it needs more fuel?
- How long is the generator permitted to operate under its assigned power rating and maintenance requirements?
These are not the same thing.
Fuel Tank Capacity Determines Refueling Intervals
The approximate running time between refueling can be estimated using:
Estimated runtime (hours) = Usable fuel capacity (liters) ÷ Fuel consumption (liters/hour)
For example, if a generator has 200 liters of usable fuel and consumes 20 liters per hour at a specified load, the calculated runtime is approximately 10 hours.
This is an arithmetic illustration, not a fuel consumption claim for any particular WALT POWER model.
Actual consumption varies with the generator's load, engine characteristics, and operating conditions. Usable fuel capacity may also be lower than the tank's nominal capacity.
For an installation that requires extended backup operation, an appropriately designed external or bulk fuel system may be considered, subject to applicable fire, environmental, and installation requirements.
Power Rating Determines the Permitted Operating Duty
A generator with sufficient fuel may be physically capable of running through a prolonged outage, but this does not remove its rating restrictions.
For an ESP-rated generator, the permissible operating conditions and annual-hour limits still apply.
If a site expects frequent or prolonged power interruptions, I would review whether a PRP-rated configuration is more appropriate instead of automatically selecting a higher ESP rating.
Maintenance Still Matters During Long Outages
A long-duration installation also needs a plan for engine oil, filters, coolant, batteries, fuel quality, and other service requirements.
Service intervals vary by engine model and operating conditions. They should come from the manufacturer's maintenance documentation rather than a universal hourly rule.
For buyers planning backup power for several days, I recommend discussing the expected load profile, fuel supply, and maintenance access before finalizing the generator specification.
Where Are Standby Diesel Generators Used?
Standby diesel generators support many different types of facilities, but their technical requirements are not identical.
Hospitals and Healthcare Facilities
Hospitals may require emergency power for designated life-safety and essential electrical systems.
Depending on the jurisdiction and facility classification, the installation may be subject to specific requirements for transfer time, electrical separation, redundancy, fuel supply, testing, and maintenance.
In the United States, applicable requirements may include NFPA 110 and other healthcare electrical and building standards.
For hospital projects, generator selection should begin with the approved electrical design and the required emergency power system classification—not simply the building's total connected load.
Data Centers
Data centers use standby generators to support critical electrical infrastructure during utility failures.
UPS systems generally provide immediate power continuity while the generators start and become available.
Generator selection must consider the UPS input characteristics, step loading, redundancy requirements, cooling systems, and expected operating duty.
Some data center applications may require rating classifications or performance conditions beyond a conventional ESP specification.
Commercial and Industrial Buildings
Factories, warehouses, hotels, offices, and other commercial facilities may use standby generators to protect selected loads or maintain essential operations.
The most important engineering question is often which equipment must operate during an outage.
Motors, pumps, compressors, elevators, and other equipment can impose starting or transient loads that differ substantially from their steady-state power consumption.
Telecommunications and Remote Facilities
Telecommunications installations may need backup generators where utility supply is unreliable or where power interruptions affect network availability.
For remote sites, the generator's actual operating hours can be significantly higher than those of a conventional emergency-only installation.
That makes the choice between ESP and PRP particularly important.
Residential Backup Power
Residential standby generators can support essential household circuits or a larger proportion of the home's electrical demand.
Selection should account for voltage and frequency, single-phase requirements, motor starting loads, available installation space, noise restrictions, fuel storage, and local electrical codes.
A generator intended for a North American 120/240 V, 60 Hz split-phase installation is not automatically suitable for a 230 V, 50 Hz single-phase installation.
The electrical configuration must be confirmed before manufacturing.

What Are the Disadvantages of a Standby Diesel Generator?
Standby diesel generators are valuable backup power systems, but they also introduce costs and operating responsibilities.
Initial Investment and Installation Costs
The purchase price is only one part of the project.
Depending on the installation, the total cost may include:
- Generator set and acoustic enclosure
- ATS and electrical distribution equipment
- Foundation, cable routing, and electrical installation
- Exhaust and ventilation arrangements
- Fuel storage and associated safety measures
- Testing, commissioning, and local approvals
A lower generator purchase price does not necessarily result in a lower completed project cost.
Noise, Exhaust, and Installation Space
Diesel generators produce exhaust emissions, heat, and noise.
A sound-attenuated enclosure can reduce noise, but the actual sound level depends on the generator design, operating load, measurement distance, and surrounding environment.
Cooling airflow and exhaust discharge must also be considered.
A generator installed too close to a wall or other obstruction may experience restricted cooling airflow or hot-air recirculation.
Installation clearances should be based on the generator manufacturer's drawings and applicable local regulations.

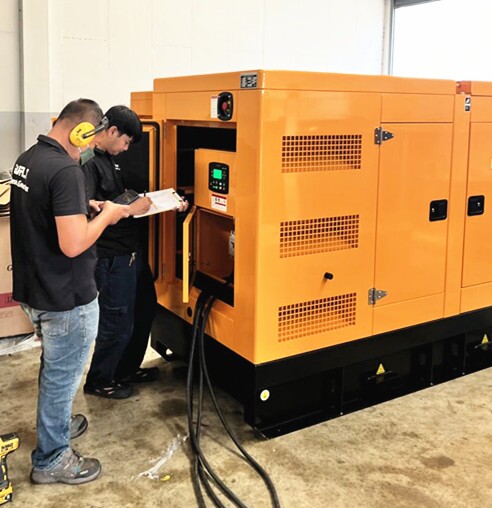

Maintenance and Periodic Testing
A standby generator may remain unused for long periods, but it still requires inspection and maintenance.
A typical maintenance program includes checking the starting batteries, engine oil, coolant, fuel system, electrical connections, control alarms, and ATS operation.
The exact maintenance schedule depends on the engine, generator design, application, and applicable regulations.
A generator that starts successfully without load has not necessarily demonstrated that it can carry the facility's required electrical load.
That is why operational testing is important.
Why Do Standby Generators Need Load Bank Testing?
Load bank testing allows a generator to operate under a controlled electrical load.
It can help verify the generator's output performance, cooling response, and ability to sustain the specified load.
Testing also helps identify problems that may not appear during a short no-load exercise.
For diesel engines, prolonged operation at insufficient load can contribute to low combustion temperatures and problems such as wet stacking. The risk depends on the engine design and operating conditions.
Where the applicable maintenance standard requires loaded testing, the procedure must follow the relevant edition and the site's classification.
For example, NFPA 110 is widely referenced for emergency and standby power systems in the United States. Its testing requirements depend on the applicable edition, system classification, and operating conditions.
They should not automatically be applied as universal requirements to every diesel generator installation worldwide.
At WALT POWER, we manufacture and export both diesel generator sets and industrial load banks. This gives us a practical reason to emphasize the distinction between a generator that starts and a generator that has been tested under an appropriate electrical load.
For a more detailed explanation, read Why Does A Generator Need A Load Bank?

How to Choose a Standby Diesel Generator
When preparing a standby diesel generator quotation, I prefer to establish the operating requirements before selecting an engine and alternator combination.
The following information is particularly useful.
1. Confirm the Required Electrical Output
Specify the required kW or kVA, voltage, frequency, phase arrangement, and power factor.
Do not assume that two generators with the same kVA rating can be connected to the same electrical system.
2. Identify the Loads That Must Operate
List the essential equipment that must receive generator power.
Where motors or other high-inrush equipment are involved, provide their starting characteristics and expected starting sequence.
Generator sizing should consider both steady-state demand and transient performance.
3. Define the Expected Operating Duty
Will the generator operate only during occasional utility failures?
Or will it run for long periods because the utility supply is unreliable?
This determines whether ESP, PRP, or another appropriate rating should be considered.
4. Confirm the Automatic Transfer Requirements
If automatic operation is required, specify the ATS rating, number of poles, voltage, phase arrangement, and relevant control requirements.
The installation designer must also determine the appropriate neutral-switching and grounding arrangements.
5. Consider the Installation Environment
Ambient temperature, altitude, enclosure design, ventilation, acoustic requirements, and maintenance access can affect the final configuration.
Engine and alternator derating should be checked where applicable.
6. Review Testing and Documentation Requirements
For commercial and industrial projects, buyers may need factory test records, wiring diagrams, dimensional drawings, controller documentation, and other technical information.
The required testing scope should be agreed before production.

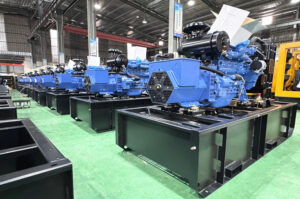

WALT POWER manufactures and exports diesel generator sets from 5 kVA to 4000 kVA, with configurations for different voltages, frequencies, engines, alternators, controllers, and applications.
We also supply ATS equipment and industrial load banks, allowing customers to discuss generator supply and related testing requirements with the same manufacturer.
For project inquiries, you can contact WALT POWER with your required power rating, electrical specifications, operating conditions, and destination country.
Frequently Asked Questions
What is the difference between a standby generator and a prime or continuous generator?
A standby generator is generally intended to supply backup electricity during utility outages. Under ISO 8528-1, Emergency Standby Power (ESP) is subject to limited operating hours and specified load conditions.
Prime Power (PRP) is intended for variable electrical loads over unlimited annual operating hours under agreed conditions, while Continuous Operating Power (COP) applies to continuous operation with a constant electrical load.
The appropriate rating depends on the actual operating duty.
How fast does a standby diesel generator turn on during a power outage?
The response time depends on the utility-failure detection delay, controller settings, engine starting time, voltage and frequency stabilization, and ATS operation.
Some emergency power installations are designed to meet a specified restoration time, but that requirement is project-specific.
The generator's starting time alone should not be confused with the total time required to restore power to the connected loads.
How long can a standby diesel generator run without stopping?
There is no universal 24-hour or 48-hour limit.
The practical duration depends on available fuel, engine operating conditions, maintenance requirements, and the generator's assigned power rating.
An ESP-rated generator must still comply with its operating restrictions even if sufficient fuel is available for an extended outage.
What maintenance does a standby diesel generator require?
Routine maintenance typically includes inspecting the starting batteries, fuel system, lubrication system, coolant, air filters, electrical connections, and control system.
Periodic operational testing and ATS checks may also be necessary.
The correct service intervals should follow the engine and generator manufacturer's documentation, together with any applicable local regulations or project standards.
Conclusion
A standby diesel generator is more than an engine and alternator waiting for the next power outage.
A dependable backup power system requires the correct generator rating, suitable automatic controls, properly selected transfer equipment, adequate fuel supply, safe installation, and a realistic testing and maintenance plan.
From a manufacturer's perspective, the most important step is to match the generator configuration to the actual application.
A generator intended for occasional emergency backup should not automatically be specified for continuous primary power, and a successful no-load start should not be treated as proof of full-load performance.
If you are sourcing standby diesel generators for distribution, construction, commercial buildings, or industrial projects, WALT POWER can help review the technical requirements and recommend an appropriate configuration.
Contact: WALT POWER
Email:
References
-
ISO 8528-1:2018 — Reciprocating internal combustion engine driven alternating current generating sets — Part 1: Application, ratings and performance. International Organization for Standardization. https://www.iso.org/
-
Caterpillar — Understanding Generator Set Ratings. Technical explanation of standby, prime, and continuous generator ratings. https://www.cat.com/en_ID/by-industry/electric-power/Articles/White-papers/understanding-generator-set-ratings.html
-
U.S. Army Corps of Engineers — EM 1110-2-3105. Engineering guidance discussing generator ratings and application requirements. https://www.publications.usace.army.mil/Portals/76/Users/182/86/2486/EM1110-2%20-3105.pdf
-
NFPA 110 — Standard for Emergency and Standby Power Systems. National Fire Protection Association. Applicable edition and local adoption must be confirmed for each project. https://www.nfpa.org/
