Why Does A Generator Need A Load Bank?

Table of Contents

Diesel generator connected to a portable load bank during load testing

A generator needs a load bank to verify that it can deliver electrical power under controlled load conditions, not merely start and run without an alarm. For diesel generators, load bank testing also helps identify cooling, fuel system, voltage regulation, and low-load operating problems that may remain hidden during routine no-load exercise.

A load bank is particularly useful when a standby generator rarely operates at sufficient load, when a new generator requires commissioning, or when its actual output capability must be verified.

At WALT POWER, we manufacture and export both diesel generator sets and industrial load banks. From a manufacturer's perspective, I consider load bank testing an important part of evaluating generator performance. However, the test must be designed around the generator's rating, intended application, and the requirements of the engine and alternator manufacturers.

Quick Answer: Why Load Banks Are Necessary

A generator load bank provides a controlled electrical load independent of the building or equipment the generator normally supplies.

It serves five main purposes:

  1. Verify output capacity: Confirm that the generator can support the required kW load.
  2. Check voltage and frequency: Observe generator performance as electrical load increases or changes.
  3. Evaluate engine performance: Check operating temperatures, fuel delivery, cooling, and engine response under load.
  4. Address low-load operation: Help reduce the risk of wet stacking and related deposits when testing follows the engine manufacturer's recommendations.
  5. Support commissioning and maintenance: Provide repeatable test conditions before a generator enters service or returns to operation after major maintenance.

A generator that starts normally at no load has passed an important functional check. It has not necessarily demonstrated its ability to supply its rated electrical output.

This distinction is especially important for standby power systems.

What Is a Load Bank and How Does It Work?

A load bank is an electrical testing device that absorbs power from a generator and converts it into another form of energy, usually heat.

Instead of supplying electricity to a building, the generator supplies a controlled test load. The operator can increase or decrease that load while monitoring the generator's response.

For example, a 100 kW generator may be tested at several load levels to observe its behavior as demand increases. The exact loading sequence and duration depend on the test specification.

During testing, technicians can monitor:

  • Generator output voltage and current
  • Frequency and engine speed
  • Active power (kW) and, where applicable, reactive power (kVAR)
  • Engine oil pressure and coolant temperature
  • Exhaust temperature, where suitable instrumentation is available
  • Voltage and frequency response to load changes
  • Controller alarms and protective shutdowns

The purpose is not simply to make the generator work harder. It is to determine whether the complete generator system performs correctly under defined operating conditions.

Resistive vs. Reactive vs. Combined Load Banks

Not every load bank tests the same characteristics.

Load bank type Electrical load Main testing purpose Typical applications
Resistive Real power (kW), approximately PF 1.0 Engine loading, kW output, cooling performance, voltage and frequency behavior Routine generator testing, maintenance, factory testing
Reactive Reactive power (kVAR), typically inductive for generator testing Alternator excitation and reactive power performance Specialized alternator and power-system testing
Resistive-reactive Both kW and kVAR, with an adjustable test power factor Testing generator performance at specified kVA and power factor Industrial commissioning, acceptance testing, complex power systems

A resistive load bank is sufficient for many routine diesel generator load tests. It allows the engine to be loaded in kW and provides a useful way to evaluate the generator under controlled operating conditions.

However, a generator rated at 100 kVA with a rated power factor of 0.8 has a corresponding active power rating of 80 kW. Testing it at 80 kW with a resistive load bank does not reproduce the same alternator current and reactive power conditions as an 80 kW load at 0.8 power factor.

If the project requires verification at rated power factor, a suitable resistive-reactive load bank may be necessary.

For a more detailed explanation, see our guide to resistive and reactive load banks

The Core Problem: Standby Generators Often Operate at Low Load

Many standby diesel generators spend most of their service life waiting for a power failure.

In hospitals, commercial buildings, telecommunications facilities, and industrial sites, routine exercise may involve starting the generator for a short period without connecting a substantial electrical load.

A successful start confirms that certain systems are working. It does not fully evaluate the generator's performance under load.

Long-term operation at insufficient load can also create problems for some diesel engines.

Why Low-Load Operation Matters

Diesel engines require appropriate operating temperatures for efficient combustion.

When an engine operates for extended periods at very low load, combustion and exhaust temperatures may remain below the levels recommended by its manufacturer.

Depending on the engine design and operating conditions, this can contribute to:

  • Incomplete combustion
  • Unburned fuel and soot deposits
  • Wet stacking
  • Exhaust system fouling
  • Increased maintenance requirements

You may have heard that diesel generators should never operate below 30% load.

I would not treat 30% as a universal limit.

The acceptable minimum load and operating duration vary by engine model, emissions system, and manufacturer. Some engines have specific minimum-load requirements or recommended procedures for periods of light-load operation.

The correct reference is the engine manufacturer's operating guidance, not a single percentage applied to every diesel generator.

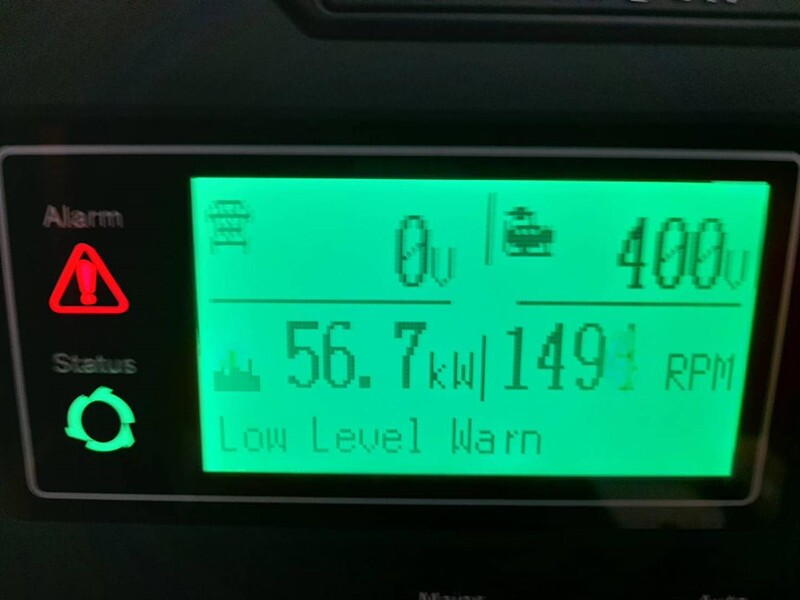

Technician checking generator speed, voltage, and power during testing

What Happens If You Don't Use a Load Bank?

Not every generator requires a separate load bank for every test. If sufficient and suitable facility load is available, some performance checks can be completed using that load.

The problem arises when a generator is repeatedly tested without enough electrical demand to evaluate the systems that matter.

1. Wet Stacking and Exhaust Deposits

Wet stacking is associated with unburned fuel and deposits accumulating in the exhaust system during prolonged low-temperature operation.

Possible signs include dark or oily exhaust deposits, abnormal exhaust smoke, and reduced operating efficiency.

A properly planned loaded exercise can help an engine reach its recommended operating conditions and may reduce certain deposits.

However, load bank testing is not a guaranteed repair for an engine that has already developed significant fouling or mechanical damage.

Read our separate explanation of wet stacking in diesel generators

2. Fuel System and Engine Problems Remain Undetected

Some engine problems become apparent only when additional power is demanded.

For example, a generator may start and idle normally while a restricted fuel supply or deteriorating cooling system remains unnoticed.

As load increases, technicians may observe:

  • Engine speed dropping excessively
  • Abnormal exhaust smoke
  • Rising coolant temperature
  • Low fuel pressure, where monitored
  • Unexpected engine shutdown

These symptoms require further diagnosis. A load bank helps reproduce the operating conditions under which the problem occurs; it does not identify every underlying cause by itself.

3. Voltage and Frequency Problems Appear Under Load

A generator can show normal voltage and frequency without an electrical load but behave differently when the load increases.

Potential issues include:

  • Excessive voltage drop
  • Unstable voltage regulation
  • Frequency drop caused by poor engine response
  • Incorrect controller settings
  • Alternator or excitation system problems

The automatic voltage regulator (AVR) controls alternator excitation, while engine speed control is primarily responsible for frequency regulation.

These are related but distinct functions.

A load bank test helps technicians evaluate how both systems respond when electrical demand changes.

4. No-Load Testing Creates False Confidence

This is the issue I consider most important.

A generator that starts, runs for several minutes, and shuts down normally may appear ready for an emergency.

But that exercise alone does not establish whether it can support the required building load.

The generator might still have insufficient cooling capacity, poor fuel delivery, incorrect protective settings, or inadequate voltage and frequency performance under load.

For critical standby systems, the difference between successful starting and successful load acceptance is significant.

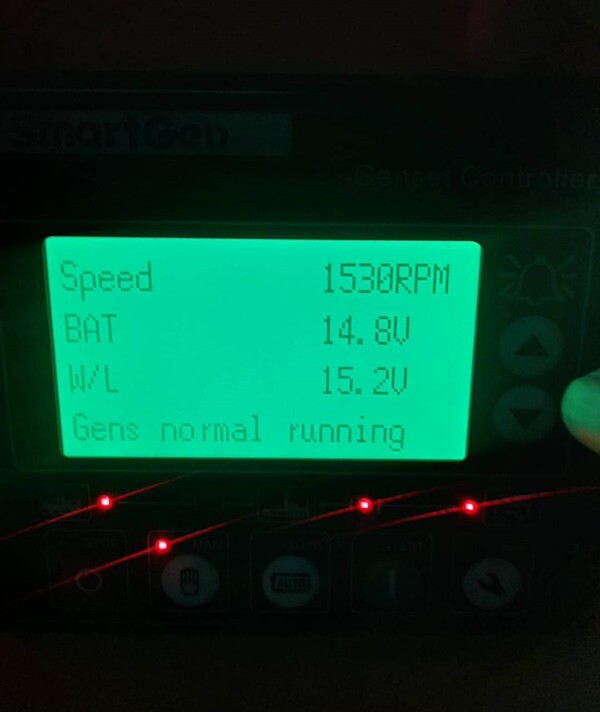

Generator load test result showing normal operating readings

How Load Bank Testing Helps Verify Generator Performance

A properly conducted load bank test allows the operator to apply known electrical demand while recording the generator's response.

The main benefits are practical.

Engine performance: The engine must produce enough mechanical power to support the applied electrical load.

Cooling system performance: As engine output increases, the cooling system must reject the additional heat without exceeding permitted temperatures.

Alternator performance: Output voltage and current can be checked against the generator's rated capacity and applicable test conditions.

Control system performance: The operator can observe relevant alarms, measurements, and protective functions.

Repeatability: Similar test conditions can be used during factory acceptance testing, commissioning, and subsequent maintenance.

A load bank cannot prove that every component will remain reliable indefinitely. It can, however, provide meaningful evidence of performance at the time of testing.

Step-by-Step Diesel Generator Load Bank Testing Procedure

The following is a general testing framework, not a universal procedure for every generator.

Actual testing must follow the approved method statement, generator manufacturer instructions, site safety requirements, and any applicable contractual or regulatory standards.

Step 1: Confirm the Generator Rating

Before selecting the test load, identify:

  • Rated active power (kW)
  • Rated apparent power (kVA)
  • Rated power factor
  • Prime or standby rating
  • Voltage and frequency
  • Ambient temperature and altitude
  • Applicable site derating

For example, a generator advertised as 500 kVA at a rated power factor of 0.8 corresponds to 400 kW of rated active power.

A 400 kW resistive load bank can apply 400 kW of real power, subject to its actual voltage and environmental ratings.

However, that does not reproduce a 500 kVA load at 0.8 power factor.

This distinction should be understood before preparing the test.

Step 2: Select a Suitable Load Bank

Check that the load bank is compatible with the generator's:

  • Output voltage
  • Frequency
  • Phase configuration
  • Required kW and, where applicable, kVAR capacity
  • Connection arrangement
  • Available installation space
  • Cooling and ventilation conditions

The load bank must also have suitable protection, switching arrangements, and connection equipment.

For outdoor testing, confirm the equipment's environmental suitability and the manufacturer's clearance requirements.

Step 3: Prepare the Electrical Connections

The load bank may be connected through a dedicated load bank connection box or another engineered connection arrangement.

Connection points must be selected according to the installation's single-line diagram and approved testing plan.

Before energizing the circuit, qualified personnel should verify cable ratings, protective devices, earthing or grounding arrangements, and phase connections.

A load bank must never be connected in a way that creates unintended backfeeding or exposes personnel to energized conductors.

For installations with an ATS, the testing arrangement must also preserve the required emergency power functionality.

Where the load bank is used as a supplemental load on an operating standby system, suitable controls may be required to disconnect that load automatically when emergency power is needed.

Step 4: Start the Generator and Check Initial Conditions

Start the generator according to its normal operating procedure.

Before applying substantial load, confirm that:

  • Voltage and frequency are within acceptable limits
  • Oil pressure is normal
  • Cooling system operation is satisfactory
  • No relevant active alarms are present
  • The generator is ready to accept load

Follow the manufacturer's warm-up instructions where applicable.

Step 5: Apply Load in Controlled Steps

A possible illustrative test sequence is:

Test stage Applied load What to observe
Initial stage 25% Basic engine response, voltage and frequency
Intermediate stage 50% Cooling, fuel delivery, electrical stability
Higher-load stage 75% Sustained operating conditions and temperature trends
Rated-load stage 100% Performance at the specified rated kW load

These percentages are examples, not a mandatory ISO 8528 or NFPA 110 loading sequence.

The actual stages, duration, permissible deviations, and acceptance criteria must be determined by the relevant test specification.

A generator should not automatically be subjected to 100% load without confirming the applicable rating, site derating, and manufacturer limits.

Step 6: Record Results and Complete the Test

During each stage, record the required operating parameters.

Depending on the test scope, these may include voltage, current, frequency, kW, kVAR, power factor, engine temperatures, oil pressure, and any alarms.

If the test requires transient performance evaluation, appropriate measurement equipment and defined load-change conditions are necessary.

After testing, remove load according to the approved procedure and follow the engine manufacturer's cool-down instructions before shutdown.

The final report should identify the test conditions, loading sequence, recorded measurements, abnormal events, and acceptance criteria.

For a dedicated procedure, see our diesel generator load bank testing guide

How Often Should a Generator Be Load Bank Tested?

There is no single load bank testing interval that applies to every diesel generator worldwide.

The appropriate frequency depends on:

  • Engine manufacturer requirements
  • Actual operating hours and load history
  • Whether the generator is used for standby or prime power
  • Facility criticality
  • Previous test results
  • Applicable regulations and contractual requirements

A generator that routinely operates at a suitable load may have different testing needs from a standby unit that runs only briefly during scheduled exercise.

Likewise, a generator supplying a hospital emergency power system may be subject to requirements that do not apply to a generator used on a construction site.

What About NFPA 110?

NFPA 110 is an important reference for emergency and standby power systems within its applicable scope.

Its testing requirements depend on the adopted edition, system classification, and relevant provisions.

Some NFPA 110 requirements address minimum loading during routine exercise and supplemental load testing when the required loading conditions are not achieved.

However, these provisions should not be presented as universal requirements for all generators in every country.

For international projects, I recommend confirming the local regulatory requirements, project specifications, and engine manufacturer's instructions before establishing a testing schedule.

Our article on generator load bank testing frequency discusses the maintenance considerations in more detail.

How to Choose the Right Load Bank for a Generator

When a distributor, contractor, or project buyer requests a load bank quotation, I would start with the test objective rather than the generator's kVA rating alone.

1. Required Test Capacity

Determine whether the purpose is to test the generator at a particular percentage of rated kW, at its full rated active power, or at a specified kVA and power factor.

A 1000 kVA generator rated at 0.8 power factor corresponds to 800 kW of active power.

For a full-rated-kW resistive test, the required resistive load is therefore 800 kW, before considering any relevant derating or additional project requirements.

If the test must reproduce the generator's rated kVA at 0.8 power factor, a suitable combination of active and reactive loading is needed.

2. Resistive or Resistive-Reactive Configuration

For routine engine loading, maintenance, and many factory tests, a resistive load bank may be appropriate.

For projects requiring rated power factor testing, reactive power performance evaluation, or specified alternator loading conditions, a resistive-reactive load bank may be more suitable.

The choice should be based on what the test needs to demonstrate.

3. Voltage and Frequency Compatibility

A load bank's nominal kW capacity alone is not enough.

Its actual power absorption depends on its electrical design and operating voltage.

A resistive load bank designed for one voltage may not provide its rated kW output at a different voltage.

This is particularly relevant when equipment is exported to markets using different voltage and frequency systems.

4. Cooling and Installation Requirements

Load banks dissipate substantial heat.

An 800 kW resistive load bank operating at full capacity converts approximately 800 kW of electrical power into heat.

That heat must be discharged safely.

The installation therefore needs adequate airflow, suitable clearances, and protection against recirculating hot air.

For enclosed spaces or restricted sites, the airflow arrangement should be reviewed before equipment selection.

5. Control and Monitoring

Depending on the application, the buyer may require:

  • Manual or automatic load steps
  • Local or remote operation
  • Digital electrical measurements
  • Emergency stop functions
  • Overtemperature and airflow protection
  • Test data recording
  • Integration with an approved testing system

Not every project requires the same level of automation.

A straightforward maintenance test and a large industrial commissioning project may justify very different load bank configurations.

When Should You Use a Load Bank?

I would particularly consider load bank testing in the following situations.

Before delivery: Factory acceptance testing can help verify the generator's output and identify problems before shipment.

During commissioning: Controlled loading can confirm performance at the installation site and under the specified conditions.

After major maintenance: A load test may be appropriate after work involving the engine, alternator, fuel system, cooling system, or controls.

After prolonged low-load operation: Testing under manufacturer-approved conditions can help evaluate engine performance and determine whether further maintenance is required.

For critical standby systems: Regular performance verification helps establish whether the generator remains capable of supporting its intended emergency load.

The need for testing should be determined by the generator's application and the approved maintenance or commissioning plan.

Does a Load Bank Test Guarantee Generator Reliability?

No.

A successful load bank test provides evidence that the generator met specified performance requirements during the test.

It does not guarantee that the generator will never fail.

For example, a resistive load test may verify the generator's active power output but may not fully reproduce the reactive power demands or motor-starting characteristics of the actual installation.

Similarly, a generator can pass a load test and later experience a battery, fuel contamination, or control system failure.

This is why load bank testing should form part of a broader maintenance and reliability program.

From a manufacturer's perspective, I would rather see a clearly documented test with defined acceptance criteria than a simple statement that a generator has been "100% tested."

The test conditions and recorded results are what make that statement meaningful.

Frequently Asked Questions

How often should a diesel generator be load bank tested?

It depends on the engine manufacturer's requirements, operating history, application, and applicable standards. Standby generators that rarely operate under meaningful load may need supplemental testing, while other generators can be evaluated using suitable operating loads. There is no universal annual test requirement for every generator.

What percentage of load is required to prevent wet stacking?

There is no universal percentage that guarantees prevention of wet stacking across all diesel engines. The commonly referenced 30% figure is relevant to certain operating and testing guidance, but minimum-load requirements depend on the engine model and manufacturer. Follow the engine manufacturer's recommendations for load level and duration.

What is the difference between a resistive and a reactive load bank?

A resistive load bank applies active power in kW, generally at a power factor close to 1.0. A reactive load bank applies reactive power in kVAR. A combined resistive-reactive load bank can apply both, allowing testing at a specified power factor.

Can you run a load bank test without disconnecting building power?

Yes, in some installations, provided the electrical system is specifically designed for the testing arrangement. A load bank may be connected through dedicated equipment, but the connection, protection, ATS operation, and emergency load priorities must be reviewed by qualified personnel. It should never be assumed that a load bank can be safely connected to an existing installation without an engineered plan.

Conclusion

A diesel generator needs a load bank when its actual performance must be verified under controlled electrical load, particularly when normal operation does not provide sufficient loading for meaningful testing.

Load bank testing can reveal problems that no-load exercise may miss, including inadequate engine response, cooling limitations, and unstable electrical output.

It can also help address certain risks associated with prolonged low-load operation when performed according to the engine manufacturer's instructions.

However, the value of a load bank test depends on using the correct equipment, loading procedure, and acceptance criteria.

A generator that starts successfully has demonstrated its ability to start. A generator that passes a properly specified load test has demonstrated something more: its ability to perform under the tested electrical conditions.

Diesel Generators and Industrial Load Banks from WALT POWER

At WALT POWER, we manufacture and export both diesel generator sets and industrial load banks for overseas distributors, contractors, and project buyers.

Our product range includes diesel generator sets from 5 to 4000 kVA and load banks from 10 to 4800 kW, with configurations selected according to project requirements.

If you are sourcing a diesel generator, we can discuss the required power rating, operating conditions, and factory testing requirements.

If you are sourcing an industrial load bank, we can help review the required capacity, voltage, frequency, load type, control arrangement, and installation conditions.

For projects involving both generator supply and load testing, these requirements can be considered together during equipment selection.

Contact WALT POWER to discuss your generator or load bank requirements.

References

  1. ISO 8528 Series — Reciprocating Internal Combustion Engine Driven Alternating Current Generating Sets — International Organization for Standardization. Relevant parts cover generator set ratings, performance, and test methods.
  2. NFPA 110 — Standard for Emergency and Standby Power Systems — National Fire Protection Association. Applicable requirements depend on the adopted edition and jurisdiction.
  3. Generator engine and alternator manufacturer operation, maintenance, and testing instructions applicable to the specific equipment.
Picture of Ke Wong

Ke Wong

As Business Director at WALT Power, I joined the company in 2011 and have been engaged in the export of diesel generator sets and load banks since then, supporting distributors and project buyers across different regions.

The articles here are based on practical project experience, covering topics such as generator sizing, load management, and operational reliability.
