A diesel generator can provide reliable backup power for an off-grid solar system when solar production is insufficient or battery storage cannot support the required load.
In a typical off-grid installation, solar panels supply electricity during daylight hours, while a battery energy storage system (BESS) stores excess energy for later use. When battery capacity becomes insufficient, a compatible diesel generator can supply AC power to the system and, where supported, recharge the batteries through an inverter/charger or a separate AC battery charger.
At WALT POWER, we supply diesel generator sets for off-grid residential properties, agricultural facilities, remote industrial sites, and other applications where utility power is unavailable or unreliable.
From my experience, the most important consideration is not simply choosing a generator with enough kVA. The generator must also be compatible with the inverter/charger, operate within a suitable load range, and support the required starting and stopping arrangements.
How Does a Diesel Generator Work with an Off-Grid Solar System?

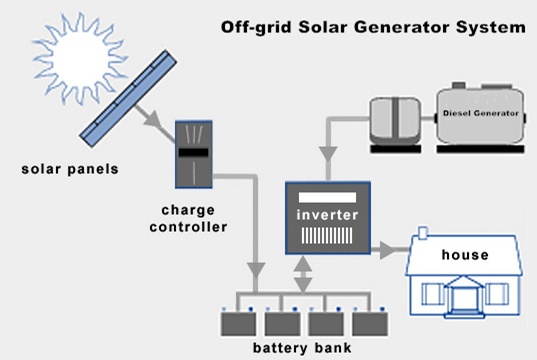

An off-grid solar power system typically includes several components:
- Solar panels: Generate DC electricity from sunlight.
- Solar charge controller or hybrid inverter: Manages solar energy conversion and battery charging.
- Battery energy storage system (BESS): Stores electricity for use when solar production is insufficient.
- Inverter/charger: Supplies AC electricity to connected loads and, when designed for it, accepts AC input from a generator for battery charging.
- Diesel generator: Provides backup AC power when the available solar and battery energy cannot meet demand.
The generator is not a replacement for the solar panels or battery storage. Its purpose is to provide an additional power source when required.
For example, a remote property may normally operate on solar energy during the day and stored battery power at night. After several days of cloudy weather, the battery state of charge may fall below the operating threshold configured in the inverter.
If the inverter supports generator control, it can request the diesel generator to start. Once the generator reaches stable voltage and frequency, the system can accept its AC output according to the inverter/charger configuration.
The generator may then supply the connected loads, charge the batteries, or perform both functions, depending on the equipment and system design.

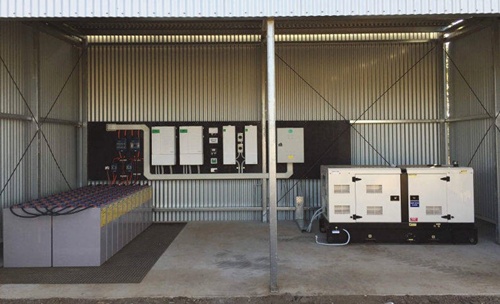

An off-grid power system combines solar generation, battery storage, power conversion equipment, and a backup generator.
How Does 2-Wire Auto-Start Work with a Diesel Generator?
Automatic generator starting is particularly useful for off-grid installations that operate without someone constantly monitoring the system.
However, not every diesel generator or solar inverter supports direct 2-wire automatic starting. Compatibility must be confirmed before ordering.
Understanding the 2-Wire Start Signal
A typical 2-wire start arrangement uses a dry-contact signal from the inverter or an external energy management controller.
When the battery state of charge reaches a configured threshold, or another programmed condition requires generator operation, the inverter closes or opens a control contact according to its design.
A compatible generator controller receives this signal and initiates the starting sequence.
The general operating process is:
- The inverter or energy management system detects a condition requiring generator support.
- A compatible remote-start signal is sent to the generator controller.
- The generator starts and establishes stable voltage and frequency.
- The inverter/charger accepts generator AC power when its input conditions are satisfied.
- The generator supplies power according to the system's load and charging configuration.
- When the programmed stopping conditions are met, the inverter withdraws the start request.
- The generator controller completes any required cooldown period before stopping.
This sequence is a general example, not a universal wiring or control procedure.
Some inverters provide a maintained dry-contact output, while others use different control arrangements. Generator controllers also differ in their remote-start input requirements.
The signal type, wiring, controller settings, and operating sequence must be checked for the specific equipment.
Does Every WALT POWER Generator Support 2-Wire Start?
No. Remote-start capability depends on the generator model and controller configuration.
For projects requiring automatic integration with an off-grid solar system, we recommend confirming the inverter model and its generator-start interface before selecting the generator controller.
Depending on the application, a suitable Deep Sea or SmartGen controller may be configured to receive an external remote-start request.
At WALT POWER, we can review the generator-side control requirements and recommend a suitable configuration where available.
The inverter supplier or system integrator must also confirm that the inverter's output signal and AC input requirements are compatible with the proposed generator.

The generator control interface and AC charging path must be verified for the actual inverter and battery system.
How to Size a Diesel Generator for an Off-Grid Solar System
One of the most common mistakes in generator selection is calculating capacity from the connected appliances alone.
In an off-grid solar system, the generator may need to support both the electrical loads and battery charging.
This makes generator sizing different from selecting a generator for a simple standalone backup application.
Step 1: Calculate the Running Load
Start by identifying the electrical equipment that may operate while the generator is running.
For example:
| Electrical Load | Example Running Power |
|---|---|
| Lighting and small appliances | 1.0 kW |
| Water pump | 2.0 kW |
| Refrigeration equipment | 1.5 kW |
| Other electrical equipment | 3.5 kW |
| Total Running Load | 8.0 kW |
These figures are illustrative only. Actual loads must be determined from equipment ratings or measured operating data.
Step 2: Determine the Battery Charging Demand
If the generator will also charge the battery bank, the AC charging demand must be considered.
For example, assume the connected loads require 8 kW and the inverter/charger is configured to draw approximately 4 kW of AC input power for battery charging.
The combined generator demand would be approximately:
8 kW + 4 kW = 12 kW
This is a simplified example. Actual generator input demand depends on the inverter/charger's efficiency, power factor, charging settings, and whether the system limits charging power when loads increase.
Some inverter/chargers can dynamically reduce battery charging current to prevent generator overload. Others may require the charging limit to be configured manually.
I recommend confirming the inverter's maximum generator AC input and charging settings rather than assuming the generator must always supply the maximum possible charging power.
Step 3: Consider Motor Starting Loads
Water pumps, compressors, refrigeration systems, and other motor-driven equipment can require substantially more power during startup than during normal operation.
The starting demand depends on the motor type, starting method, and operating conditions.
A direct-on-line motor may produce a high inrush current, while a soft starter or variable frequency drive may reduce the starting demand.
This is why simply adding the running kW of every appliance does not always produce a suitable generator size.
For projects with significant motor loads, we recommend reviewing the motor starting characteristics and the generator's transient voltage and frequency performance.
Step 4: Convert kW to kVA
Generator capacity is commonly expressed in kVA, while many electrical loads are expressed in kW.
The relationship is:
kVA = kW ÷ Power Factor
For example, at a power factor of 0.8:
12 kW ÷ 0.8 = 15 kVA
This means a 15 kVA generator rated at 0.8 power factor has a corresponding rated active power of 12 kW.
However, this does not automatically mean a 15 kVA generator is the correct choice for the example above.
The final selection must also consider starting loads, operating conditions, generator rating, inverter input limits, and any required capacity allowance.
Step 5: Check the Expected Operating Load
A larger generator is not always a better generator.
If an oversized diesel generator regularly operates at very low loads, it may experience poor combustion conditions and increased risk of wet stacking.
For diesel generator applications with long periods of low demand, I recommend reviewing the expected operating load profile before finalizing the generator size.
The suitable minimum load and operating procedure depend on the engine manufacturer and generator configuration. A fixed minimum-load percentage should not be treated as a universal rule for every diesel engine.
Where necessary, periodic operation at an appropriate load or controlled load bank testing may be considered as part of the maintenance plan.
Air-Cooled vs. Water-Cooled Diesel Generators for Off-Grid Applications
Both air-cooled and water-cooled diesel generators can be used in off-grid applications, but they are not interchangeable in every operating situation.
| Selection Factor | Air-Cooled Diesel Generator | Water-Cooled Diesel Generator |
|---|---|---|
| Typical application | Small backup loads and occasional operation | Larger loads and more demanding operating schedules |
| Installation | Compact, portable or fixed | Usually fixed installation |
| Cooling system | Engine air cooling | Liquid cooling with radiator |
| Operating schedule | Subject to model-specific duty limits | Suitable configurations available for extended operation |
| Automatic start | Depends on controller and model | Depends on controller and model |
| Maintenance | Engine-specific service requirements | Engine and cooling-system maintenance |
| Best suited for | Small off-grid properties and essential loads | Remote facilities, agricultural and commercial applications |
Air-Cooled Diesel Generators
For small off-grid properties with occasional backup requirements, an air-cooled diesel generator may be a practical option.
WALT POWER offers a range of portable diesel generators, including compact models for residential and light commercial applications.
For example, a 5kVA diesel generator may be considered for limited essential loads, subject to its actual rated output and the starting requirements of connected equipment.
However, a portable generator should not automatically be treated as a complete unattended standby system.
Before using one in an off-grid installation, check its operating duty, remote-start capability, electrical protection, and compatibility with the inverter/charger.
Water-Cooled Diesel Generators
For off-grid sites with higher electrical demand or longer generator operating periods, a water-cooled diesel generator is often the more suitable starting point.
These applications may include:
- Remote agricultural operations
- Water pumping stations
- Telecommunications facilities
- Commercial properties without reliable utility power
- Remote industrial and construction sites
- Larger off-grid residential installations
Water-cooled generators are available with different power ratings, control systems, fuel tank arrangements, and soundproof enclosures.
For example, our 15kVA diesel generator is one of the product options buyers can review when considering a higher-capacity backup application.
The final selection should be based on the required running hours, electrical loads, operating environment, and control requirements.
Why Low-Load Operation Matters in Solar-Diesel Hybrid Systems
Low-load operation deserves particular attention in off-grid solar applications.
Unlike a conventional backup generator that starts only during a utility outage, a generator integrated with solar and battery storage may start and stop according to the battery's energy level.
If the generator is oversized or the battery charging demand is too low, the engine may spend considerable time operating below its preferred load range.
Over time, prolonged low-load operation can contribute to incomplete combustion, exhaust deposits, and wet stacking in certain diesel engines.
I would not recommend selecting a generator solely on the basis of the maximum possible electrical demand without also checking its normal operating load.
There are several practical ways to address this:
- Select a generator capacity that matches the expected load and charging demand.
- Confirm whether the inverter/charger can manage generator input power and battery charging current.
- Avoid unnecessary generator operation when the available load is extremely low.
- Follow the engine manufacturer's maintenance and operating recommendations.
- Consider load bank testing when required by the operating conditions and maintenance plan.
A properly matched generator and battery charging system can help reduce unnecessary running time while keeping the diesel engine within a more suitable operating range.
What Should Importers and EPC Contractors Check Before Ordering?
For overseas importers, distributors, and EPC contractors, I recommend confirming the following information before purchasing a diesel generator for an off-grid solar project.
1. Generator Voltage and Frequency
Confirm the required output voltage, frequency, and phase configuration.
Common project requirements include 230V 50Hz single-phase, 400/230V 50Hz three-phase, and various 60Hz configurations.
The generator output must match the inverter/charger's permitted AC input range and the installation's electrical requirements.
2. Inverter/Charger Compatibility
Provide the inverter brand and model whenever possible.
Important details include:
- Permitted generator AC input voltage and frequency
- Maximum generator input current or power
- Remote-start output type
- Required generator stabilization time
- Battery charging control arrangements
- Generator input acceptance and disconnection settings
These details are important because a generator that operates correctly as a standalone power source may not automatically work with every inverter/charger.
3. Automatic Start Requirements
Confirm whether the project requires manual starting, remote starting, or fully automatic generator operation.
If automatic starting is required, the generator controller and inverter control interface must be reviewed together.
4. Expected Running Hours and Load Profile
Tell the supplier how frequently the generator is expected to run and for how many hours at a time.
A generator used occasionally during poor solar conditions may require a different configuration from one supplying power for several hours every day.
The intended operating duty should also be consistent with the generator's declared power rating.
5. Installation Environment
The installation location affects generator selection.
Important factors include ambient temperature, altitude, ventilation, dust exposure, noise requirements, and available maintenance space.
For soundproof generators, adequate cooling airflow and exhaust arrangements remain essential even when the generator is installed inside an acoustic enclosure.
Diesel generators must not be operated inside occupied buildings or inadequately ventilated spaces because exhaust gases contain dangerous carbon monoxide.
6. Responsibility for System Integration
This is an important point for overseas projects.
At WALT POWER, we supply diesel generator equipment and can provide relevant generator technical information, controller documentation, and remote support within the agreed scope.
However, the complete solar and battery energy storage system, including inverter selection, battery management, protection coordination, and site electrical installation, must be designed and verified by the responsible system integrator or qualified electrical professionals.
We do not supply the solar inverter as part of our standard diesel generator offering.
Clear responsibility between the generator supplier and system integrator helps prevent compatibility problems during commissioning.
Can a Diesel Generator Operate Automatically in an Off-Grid Solar System?
Yes, provided the inverter or energy management system and generator controller support a compatible automatic-start arrangement.
The generator can be configured to respond to an external start request, supply AC power when stable, and stop after the system withdraws the request and the required shutdown sequence is completed.
However, successful automatic operation depends on more than a simple two-wire connection.
The generator's electrical output, controller inputs, inverter acceptance settings, charging limits, and system protection must all be compatible.
For this reason, I recommend confirming the inverter model and operating requirements before placing a generator order.
Conclusion
A diesel generator can be an important part of a reliable off-grid solar and battery storage system, especially when renewable energy production is insufficient or the site requires additional backup capacity.
The key is choosing a generator that matches the actual electrical demand, battery charging requirements, operating schedule, and inverter control interface.
At WALT POWER, we help overseas importers, distributors, and EPC contractors select suitable diesel generator equipment for their projects.
If you are planning an off-grid solar installation and need a diesel backup generator, send us your required voltage, frequency, electrical load, inverter model, and expected operating hours.
We can review the generator requirements and recommend a suitable configuration.
