Can a Diesel Generator Be Too Close to a Building?

Table of Contents

Yes. A diesel generator installed too close to a building can create serious safety and operating problems, including carbon monoxide entering occupied spaces, fire hazards, restricted cooling airflow, excessive noise, and insufficient maintenance access.

However, the required clearance depends on the type of generator and the installation conditions.

For portable generators, the U.S. Consumer Product Safety Commission (CPSC) recommends operating them outdoors, at least 20 feet (approximately 6 meters) away from homes and buildings, with the exhaust directed away from windows, doors, and vents.

For permanently installed industrial or commercial diesel generators, there is no single universal clearance distance. The installation must consider the generator enclosure, exhaust system, building construction, ventilation openings, fire protection requirements, manufacturer instructions, and applicable local regulations.

The most important distinction is that portable generator safety guidance should not be used as a substitute for the engineering requirements of a stationary diesel generator installation.

At WALT POWER, we manufacture and export diesel generator sets for residential backup, commercial facilities, industrial applications, and other projects. When discussing generator placement with customers, we recommend reviewing the installation conditions before deciding where the equipment should be positioned.

A generator that fits physically into an available space is not necessarily suitable for operating there.

How Far Should a Diesel Generator Be From a Window?

The distance between a diesel generator and a window is one of the most important considerations when selecting an installation location.

Diesel exhaust contains carbon monoxide (CO), nitrogen oxides (NOx), particulate matter, and other combustion products. Exhaust gases can enter buildings through open windows, doors, ventilation openings, or mechanical air intake systems.

Carbon monoxide is particularly dangerous because it cannot be detected by smell or sight.

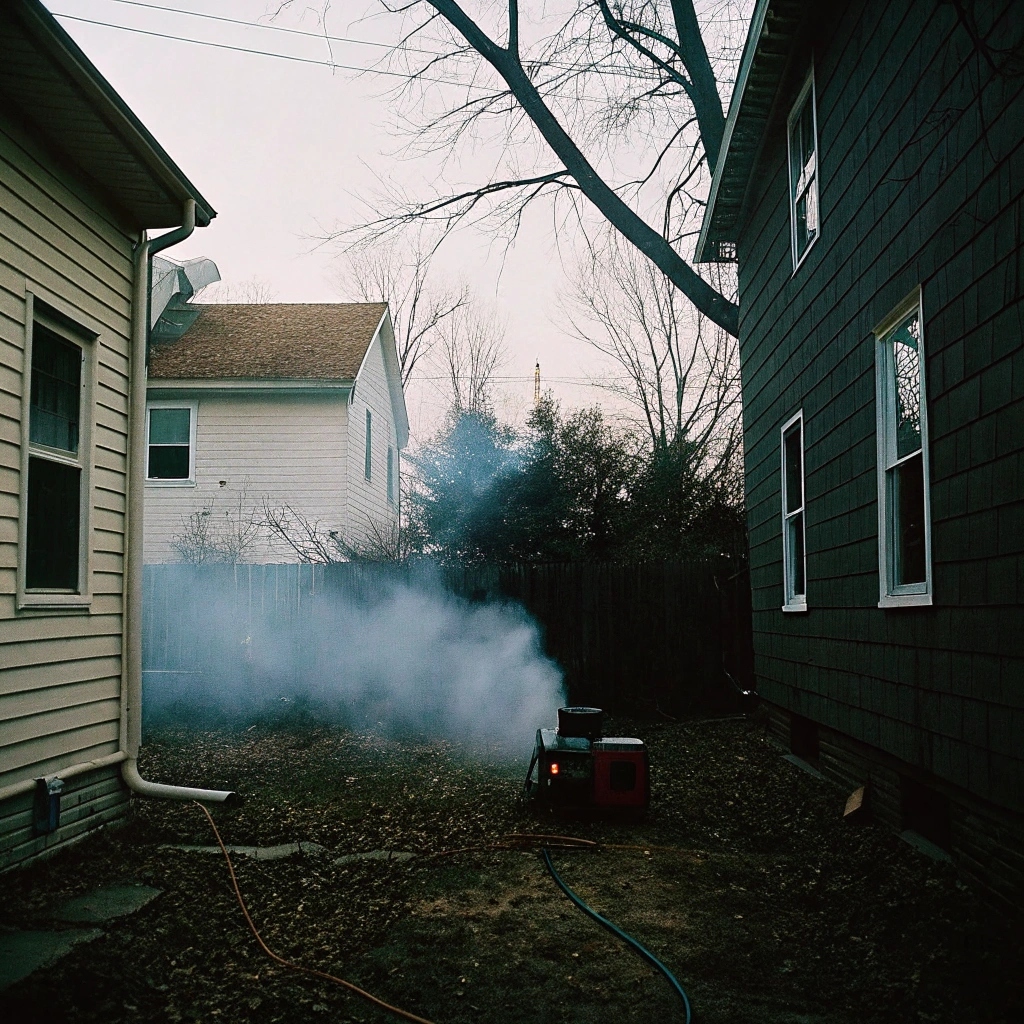

Portable Diesel Generators: The 20-Foot Safety Recommendation

For portable generators, the CPSC recommends:

  • Operating the generator outdoors only.
  • Keeping it at least 20 feet (approximately 6 meters) away from homes and buildings.
  • Directing the exhaust away from windows, doors, and ventilation openings.
  • Never operating the generator inside a garage, basement, shed, or other enclosed space.
  • Installing and maintaining carbon monoxide alarms inside occupied buildings.

The U.S. Centers for Disease Control and Prevention (CDC) also recommends keeping generators outdoors at least 20 feet from doors, windows, and vents.

These recommendations are particularly relevant to portable generators used for temporary residential backup power.

Important: A distance of 20 feet is not a guarantee that exhaust gases cannot enter a building. Wind direction, surrounding structures, ventilation systems, and exhaust orientation can influence exposure.

For portable generators, always follow the applicable safety guidance and the manufacturer's instructions.

Stationary Diesel Generators: Clearance Depends on the Installation

Stationary standby generators are different from portable generators.

A permanently installed diesel generator may have:

  • A weatherproof or sound-attenuated enclosure.
  • A dedicated exhaust system.
  • A radiator discharge opening.
  • Engine combustion air requirements.
  • Integrated or separate fuel storage.
  • Electrical connections to an automatic transfer switch (ATS).

These features affect how the generator can be positioned relative to a building.

For example, a stationary generator may be installed near an external wall when the applicable fire protection requirements, manufacturer-specified clearances, exhaust arrangements, and ventilation conditions are satisfied.

However, this does not mean the generator can automatically be placed next to a window or building air intake.

The exhaust discharge must be evaluated separately from the distance between the generator enclosure and the wall.

For projects in the United States, NFPA 37 and locally adopted building and fire codes may apply. Requirements can vary with the equipment, building construction, installation arrangement, and applicable code edition.

For projects outside the United States, local regulations and the generator manufacturer's installation requirements must be checked.

Our recommendation: Never approve a stationary generator installation based solely on a general clearance figure found online. Review the actual generator dimensions, airflow requirements, exhaust arrangement, and site layout first.

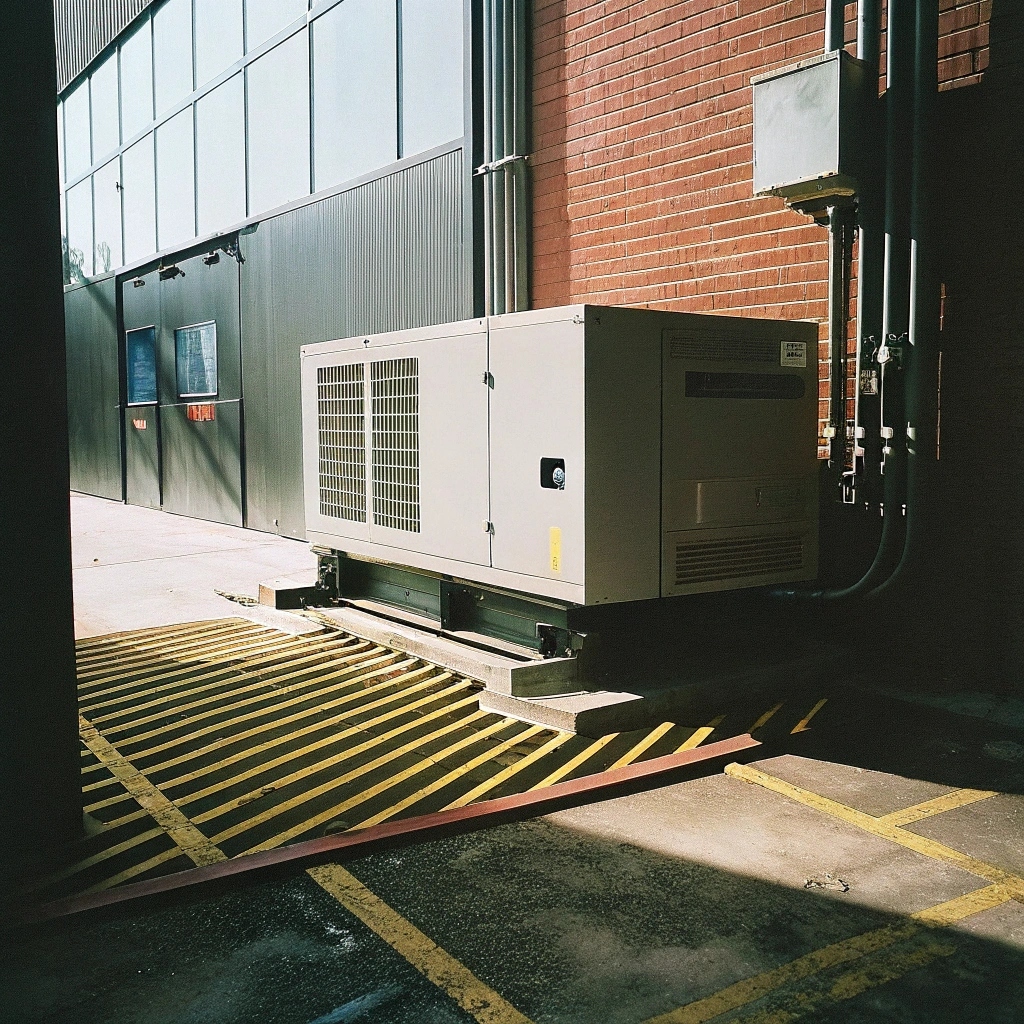

Outdoor stationary diesel generator installation near a commercial building.

Recommended Generator Clearance Distances: Quick Reference

The following table explains how clearance considerations differ between portable and stationary diesel generators.

Installation consideration Portable diesel generator Stationary diesel generator
Distance from windows and doors CPSC recommends at least 20 feet from homes and buildings, with exhaust directed away from openings Determine according to the exhaust arrangement, manufacturer instructions, and applicable regulations
Distance from ventilation air intakes Keep exhaust well away from air intakes; follow portable generator safety guidance Evaluate exhaust discharge location and the potential for exhaust gases to enter the building ventilation system
Distance from combustible walls Follow manufacturer instructions and applicable fire codes Assess NFPA 37 or applicable local fire protection requirements, including any permitted exceptions
Distance from non-combustible walls Maintain safe outdoor placement and unobstructed operation Follow manufacturer requirements for ventilation, heat rejection, exhaust routing, and service access
Cooling airflow clearance Keep ventilation openings unobstructed Provide the specified combustion air, radiator airflow, and hot-air discharge paths
Maintenance access Allow safe access for operation and servicing Allow sufficient access for enclosure doors, filters, batteries, radiator maintenance, and component removal
Indoor installation Never operate in homes, garages, basements, sheds, or other enclosed residential spaces Permitted only where a dedicated generator room is properly designed and approved under applicable requirements

This table is a planning reference, not an installation approval or a substitute for the equipment-specific installation manual.

A generator's minimum fire separation distance and its required cooling airflow clearance may be different. Both must be satisfied.

Why Proper Generator Clearance Matters: Four Engineering and Safety Risks

1. Carbon Monoxide and Exhaust Gas Entering the Building

Carbon monoxide poisoning is the most immediate life-safety concern associated with improper generator placement.

Diesel engines produce exhaust gases during combustion. If a generator operates close to a window, door, ventilation intake, or another building opening, exhaust may enter an occupied area.

This can occur even when the generator is installed outdoors.

Several factors influence the risk:

  • Exhaust outlet direction and height.
  • Wind direction and surrounding airflow.
  • Nearby walls and structures.
  • Building ventilation intake locations.
  • Open windows and doors.
  • Exhaust recirculation around the generator.

A generator positioned near a building corner or within a poorly ventilated courtyard may experience different airflow conditions from one installed in an unobstructed outdoor area.

For stationary installations, the exhaust system should discharge combustion products to an appropriate outdoor location, following the equipment manufacturer's instructions and applicable codes.

Carbon monoxide alarms are an additional protective measure, not a replacement for correct generator placement and exhaust design.

2. Fire Hazards and Radiant Heat

A diesel generator contains components that operate at elevated temperatures, including the engine exhaust manifold, turbocharger where fitted, exhaust piping, and silencer.

These components can create ignition or heat exposure hazards if the installation is poorly designed.

The risks become more significant when a generator is located near:

  • Combustible wall cladding.
  • Timber structures.
  • Stored combustible materials.
  • Vegetation or accumulated debris.
  • Unprotected fuel system components.

In the United States, NFPA 37 addresses fire protection considerations for stationary combustion engines and related installations.

A commonly referenced NFPA 37 provision concerns a 5-foot (approximately 1.5-meter) separation from combustible walls, subject to specific conditions and exceptions.

This 5-foot figure must not be treated as a universal installation distance.

The applicable requirements depend on the adopted code edition, equipment arrangement, wall construction, fire protection measures, and any permitted exceptions.

For a stationary diesel generator, the installation should be reviewed against the manufacturer's documentation and the requirements of the authority having jurisdiction.

3. Restricted Cooling Airflow and Engine Overheating

From an engineering perspective, inadequate cooling airflow is another important problem when a diesel generator is installed too close to a wall.

A water-cooled diesel generator must reject heat through its radiator and cooling system.

In a typical radiator-cooled arrangement, the fan moves air through the radiator and discharges heated air away from the equipment.

If a nearby wall obstructs the discharge path, hot air may circulate back toward the generator's air intake.

This is known as hot-air recirculation.

The resulting increase in cooling air temperature can reduce radiator heat rejection and contribute to high coolant temperature alarms or shutdowns.

For example, consider a silent diesel generator installed outdoors with its radiator discharge facing a nearby solid wall.

Even if there is enough physical space to open the enclosure doors, the wall may still interfere with radiator airflow.

The generator could operate normally during a short, lightly loaded test but experience cooling problems during extended operation at higher load.

This is an illustrative engineering scenario, not a reported WALT POWER project failure.

When reviewing an installation, we recommend checking:

  1. The generator's specified radiator airflow requirements.
  2. The direction of cooling air intake and discharge.
  3. The possibility of discharged hot air returning to the intake.
  4. Ambient temperature and site ventilation conditions.
  5. Available access for radiator inspection and cleaning.

For enclosed generator rooms, radiator discharge ducting and dedicated ventilation arrangements may be necessary.

A clearance that satisfies fire protection requirements does not automatically provide sufficient cooling airflow.

Diesel generator cooling airflow diagram showing hot-air recirculation near a building wall.

4. Maintenance Access and Noise Reflection

A diesel generator requires regular inspection and maintenance.

Depending on its configuration, technicians may need access to:

  • Engine oil and fuel filters.
  • Air filters.
  • Starting batteries.
  • Cooling system components.
  • Alternator terminals.
  • Electrical control panels.
  • Enclosure access doors.

If the generator is positioned too close to a wall, these tasks may become difficult or unsafe.

This is especially important for silent diesel generators with large side-opening maintenance doors.

The minimum clearance must account for the actual door-opening arrangement and the space needed to perform servicing.

Noise is another consideration.

A sound-attenuated generator enclosure is designed to reduce noise emissions, but nearby walls can reflect sound toward occupied areas or neighboring properties.

The resulting noise at a particular location depends on the generator's acoustic characteristics, building geometry, distance, and surrounding environment.

For projects with strict noise limits, review the manufacturer's sound level data and the site's acoustic requirements rather than assuming the enclosure alone will provide acceptable results.

Can a Silent Diesel Generator Be Installed Right Next to a Wall?

A silent diesel generator should not be installed directly against a wall unless the installation has been specifically engineered and approved for that arrangement.

Even where the wall is non-combustible, several issues remain:

  • Radiator discharge airflow may be restricted.
  • Combustion air or ventilation openings may be obstructed.
  • Enclosure doors may not open fully.
  • Maintenance access may be inadequate.
  • Exhaust routing may be unsuitable.
  • Sound reflection may increase noise at nearby locations.

The fact that a wall is made from brick or concrete does not eliminate these concerns.

At WALT POWER, we recommend checking the generator's general arrangement drawing and installation requirements before finalizing the foundation or equipment position.

The direction of the radiator discharge is particularly important for larger water-cooled generator sets.

Portable Generators vs. Stationary Generators vs. Dedicated Generator Rooms

One of the most common misunderstandings about generator installation is the assumption that every diesel generator must operate outdoors.

That is not correct.

The answer depends on the generator type and the installation design.

Portable Diesel Generators

Portable generators are intended for outdoor operation.

They must not be operated inside a home, garage, basement, shed, or similar enclosed space.

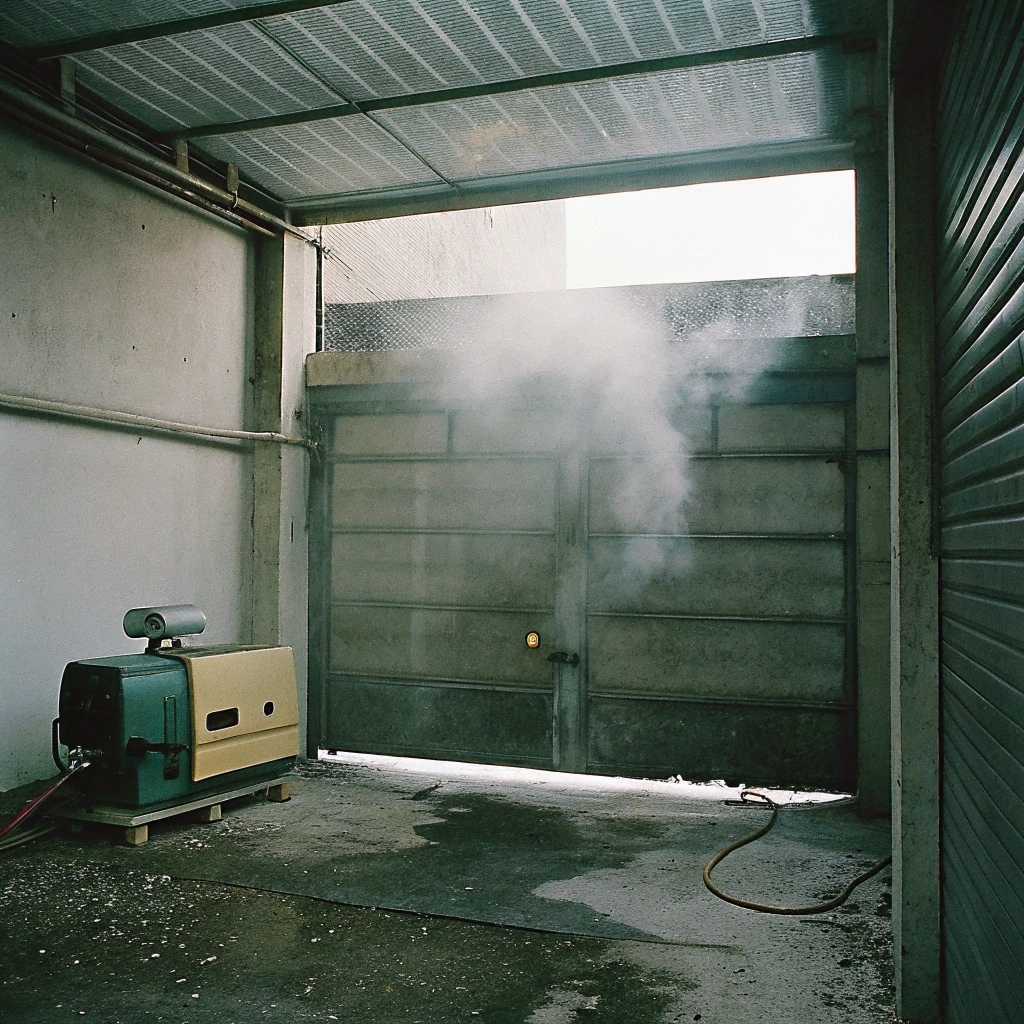

Opening a garage door does not make the space safe for portable generator operation.

Carbon monoxide can accumulate rapidly, and natural ventilation through an open door is not a reliable means of controlling the hazard.

Portable generators should be positioned outdoors according to applicable safety guidance and manufacturer instructions.

Outdoor Stationary Diesel Generators

Stationary diesel generators are commonly installed outdoors with weatherproof or sound-attenuated enclosures.

These installations require consideration of:

  • Building separation and fire protection.
  • Exhaust outlet location.
  • Radiator cooling airflow.
  • Combustion air supply.
  • Fuel system arrangements.
  • Maintenance access.
  • Noise restrictions.
  • Electrical connections and cable routing.

An outdoor silent enclosure protects the generator from suitable environmental exposure within its design limits, but it does not remove the need for adequate clearance.

Indoor Diesel Generator Rooms

Commercial and industrial diesel generators can also be installed inside properly designed dedicated generator rooms.

These installations are different from operating a portable generator in a garage.

A dedicated generator room may require:

  • Fire-rated construction or separation where specified.
  • Engine combustion air and room ventilation.
  • Proper radiator heat rejection or remote cooling arrangements.
  • An engineered exhaust system discharging outdoors.
  • Suitable fuel storage and supply arrangements.
  • Fire detection and protection measures as required.
  • Safe electrical installation.
  • Adequate maintenance and equipment removal access.

The room design must comply with applicable building, mechanical, fire, and electrical regulations.

For critical facilities such as hospitals and data centers, additional requirements may apply depending on the location and the standby power system classification.

Stationary diesel generator installed in a dedicated generator room with ventilation and exhaust system

What Should You Check Before Installing a Diesel Generator Near a Building?

Before approving a generator location, we recommend reviewing the following information with the installer or project engineer.

Item to verify Why it matters
Generator model and dimensions Confirms the equipment footprint and physical installation requirements
Portable or stationary configuration Determines the relevant safety guidance and installation approach
Building wall construction Affects fire separation and heat exposure considerations
Window, door, and air intake locations Helps prevent exhaust gases entering occupied areas
Exhaust outlet position Determines where combustion products are discharged
Radiator airflow requirements Helps prevent restricted cooling and hot-air recirculation
Enclosure access doors Confirms adequate maintenance access
Ambient temperature and altitude May affect generator capacity and cooling performance
Fuel system arrangement Requires appropriate safety and installation provisions
Local building and fire requirements Determines the applicable legal and technical requirements

For larger industrial projects, a site layout drawing is particularly useful.

It should identify the generator foundation, nearby walls, building openings, exhaust discharge, ventilation paths, and maintenance access.

A final installation design should be reviewed by qualified professionals familiar with the applicable regulations.

Silent diesel generator enclosure showing maintenance access doors and ventilation openings

How WALT POWER Supports Generator Installation Planning

As a China-based manufacturer and exporter of diesel generator sets, WALT POWER supplies open-type and silent diesel generators for different power requirements and operating environments.

Our generator range includes configurations for residential backup power, commercial facilities, industrial applications, and project-based power systems.

When customers are preparing an installation, we can help review the generator-related technical information needed for their planning, including:

  • Generator dimensions and equipment configuration.
  • Available general arrangement and technical drawings.
  • Cooling and ventilation information for the selected model.
  • Engine and alternator specifications.
  • Control system and ATS configuration.
  • Suitable open-type or sound-attenuated enclosure options.

For an industrial project, this information helps the local contractor or consulting engineer evaluate the proposed installation location.

However, generator manufacturers and local installation professionals have different responsibilities.

We can provide equipment specifications and technical support, but final building clearances, exhaust arrangements, fire protection measures, and installation approval must be determined according to the actual site and applicable local requirements.

This distinction is particularly important for overseas projects, where installation regulations can differ significantly between countries.

If you are sourcing a diesel generator for a commercial or industrial project, you can contact WALT POWER with your required power rating, application, installation location, and available site drawings.

Frequently Asked Questions

How far does a diesel generator need to be from a window?

For portable generators, the U.S. CPSC recommends outdoor operation at least 20 feet (approximately 6 meters) away from homes and buildings, with exhaust directed away from windows, doors, and vents.

For stationary diesel generators, the required separation depends on the equipment, exhaust design, manufacturer instructions, and applicable local codes. Do not assume the portable generator recommendation is the installation standard for every stationary generator.

Can a silent diesel generator be placed next to a brick or concrete wall?

Not automatically. A non-combustible wall may reduce certain fire exposure concerns, but the generator still needs adequate radiator airflow, exhaust discharge, maintenance access, and compliance with applicable installation requirements.

The manufacturer's clearance and ventilation specifications should be reviewed before approving the location.

Why can't you run a diesel generator in a garage with the door open?

A portable diesel generator must not be operated inside a residential garage, even with the door open.

Exhaust contains carbon monoxide, which can accumulate in enclosed or partially enclosed spaces and enter occupied areas.

A properly designed industrial generator room is a different type of installation and requires engineered ventilation, exhaust discharge, and applicable safety provisions.

How much space do you need around a standby generator for maintenance?

There is no single maintenance clearance that applies to every standby generator.

The required space depends on the generator dimensions, enclosure door design, service access points, cooling airflow, and manufacturer instructions.

Before installation, confirm that technicians can safely access filters, batteries, radiator components, control panels, and other serviceable equipment without obstructing ventilation.

Conclusion

A diesel generator can definitely be installed too close to a building.

For portable generators, follow established outdoor safety guidance, including the CPSC recommendation to keep the generator at least 20 feet from homes and buildings and direct exhaust away from openings.

For stationary diesel generators, safe placement requires a more detailed engineering assessment.

The most important factors are carbon monoxide and exhaust exposure, fire protection, cooling airflow, maintenance access, and applicable installation regulations.

Our advice is simple: do not select a generator location based on physical space alone. Confirm that the installation can operate safely, reject heat effectively, discharge exhaust properly, and remain accessible for maintenance.

For overseas distributors, contractors, and project engineers, reviewing these conditions before shipment can also help avoid costly installation changes after the generator arrives.

References

  1. U.S. Consumer Product Safety Commission (CPSC) — Generators and Engine-Driven Tools
  2. CPSC — Generator, Carbon Monoxide and Fire Hazards: 2026 Safety Guidance
  3. Centers for Disease Control and Prevention (CDC) — Use a Generator Safely
  4. International Code Council (ICC) — 2021 International Fire Code Code-Development Materials, Including NFPA 37 Installation Provisions

Technical note: NFPA 37 and other referenced U.S. standards apply according to the relevant jurisdiction and adopted edition. They should not be presented as universal installation requirements for all countries.

Picture of Ke Wong

Ke Wong

As Business Director at WALT Power, I joined the company in 2011 and have been engaged in the export of diesel generator sets and load banks since then, supporting distributors and project buyers across different regions.

The articles here are based on practical project experience, covering topics such as generator sizing, load management, and operational reliability.
