If your generator voltage is too high, first check the output frequency, engine speed, AVR voltage setting, and AVR sensing circuit. High voltage can also be caused by loose sensing wires, incorrect alternator connections, a wrong AVR model, a faulty AVR, or an excitation system problem.

In our experience, we do not replace the AVR just because the generator is producing high voltage. We normally check the frequency first. If both voltage and frequency are high, we check the engine speed before adjusting the AVR. If frequency is normal but voltage remains high, we then focus on the AVR, sensing circuit, wiring, and excitation system.

What Should You Check First When Generator Voltage Is Too High?

Before adjusting or replacing anything, confirm what the generator is actually doing.

We normally start with these checks:

1. Confirm the actual output voltage with a reliable meter.
2. Check the generator frequency.
3. Confirm the generator rated voltage.
4. Check whether all phases are high or only one phase.
5. Check whether the voltage is high at no load, under load, or both.
6. Check the AVR voltage setting.
7. Inspect the AVR sensing wires and alternator connections.

A quick diagnosis can help narrow down the problem:

What You Find	Check First	Likely Direction
High voltage + high frequency	Engine speed	Governor or speed setting
High voltage + normal frequency	AVR and sensing	AVR setting, sensing, or AVR fault
Sudden severe overvoltage	AVR sensing circuit	Loose, open, or incorrect sensing wire
One phase voltage abnormal	Connections and measurement	Wiring, neutral, winding, or measurement issue
High and unstable voltage	Regulation system	AVR, sensing, excitation, or speed instability
High voltage after AVR replacement	AVR model and wiring	Wrong AVR, wrong connection, or incorrect setting

I would not start by turning the AVR voltage adjustment immediately. If the real cause is high engine speed or a sensing problem, changing the AVR setting can hide the original fault and make troubleshooting more difficult.

If your generator has no output voltage instead of high voltage, see our related guide:

Why Is My Diesel Generator Not Producing Voltage?

1. Check the Generator Frequency First

This is normally my first check because generator frequency is directly related to engine speed.

For a standard 4-pole generator, a 50 Hz unit normally runs around 1500 rpm, while a 60 Hz unit normally runs around 1800 rpm.

If engine speed is too high, frequency will rise directly. Generator voltage may also become high depending on the AVR, excitation system, and how far the speed is above normal.

For example, if a 50 Hz generator is running at 54 Hz and the voltage is also above its rated value, I would check the engine speed or governor first.

I would not use the AVR voltage adjustment to compensate for incorrect engine speed.

Correct the frequency first, then measure the voltage again.

This is why we check frequency before adjusting the AVR.

2. Check the AVR Voltage Setting

If the frequency is correct but the voltage is still too high, the AVR is the next area I would check.

The AVR controls excitation to maintain the required alternator output voltage. Most AVRs have a voltage adjustment, but the design and adjustment range are different between models.

If the voltage setting has been adjusted too high, the generator may otherwise run normally but produce excessive voltage.

For example, if a 400V generator is producing 430V or 440V while frequency remains around 50 Hz, the AVR voltage setting should be checked.

But before adjusting the AVR, confirm the voltage with a reliable meter.

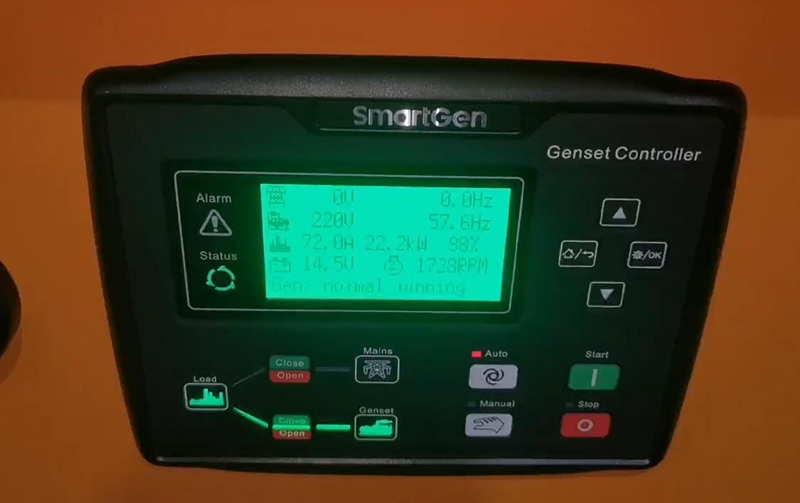

Do not depend only on the generator controller display. A controller input, sensing circuit, voltage transformer where fitted, or wiring problem can sometimes give an incorrect reading.

If the external meter confirms that the voltage is really high, the AVR setting can then be checked.

AVR adjustment should be made carefully and according to the specific AVR or alternator manual. Different AVR models have different adjustment potentiometers and functions.

Do not assume that every adjustment screw on an AVR controls voltage.

If you suspect the AVR itself may be faulty, see:

How Do I Know If My Generator AVR Is Bad?

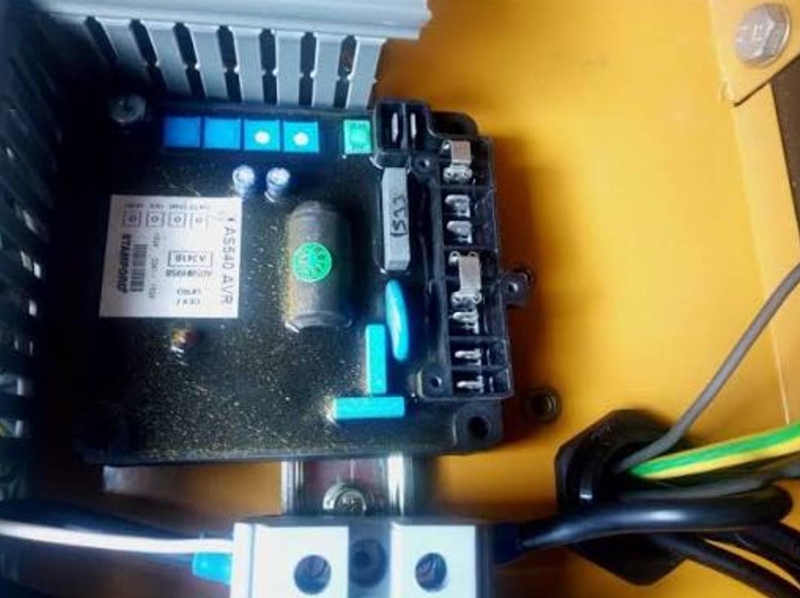

3. Check the AVR Sensing Circuit

The AVR sensing circuit is one of the first places I would inspect if generator voltage suddenly becomes very high.

The AVR needs the correct voltage sensing signal to know the actual alternator output voltage.

If a sensing wire becomes loose, disconnected, damaged, or incorrectly connected, the AVR may receive a wrong or missing voltage signal. It may then increase excitation because it thinks the generator voltage is too low.

The result can be serious overvoltage.

We normally inspect:

• AVR sensing wires
• Terminal connections
• Loose screws
• Broken wires
• Burnt terminals
• Incorrect connections
• Poor contact
• Recent repair or rewiring work

If the high-voltage problem started immediately after alternator repair, AVR replacement, or electrical maintenance, I would check the wiring before replacing another component.

A sensing problem can look very similar to an AVR failure.

4. Can a Bad AVR Cause High Generator Voltage?

Yes. A faulty AVR can cause generator overvoltage.

If the AVR cannot regulate excitation correctly, it may supply too much excitation to the alternator field.

Possible signs include:

• Voltage much higher than the rated value
• Voltage cannot be reduced normally
• Voltage suddenly rises after startup
• Voltage is both high and unstable
• AVR voltage adjustment has little or no effect

However, these symptoms do not prove that the AVR is faulty.

This is an important point.

In our generator troubleshooting, I prefer to treat the AVR as part of the complete voltage regulation system, not as the answer to every voltage problem.

Before replacing an AVR, I would normally confirm that:

• Frequency is correct.
• The voltage measurement is correct.
• AVR sensing is correct.
• Wiring and terminals are correct.
• AVR settings are reasonable.
• The AVR model is correct for the alternator.

If these checks are normal and the voltage still cannot be controlled, AVR failure becomes a much stronger possibility.

5. Check Whether the AVR Is the Correct Model

This is especially important if the high-voltage problem started after an AVR replacement.

An AVR that physically fits inside the alternator is not automatically the correct AVR.

Different alternators may use different:

• Sensing voltages
• Excitation requirements
• Stability settings
• Under-frequency functions
• Droop connections
• External voltage adjustment circuits

Even two AVRs that look almost identical may not work in the same way.

If high voltage appeared immediately after replacing the AVR, I would first confirm the AVR model and wiring against the alternator manufacturer's information.

I would not keep adjusting an incompatible AVR and hope the voltage eventually becomes correct.

The better question is:

Is this the correct AVR, and is it connected correctly for this alternator?

6. Check the Alternator Wiring

Alternator wiring should also be checked, especially if the generator has recently been repaired or reconnected for a different output voltage.

Many three-phase alternators allow different terminal connections for different voltage configurations.

If the winding leads, neutral connection, or AVR sensing connections are incorrect, the actual output voltage may not match the expected voltage.

If the problem appeared immediately after rewiring, I would go back to the alternator connection diagram before replacing any parts.

Always use the wiring diagram for the specific alternator model. Do not use a generic terminal diagram when the manufacturer's information is available.

7. Check the Excitation System

If the frequency, AVR setting, sensing circuit, AVR model, and alternator wiring are all correct, deeper testing of the excitation system may be necessary.

Depending on the alternator design, the excitation system may include:

• AVR
• Exciter stator
• Exciter rotor
• Rotating rectifier assembly
• Rotating diodes
• Main rotor field

A problem in the excitation system can affect voltage regulation.

At this stage, I would not recommend replacing parts one by one to see what happens. Electrical measurements should follow the test procedure for the specific alternator.

Some excitation tests require access to energized electrical circuits or rotating components. These tests should only be carried out by qualified technicians.

Why Are Both Generator Voltage and Frequency Too High?

If both voltage and frequency are high, check the engine speed first.

This is one of the quickest ways to separate an engine speed problem from a voltage regulation problem.

Possible causes include:

• Incorrect engine speed adjustment
• Governor setting problem
• Electronic governor problem
• Actuator or speed control problem
• Incorrect controller setting

Correct the engine speed until the generator frequency returns to its normal range. Then measure the voltage again.

If frequency becomes normal but voltage remains high, continue with the AVR and sensing checks.

In my view, this simple comparison between voltage and frequency is one of the most useful first checks when troubleshooting generator overvoltage. It can prevent unnecessary AVR adjustment or replacement.

Why Is Generator Voltage High When Frequency Is Normal?

If frequency is normal but voltage is high, the engine is probably running at approximately the correct speed.

The troubleshooting focus should then move toward voltage regulation.

I would check in this order:

1. Confirm the voltage with a separate meter.
2. Check the AVR voltage setting.
3. Inspect the AVR sensing circuit.
4. Check alternator terminal connections.
5. Confirm the AVR model and configuration.
6. Test the AVR if necessary.
7. Investigate the excitation system.

Normal frequency does not prove that the AVR is bad. It simply makes an engine speed problem less likely.

For the opposite condition, where generator voltage is below the rated value, see:

Why Is My Generator Producing Low Voltage?

Why Is Generator Voltage Too High After AVR Replacement?

If high voltage appears immediately after installing a new AVR, I normally check the replacement work first.

Check whether:

• The AVR model is correct.
• The sensing wires are connected correctly.
• The excitation wires are connected correctly.
• The voltage adjustment is set correctly.
• External voltage adjustment wiring is correct.
• Any required links or settings match the alternator.

Do not assume a new AVR is correctly adjusted when it comes out of the box.

At the same time, do not assume the new AVR is defective just because the voltage is high.

In this situation, I would confirm compatibility and wiring before trying another AVR.

Why Is Generator Voltage High With No Load?

A small difference between no-load and loaded voltage can be normal, depending on the alternator and AVR.

But the no-load voltage should not be far above the rated value.

If voltage is clearly too high at no load, check:

• Actual frequency
• AVR voltage adjustment
• AVR sensing connections
• AVR stability and regulation
• Alternator and AVR compatibility

Do not solve serious no-load overvoltage by simply connecting more load.

The generator should regulate its voltage correctly across its intended operating range.

What If Generator Voltage Is High on Only One Phase?

If only one phase is showing abnormal voltage, I would not start by adjusting the AVR.

AVR adjustment normally affects the overall voltage regulation. A problem on only one phase points us toward a different direction.

First confirm all phase-to-phase and phase-to-neutral voltages with a reliable meter.

Then inspect:

• Output terminals
• Neutral connection
• Cable connections
• Loose wiring
• Alternator winding connections
• AVR sensing connections

If the external connections are correct but a large voltage imbalance remains, the alternator windings may need professional testing.

Can High Generator Voltage Damage Equipment?

Yes.

Excessive generator voltage can damage connected equipment, especially sensitive electronic loads.

Equipment at risk may include:

• Generator controllers
• Battery chargers
• UPS systems
• Power supplies
• Motors
• Contactors and relays
• Electronic equipment

High voltage can also place additional electrical stress on the generator system itself.

If the output voltage is significantly above the rated value, disconnect sensitive loads and find the cause before returning the generator to normal service.

Do not keep equipment connected while repeatedly changing AVR settings.

Should You Adjust the AVR Yourself?

This depends on your technical experience and the generator design.

A small voltage adjustment on a known AVR may be straightforward for a qualified generator technician. But troubleshooting becomes more dangerous when it involves live measurements, excitation circuits, the alternator terminal box, or internal components.

Always follow the manual for the specific alternator and AVR.

Stamford, Leroy-Somer, Mecc Alte, WALT and other alternators may use different AVR designs and excitation systems. A test procedure that works for one AVR should not automatically be used on another.

If live electrical measurements, excitation tests, rotating diode tests, or alternator disassembly are required, the work should be carried out by a qualified technician.

What If the Voltage Is Normal Without Load but Changes Under Load?

This is another situation where I would avoid blaming the AVR too quickly.

If the generator voltage is normal at no load but changes significantly after load is connected, we need to look at the complete generator system.

Possible causes include:

• AVR response
• Excitation capacity
• Engine speed under load
• Load size
• Power factor
• Unbalanced load
• Alternator capacity
• Electrical connections

The direction of the voltage change is important.

If voltage rises abnormally under load, check the sensing and voltage regulation system.

If voltage drops significantly under load, the causes may include engine performance, excitation, alternator capacity, or excessive load.

In our generator testing, I often find that load behavior tells us more than a no-load voltage reading. A generator can look normal without load but show a regulation, engine, or excitation problem once load is applied.

A controlled load bank test can also help separate a generator problem from a site load problem.

Diesel Generator Load Bank Testing: Complete Guide

A Practical Troubleshooting Order

When a generator is producing high voltage, this is the order I normally prefer:

1. Confirm the voltage.
Use a reliable meter and make sure the controller reading is correct.

2. Check the frequency.
If frequency is high, check engine speed or the governor first.

3. Check the AVR voltage setting.
Do this only after confirming that frequency is normal.

4. Inspect the AVR sensing circuit.
Look for loose, broken, burnt, or incorrectly connected wires.

5. Check recent repair or replacement work.
If the problem started after rewiring or AVR replacement, verify the work carefully.

6. Confirm the AVR model.
Make sure it is compatible with the alternator.

7. Test the AVR and excitation system.
Only move to deeper electrical testing after the simpler causes have been ruled out.

This order moves from simple and common problems toward deeper electrical faults.

More importantly, it reduces the chance of replacing a good AVR when the real problem is somewhere else.

If you are troubleshooting a high-voltage generator, send us the generator model, alternator model, AVR model, rated voltage, actual voltage, frequency, and a clear photo of the controller and AVR. These details are usually enough for us to suggest the next checks before you start replacing parts.
