If your generator is producing voltage but the output is lower than its rated value, the most common causes include low engine speed, excessive load, incorrect AVR adjustment, AVR sensing problems, weak excitation, loose wiring, rotating diode failure, or alternator winding faults.

In our experience, we do not start by adjusting or replacing the AVR. We first check the generator frequency, the voltage at no load, and what happens to both voltage and frequency when load is applied. These three checks can quickly narrow the problem to the engine, load, AVR and excitation system, or the alternator itself.

What Should You Check First When Generator Voltage Is Low?

Before opening the alternator or replacing any parts, start with the simplest operating checks.

We normally follow this order:

1. Check the generator frequency.
2. Check the voltage at no load.
3. Apply load and watch both voltage and frequency.
4. Compare the voltage between phases.
5. Check AVR settings, sensing connections, and wiring.
6. If the problem remains, inspect the excitation system, rotating diodes, and alternator windings.

Low generator voltage does not automatically mean the AVR is bad.

Quick Diagnosis Table

What You Find	More Likely Cause	What to Check Next
Low voltage + low frequency	Engine RPM / governor	Check frequency and engine speed
Low voltage + normal frequency	AVR / sensing / excitation	Check AVR setting and sensing circuit
Normal voltage at no load, low under load	Load / engine response / excitation	Reduce load and retest
One phase lower than the others	Wiring / connection / winding	Compare all phase voltages
AVR adjustment cannot restore rated voltage	AVR / excitation / alternator	Further electrical testing

This table is only a starting point. The same symptom can have more than one cause, so we use the generator's voltage, frequency, load, and phase readings together before deciding which component is faulty.

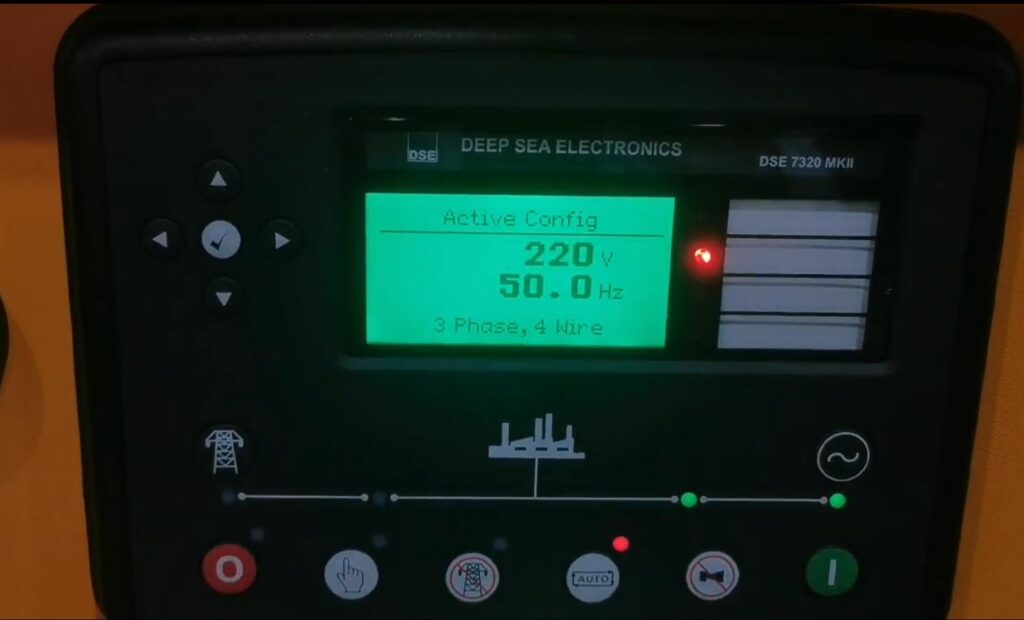

1. Is the Generator Frequency Also Too Low?

This is one of the first things we check.

Generator frequency is mainly determined by engine speed. For a typical 4-pole alternator, a 50 Hz generator runs around 1500 rpm and a 60 Hz generator around 1800 rpm.

If engine speed is too low, frequency will also be low. Depending on the AVR and excitation system, low speed can also result in low output voltage.

Many AVRs include under-frequency protection. When frequency falls below a certain point, the AVR reduces excitation to protect the alternator and excitation system.

So if you see:

Low voltage + low frequency

check the engine side first.

Possible causes include:

• Incorrect engine speed setting
• Governor adjustment problems
• Engine speed dropping under load
• Fuel supply problems
• Engine overload
• Mechanical problems preventing the engine from reaching rated speed

The fix is not to immediately increase the AVR voltage setting.

First restore the engine to its correct operating speed and frequency. Then check the generator voltage again.

In our generator testing, frequency is one of the fastest ways to avoid going in the wrong direction. If both frequency and voltage are low, we normally investigate engine speed before touching the AVR.

2. Is the Generator Overloaded?

If voltage is normal or close to normal at no load but falls after equipment is connected, check the actual load.

Possible causes include:

• Too much total kW load
• High motor starting current
• Large inductive loads
• Poor power factor
• Unbalanced three-phase loads
• A sudden large load step

A simple first test is to reduce the load and see whether the voltage recovers.

If both frequency and voltage drop significantly as load increases, the engine may not be maintaining speed, or the generator may simply be overloaded.

If frequency remains relatively stable but voltage continues to fall, we look more closely at AVR regulation, excitation response, load power factor, and alternator capacity.

This distinction is important.

Do not judge generator load only by the nameplate kW of the connected equipment. Motors, pumps, compressors, transformers, UPS systems, and other inductive or nonlinear loads can place much higher starting or reactive demand on a generator than their normal running kW suggests.

If reducing the load restores normal voltage, do not compensate by simply increasing the AVR setting. Find out why the generator cannot maintain voltage at the required load.

3. Is the AVR Voltage Setting Too Low?

Yes. An incorrect AVR setting can cause low generator voltage.

But we do not recommend turning the AVR voltage potentiometer as the first troubleshooting step.

Before adjusting the AVR, confirm:

• The engine is running at the correct speed.
• The frequency is correct.
• The generator is not overloaded.
• The AVR sensing connections are secure.
• The alternator and AVR model are correctly identified.

If these conditions are normal, the AVR voltage setting can then be checked according to the manufacturer's instructions.

Make only small adjustments and monitor the output voltage.

Different AVR models have different controls. Depending on the design, an AVR may include adjustments for voltage, stability, under-frequency protection, droop, or excitation limits.

Do not assume every potentiometer controls output voltage.

In our generator testing, we adjust the AVR only after confirming that the generator is operating at the correct speed and under the correct load condition. Otherwise, an AVR adjustment can hide the real problem instead of fixing it.

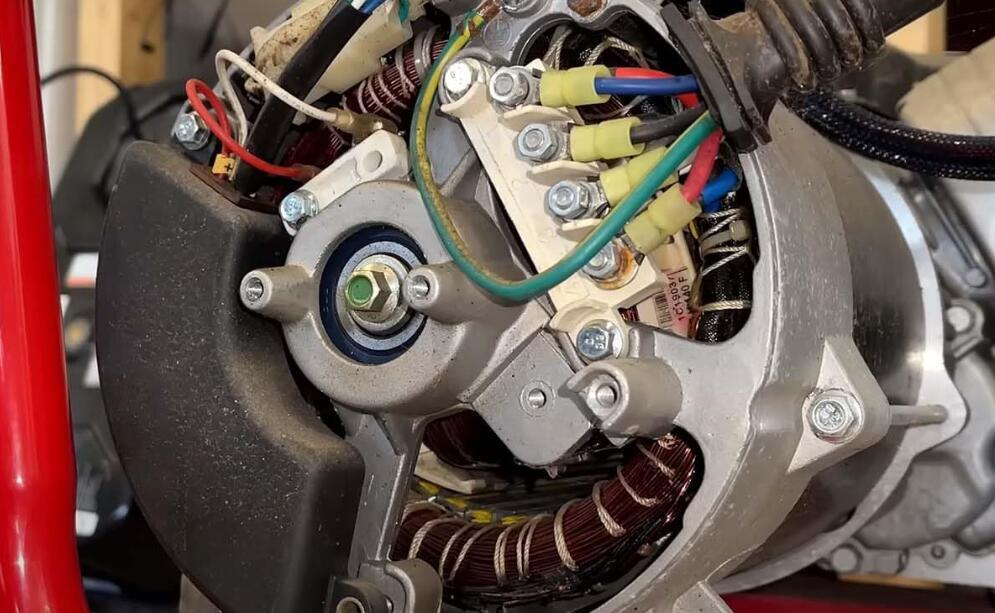

4. Is the AVR Sensing the Correct Voltage?

The AVR needs an accurate voltage sensing signal to regulate alternator output.

If the sensing circuit has a loose connection, damaged wire, incorrect connection, poor terminal contact, or another fault, the AVR may regulate the alternator incorrectly.

Check for:

• Loose AVR terminals
• Damaged sensing wires
• Incorrect wiring
• Poor terminal connections
• Burnt or oxidized connectors
• Sensing fuses, if used in that alternator design

This is especially important if the low-voltage problem started after an AVR replacement, alternator repair, rewiring, or voltage reconnection.

If the wiring is incorrect, correct it according to the specific alternator and AVR wiring diagram before making further adjustments.

A new AVR does not automatically mean the AVR system is working correctly. The replacement AVR must be compatible with the alternator, and its sensing and excitation connections must be correct.

5. Could a Bad AVR Cause Low Generator Voltage?

Yes. A failing AVR can cause low voltage, unstable voltage, no excitation, or poor voltage regulation.

However, low voltage alone is not enough to confirm AVR failure.

We become more suspicious of the AVR when:

• Engine speed and frequency are correct.
• The generator is not overloaded.
• Sensing and wiring connections are correct.
• Output voltage remains consistently low.
• Normal AVR adjustment cannot restore the rated voltage.
• AVR excitation output is abnormal.

Even then, excitation or alternator faults can produce similar symptoms.

This is why we normally try to prove the AVR is faulty instead of replacing it only because the generator voltage is low.

If you need to diagnose the AVR itself, see our related guide:

How Do I Know If My Generator AVR Is Bad?

It explains the common AVR failure symptoms and the checks we use before deciding that an AVR should be replaced.

6. Could Weak Excitation Cause Low Generator Voltage?

Yes.

The alternator needs sufficient excitation to build and maintain its output voltage. If excitation is too weak, the generator may still produce voltage but fail to reach its rated value or fail to maintain voltage when load increases.

Depending on the alternator design, the excitation system may include:

• AVR
• Exciter stator
• Exciter rotor
• Rotating rectifier assembly
• Rotating diodes
• Main rotor field
• Associated wiring and connections

A fault anywhere in this system can reduce excitation.

If engine speed, load, AVR settings, sensing, and external wiring are normal but the generator still cannot reach rated voltage, the excitation system becomes a more important part of the diagnosis.

This is also why repeatedly replacing the AVR is not a good troubleshooting method.

If a new or known-good AVR is installed and the generator still produces low voltage, we normally stop changing AVRs and investigate the excitation circuit and alternator components instead.

7. Can Rotating Diode Failure Cause Low Generator Voltage?

Yes.

In a brushless alternator, the rotating rectifier converts the exciter output into DC current for the main rotor field. If one or more rotating diodes fail, the rotor may not receive the correct excitation.

Possible symptoms include:

• Low output voltage
• Poor voltage regulation
• Voltage dropping under load
• Difficulty reaching rated voltage
• Abnormal excitation behavior
• In some cases, increased heating

If the basic external checks are normal but excitation remains weak, the rotating diodes should be considered.

However, rotating diode testing is not normally one of our first checks because it requires access to the alternator and proper electrical testing.

The generator must be shut down and safely isolated before this work is performed. Testing procedures can also differ between alternator designs, so follow the service information for the specific alternator.

8. Could Loose Connections Cause Generator Low Voltage?

Yes, and this is easy to overlook.

With the generator safely stopped and isolated, inspect accessible electrical connections for:

• Loose terminals
• Burnt connections
• Oxidation
• Damaged cables
• Incorrect reconnection
• Signs of overheating

Pay particular attention to the alternator terminal box, AVR wiring, sensing wires, and output connections.

This is especially important if the generator has recently been transported, repaired, rewired, or reconnected for a different voltage configuration.

For a three-phase generator, compare all phase-to-phase voltages.

If all three phases are similarly low, we are more likely to investigate engine speed, AVR regulation, excitation, or the overall alternator output.

If one phase is significantly lower than the others, wiring, terminal connections, output cables, and possible winding problems become more important.

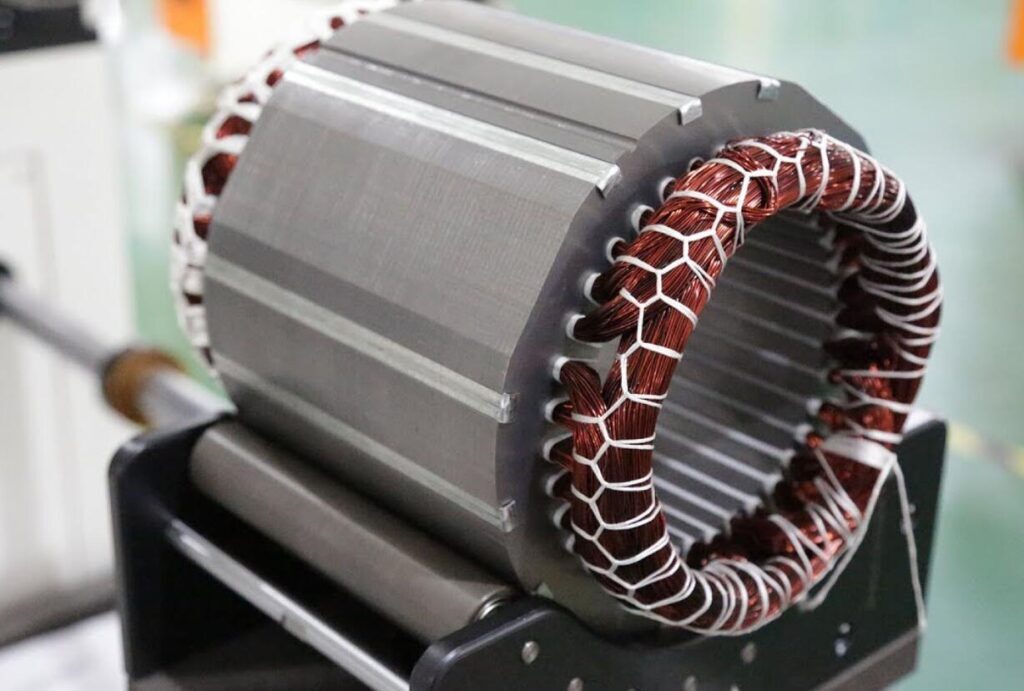

9. Could Alternator Windings Cause Low Voltage?

Yes, but alternator winding failure should normally be considered after the simpler causes have been eliminated.

Possible faults include:

• Main stator winding problems
• Rotor field problems
• Exciter winding faults
• Insulation deterioration
• Shorted turns
• Loose or damaged internal connections

Winding problems may cause low voltage, voltage imbalance, overheating, abnormal current, or poor performance under load.

If the engine speed, load condition, AVR, sensing circuit, wiring, excitation system, and rotating diodes have been checked but the problem remains, further alternator testing may be necessary.

Winding resistance and insulation resistance testing require proper equipment and knowledge of the alternator winding configuration.

A simple resistance measurement does not always prove that a winding is healthy, especially when the expected resistance is very low.

For this reason, winding diagnosis belongs near the end of the troubleshooting process, not at the beginning.

Why Is Generator Voltage Normal at No Load but Low Under Load?

This is an important diagnostic difference.

A generator that already has low voltage at no load is not the same problem as a generator that reaches rated voltage with no load but cannot maintain it after load is applied.

If no-load voltage is normal but voltage drops significantly under load, possible causes include:

• Generator overload
• Engine speed dropping under load
• Poor engine response
• Low power factor
• Large motor starting current
• Unbalanced load
• Weak excitation
• AVR response problems
• Rotating diode problems
• Alternator capacity being too small for the actual load

Watch the frequency at the same time.

If voltage and frequency fall together, investigate engine speed and load first.

If frequency remains stable while voltage falls, pay more attention to the load characteristics, AVR, excitation system, and alternator.

Also distinguish between a temporary voltage dip and continuous low voltage.

A short voltage dip when a large motor starts can be normal within the limits of the generator system. Voltage that remains low after the load has stabilized indicates a different problem.

Can I Adjust the AVR to Fix Low Generator Voltage?

Sometimes, but only when the AVR voltage setting is actually the problem.

This is one of the troubleshooting mistakes we try to avoid.

The generator shows low voltage, so someone immediately turns the AVR voltage adjustment upward. The voltage increases, and the problem appears to be solved.

But increasing the voltage does not prove that the underlying fault has been repaired.

If the real problem is:

• Low engine speed
• Overload
• Incorrect AVR sensing
• Weak excitation
• A failed rotating diode
• An alternator fault

then increasing the AVR setting may only hide the symptom.

It may also demand more excitation from a system that already has a problem.

Our approach is simple:

Find out why the voltage is low first.

Then adjust the AVR only when the operating conditions and electrical checks show that the voltage setting itself is incorrect.

What If the Generator Produces Almost No Voltage?

Low voltage and no voltage are related, but they are not exactly the same troubleshooting problem.

If the alternator produces only a very small residual voltage or has completely lost its normal output, the diagnosis may shift toward:

• Loss of excitation
• Loss of residual magnetism
• AVR failure
• Excitation wiring problems
• Rotating diode failure
• Exciter faults
• Rotor or stator faults

In that situation, see our related guide:

Why Is My Diesel Generator Not Producing Voltage?

That guide follows the troubleshooting path for a generator that has lost its normal output voltage rather than one that is simply operating below its rated voltage.

When Should You Stop Troubleshooting and Call a Technician?

Some initial checks can be made without opening the alternator.

You can normally start by checking:

• Controller voltage reading
• Generator frequency
• Load percentage
• Whether voltage is low at no load or only under load
• Whether all three phase voltages are similar
• Visible external wiring and terminal condition, with the generator stopped and isolated

Further diagnosis may involve:

• Live terminal voltage measurements
• AVR sensing and excitation measurements
• Rotating diode testing
• Winding resistance testing
• Insulation resistance testing
• Alternator disassembly

These tests can expose technicians to dangerous AC and DC voltages.

If you are not trained to work on generator electrical systems, do not perform live measurements inside the alternator terminal box, AVR, or excitation system.

AVR and excitation designs also vary between alternator manufacturers and models. A test procedure that is correct for one alternator may not be correct for another.

Always use the correct wiring diagram and service procedure for the specific alternator and AVR.

How Can You Prevent Generator Low Voltage Problems?

Regular testing can identify many voltage problems before they become serious.

We recommend checking:

• Generator voltage and frequency during routine operation
• Voltage balance between phases
• Engine speed and frequency under load
• Load balance between phases
• AVR and alternator terminal connections
• Signs of overheating or loose wiring
• Generator performance at different load levels

A generator that starts and produces normal voltage with no load is not necessarily healthy under actual operating conditions.

This is why load testing is useful.

If voltage is normal at no load but begins to fall as load increases, testing the generator at controlled load steps can help separate an engine response problem from an AVR, excitation, alternator, or load problem.

For generators used in data centers, industrial facilities, telecom sites, construction projects, and other critical applications, periodic load testing can reveal problems that may never appear during a simple no-load test.

Resistive Load Bank 75-4000kW

Diesel Generator Load Bank Testing Procedure (Step-by-step Guide)

If you are troubleshooting persistent low voltage on a diesel generator, start with the generator frequency, no-load voltage, and the voltage and frequency behavior under load.

Low voltage with low frequency usually points first toward engine speed or load.

Low voltage with normal frequency makes the AVR, sensing circuit, excitation system, and alternator more important.

Normal no-load voltage followed by a significant voltage drop under load points more toward load characteristics, engine response, excitation performance, or generator capacity.

Only after these basic conditions are understood should you move deeper into AVR testing, rotating diodes, the exciter, and alternator windings.

If you need help narrowing down the fault, you can send us the generator model, alternator model, AVR model, rated voltage and frequency, and the voltage and frequency readings at no load and under load. These basic readings can usually help identify which part of the system should be checked next.
