Top 10 Best-Selling Chinese Generator Brands
Chinese diesel generators are popular in many countries in the world, nowadays China diesel generators with stable quality
√. Ruggedly constructed and designed for continuous outdoor/indoor operation
√. Complete capacity range from 75kW to 4000KW
√. Resistive load banks get CE approved
√. Wide range of nominal voltage and frequency
√. Optional multi-function intelligent controls
√. Remote, local, or the PC windows control
√. Custom designs available
√. Suited for harsh work conditions -10℃ to +50℃
√. 12 months of global warranty

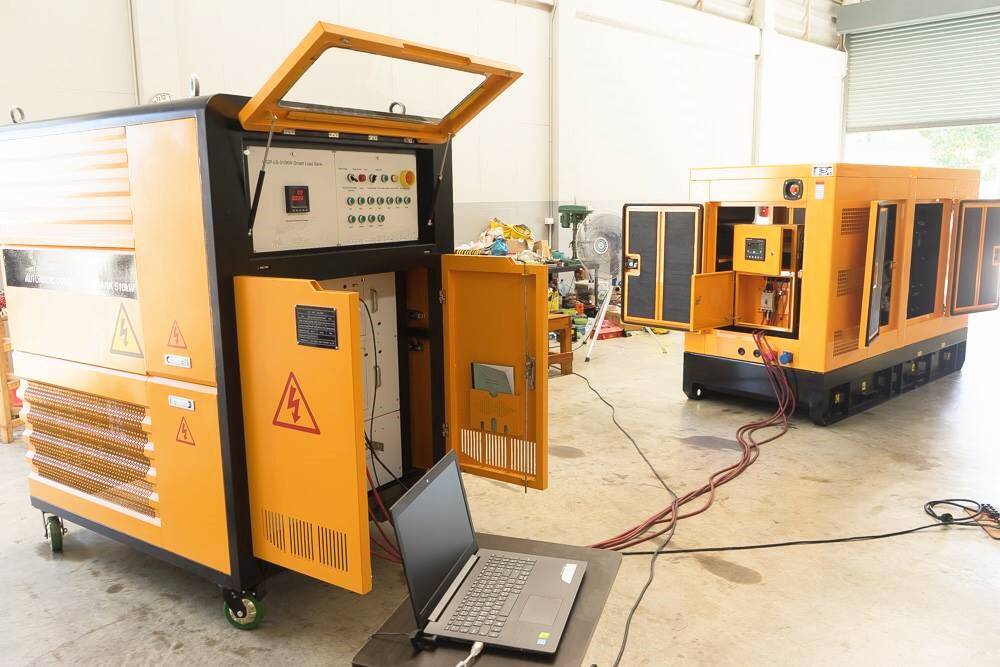

A load bank is a device that develops an electrical load, applies the load to an electrical power source, and converts or dissipates the resultant power output of the source. A load bank includes load elements with protection, control, metering, and accessory devices required for operation. Load banks are used for testing power sources such as standby generators and batteries.
Load banks are an important asset for any industry to have because they ensure the proper running of equipment in the event of power outages. Load banks are a contain system unit that integrates both controls and accessories into one installed location. The power source will supply the power, but the load bank uses this energy to protect and support the power source as well as test it.

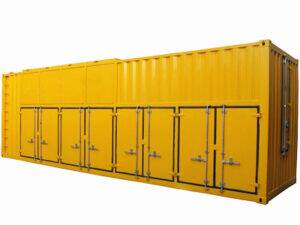

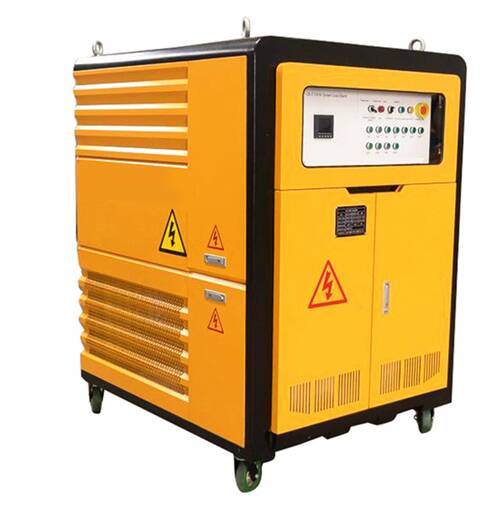

Load Bank Model | Maximum Power | Power Factor | Phase | Load Voltage | Load Frequency | Dimensions | Weight |
kW | Cos | V | Hz | mm | Kg | ||
WGP-LB-75KW | 75 | 1 | 1 or 3 | 220-415v | 50Hz | 570×860×770 | 75 |
WGP-LB-100KW | 100 | 1 | 1 or 3 | 220-415v | 50Hz | 570×860×770 | 85 |
WGP-LB-200KW | 200 | 1 | 1 or 3 | 220-415v | 50Hz | 1250×1540×1580 | 220 |
WGP-LB-300KW | 300 | 1 | 1 or 3 | 220-415v | 50Hz | 1250×1540×1580 | 450 |
WGP-LB-400KW | 400 | 1 | 1 or 3 | 220-415v | 50Hz | 1450×1975×1820 | 480 |
WGP-LB-500KW | 500 | 1 | 1 or 3 | 220-415v | 50Hz | 1450×1975×1820 | 780 |
WGP-LB-600KW | 600 | 1 | 1 or 3 | 220-415v | 50Hz | 1450×1975×1820 | 810 |
WGP-LB-700KW | 700 | 1 | 1 or 3 | 220-415v | 50Hz | 1450×1975×1820 | 830 |
WGP-LB-800KW | 800 | 1 | 1 or 3 | 220-415v | 50Hz | 1600×2430×2150 | 860 |
WGP-LB-900KW | 900 | 1 | 1 or 3 | 220-415v | 50Hz | 1600×2430×2150 | 1570 |
WGP-LB-1000KW | 1000 | 1 | 1 or 3 | 220-415v | 50Hz | 1600×2430×2150 | 1620 |
WGP-LB-1500KW | 1500 | 1 | 1 or 3 | 220-415v | 50Hz | 1600×2430×2150 | 1750 |
WGP-LB-2000KW | 2000 | 1 | 1 or 3 | 220-415v | 50Hz | 6050×2430×2595 | 4980 |
WGP-LB-4000KW | 4000 | 1 | 1 or 3 | 220-415v | 50Hz | 6050×2430×2595 | 8100 |
1. The specifications are subject to change without notice
2. The size parameters are subject to the kind
3. Send an email to sales@waltpower.com to get a detailed quote
Load Bank Model | Maximum Power | Power Factor | Phase | Load Voltage | Load Frequency | Dimensions | Weight |
kW | Cos | V | Hz | mm | Kg | ||
WGP-LB-75KW | 75 | 1 | 1 or 3 | 220-480v | 60Hz | 570×860×770 | 75 |
WGP-LB-100KW | 100 | 1 | 1 or 3 | 220-480v | 60Hz | 570×860×770 | 85 |
WGP-LB-200KW | 200 | 1 | 1 or 3 | 220-480v | 60Hz | 1250×1540×1580 | 220 |
WGP-LB-300KW | 300 | 1 | 1 or 3 | 220-480v | 60Hz | 1250×1540×1580 | 450 |
WGP-LB-400KW | 400 | 1 | 1 or 3 | 220-480v | 60Hz | 1450×1975×1820 | 480 |
WGP-LB-500KW | 500 | 1 | 1 or 3 | 220-480v | 60Hz | 1450×1975×1820 | 780 |
WGP-LB-600KW | 600 | 1 | 1 or 3 | 220-480v | 60Hz | 1450×1975×1820 | 810 |
WGP-LB-700KW | 700 | 1 | 1 or 3 | 220-480v | 60Hz | 1450×1975×1820 | 830 |
WGP-LB-800KW | 800 | 1 | 1 or 3 | 220-480v | 60Hz | 1600×2430×2150 | 860 |
WGP-LB-900KW | 900 | 1 | 1 or 3 | 220-480v | 60Hz | 1600×2430×2150 | 1570 |
WGP-LB-1000KW | 1000 | 1 | 1 or 3 | 220-480v | 60Hz | 1600×2430×2150 | 1620 |
WGP-LB-1500KW | 1500 | 1 | 1 or 3 | 220-480v | 60Hz | 1600×2430×2150 | 1750 |
WGP-LB-2000KW | 2000 | 1 | 1 or 3 | 220-480v | 60Hz | 6050×2430×2595 | 4980 |
WGP-LB-4000KW | 4000 | 1 | 1 or 3 | 220-480v | 60Hz | 6050×2430×2595 | 8100 |
1. The specifications are subject to change without notice
2. The size parameters are subject to the kind
3. Send an email to sales@waltpower.com to get a detailed quote
