If your diesel generator will not start, first check whether the engine is cranking. If the starter motor does not turn the engine, begin with the starting battery, electrical connections, emergency stop circuit, and controller start permissions. If the engine cranks normally but does not fire, investigate fuel delivery, air in the fuel system, fuel shutoff controls, and any engine-related alarms.

A diesel generator that refuses to start does not necessarily have a failed engine or starter motor. The same complaint can describe several completely different faults.

When we help customers troubleshoot starting problems at WALT POWER, the first question I want answered is simple: What exactly happens when you press Start?

That observation determines where the investigation should begin.

Diesel Generator Starting Failure: Quick Troubleshooting Table

What happens when you try to start?	Possible causes	What to check first
Nothing happens when Start is pressed	Controller not issuing a start request, emergency stop active, start inhibited, or control power problem	Controller display, active alarms, operating mode, and start permissions
A clicking sound is heard, but the engine does not turn	Weak battery, poor cable connections, starter relay, solenoid, or starter motor problem	Battery voltage during the start attempt and starter circuit connections
The engine cranks slowly	Low battery capacity, excessive voltage drop, starter problem, or mechanical resistance	Battery condition, cable terminals, and cranking voltage
The engine cranks at normal speed but does not fire	Insufficient fuel delivery, air in fuel lines, fuel shutoff problem, or engine control fault	Fuel supply, recent maintenance, and engine-related alarms
The engine starts briefly and then stops	Fuel supply interruption, shutdown protection, speed signal problem, or another engine fault	Recorded shutdown alarm and operating conditions
The controller displays "Fail to Start"	Engine did not reach the controller's required running condition within the configured starting sequence	Cranking behavior, fuel delivery, speed detection, and controller event history
The controller displays "Blocked for Start" or a similar message	A start condition or permission has not been satisfied	Exact alarm wording, controller configuration, and external interlock signals

This table identifies the next inspection, not a confirmed diagnosis. The actual fault must be established from the generator's behavior, controller records, and relevant measurements.

Step 1: Determine Whether the Engine Cranks

Before checking fuel filters or replacing electrical components, establish whether the starter motor is turning the engine.

There are two main starting-failure conditions:

• No-crank: The starter motor does not rotate the engine, or cannot rotate it properly.
• Cranking no-start: The starter motor rotates the engine, but combustion does not begin and the engine does not run.

A third condition is also worth separating: the engine starts successfully but shuts down shortly afterward.

These symptoms involve different parts of the generator system. Treating them as one problem often leads to unnecessary component replacement.

Step 2: What to Check When the Diesel Generator Will Not Crank

If the engine does not turn when a start command is given, I would begin with the electrical starting and control circuits.

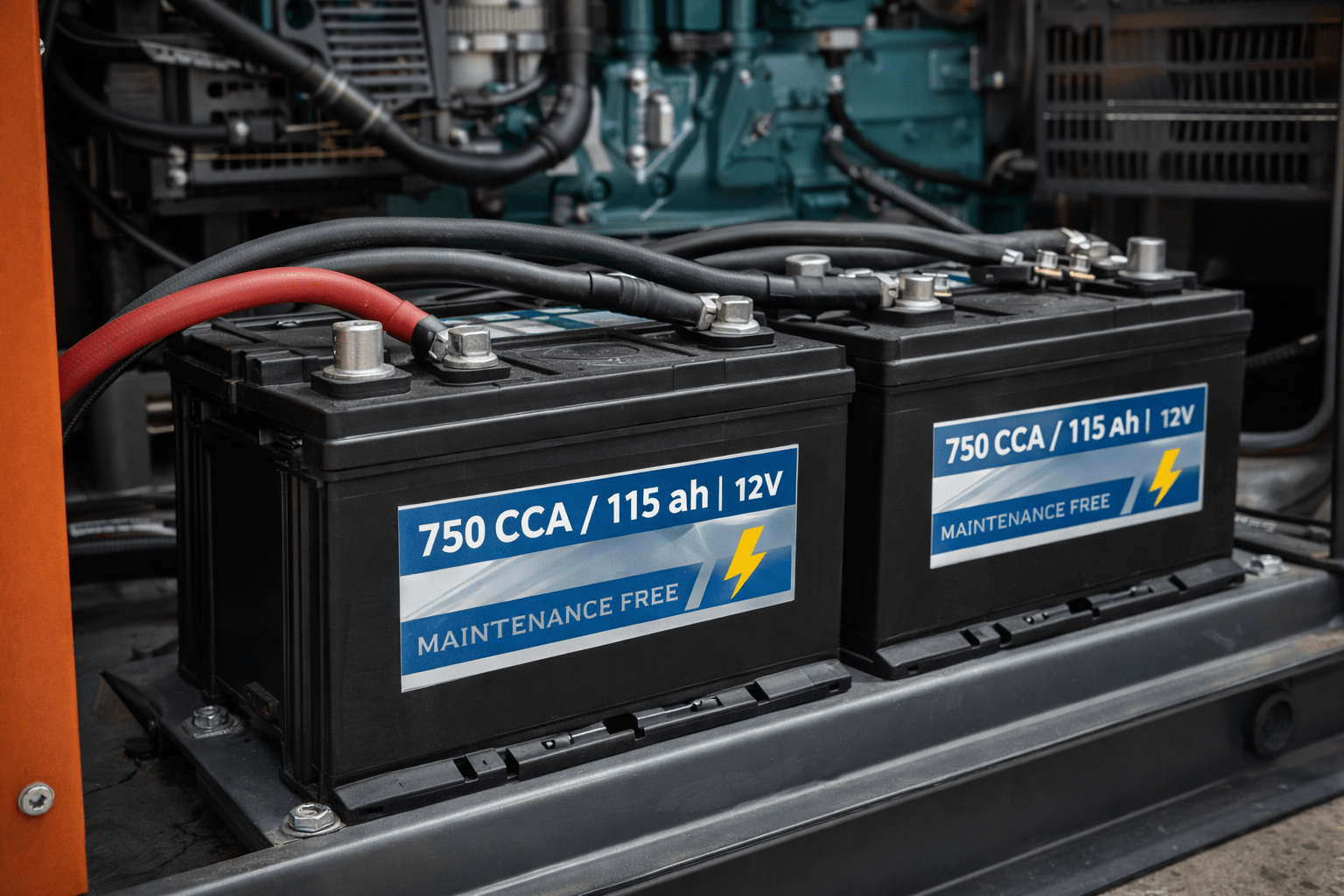

Check the Starting Battery and Cable Connections

Diesel generator sets commonly use 12V or 24V starting systems, depending on the engine and generator configuration.

A battery may show a reasonable voltage when the generator is idle but still be unable to supply sufficient current to the starter motor.

Check:

1. Whether the starting battery is properly charged.
2. Whether the battery terminals are clean and securely connected.
3. Whether the battery cables and grounding connections are in good condition.
4. Whether battery voltage drops excessively during an attempted start.
5. Whether the starter motor actually receives the required supply voltage when commanded.

A voltage reading taken with no load does not prove that the battery can crank the engine.

For example, if a generator has a 24V starting system, check the complete battery arrangement rather than assuming that both batteries are healthy because the overall voltage appears acceptable.

The correct cranking-voltage limits depend on the battery and engine manufacturer's specifications.

For more detail, see our article on diesel generator starting battery problems

Check the Emergency Stop and Controller Start Permissions

An emergency stop circuit can prevent a generator from starting.

Before attempting a reset, confirm that the emergency stop was not activated because of a genuine safety problem.

Then inspect the controller for:

• Active emergency stop indications.
• Shutdown alarms that require investigation or acknowledgment.
• External start-inhibit or interlock signals.
• Incorrect operating mode.
• Missing start permissions from the control system.

A generator in Auto mode may also behave differently from one receiving a manual start command.

An automatic start request is not the same as permission to crank the engine.

For example, an ATS may request the generator to start, but a controller input, safety interlock, or active shutdown condition may prevent the starting sequence.

The precise behavior depends on the controller model, wiring, and configuration.

Check Whether the Controller Is Actually Commanding the Starter

If the battery and controller conditions appear normal, the next question is whether the start command reaches the starter circuit.

The control sequence generally involves:

1. A start request.
2. Verification of required starting conditions.
3. Activation of the configured starter output.
4. Operation of the starter relay or solenoid.
5. Starter motor engagement and engine cranking.

A failure at any point can produce a no-crank condition.

A qualified technician can use the wiring diagram and appropriate measurements to distinguish between a missing controller output, a faulty relay, an open circuit, and a starter motor problem.

Do not replace the starter motor simply because the engine does not crank.

Step 3: What to Check When the Engine Cranks but Won't Start

If the starter motor turns the engine at a normal speed but the engine does not fire, the diagnosis moves away from the basic cranking circuit.

The engine needs the correct fuel delivery, combustion conditions, and any required electronic permissions to start.

Check the Fuel Supply

Start with the simplest questions:

• Is there sufficient diesel in the tank?
• Is the fuel supply valve open?
• Is the fuel filter blocked?
• Are there visible leaks or damaged fuel lines?
• Has the generator recently run out of fuel?
• Was the fuel filter or another fuel-system component recently replaced?

If the engine cranks but fuel is not reaching the injection system correctly, repeated starting attempts will not solve the underlying problem.

One practical point from our technical support work is that the timing of the failure matters.

If a generator worked normally before a fuel-filter replacement but will not start afterward, I would investigate the fuel-system service procedure before assuming an unrelated component has failed.

Check for Air in the Fuel System

Air entering the low-pressure fuel system can interrupt fuel delivery and prevent a diesel engine from starting.

This is particularly relevant after:

• Running the fuel tank empty.
• Replacing fuel filters.
• Disconnecting fuel lines.
• Performing maintenance on the fuel supply system.

Some engines use a manual priming pump and designated bleed points. Others use an electric priming system or a different manufacturer-specified procedure.

How to Check and Prime the Fuel System

For an engine equipped with a manufacturer-approved manual priming arrangement:

1. Stop the generator and prevent an unexpected automatic start.
2. Confirm that the fuel tank contains clean diesel and the supply valve is open.
3. Locate the specified priming pump and low-pressure bleed point using the engine service manual.
4. Follow the manufacturer's procedure to remove air from the low-pressure fuel circuit.
5. Close and secure the bleed point as instructed.
6. Inspect for fuel leakage before attempting another start.

Do not loosen high-pressure injection pipes or common-rail components to remove air. High-pressure diesel fuel can penetrate skin and cause serious injury.

Not every diesel engine uses the same bleeding procedure. If the engine has an electronic common-rail system, follow its specific priming instructions rather than applying a procedure intended for a mechanical injection engine.

Check the Fuel Shutoff Solenoid or Electronic Fuel Control

Some mechanically governed diesel engines use a fuel shutoff solenoid that must operate correctly for fuel injection to occur.

Depending on the engine design, the solenoid may be energized to run or energized to stop.

A failed solenoid, incorrect control signal, damaged wiring, or mechanical linkage problem may prevent starting.

Electronic engines may instead rely on an ECU and electronically controlled injection system.

For this reason, do not assume every diesel generator has the same fuel shutoff arrangement.

Before testing or replacing a component, identify the engine model and consult its electrical diagram.

Check Engine Speed Detection and ECU Alarms

On electronically controlled engines, missing speed information, an engine protection condition, or an ECU-related fault may affect starting.

The generator controller may also use speed, frequency, or other configured signals to determine whether the engine has started successfully.

If the engine fires but the controller does not recognize a valid running condition, the displayed fault may not tell the whole story.

Check the actual engine behavior together with the controller's event history and the engine ECU's diagnostic information, where available.

For a more focused discussion, see Why Does a Diesel Generator Crank But Won't Start?

Step 4: What Does "Fail to Start" Mean on a Diesel Generator Controller?

A Fail to Start alarm generally means the generator did not achieve the controller's required running condition during its configured starting sequence.

However, this message does not identify one specific defective component.

Depending on the controller configuration, the engine may:

• Never crank because the starter circuit failed.
• Crank normally without firing.
• Fire briefly but fail to establish a recognized running condition.
• Exhaust the permitted number of starting attempts.

The controller may then stop further attempts and record a start-failure alarm.

The important question is not simply whether the alarm appears. It is what the engine and starter actually did before the alarm was triggered.

At WALT POWER, I would want the controller model, exact alarm message, and a short description or video of the starting attempt before recommending a particular repair.

For further details, read Why Does My Diesel Generator Say "Failure to Start"?

Step 5: What Does "DG Blocked for Start" Mean?

"DG Blocked for Start" or similar wording generally indicates that a generator start is being inhibited.

The exact meaning depends on the controller, system configuration, and the source of the message.

Possible reasons include:

• An active shutdown or emergency stop condition.
• A configured start-inhibit input.
• An external interlock that has not been satisfied.
• A required engine or control-system condition that is missing.
• A start restriction imposed by the installation's automation logic.

Do not interpret this message as proof that the battery, starter motor, or fuel system has failed.

First identify:

1. The controller manufacturer and model.
2. The exact message shown on the display.
3. Any additional active alarms.
4. Whether the generator is in Manual, Auto, or another configured mode.
5. Whether the start request is coming from the controller, ATS, or an external system.

A Deep Sea Electronics controller, a ComAp controller, and a SmartGen controller may use different alarm descriptions and control logic.

The controller manual and the actual wiring configuration should determine the next diagnostic step.

Step 6: What If the Generator Starts and Then Stops?

A generator that starts but shuts down after a few seconds should not automatically be treated as a cranking no-start problem.

The engine has already demonstrated that it can begin running.

The investigation should focus on why operation cannot be sustained or why a shutdown command is being issued.

Possible areas include:

• Fuel supply interruption.
• An active engine protection alarm.
• Oil pressure not reaching the required condition.
• A missing or incorrect engine-running signal.
• An ECU shutdown command.
• A configured external stop or interlock.

Check the actual shutdown message and event sequence.

Never bypass a low-oil-pressure shutdown or another safety protection merely to keep the generator running.

The cause of the shutdown must be identified before the generator is returned to service.

Step 7: How to Reset a Diesel Generator After a Starting Failure

Resetting the controller may clear a latched alarm, but it does not repair the fault that caused it.

Before resetting:

1. Record the displayed alarm and relevant event history.
2. Determine whether the alarm resulted from a failed starting attempt or a genuine protection condition.
3. Correct the identified problem.
4. Confirm that the generator is safe to restart.
5. Follow the controller manufacturer's reset procedure.

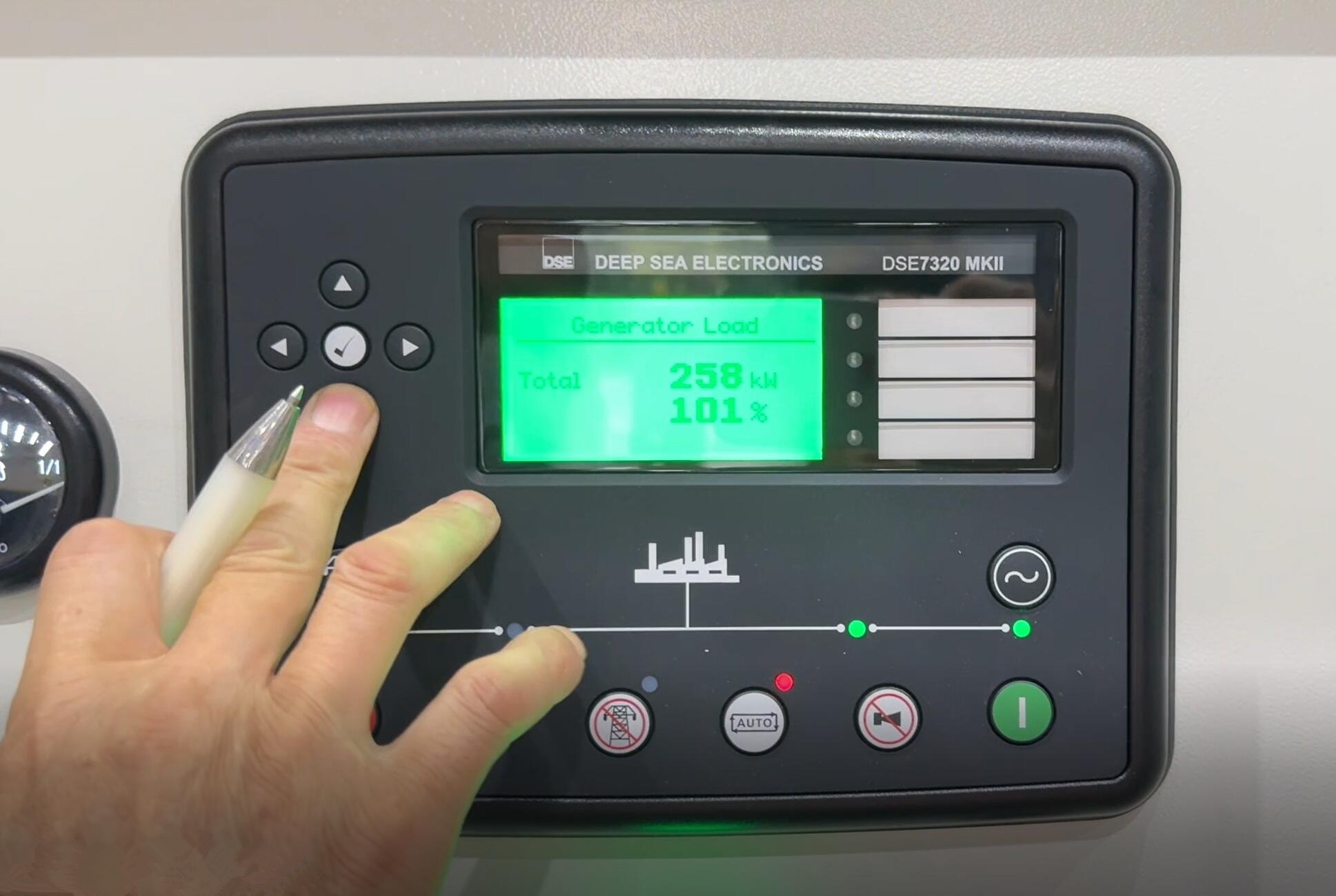

For many Deep Sea Electronics controllers, the Stop/Reset control is involved in acknowledging or clearing eligible alarms. However, the exact behavior depends on the controller model, operating mode, and whether the fault condition remains active.

A reset should never be used as a substitute for diagnosis.

If the same alarm returns, investigate the original fault rather than repeatedly attempting to start the engine.

How We Approach Generator Starting Problems at WALT POWER

When a customer contacts us because a diesel generator will not start, I prefer to establish the fault symptoms before discussing replacement parts.

The first information I would request is:

• Generator and engine model.
• Controller model.
• Exact alarm message, if any.
• Whether the starter motor turns the engine.
• Whether the engine fires briefly or does not fire at all.
• Whether the problem appeared after maintenance, fuel depletion, or a period of inactivity.
• Whether the failure occurs in Manual mode, Auto mode, or both.

A clear photograph of the controller display and a short video of the starting attempt can also be useful.

This information helps us distinguish between a control problem, an electrical starting problem, and an engine fuel-delivery problem.

It also reduces the risk of sending an unnecessary replacement component.

For example, replacing a starter motor will not solve a missing start-permission signal. Likewise, replacing a controller will not correct air trapped in the engine's fuel system.

The objective is to identify the failed part of the starting sequence before deciding what needs to be repaired.

How to Prevent Diesel Generator Starting Failures

Regular inspection and maintenance can reduce the risk of starting problems, particularly for standby generators that remain unused for long periods.

Maintain the Starting Battery

Inspect battery condition, charging arrangements, terminals, and cable connections.

For standby installations, verify that the battery charger is functioning correctly and that the battery can provide sufficient cranking power.

Maintain the Fuel System

Use clean diesel fuel, inspect for water contamination, and replace filters according to the engine manufacturer's maintenance schedule.

After fuel-system maintenance, complete the specified priming procedure before returning the generator to service.

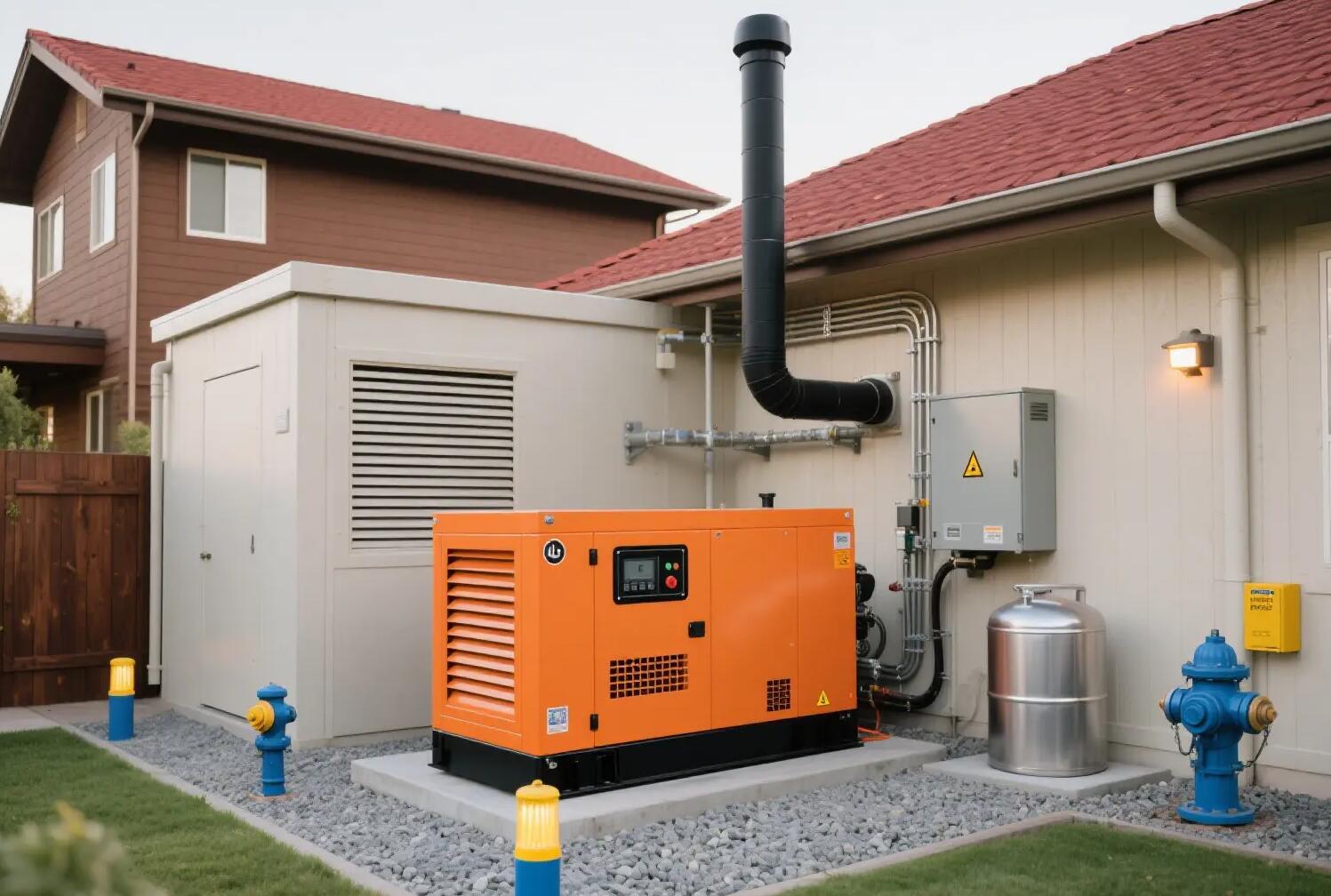

Exercise the Generator Regularly

A standby generator should be tested at an appropriate interval under the recommendations of the engine manufacturer and the site's maintenance plan.

An automatic exercise function can help verify that the generator responds to a scheduled start request.

However, a successful no-load start does not prove that the generator can carry its required electrical load.

Periodic testing under an appropriate load may also be necessary.

Review Controller Alarms and Operating History

Check whether the controller has recorded recurring start failures, low battery voltage, or other abnormal conditions.

Repeated alarms should be investigated rather than routinely cleared.

Test the Complete Standby Power System

Where the generator operates with an ATS, confirm that the automatic start request, generator operation, and transfer sequence function as intended.

The test procedure should account for the installation's safety requirements and the consequences of transferring connected loads.

Conclusion

When a diesel generator will not start, the most useful first step is to identify its actual behavior.

If the engine does not crank, investigate the battery, starter circuit, controller outputs, and start permissions. If the engine cranks but does not fire, investigate fuel delivery, air in the fuel system, and engine control conditions.

If the engine starts and then stops, examine the shutdown alarm and operating sequence instead of treating it as an ordinary no-start condition.

From a manufacturer's perspective, good troubleshooting is not about replacing the most likely component first. It is about following the starting sequence, identifying where it stops, and confirming the cause before carrying out repairs.
