12 Tips to Help You Use Diesel Generator Better in Cold Weather/Area

Table of Contents

Short Answer: To operate a diesel generator reliably in cold weather, check the battery and starting system, use fuel and engine oil suitable for the expected temperature, verify coolant freeze protection, and confirm that the necessary engine heaters are installed and working. A generator that starts successfully must also be able to warm up and accept the required electrical load.

At WALT POWER, we recommend treating cold-weather generator preparation as an equipment configuration and maintenance issue, not simply a matter of starting the engine more frequently.

Below are 12 practical checks for diesel generator operators, maintenance teams, and buyers working in low-temperature environments.

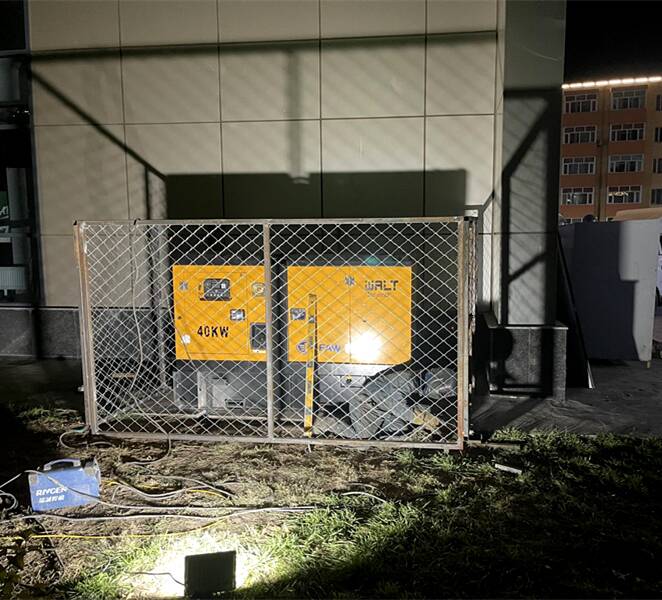

WALT POWER 40kW diesel generator for a cold-weather application

1. Choose the Right Generator Size and Cold-Weather Configuration

When selecting a diesel generator for a cold climate, I recommend checking two things separately: the electrical load and the generator's ability to start and operate at the site's minimum ambient temperature.

Cold weather does not automatically mean you need a generator that is 10% or 15% larger.

However, winter operation may introduce additional electrical loads, including engine heaters, battery chargers, building heating equipment, and other auxiliary systems. These loads should be included in the overall electrical load calculation where applicable.

Generator capacity should also account for motor starting requirements, load steps, and any derating specified by the engine or alternator manufacturer.

For example, if a project requires 30kW of electrical power, we would first review the actual load profile and starting sequence rather than automatically recommend a 35kW or 40kW generator.

For cold-weather applications, the equipment configuration can be just as important as its rated output.

Depending on the project, suitable accessories may include:

  • Jacket water heater or coolant pre-heater
  • Battery heater or battery heating blanket
  • Fuel heater or fuel-water separator heating arrangement
  • Automatic ventilation louvers suitable for the installation

These accessories are selected according to the engine, operating temperature, and installation requirements. They are not automatically included with every generator.

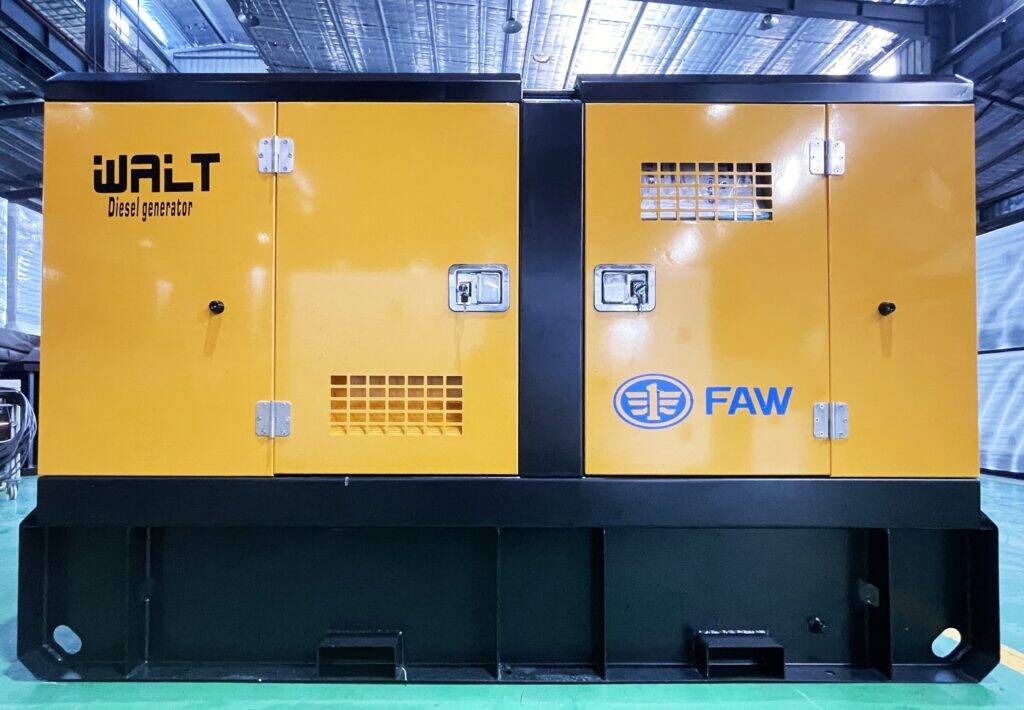

WALT POWER 40kW diesel generator supplied for a low-temperature application

2. Check the Diesel Fuel Before Temperatures Drop

Diesel fuel can become difficult to pump and filter at low temperatures because wax crystals may form as the fuel cools.

This can restrict fuel flow, block filters, and prevent the engine from starting or running normally.

For cold-weather generator operation, the fuel must be suitable for the lowest expected ambient temperature.

Important fuel properties include:

  • Cloud point: The temperature at which wax crystals first become visible under the specified test conditions.
  • Cold Filter Plugging Point (CFPP): An indication of the fuel's ability to pass through a standardized filter under low-temperature conditions.
  • Fuel grade and applicable specification: These should be confirmed with the local fuel supplier and engine manufacturer.

Depending on the market, winter-grade diesel or an appropriate low-temperature diesel blend may be required.

In North America, ASTM D975 is one of the relevant diesel fuel specifications. However, the fuel grade alone does not establish suitability for every extreme-cold application.

I would not recommend choosing a fuel additive without checking its compatibility with the engine and the actual fuel being used.

Also inspect the fuel tank for water contamination and make sure the fuel filters and water separator are maintained according to the engine manufacturer's instructions.

3. Check the Radiator and Coolant System

For a water-cooled diesel generator, coolant freeze protection is essential.

If the coolant freezes, it can damage the radiator, engine block, hoses, or other cooling system components.

Before winter, check:

  • Coolant concentration and freeze protection level
  • Coolant condition and service history
  • Radiator hoses and connections
  • Coolant leaks
  • Jacket water heater operation, if installed

Use coolant that meets the engine manufacturer's specification. Do not assume that adding more antifreeze always improves protection or cooling performance.

A jacket water heater can help maintain engine coolant temperature while the generator is on standby. This can improve starting readiness and reduce the time needed for the engine to reach a suitable operating condition.

However, the heater must be correctly sized, installed, powered, and maintained.

4. Check the Generator Controller's Operating Temperature

A generator controller must be suitable for the temperature conditions in which it is installed.

At WALT POWER, we use controllers from manufacturers including Deep Sea Electronics and SmartGen.

For cold-weather projects, we check the operating temperature specification of the selected controller model rather than assume every controller has the same low-temperature capability.

A controller suitable for low ambient temperatures can continue monitoring the generator, processing start requests, and operating its configured control outputs within its specified limits.

But there is an important distinction:

A low-temperature controller does not, by itself, make a diesel engine capable of cold starting.

Successful starting also depends on battery condition, starter performance, engine oil viscosity, fuel supply, and the engine's required starting aids.

If an automatic start fails, check the control sequence systematically:

  1. Did the controller receive the start request?
  2. Were the required start permissions satisfied?
  3. Did the controller issue the crank command?
  4. Did the starter actually crank the engine?
  5. Did the engine reach the required starting speed and begin running?

This approach helps distinguish an electrical control problem from a mechanical or fuel-related starting problem.

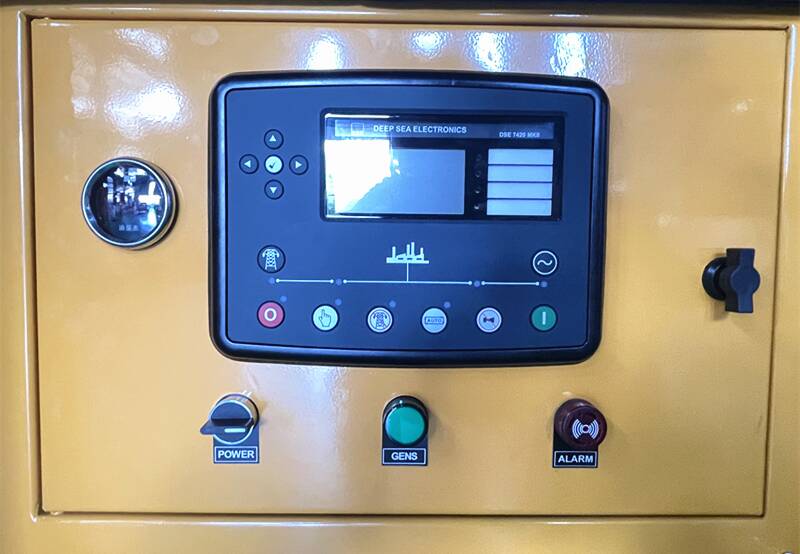

WALT POWER diesel generator control panel equipped with a Deep Sea controller

5. Use Engine Oil Suitable for Low Temperatures

Engine oil becomes more viscous as temperatures fall. If the oil is too thick, the starter may struggle to crank the engine, and lubrication during starting can be affected.

The correct engine oil viscosity must be selected from the engine manufacturer's recommendations for the expected ambient temperature.

For example, different engines may specify different SAE viscosity grades depending on temperature, operating conditions, and oil specification.

Do not assume that 5W-30, 10W-30, or any other grade is suitable for every diesel generator.

The oil must also meet the applicable engine performance specification.

Synthetic oils may offer advantages in some low-temperature applications, but compatibility and approval by the engine manufacturer remain essential.

For an industrial generator expected to start automatically during winter, I recommend confirming the engine oil specification before the cold season rather than waiting until a starting problem occurs.

6. Inspect the Starting Battery and Charging System

Cold temperatures reduce the available performance of lead-acid starting batteries, while the engine may require greater cranking effort because of increased oil viscosity.

This combination makes battery condition particularly important.

Before winter, inspect:

  • Battery state of charge and condition
  • Battery terminals and cable connections
  • Battery charger operation
  • Starting cable condition
  • Battery heating equipment, if installed

A battery can appear adequately charged but still fail to deliver sufficient cranking current under cold conditions.

For standby generators, the battery charger should be checked regularly, particularly when the generator remains unused for extended periods.

Where extremely low temperatures are expected, a suitable battery heater may be considered.

The battery type, capacity, charger, and heating arrangement must be compatible with the engine starting system.

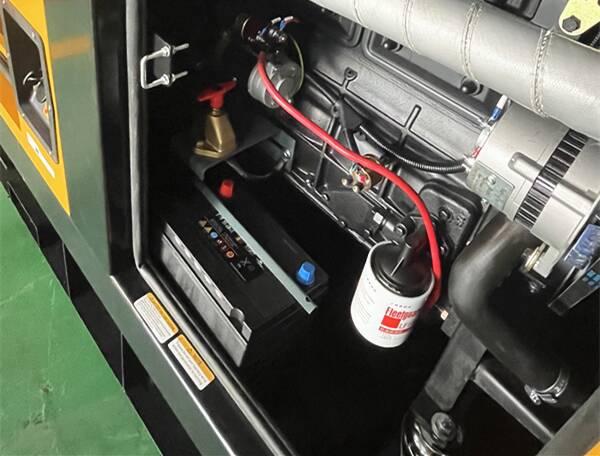

Starting battery installed in a WALT POWER diesel generator

7. Keep the Air Intake, Radiator and Exhaust Clear

Snow, ice, leaves, and other obstructions can restrict generator ventilation.

Before starting a generator in winter, inspect the surrounding area and confirm that:

  • The combustion air intake is unobstructed.
  • The radiator cooling air path is clear.
  • The exhaust outlet is not blocked by snow or ice.
  • Ventilation louvers and dampers operate correctly.
  • The installation has adequate clearance for safe operation and maintenance.

For generators installed inside dedicated generator rooms, ventilation and exhaust arrangements must follow the equipment manufacturer's requirements and applicable local regulations.

Do not attempt to improve winter operation by blocking the cooling air inlet or exhaust outlet.

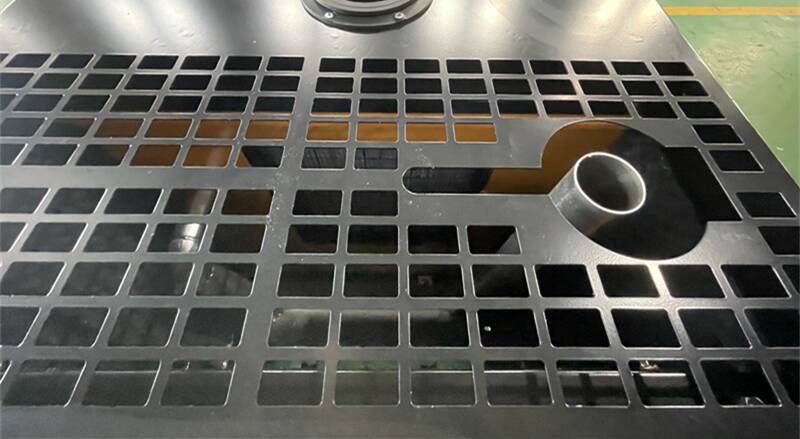

Exhaust pipe arrangement on a WALT POWER diesel generator

8. Confirm the Generator Installation Is Safe

Generator installation requirements depend on the equipment type.

Portable generators intended for outdoor use must not be operated inside homes, garages, or other enclosed spaces because of the risk of carbon monoxide poisoning.

Industrial diesel generators, however, may be installed in properly engineered generator rooms with suitable ventilation, combustion air supply, exhaust discharge, fire protection, and maintenance access.

For outdoor installations in cold climates, check whether the enclosure and its components are suitable for snow, ice, wind, and the expected ambient temperature.

For indoor industrial installations, pay particular attention to:

  • Exhaust routing and discharge location
  • Combustion and cooling air requirements
  • Automatic ventilation louver operation
  • Fuel system installation
  • Fire and electrical safety requirements

The installation must comply with applicable local codes and the manufacturer's instructions.

9. Inspect the Generator Before Starting

A visual and functional inspection can prevent avoidable starting failures.

Before operating the generator in cold weather, check the engine oil level, coolant level, fuel supply, battery connections, and any visible leaks.

If the generator is equipped with a jacket water heater or other starting aids, confirm that they are operating correctly.

For an automatic standby generator, also check whether the controller is in the correct operating mode and whether any active alarms or shutdown conditions are preventing starting.

If the generator does not start, do not repeatedly crank the engine without investigating the cause.

Excessive cranking can discharge the battery and place additional stress on the starting system.

10. Allow the Engine to Warm Up According to Manufacturer Instructions

A cold diesel engine may need time to stabilize before accepting substantial electrical load.

The required warm-up procedure depends on the engine model, ambient temperature, starting aids, and operating requirements.

For standby generators, a jacket water heater can help maintain engine temperature before starting.

However, this is different from warming the engine by running it without load.

Avoid prolonged no-load operation unless it is specifically required by the engine manufacturer.

For generators with automatic transfer switches, the controller and ATS sequence should be configured according to the project requirements.

The controller may start the generator and wait for acceptable generator voltage and frequency before issuing or enabling the transfer sequence. Actual transfer depends on the ATS design, its control logic, and the necessary interlocks and feedback.

The warm-up delay, where used, should be based on the engine manufacturer's recommendations and the installation's operational needs.

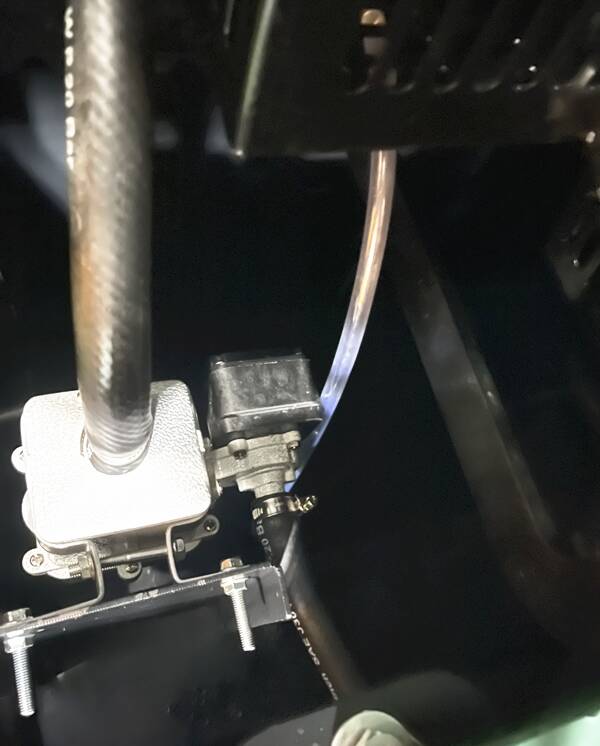

Jacket water heater used with a WALT POWER diesel generator

11. Maintain the Generator Throughout the Cold Season

Cold-weather preparation is not a one-time task.

During winter, regularly check the generator's operating condition and maintain it according to the engine and generator manufacturer's service schedule.

Key Maintenance Tasks

  • Check engine oil and coolant condition.
  • Inspect fuel filters and the fuel-water separator.
  • Confirm battery charger operation and battery condition.
  • Inspect heaters and their electrical connections.
  • Check the radiator, ventilation openings, and exhaust outlet.
  • Investigate fuel, oil, or coolant leaks.
  • Review controller alarms and operating records.
  • Check for corrosion, loose connections, and damaged components.

If the generator is installed in a remote location, remote monitoring can help maintenance personnel identify alarms or abnormal operating conditions.

However, remote monitoring does not replace physical inspection and scheduled maintenance.

12. Exercise the Diesel Generator Periodically

A standby diesel generator should be exercised according to the engine manufacturer's instructions and the site's maintenance requirements.

Periodic exercise helps verify that the starting system, engine, controller, and other essential components are functioning.

However, starting the engine briefly without applying a suitable load does not demonstrate that the generator can supply its rated electrical output.

Prolonged operation at very low load can also contribute to wet stacking and other operating problems in some diesel engines.

For industrial standby generators, we recommend establishing a maintenance and testing schedule that considers:

  • Starting reliability
  • Operating temperature
  • Electrical load
  • Generator voltage and frequency
  • Alarm and shutdown functions
  • ATS operation, where installed

A suitable load bank can be used when the facility cannot provide the required testing load.

At WALT POWER, we also manufacture resistive load banks for generator testing and maintenance applications.

The test load, duration, and procedure should follow the engine and generator manufacturer's requirements.

Final Advice: Prepare the Complete Generator System for Cold Weather

Reliable cold-weather operation depends on more than the diesel engine alone.

The fuel, engine oil, coolant, starting battery, controller, heaters, ventilation system, and electrical load requirements must work together.

When selecting a diesel generator for a low-temperature location, I recommend confirming the following information with the supplier:

  • Minimum expected ambient temperature
  • Required prime or standby power
  • Voltage and frequency
  • Automatic or manual starting requirements
  • Installation type and site conditions
  • Required cold-weather accessories

At WALT POWER, we review these conditions when preparing generator configurations for customers operating in demanding environments.

If you need a diesel generator for a cold-weather project, contact WALT POWER with your application requirements so we can review a suitable configuration.
